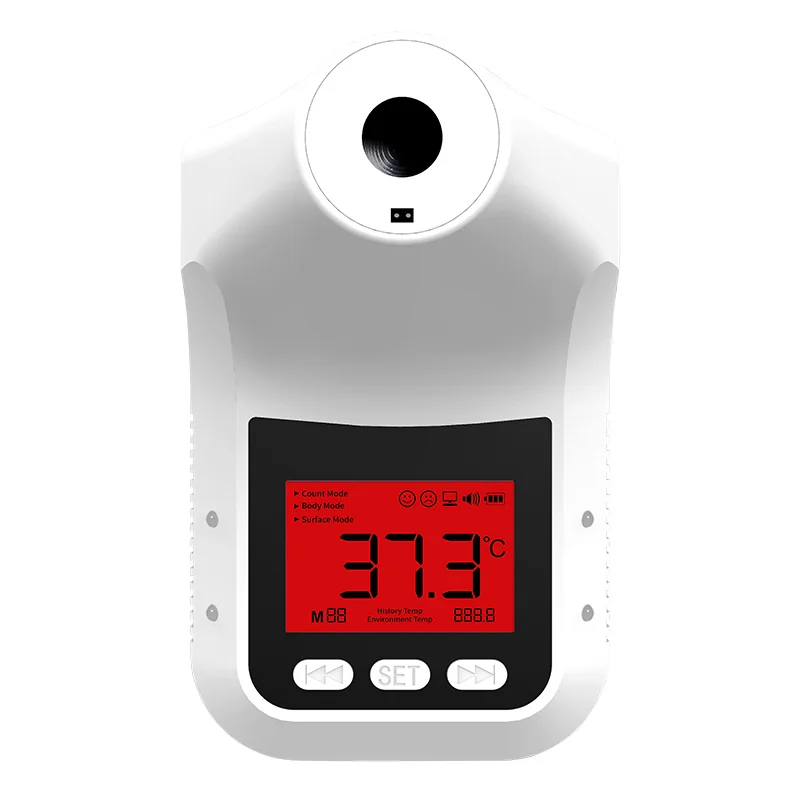

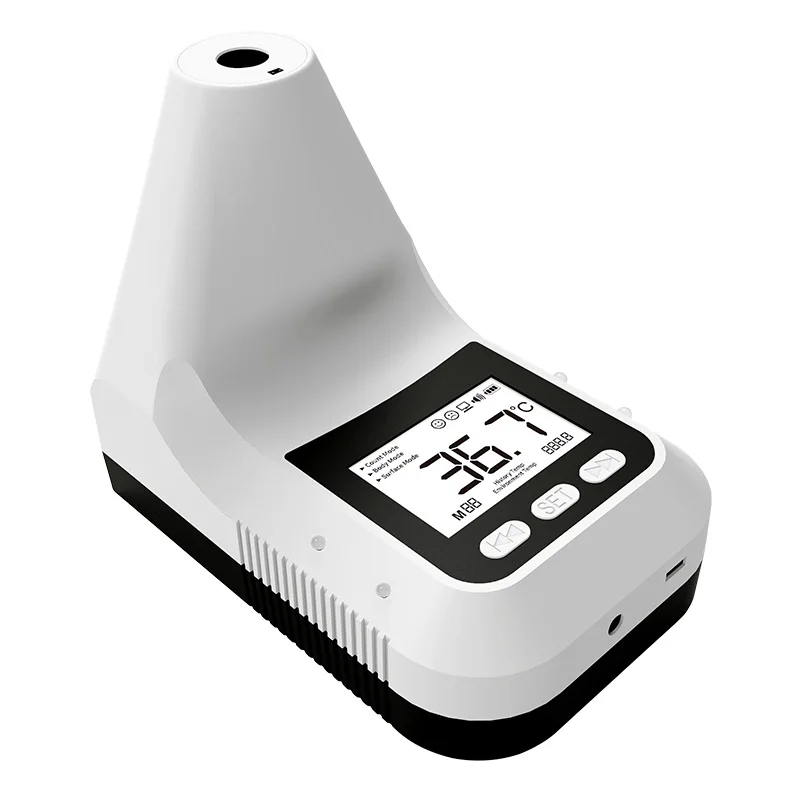

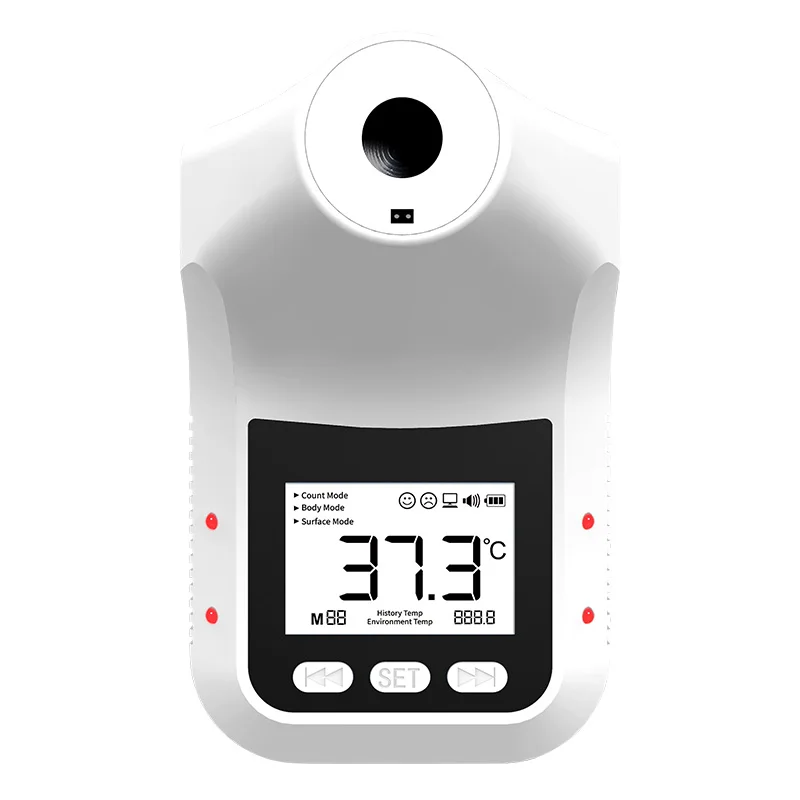

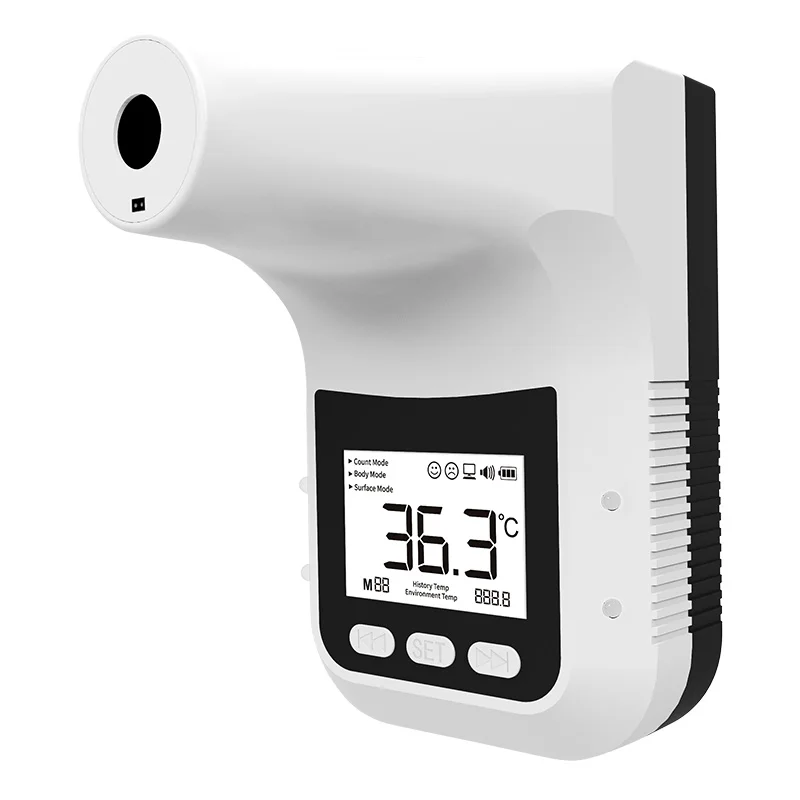

Body temperature measuring instruments detect equipment sensors k3 pro

Share on (1600102719664):


Price:

Quantity:


Product Overview

Description



Product Description

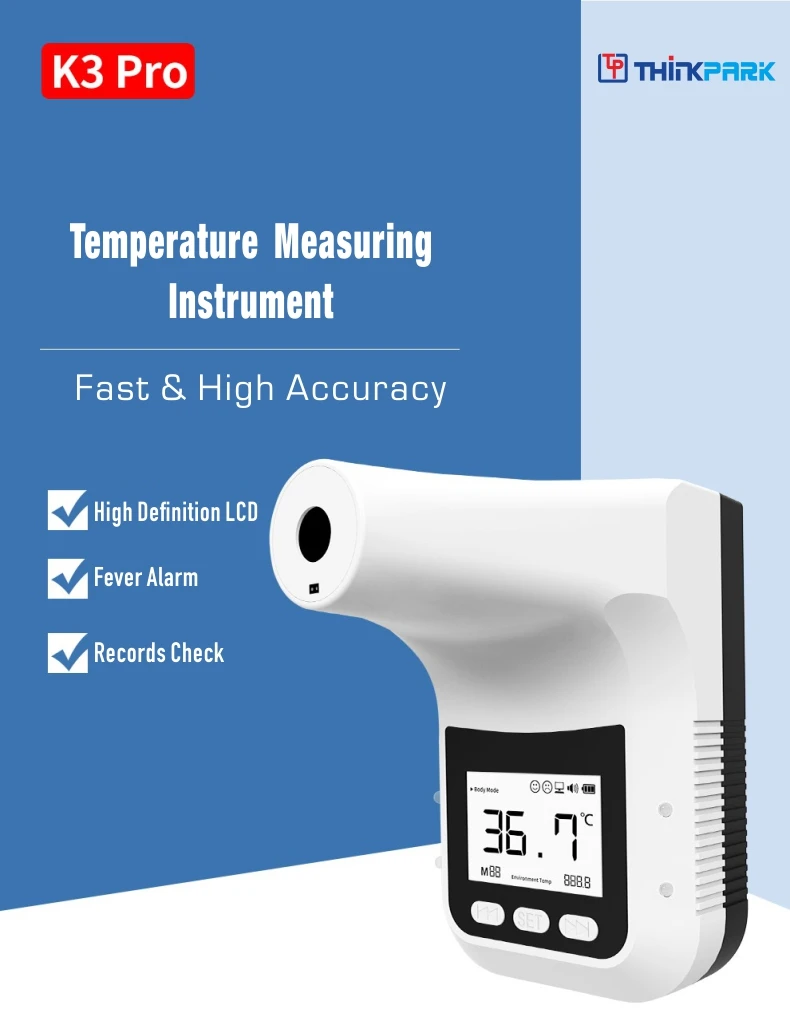

K3 PRO, an updated fixed Non-contact automatic measurement tool, It's different from traditional instrument with photosensitive distance sensor , no need holding with hands; high accuracy, fast passing speed(50 people/min), simple operation with 2.8'' LCD, 9999 counting times, 30 sets of data review; can be connected to USB power bank or powered by 4AA battery(no need use screwdriver to open the cover) with super lower power standby; Fever alarm threshold canbe set by yourself. A wide range of application scenario, such as office / Subway / Home/ Supermarket / Shop / Community / Bus/ Train Stations/ School, Entrance etc.





Detailed features

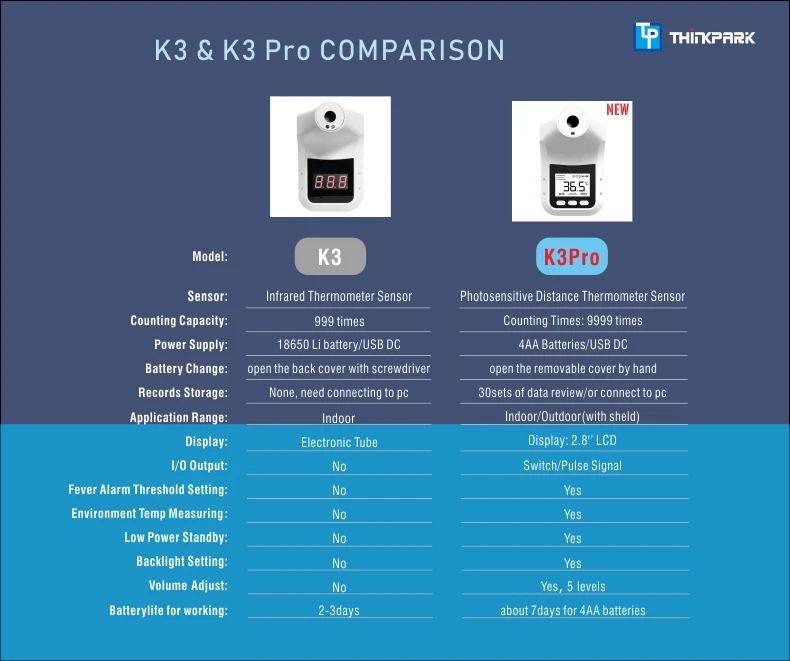

 k3pro&k3 compare790


 K3ProK3Pro2

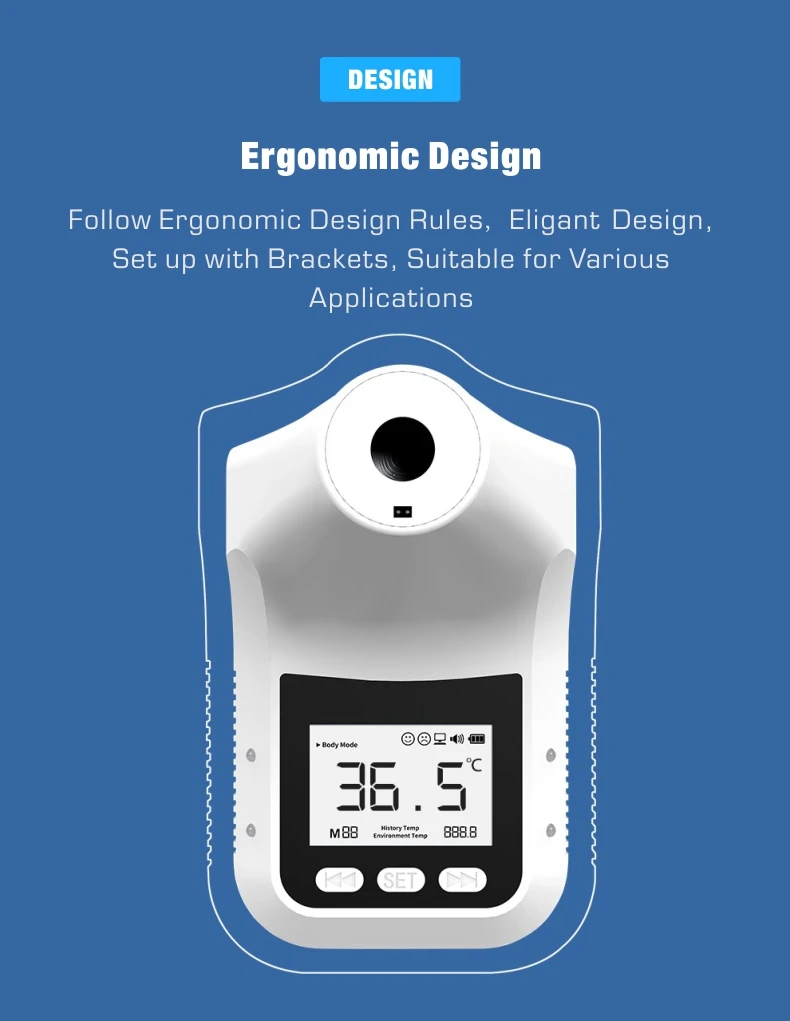

K3Pro4


K3Pro5K3Pro6


K3Pro7


K3Pro8








Specification

































































































































Measurement techniques



Non contact automatic Temperature Measuring Instrument



Method of measurement



Sensitivity sensor, distance sensor



Temperature Unit



/



Accuracy



±0.2 (34~45℃)



Measuring distance



5 ~ 10 cm



Display



2.8-inch LCD screen



Install Method



Nail hook/bracket fixing



Power supply



USB /4 AA batteries



Response time



0.5s



Working band



5 microns



Standby time



30 s



Product Size



170*115*140mm



Net weight



303g



Operating mode



Surface mode /body mode / Count mode



Range of Body Mode temperature



35--42℃



Environment temperature



10--40℃



Counting capacity



9999 times



Record temperature data



Support to review 30 sets of data



Alarm Function



Flash+sound alarm for about 10 seconds



IO signal output



Support(switch signal / pulse signal)



Body storage



Support



Environment temperature measurement



Support(continuous refresh measurement)



Volume setting



Support(five levels of volume setting)



Backlight switch



Support



Upper alarm limit



Support(37--38℃)



Connect to the computer



Support



Voice broadcast



Support



Automatic shut-down



Support



Whether to support charging



Not support



Whether to support outdoor measurement



Support (not under direct light)






1. Non-contact, no need to hold, to avoid cross infection.


2. Using new chip, the induction time is faster (0.5s), the pass rate is greatly improved (50 people /min).


3. High temperature measurement accuracy:±0.2 (34~45)

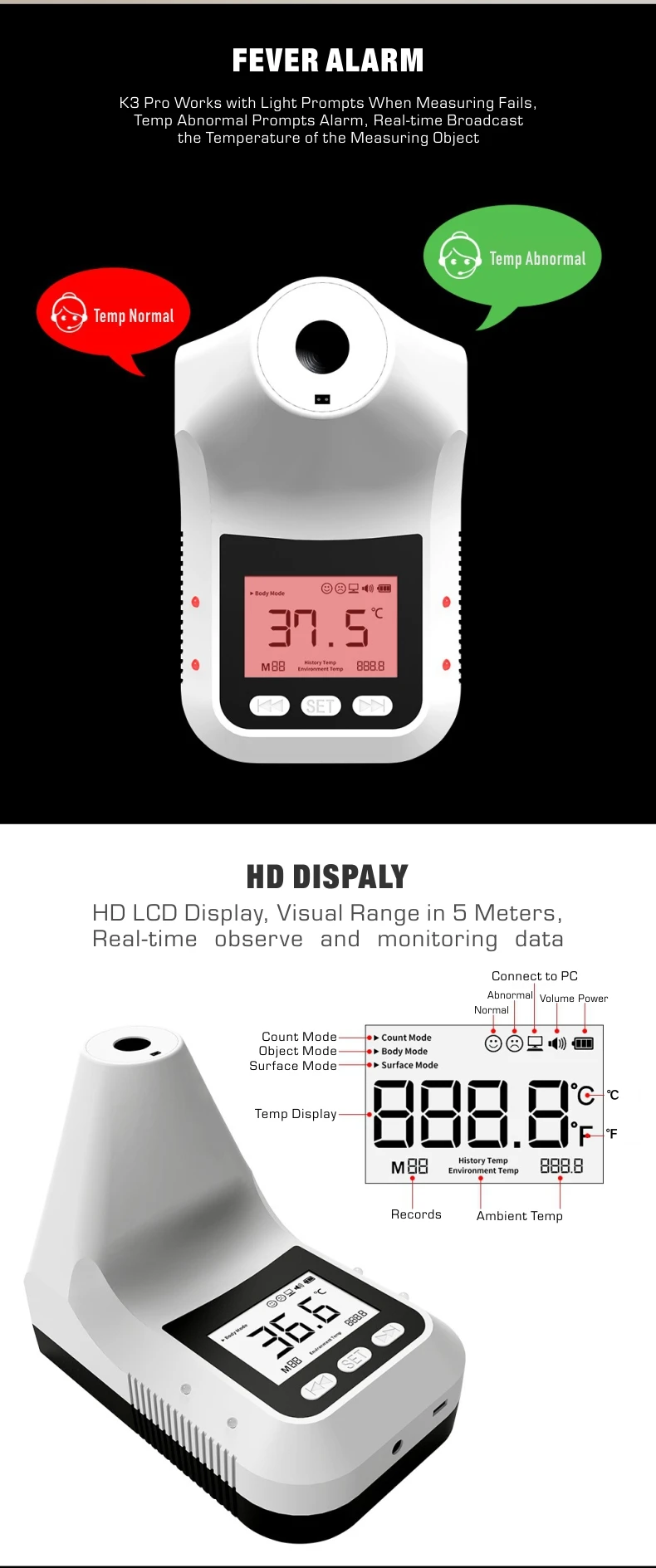

4. With warning light for detection failure and abnormal temperature.


5. Can be connected to USB power supply, charging treasure, 4 AA batteries.


6. High-definition LCD display, 5 meters viewing distance.


7.Intelligent photosensitive sensor, can be Nail hooked/bracket fixed, etc.


8. We have opened up new markets beyond handheld temperature screening and thermal imaging temperature measurement doors


9. Can be applied in different occasions. Office/Subway/Family/Superstore/Shop/Community/Entrance etc.


10. Support real-time temperature data export function and data query function when connected to computer

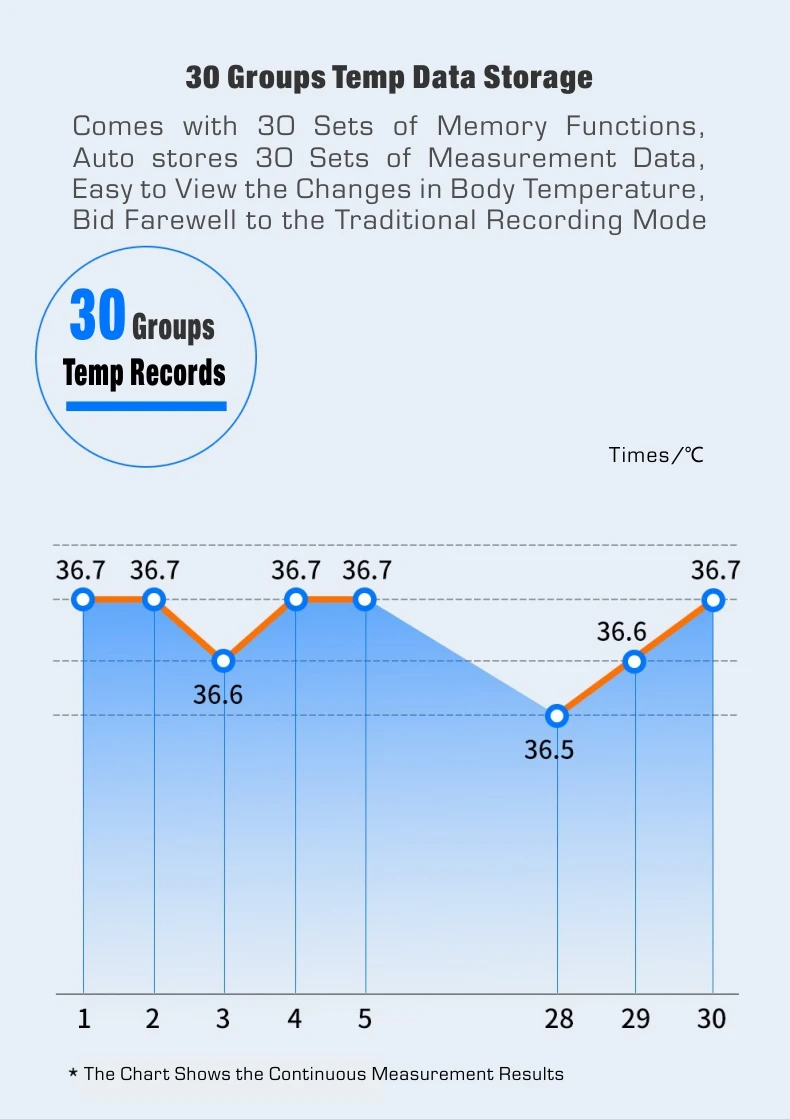

11. Supports storage function, storing 30 sets of measurement data


12. Support IO signal output, switch signal / pulse signal


13. Support setting five levels of volume


14. Support setting backlight switch


15. Support to set the upper limit of 37-38℃ alarm


16. Support voice broadcast, body mode broadcast: "normal" "abnormal". Surface mode broadcast: measuring temperature data


17. Photosensitive distance sensor, under non-strong light, supports outdoor measurement, better than ordinary sensor


18. Continuously refresh the measured environment temperature and display it continuously on the screen


19. Support automatic standby and shutdown state, ultra-low power consumption value
