The fiberglass rod is made from extruded fiberglass and high strength resin for flexibility and tensile strength. The exterior layer is covered with high density UV-resistant polyethylene to protect and insulate while sliding on surface.

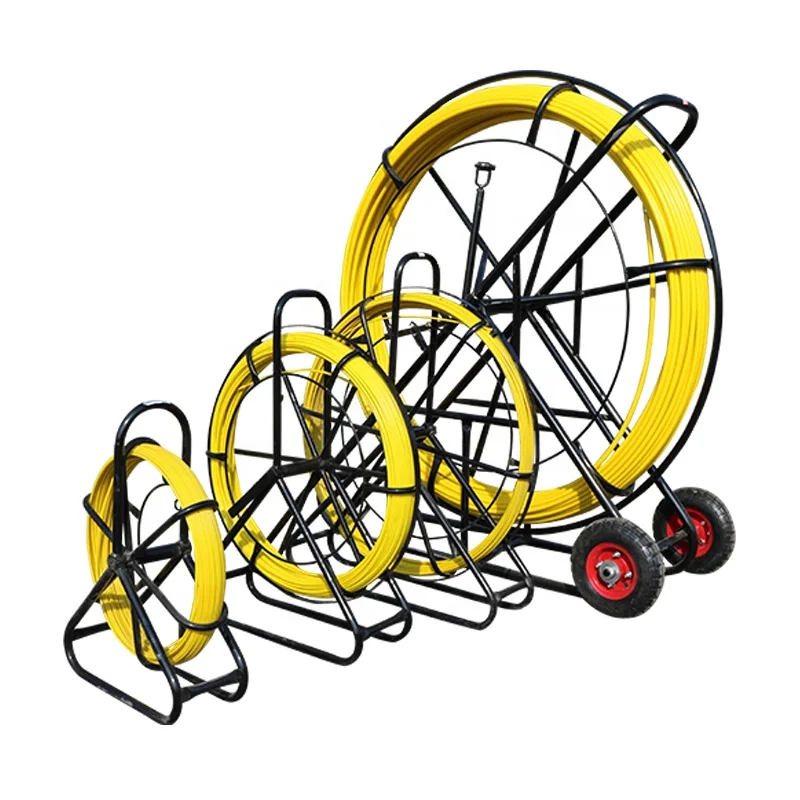

The fiberglass duct rodder is used to push or pull lines or cables through ducts, tubes, conduit and pipes, our duct rodders feature an aluminum cage and stand for lightweight handling in the field. The cage size is determined by the length and the diameter of the fiberglass rod.
Accessories include drawing head, swivel connector, mini harness, roller guide, repair kit, flexible guide tip, etc.
Accessories can be screwed on the frame of the duct rodder, and accessory and repair kit are also available, with a canvas bag attached on the cage of the duct rodder, which is perfect to keep all the accessories safe, and ensures versatility to handle any problem at the job site.
Technical Date of Fiberglass Duct Rodder | ||
Specification | Rod Diameter | 4mm,5mm,6mm,8mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm |
Rod Length | 30m to 350m | |
Frame Spec. (mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | |
Material: | Fiber glass rod inner | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High Density polyethylene coating | |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized |
Fiberglass duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.
