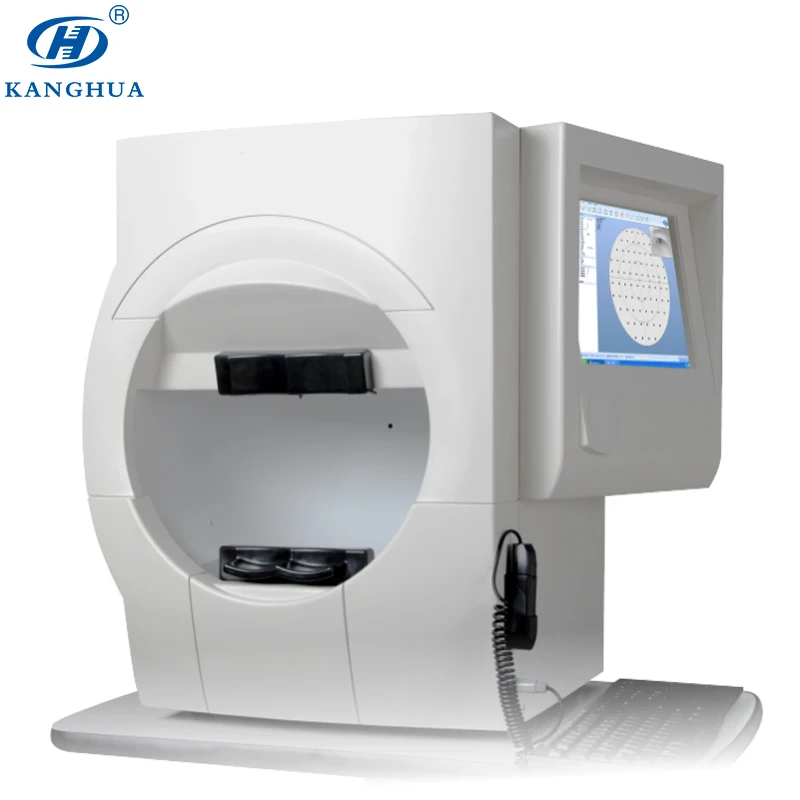

visual field false positive Kanghua Ophthalmic Projection Perimeter alarm system

Share on:

Price:RUB 261,943.60 - RUB 446,976.42
Price in USD:Details


Product Overview


Detailed Images


Model APS-T00
Appearance Integrated Type
Stimulating way  Optical projection
Projection surface aspheric projection arc
Detection method  Static perimetry, Dynamic Perimetry
Detection scope 0-90°
Brightness Level 0-51db
Testing Distance  300mm
Visual Target Color Red, Blue, White
Visual Target Brightness 0asb-10000asb
Background Light White(31.5asb),yellow(315asb )
Vision Target Interval time,
 keeping time
Patients adaptive, standard, slow, custom
Pupil Size Measurement  Auto
Head Movement Way   AEC  Eye  position  monitoring  and  automatic  correction  system
Brightness Measurement Brightness  Auto  Measurement  and  correction
Visual Target Size
  (Goldmann standard)
I Grade  II Grade  III Grade  IV Grade  V Grade
Detection strategy Full-threshold, fast threshold, custom, Two notation,
 three notation,quantify defects,Intelligent dynamic, fast intelligent dynamic
Threshold policy age-related,  threshold-related, single strength
Test Mode
Center 10-2,Center 24-2,Center 30-2,Center60-4,Nasal step,macula;
special test mode
Center 40,Center 64,Center 76;Center80,Center Armaly,Peripheral 60,
Nasal step,Armaly Full Field,Full Field 81,Full Field   120,Full Field1 35,
Full Field246,upper36,upper64,Esterman monocular,Estermanbinocular
manual procedures, standard procedures (Standard 45, standard 30, a high-resolution 15),
Static point map, dark spot map, blind spot map, custom scan, custom dynamic program
adjustable (Speed 1-9 / S, visual target size, color, intensity, test ranges, etc.)
Fixation monitoring Dynamic real-time video monitoring, physiological blind spot monitoring,
Eye tracking curve, eye position offset alarm
Analysis Software Reliability analysis, single vision analysis, triple report analyzes,
 Overview vision analysis, GHT glaucoma semi vision analysis,
GPA glaucoma developing analysis
Report Figure Value map, grayscale map , the overall bias decibel chart,
 The overall deviation probability map, chart pattern deviation decibels,
 Pattern deviation probability plot, staring Figure
