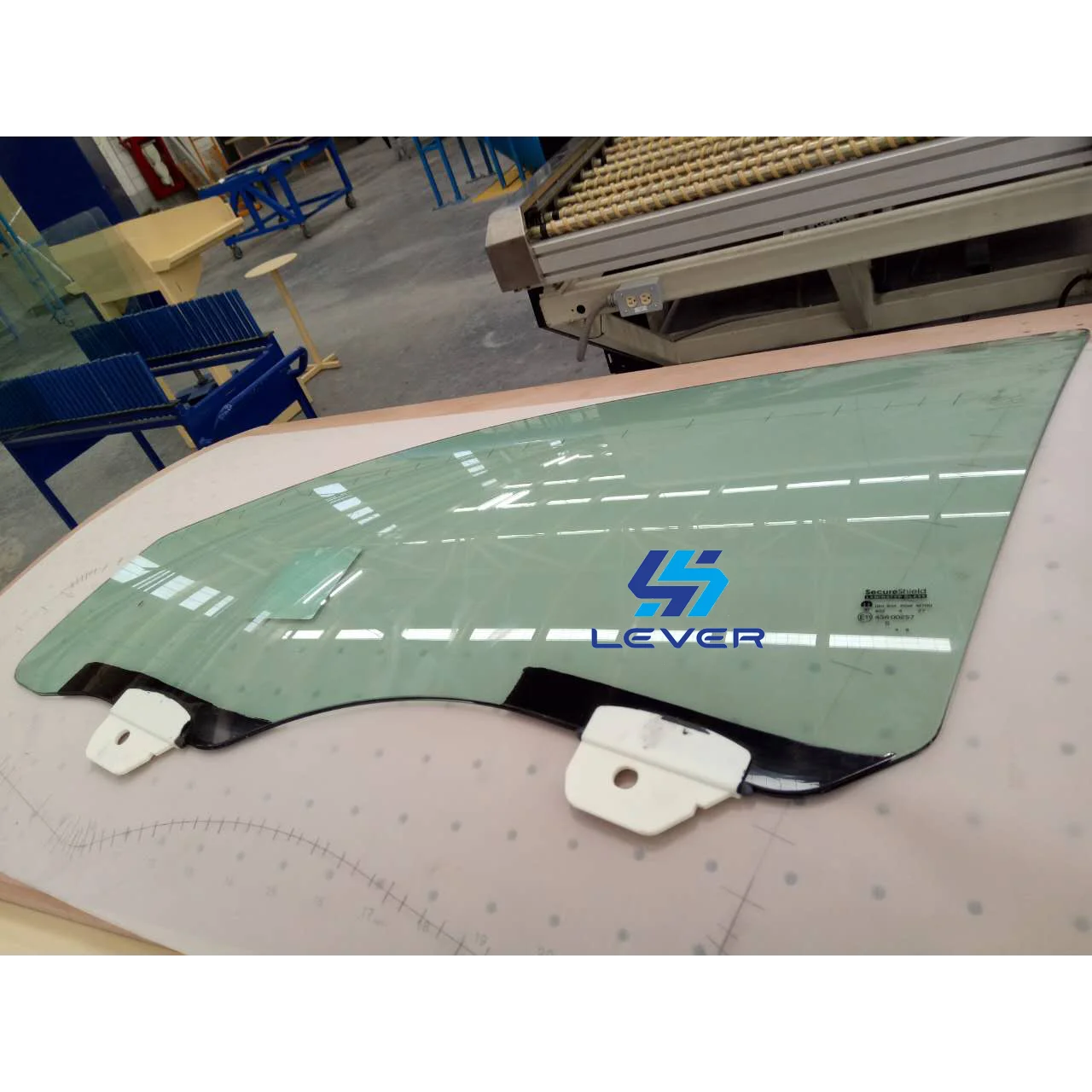

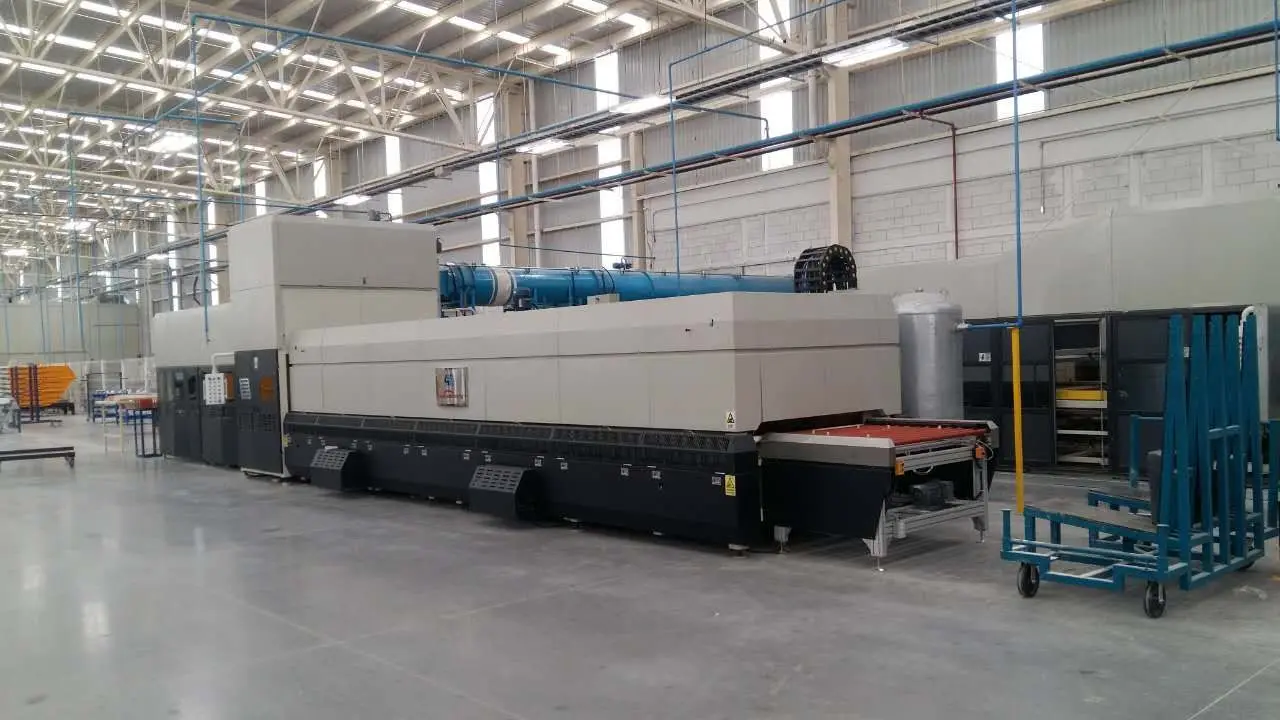

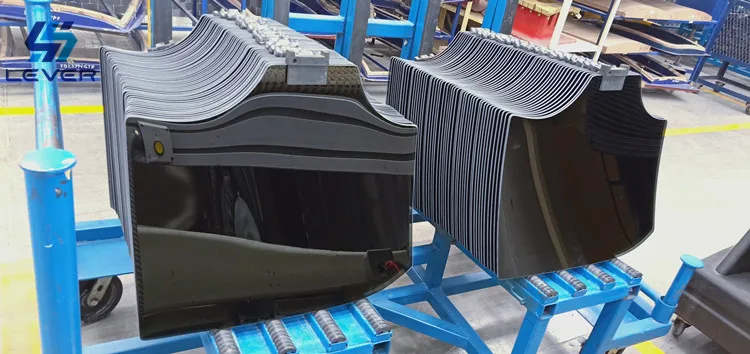

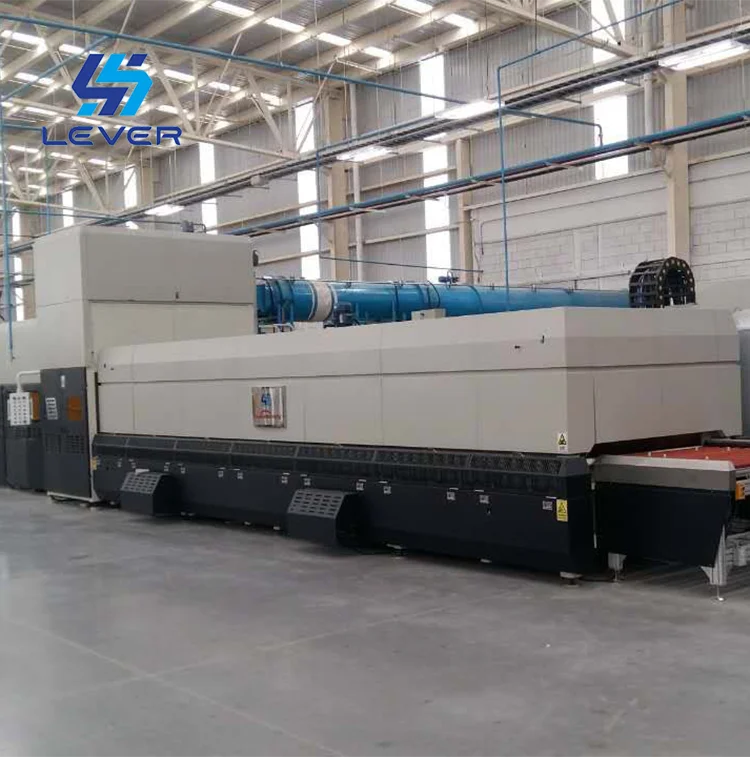

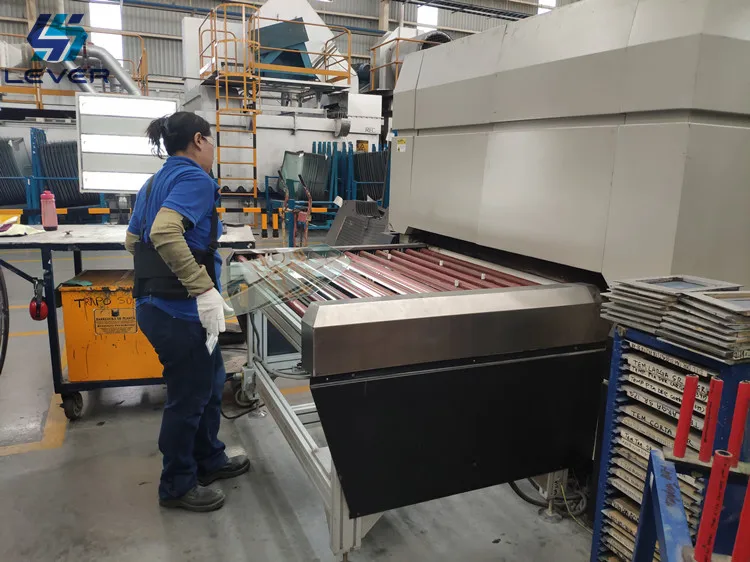

Automotive Sidelites/ Car Side Window glass Making machine Glass Tempering Furnace is a special plant used to produce the bent tempered glass, which mainly used in the fields of side windows (sidelites) of automotives, trucks, shower room, furniture, etc
Name | Continuous Type Production Bending Tempered Glass (Five working positions) | ||
Max Loading Area | 1200x⌒900mm 'C' bending | ||
Min. Glass Size | 300x⌒400mm | ||
Glass Thickness | 3.2 ~6 mm | ||
Min. Radius | R≥1000mm | ||
Productivity | 120 loads per hour (take 3.2mm float glass for sample) | ||
Blower Quantity & Power | 315KW x 1SET (Controlled by frequency inverter) | ||
Finished product rate | ≥98% | ||
Main Features
1). Without any mold. The forming method is automatic quench transmutation.

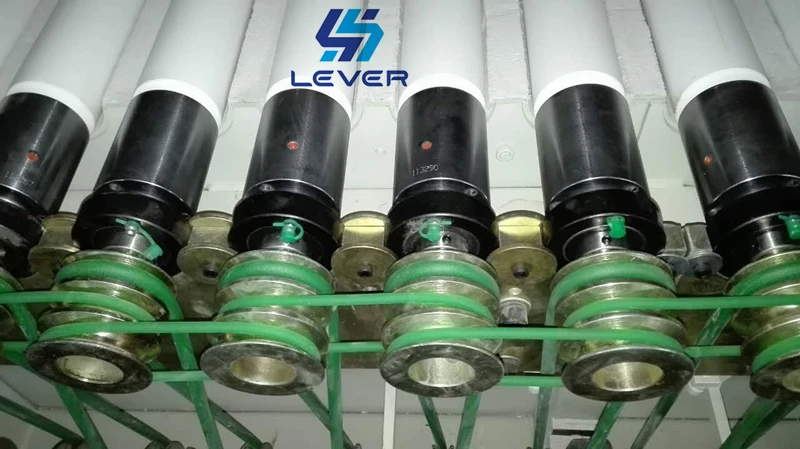

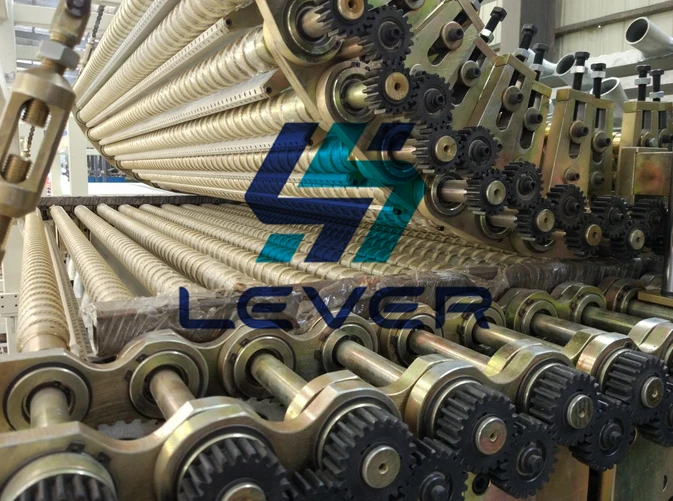

2). Materials: aluminum-alloy wheel with fiber rope

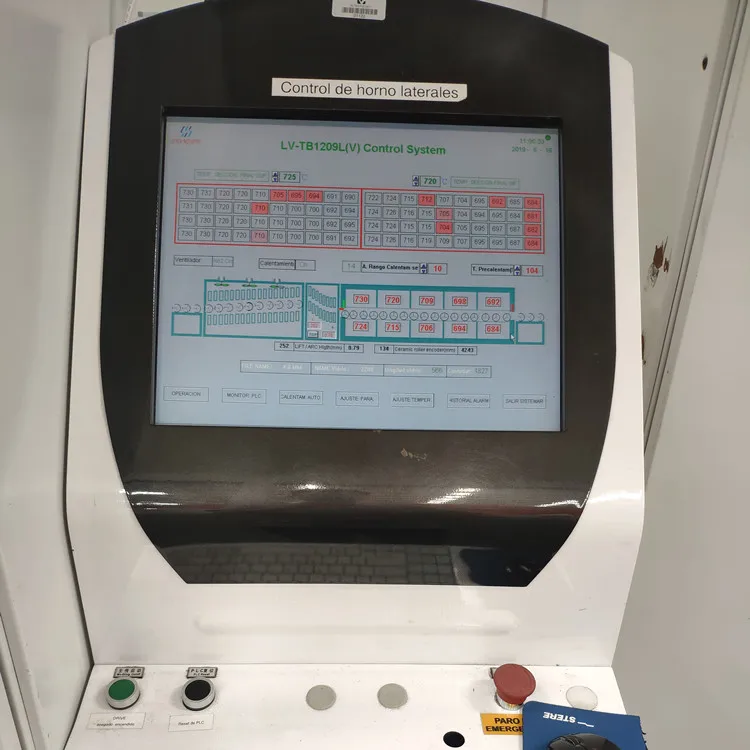

3). As separated structure, the cooling quench for bent tempering are fixed among the rollers and made actions for deformation accordingly. The cooling air is blown in from the grid back through heat resistant soft hose. Roller Dia 35mm, Pitch 76mm.4). The process for glass curvature forming is controlled by computer. You can input the needed radius data to computer, then required glass will be produced accordingly. But some time, for the new radius, you should make some mini-adjustment manually at the first time. This section is suitable to process 3.2mm automotive car side door glasses.
5). Fixed length swinging and reciprocating swinging during the whole process
6). There is sensor for glass length measuring.
7). It is very easy to change the glass with different thickness or radius.

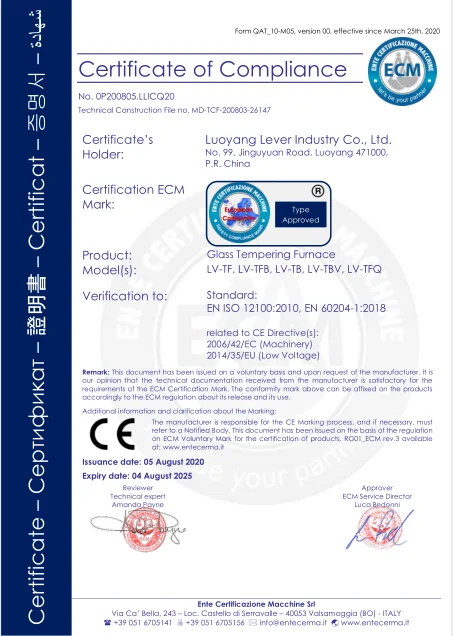

Certifications
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 3.2 T | |
Packaging Details | The normal package is film packing in container. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 2.5T | |

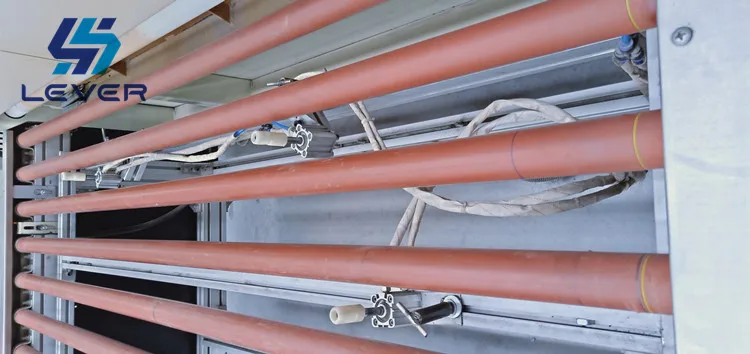

Packaging Details | The ceramic rollers and other small parts are packed in wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
