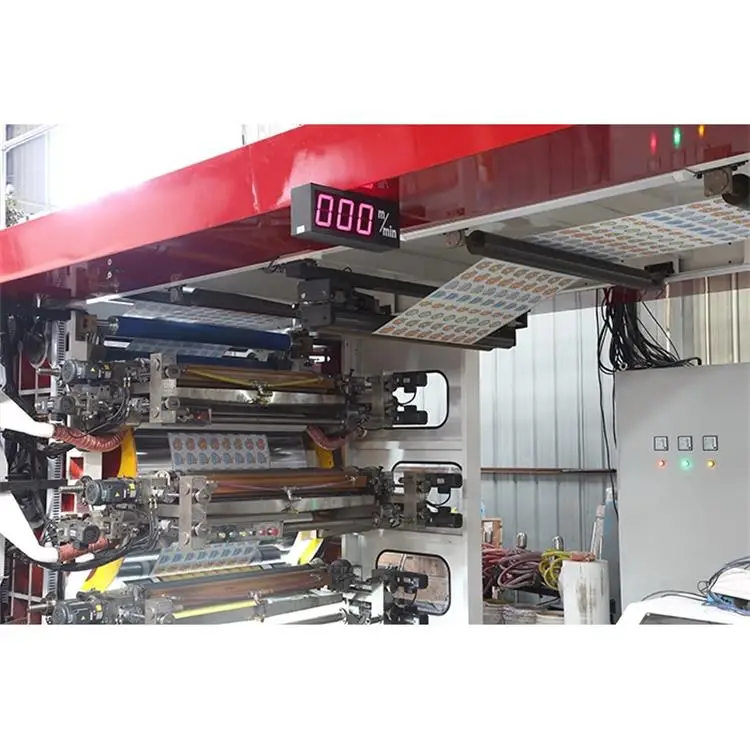

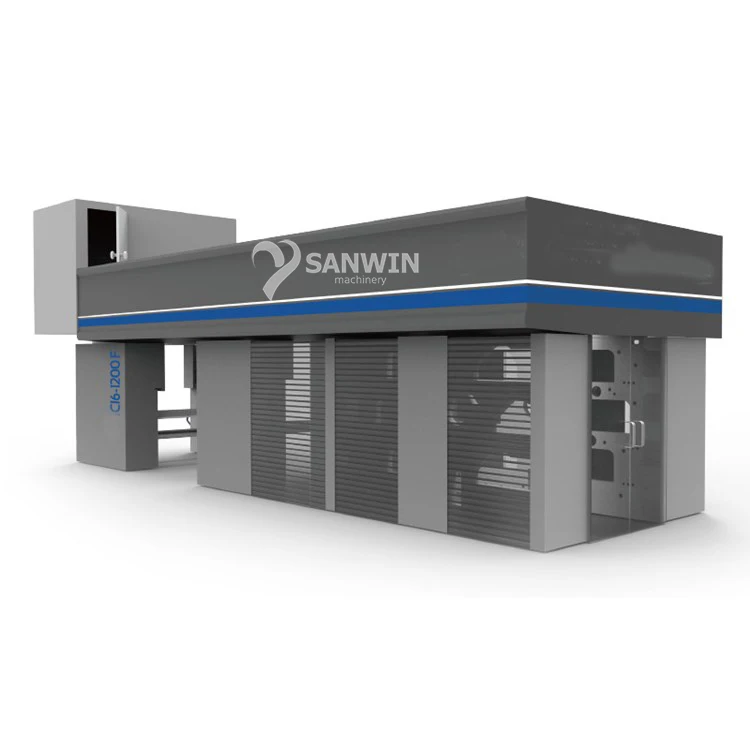

6 color Full Servo CI central drum flexo printing machine

Product Overview

Description



CI Type Flexo Printing Machine



1.Brief Introduction

1.Method:Central impression for better color registration. With the central impression configuration, The material to be printed is supported by the cylinder, Greatly improving color register, Especially with extensible materials.
2.Structure:Wherever possible, parts are commonized for availability, Wear-resisting design.
3.Dryer:Hot wind dryer, automatic temperature controller, Separated heat source.

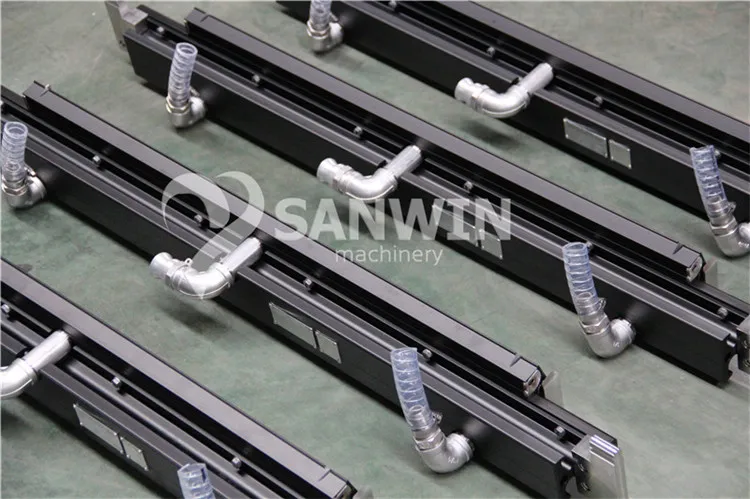

4.Doctor Blade:Chambered assembly for high-speed printing.

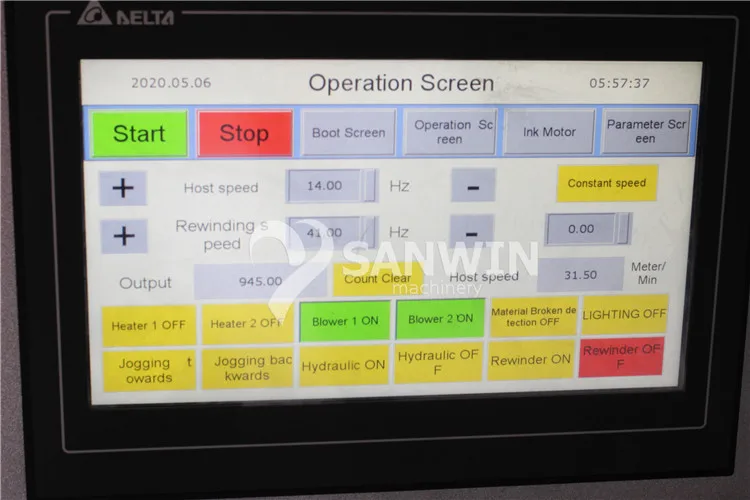

5.Transmission:High performance taiwan motor with digital frequency inverter and encoder buttons are placed on both control chassis and body for operators' convenience.
6.Rewind:High performance Taiwan motor with diaphragm air cylinder for stable web tension.
7.Gearing of Printing Cylinder: 5mm.



2. Technical Parameter(Specification)

1	Max machine speed:	150m/min
2	Max. printing speed:	One-side printing: 120m/min (depends on material and ink feature)
3	Max. material width:	600mm/800mm/1000mm/1200mm etc
4	Max. printing width:	550mm/750mm/950mm/1150mm etc
5	Max. material diameter:	1000mm
6	Printing length:	300-800mm
7	Total machine power:	50KW
8	Total machine weight:	About 5T
9	Machine overall dimensions:	6.0m(L)×2.2m(W)×3.4m(H)
10	Printing way:	Full width 4/6 color on one side
11	Printing plate thickness	Photopolymer plate 1.7mm or2.84mm (at client's require)
12	Printing cylinder install in machine:	400mm (at client's require)

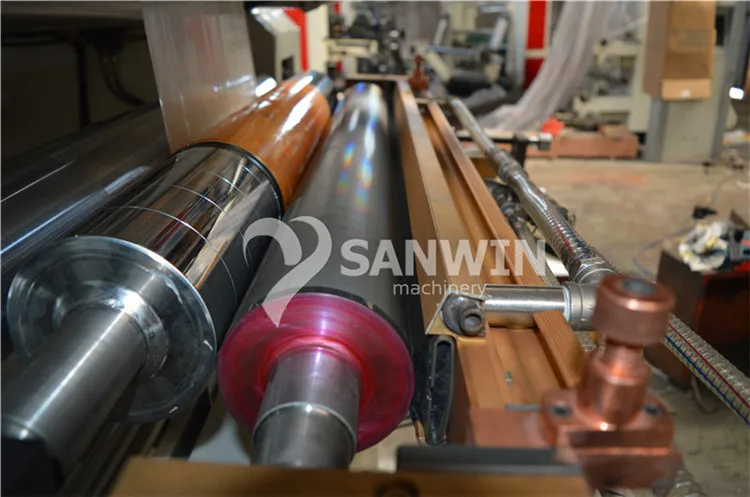

13	Ceramic anilox roller:	250-800LPI, 1 color/1 pcs, suit to color overlapping printing (at client's require)



3.Optional Part

1. ceramic anilox roller ( japan murata)
2. printing cylinder
3. enclosed chamber doctor blade : improve machine speed to 120m/min
4. monitor inspect device
6. seal rubber for chamber
7. plate mounting machine
8. anilox roller cleaning machine
9. plate making machine
10.register color by motor ( left and right, up and down)
11. crane: manual or motor 2 kinds
etc.

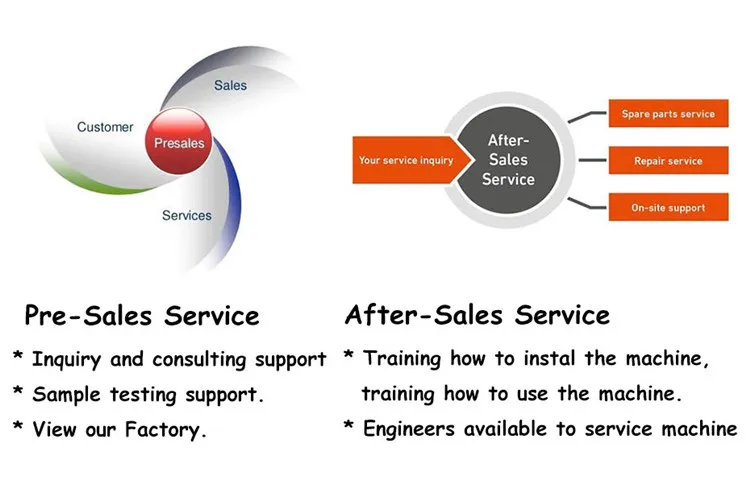

OUR SERVICE

FAQ

1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,slitting machine,etc.
and we also have one trading company

2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.

3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days

5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
