XGZP6899D Differential pressure sensor for healthy equipment
- Category: Pressure Sensors >>>
- Supplier: WuHu,CFSensor,Co.,Ltd.
Share on:
Product Overview
Description
Features
Optional 5V or 3.3V or 3V power supply
Differential Type or Gauge Type
For Non-corrosive gas or air
Calibrated Amplified Analog signal or Digital output
Temp. Compensated:0℃~+60℃(32℉~+140℉)
Low Cost for high volume application
Applications
For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.
For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.
For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.
Introduction
XGZP6899D is a prefect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temp.range.
The XGZP6899D incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC). The SOP8 package facilitate the surface mounting, and horizontal nozzle can reduce products’ height and space visibly.
The XGZP6899D is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity,so XGZP6899D pressure sensor module satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine,home electronics,and other pneumatic devices etc.
XGZP6899D pressure sensor module is for high volume application at an affordable cost and perfect performance.
Customized calibrations(working voltage,output voltage,and pressure range) are available.
Pressure Range (1kPa=10hPa≈102mmH2O≈7.5mmHg)
Pressure Range(kPa) | Model |
-0.5 ~ 0.5 | XGZP6899D005HPDPN |
-1 ~ 1 | XGZP6899D001KPDPN |
-2.5 ~ 2.5 | XGZP6899D025HPDPN |
-5 ~ 5 | XGZP6899D005KPDPN |
-40 ~ 40 | XGZP6899D040KPDPN |
-100 ~ 100 | XGZP6899D100KPDPN |
-100 ~ 200 | XGZP6899D200KPDPN |
-100 ~ 0 | XGZP6899D100KPDN |
0 ~ 1 | XGZP6899D010HPD |
0 ~ 2.5 | XGZP6899D025HPD |
0 ~ 5 | XGZP6899D005KPD |
0 ~ 10 | XGZP6899D010KPD |
0 ~ 20 | XGZP6899D020KPD |
0 ~ 40 | XGZP6899D040KPD |
0 ~ 100 | XGZP6899D100KPD |
0 ~ 200 | XGZP6899D200KPD |
Available for more custom pressure range such like -7~7kPa, 0~35kPa etc,. Please contact factory for tailor-made parameter | |
Dimension (Unit:mm)
Notes:
1.,Port 1 as High pressure cavity, and Port 2 as Low pressure cavitys.
2. Implement ESD protection during overall soldering and assembly process.
3.Overload voltage(max.6.5Vdc) or current(max.5mA) may burn the ASIC and cause the sensor fail throughly.
4.More detalis about soldering and storage etc., refer to Overall notes.

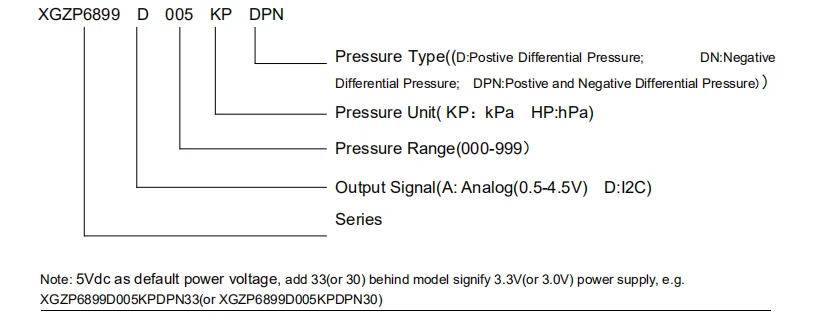

Order Guide
