LANGRY LR G200 Portable Rebar Scanner Concrete Rebar Detector For Concrete Cover Meter
- Category: Testing Equipment >>>
- Supplier: Jinan,Langrui,Detection,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
LR-G200

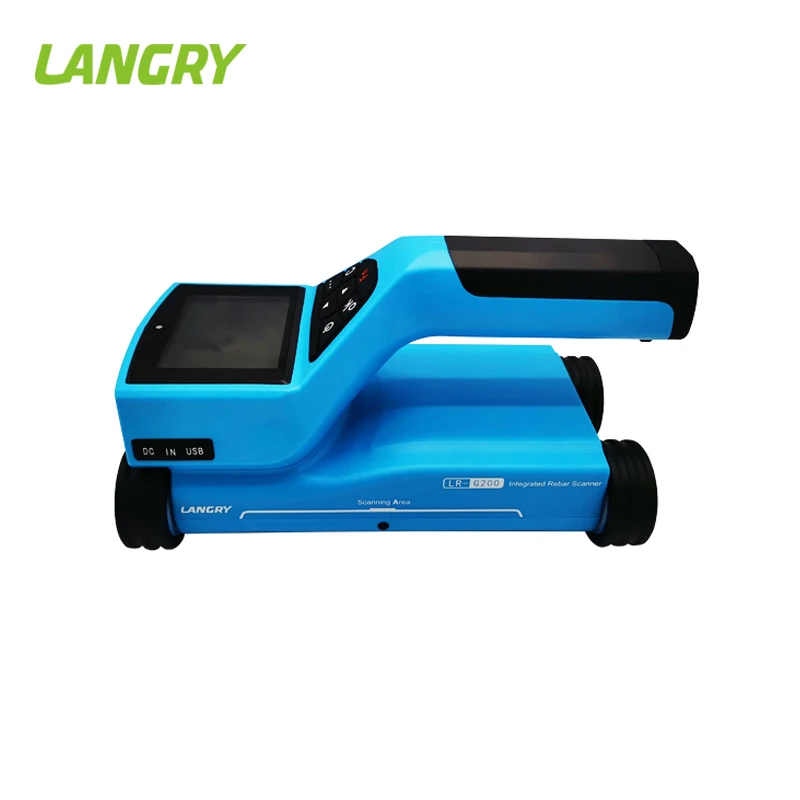

Integrated Rebar Scanner
It is mainly used to detect the position,
distribution and direction of rebar,
Thickness of concrete cover and
diameter of rebar in reinforced concrete structures.
STANDARDS :
DIN 488
ASTM A 615/A 615M-01b
CAN/CSA-G30,18-M92
GB 50012-2002
PRODUCT FEATURES
1. The instrument sensor is of integrated structure in small size, thus permitting easy operation.
2. Carry out testing with combination of high-power transmitting coil and multiple small coil to ensure higher accuracy and resolution.
3. Perform displacement scanning and rebar distance measurement at a higher accuracy level with use of high-accuracy grating sensor.
4. Provide different types of scanning to suit the different measurement cases.
5. Permit large and small-range testing, with the scanning distance up to 65m max. Perform data testing in a flexible way. The instrument itself allows storage of max. 4000 components.
6. Permit correction of multiple stirrup so as to obtain more accurate testing results.
7. Furthermore, the USB wire data transmission and Bluetooth wireless data transmission are allowed so that the quick data uploading is possible.
8. Use 3.2” 65K color LCD screen to yield the higher resolution and better display, plus the capacitive touch screen, thus facilitating the man-machine interaction.
9. Perform power supply with use of 8.4v 3200mah high capacity lithium-ion battery to ensure that the instrument can continuously operate around-the-clock.
SPECIFICATIONS
|
Description |
Technical indicators |
|
|
Applicable range of rebar diameter(mm) |
Φ6-Φ50 |
|
|
Max. range (mm) |
1st range |
2~100 |
|
2nd range |
2~200 |
|
|
Max. allowable deviation on thickness of the concrete cover |
±1(mm) |
2~80 |
|
±2(mm) |
81~120 |
|
|
±3(mm) |
121~160 |
|
|
±4(mm) |
161-200 |
|
|
Applicable range on diameter estimate (mm) |
Φ6-Φ50 |
|
|
Max. deviation on diameter estimate |
±1 spec |
|
|
Display accuracy on diameter estimate (mm) |
0.1 |
|
|
Performance indicators on LR-G200 integrated rebar scanner |
|||||||
|
Quick scanning |
Fine scanning |
Profile scanning |
Grid scanning |
image scanning |
3-D imaging |
Range of scanning |
Mode of data transmission |
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Unbounded |
Bluetooth or USB |
|
Data correction |
Way of power supply |
Instrument weight |
Screen size |
Laser positioning |
Touch screen operation |
Screen lattice |
Instrument size |
|
Yes |
Lithium battery |
1KG |
3.2” |
3-wire |
Yes |
320x240 |
235x120x130 |
SOFTWARE
The rebar detection data analysis software is a multi-function analysis
software developed by Jinan Langrui Detection Technology Co., Ltd. for
processing the rebar detection data. The software can run in XP/win7/win10
OS, presenting friendly interface and easy operation, which is specificallydesigned for project detection staff.
1) Conduct management on all component information as well as the
detection data at each measuring point;
2) Conduct analysis and evaluation on detection data according to the
construction quality acceptance criteria;
3) Display the component data in a graphic way;
4) Generate a detection data file through integration of several ones; it is
easy to add or remove the detection data;
5) Print the preview and export treatment results;
6) It is easy to import the rebar scanner data into the computer with use
of the software to facilitate further analysis and archive;
7) Automatically generate the detection report in word format.
The data files saved in the software has the file extension name in . xgjy
format. The detection report automatically generated has the file extension
name in .docx format.
