Сетевой удлинитель с фильтром, 110/220 В, 5 розеток, 19 дюймов

Name: Сетевой удлинитель с фильтром, 110/220 В, 5 розеток, 19 дюймов
SKU: 1600103235486
Availability: InStock

Price:

Quantity:

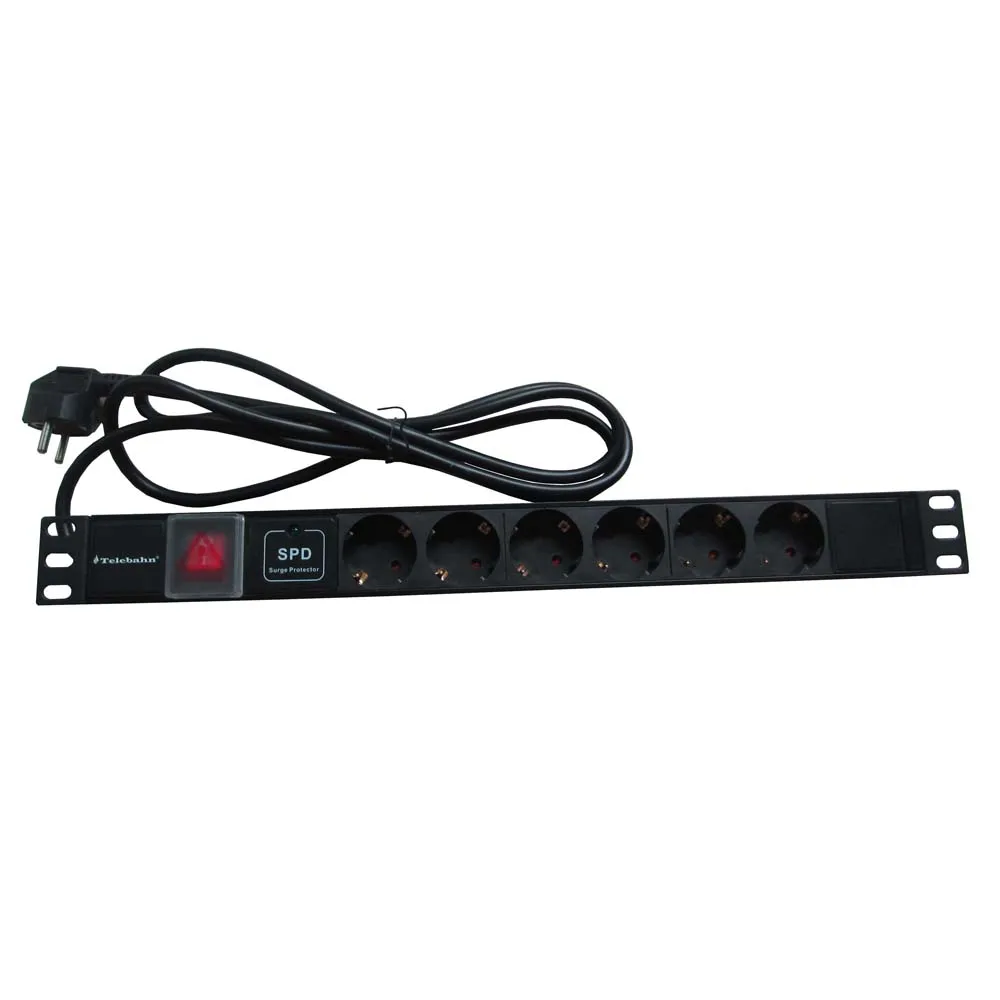

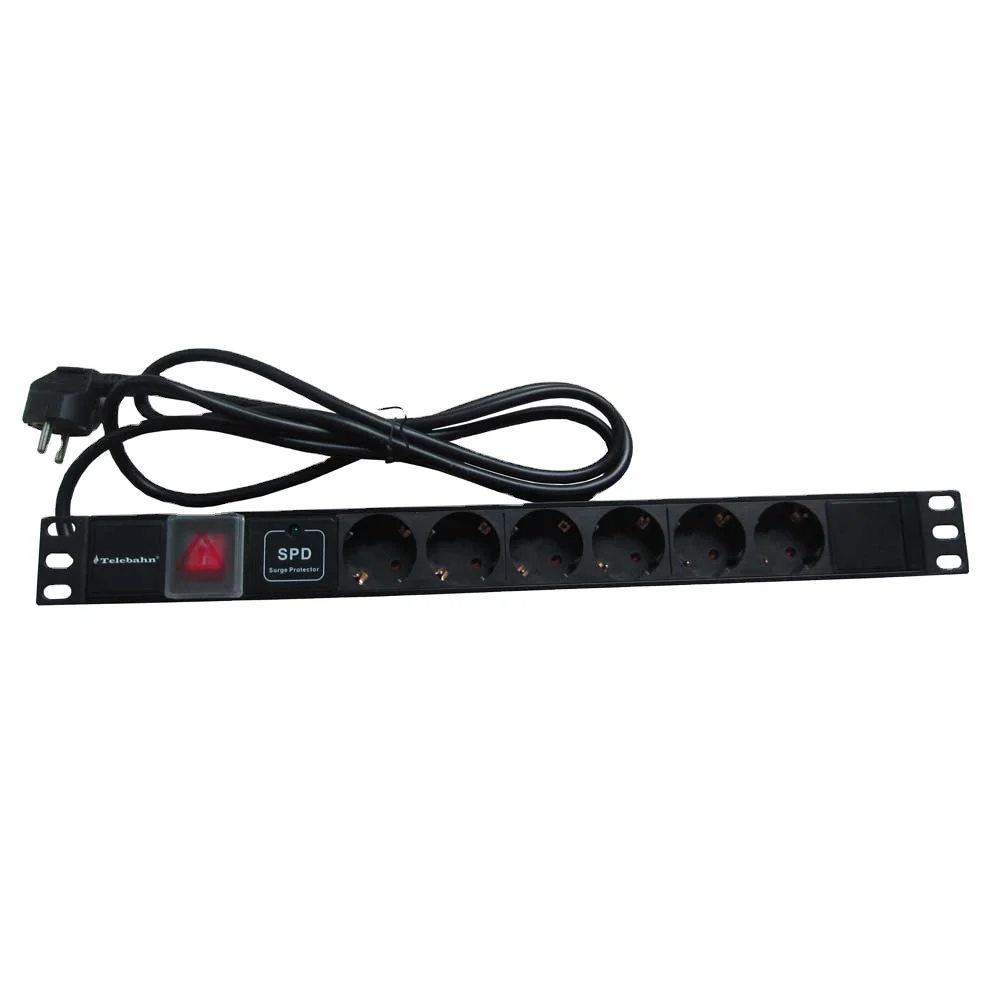

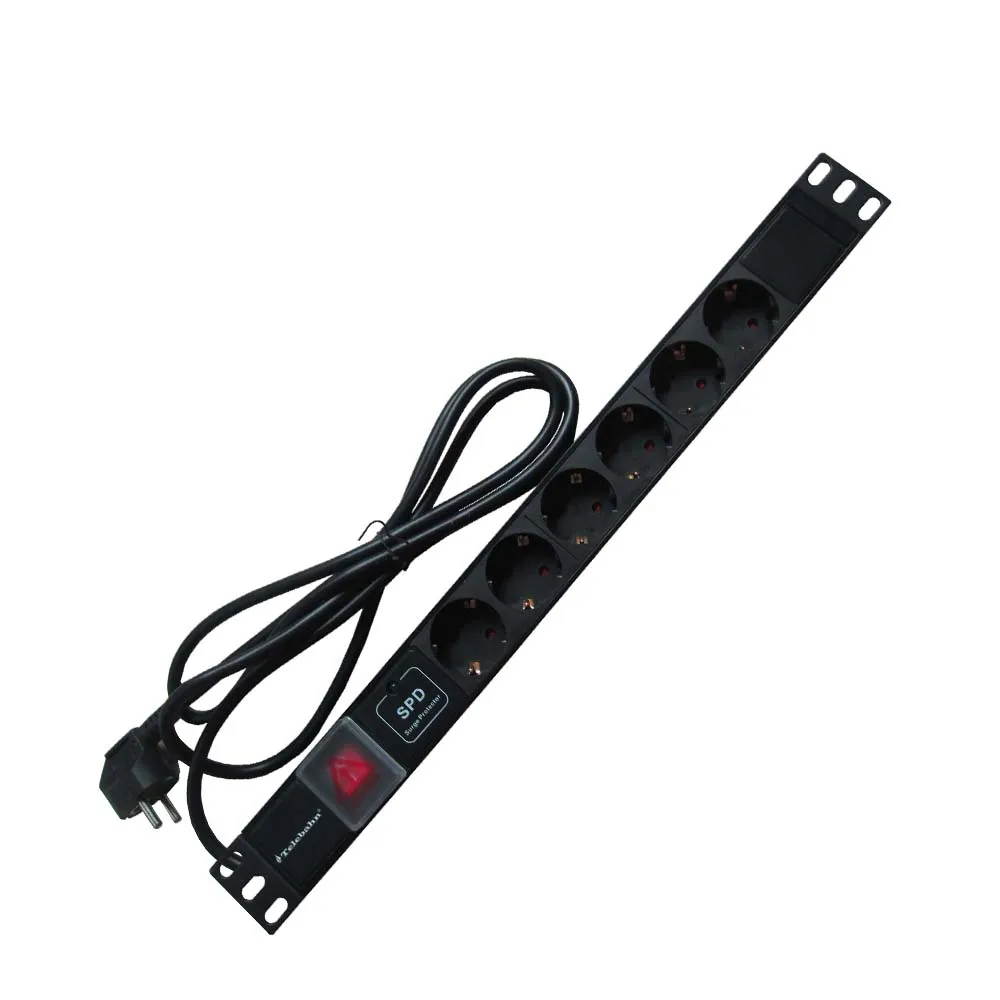

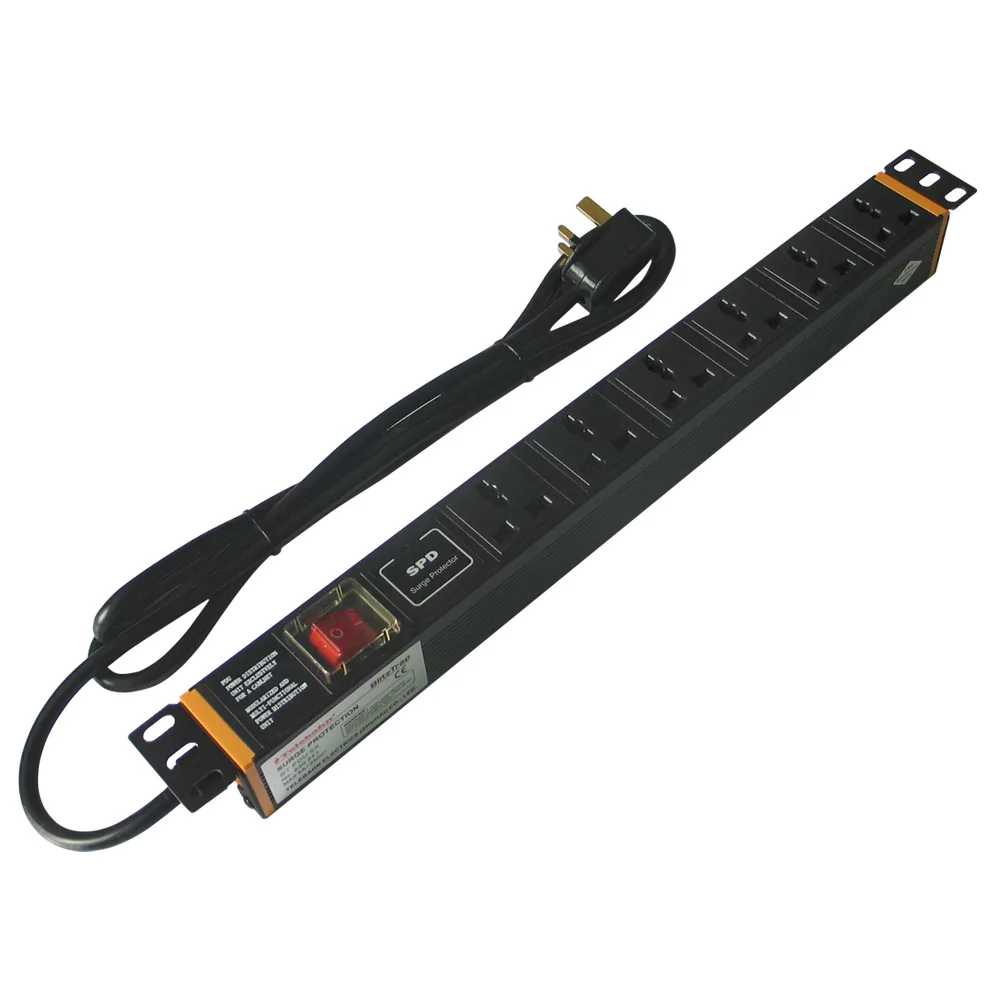

surge protector power strip 110/220v 5 outlet with filter rack mount 19" cabinet PDU Extension Socket

19-BT PDU 05 F_USA_CIRCUIT.jpg

Summary:

Multiple socket outlet for protecting electronic devices from surge damages.

Designed according to IEC 61643-11 / EN 61643-11 / GB 18802.1 standard,

applied in SPD type-3 (class III / class D) for single-phase various power supply system.

Main Character:

• Single-phase surge arrester for electronic devices

• High discharge capacity, quick response

• Green light indicates lightning protection, red light indicates polarity, orange light indicate earthing protection

• Surge protection with disconnector devices and filter function

• Can be installed in a 19-inch panel

Parameters:

Type	BT PDU 05 F
Nominal a.c. voltage [UN]	110-150V
Max. continuous a.c. voltage [Uc]	280V
Nominal load current [IL]	16A
Nominal discharge current (8/20) [In]	5kA
Total discharge current (8/20) (L+N-PE) [Itotal]	10kA
Combination wave [Uoc]	6kV
Combination wave (L+N-PE) [Uoc]	10kV
Voltage protection level at In [Up] L-N	≤ 1.2kV
Voltage protection level at In [Up] N-PE	1.5kV
Response time [tA] L-N / N-PE	≤ 25ns / ≤ 100ns
Max. back up fuse [F]	16A gL/gG
Short withstand capability at max. backup fuse	6kArms, 8/20µs
Operating temperature range [Tu]	-40°C...+80°C
Number of socket	5-pole
Mounting on	19-inch panel
Terminal wires	Length approx..2000mm
Enclosure material	Metal enclosure
Dimension	4834445 (mm)
Test standards	IEC 61643-11; EN 61643-11
Certification	CE (LVD, EMC)
Ordering information
Type	BT PDU 05 F
Art.-No.	830 250
Packing unit	1pc(s)
