IPC HDW3441TM AS 4MP IR Fixed focal Eyeball WizSense Network Camera POE CCTV Camera Built in MIC IK10 Camera

Camera

Image Sensor

1/3” 4Megapixel progressive CMOS

Effective Pixels

2688 (H) ×1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6

S/N Ratio

> 56 dB

IR Distance

50 m (164.0 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

2 (IR LEDs)

Pan/Tilt/Rotation Range

Horizontal: 0°–360°; vertical: 0°–78°; rotation: 0°–360°

Lens

Lens Type

Fixed focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122° 3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100° 6 mm:
Horizontal:52°; vertical: 28°; diagonal: 61°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.3 ft)

6 mm: 3.2 m (10.5 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640
× 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps

H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726; AAC

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict;
illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change;
tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;
Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1
CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<7.7W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/ less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67

Structure

Casing

Inner core: Metal Cover: Metal Decoration ring: Plastic

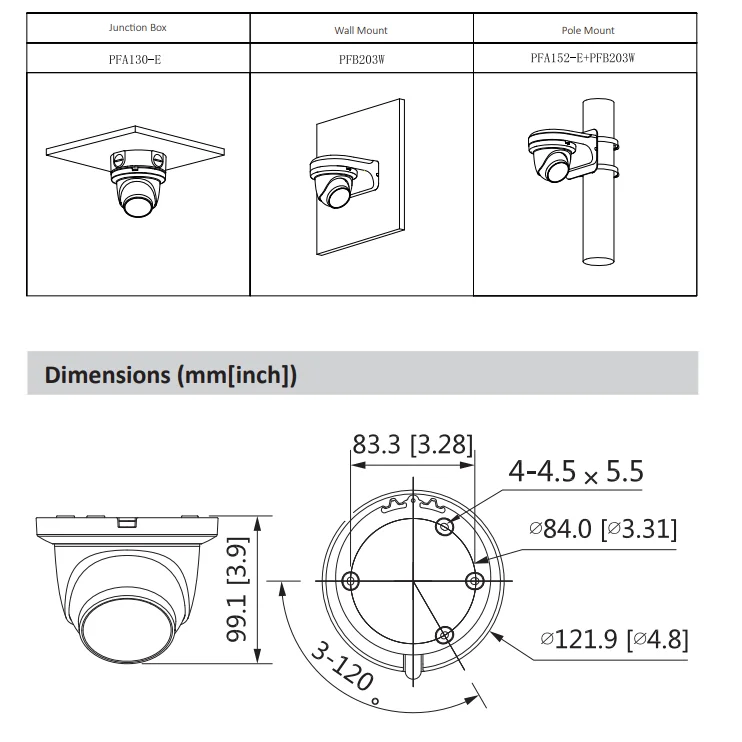

Dimensions

99.1 mm × Φ121.9 mm (3.9" × Φ4.8")

Net Weight

480 g (1.05 lb)

Gross Weight

660 g (1.45 lb)
