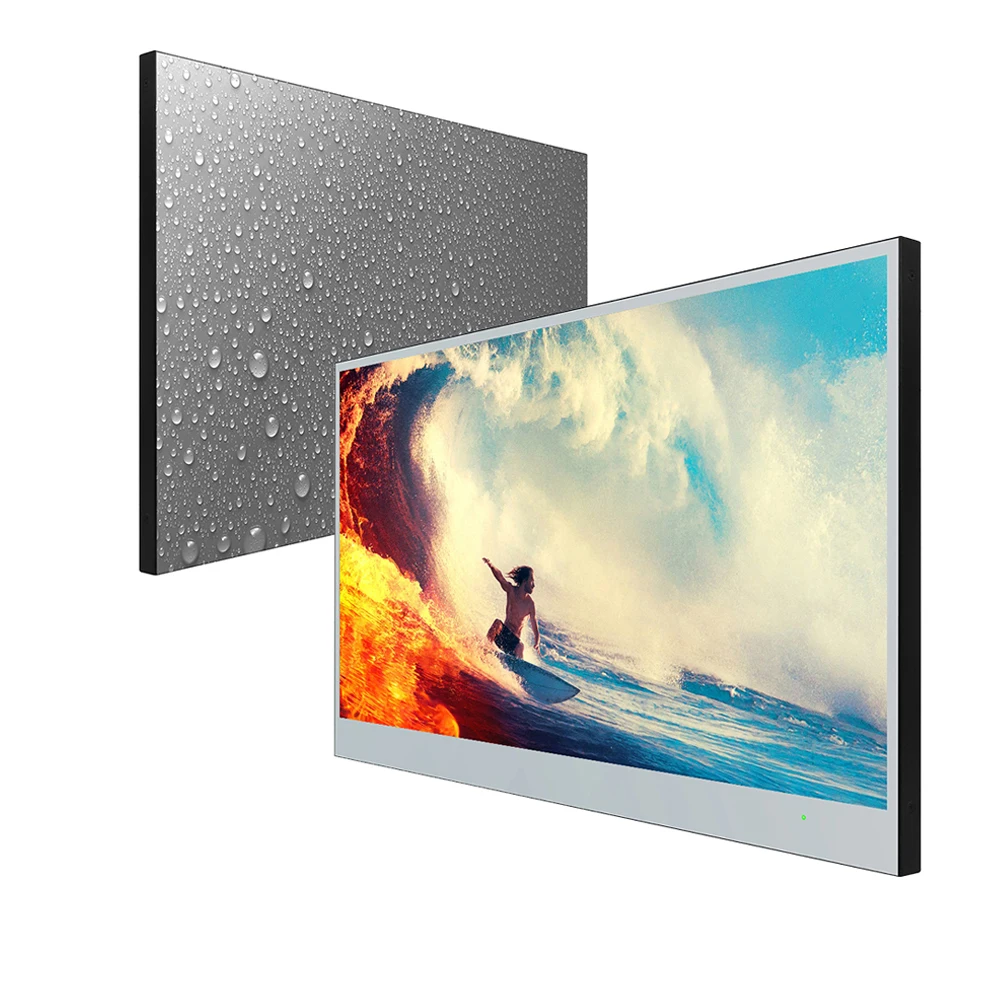

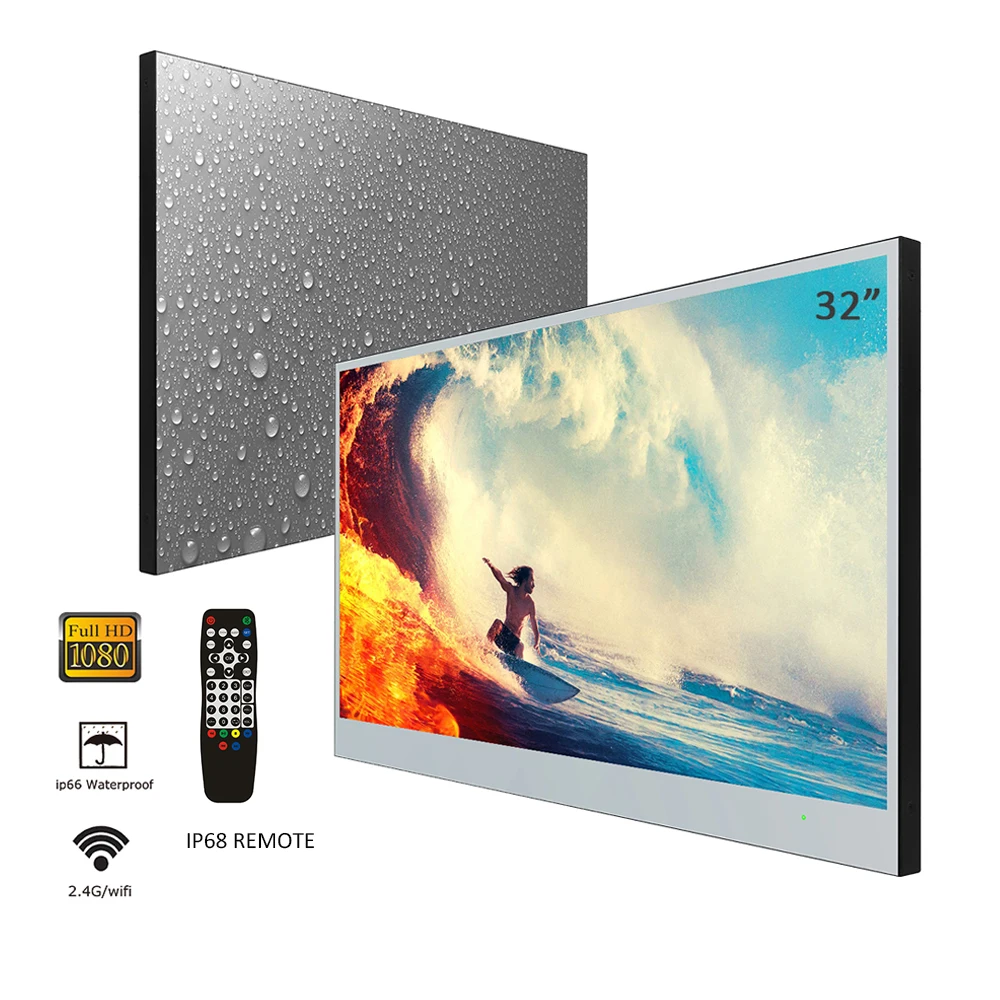

32 Inch Big Size Smart Mirror Bath Magic Bathroom TV Waterproof IP66 Android Mirror
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600103273637):
Product Overview
Description
Product Details
TV Specifications | ||||||||
Functions | ATV/ DTV/ Pictures/ Music/ Movie/ Internet/ Game/ Chat/ Email and more Protection. | |||||||
System | Android 9.0 (APPS or GAMES download available) | |||||||
Interface | TV/USBx2/ H.D.M.Ix2/LAN / Integrated WiFi/Audio Out | |||||||
Finish | Mirror Panel | |||||||
Protection Grade | IP66 | |||||||
Speaker | 8Ω5W x 2(Built-in Waterproof Speaker) | |||||||
View Angle | 178°(H)/178°(V) | |||||||
Display Type | LED | |||||||
Response Time | 3.6ms | |||||||
Standby Power | <1W | |||||||
Power Consumption | 48W | |||||||
Accessories | TV Holder/ Remote Controller/ Manual/ 100-240V Input-12V Output Adaptor/ Power Code | |||||||
Packaging
Note: The power cord is supplied in the packaging according to the destination standard.
Accessories
1. Embedded Bracket2. Power Adapter (Input: AC 100V – 240V, Output: DC 12V, 5A)
3. Waterproof Remote Control (Without Button Cell Battery Supplied, IP68 Waterproof)
4. User Manual
5. Installation Kit (6 sets)
Note: Without Button cell battery supplied in the packaging for the remote control. Battery Model Needed: CR2032 3V.
TV Installation
3 optional methods provided to accommodate TV installations
Option 1: In-wall with Embedded Bracket
Option 2: On-wall with Embedded Bracket
Option 3: On-wall with VESA Bracket

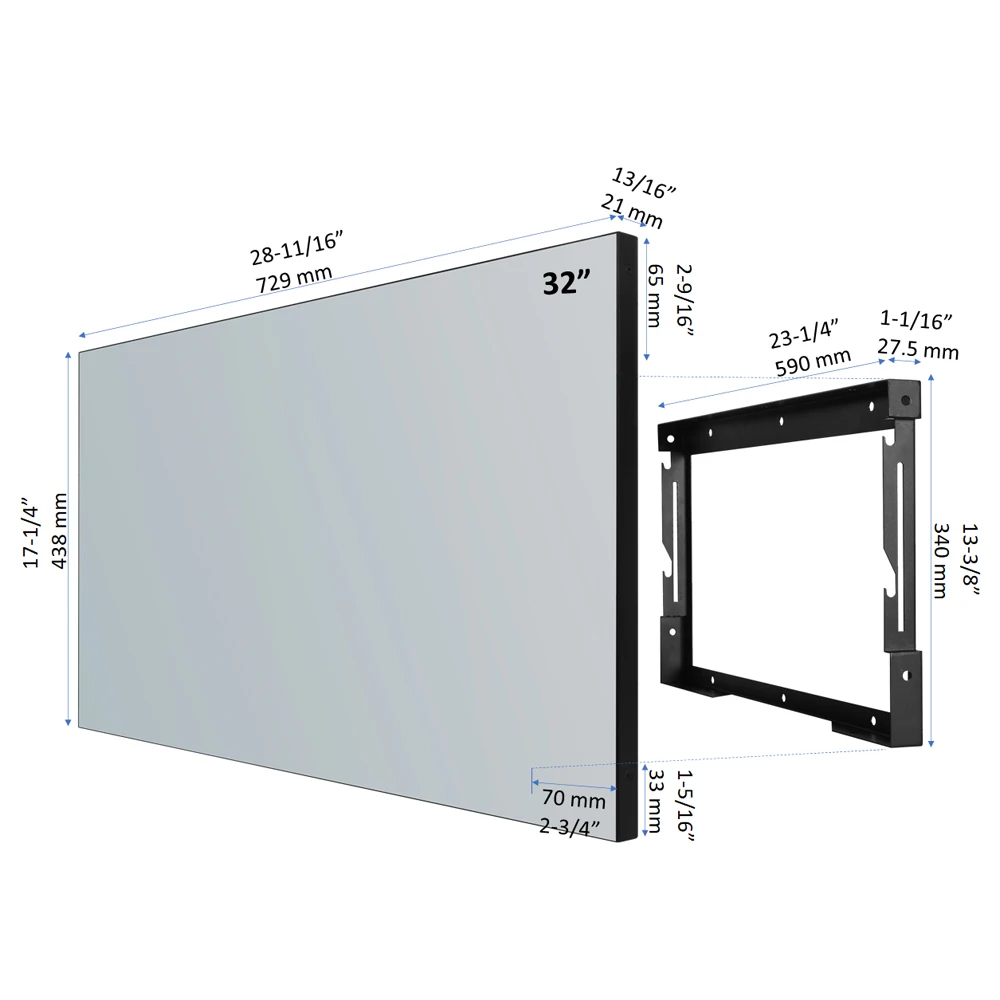

Option 1: In-wall with Embedded Bracket
Option 2: On-wall with Embedded Bracket
Option 3: On-wall with VESA Bracket
Option 1: In-wall with Embedded Bracket
1. Create an opening within the chosen area of the wall according to the Embedded Bracket outlines. Leave enough space for the cables and adapter.
2. Set up power and signal circuit and the outlet.
3. Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.
4. Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.
5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.
6. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.
2. Set up power and signal circuit and the outlet.
3. Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.
4. Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.
5. Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.
6. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.
Option 2: On-wall with Embedded Bracket
1. Drill holes within the chosen area of the wall according to the Embedded Bracket outlines.
2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.
3. Set up power and signal circuit and the outlet.
4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.
5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.
2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.
3. Set up power and signal circuit and the outlet.
4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.
5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.
Option 3: On-wall with VESA Bracket
1. Drill holes within the chosen area of the wall according to the On-wall VESA Bracket dimensions.
2. Place the raw plugs into the holes and screw the On-wall Bracket into position so it is attached to the wall.

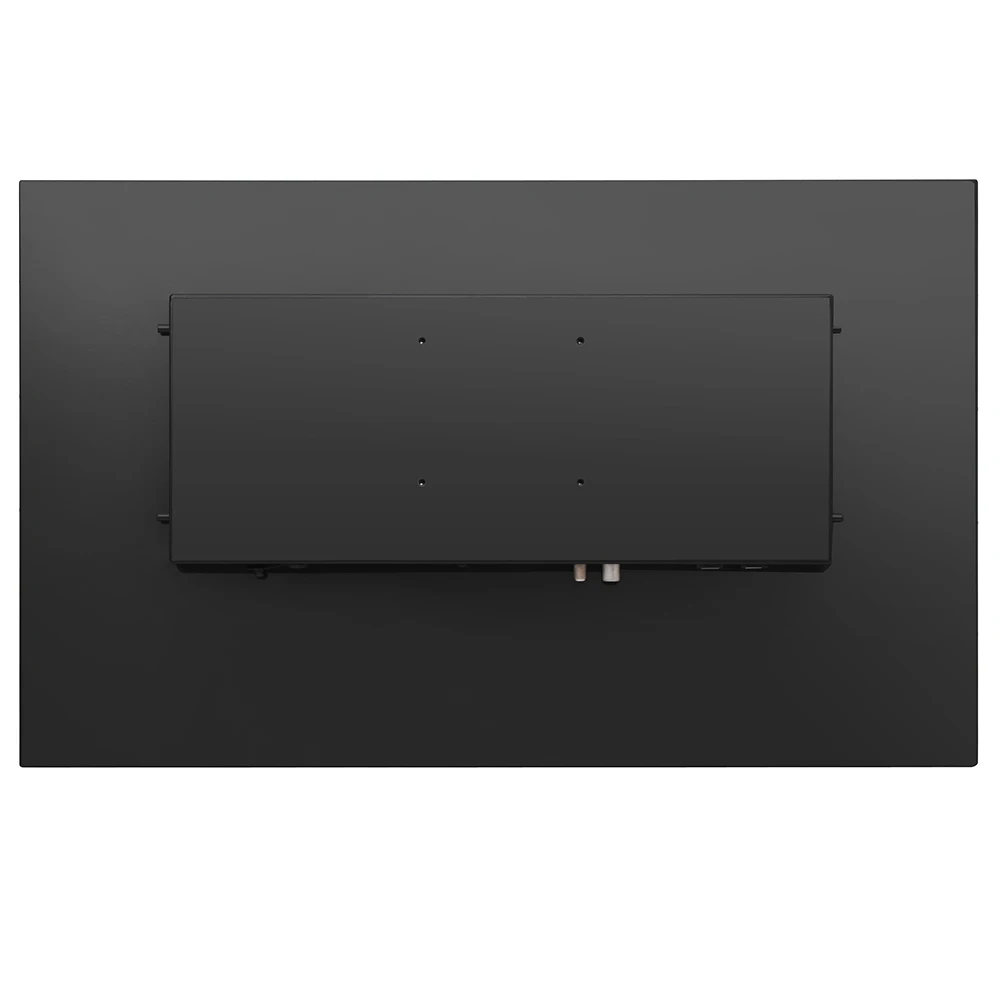

3. Place the TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on the back of the TV.
4. Screw the 2 rails on the back of the TV.
5. Set up power and signal circuit and the outlet.
6. Simply offer the TV up to the On-wall Bracket that is fixed on the wall. Hook the 2 rails over the On-wall Bracket.
2. Place the raw plugs into the holes and screw the On-wall Bracket into position so it is attached to the wall.
3. Place the TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on the back of the TV.
4. Screw the 2 rails on the back of the TV.
5. Set up power and signal circuit and the outlet.
6. Simply offer the TV up to the On-wall Bracket that is fixed on the wall. Hook the 2 rails over the On-wall Bracket.
More Products
Diagonal Screen Size | 22" | 27" | 32" | |||
Model No. | FAV22EM, FAV22EB, FAV22EW | FAV27EM | FAV32EM | |||
Design | ||||||
Front Panel Finish | ||||||
Front Panel Material | Glass | Glass | Glass | |||
Frame Material | Metal | Metal | Metal | |||
System | ||||||
Android System | 7.1 | 7.1 | 7.1 | |||
Bluetooth (In Android) | None | None | None | |||
Freeview (Digital) TV | Yes | Yes | Yes | |||
Freeview (Digital) Radio | Yes | Yes | Yes | |||
Analogue Tuner | Yes | Yes | Yes | |||
Display | ||||||
Display Type | LED | LED | LED | |||
Aspect Ratio | 16:9 | 16:9 | 16:9 | |||
Contrast Ratio | 3000:1 | 1000:1 | 1200:1 | |||
Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |||
View Angle (°H/V) | 178/178 | 178/178 | 178/178 | |||
Audio | ||||||
Speakers(Built-in) | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω10W x 2 | |||
Ports and Connectors | ||||||
TV Signal | Yes | Yes | Yes | |||
HDMI Input | V1.4 x 2 | V1.4 x 2 | V1.4 x 2 | |||
USB Input | V2.0 x 2 | V2.0 x 2 | V2.0 x 2 | |||
Audio Output | Yes | Yes | Yes | |||
LAN RJ45 | Yes | Yes | Yes | |||
Power | ||||||
Power Input | 12V | 12V | 12V | |||
Power Consumption | 48W | 55W | 60W | |||
Standby Consumption | 0.5W | 0.5W | 0.5W | |||
Dimensions and Weight | ||||||
Unit Size(mm) | 497W x 315H x 40D | 612W x 372H x 48D | 729W x 438H x 48D | |||
Packing Size(mm) | 610W x 430H x 135D | 700W x 462H x 120D | 815W x 525H x 120D | |||
Unit Weight(kg) | 4.2 | 8.6 | 9.3 | |||
Gross Weight(kg) | 6.4 | 10.9 | 11.8 | |||
Diagonal Screen Size | 15.6" | 19" | 22" | 27" | 32" | 42" | 55" | |||||||
Design | ||||||||||||||
Front Panel Finish | ||||||||||||||
Front Panel Material | Glass | Glass | Glass | Glass | Glass | Glass | Glass | |||||||
Frame Material | Metal | Metal | Metal | Metal | Metal | Metal | Metal | |||||||
System | ||||||||||||||
Android System | Option 1: Non-Android System | Option 2: Android 10.0 System | |||||||||||||
Bluetooth (In Android) | Bluetooth function is equipped in Android TVs | |||||||||||||
Freeview (Digital) TV | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||||||
Freeview (Digital) Radio | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||||||
Analogue Tuner | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||||||
Display | ||||||||||||||
Display Type | LED | LED | LED | LED | LED | LED | LED | |||||||
Aspect Ratio | 16:9 | 16:10 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 | |||||||
Contrast Ratio | 500:1 | 800:1 | 1000:1 | 1000:1 | 5000:1 | 1300:1 | 1600:1 | |||||||
Resolution | 1366x768 | 1440x900 | 1680x1050 | 1920x1080 | 1920x1080 | 1920x1080 | 1920x1080 | |||||||
View Angle (°H/V) | 160/150 | 170/160 | 170/160 | 178/178 | 178/178 | 178/178 | 178/178 | |||||||
Audio | ||||||||||||||
Speakers(Built-in) | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω5W x 2 | 8Ω5W x 2 | |||||||
Ports and Connectors | ||||||||||||||
TV Signal | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||||||
HDMI Input | V1.4 x 1 | V1.4 x 1 | V1.4 x 1 | V1.4 x 1 | V1.4 x 1 | V1.4 x 1 | V1.4 x 1 | |||||||
USB Input | V2.0 x 1 | V2.0 x 1 | V2.0 x 1 | V2.0 x 1 | V2.0 x 1 | V2.0 x 1 | V2.0 x 1 | |||||||
Audio Output | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||||||
LAN RJ45 | LAN RJ45 is equipped in Android TVs | |||||||||||||
Power | ||||||||||||||
Power Input | 12V | 12V | 12V | 12V | 12V | 110-240V | 110-240V | |||||||
Power Consumption | 36W | 48W | 48W | 60W | 80W | 90W | 100W | |||||||
Standby Consumption | <1W | <1W | <1W | <1W | <1W | <1W | <1W | |||||||
Weight | ||||||||||||||
Unit Weight(kg) | 3.64 | 5.02 | 7.06 | 8.46 | 16.5 | 26 | 41 | |||||||
Gross Weight(kg) | 6.5 | 9 | 11 | 14 | 26.5 | 52 | 78 | |||||||
ABOUT US
Who is SWI?
Dongguan Shineworld Innovations Technology Co., Ltd. is a subsidiary of Shineworld Innovations Limited. Started in 2003 and refounded in 2011, Shineworld Innovations Limited (SWI) is a China-based provider of display screens and the custom display solutions. We are dedicated to providing our customers with the latest in state of the display technology that can be utilized in almost any environment resulting in advanced viewing experiences. We continually develop this technology while remaining a responsible, sustainable company, fully committed to the well-being of our employees and community.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products, solutions and services are both competitive and quality. At SWI, innovation focuses on customer needs. We keep investing in new technologies, concentrating on technological breakthroughs that drive the display industry forward.
What does SWI offer the world?
With a wide range of standard and customized display products, SWI provides customers the specific and integrated solutions and technologies best suited for the applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
Who does SWI work with?
Externally, we rely on our customers. They are at the center of everything we do, and we create value for them with innovative products. Internally, we rely on our dedicated employees. Dedication is a core part of our work ethic. At SWI, those who contribute more get more.
We work with stakeholders including distributors, suppliers, partners, industry organizations and research institutes all over the world to facililate an integrated group that thrives on shared success.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products, solutions and services are both competitive and quality. At SWI, innovation focuses on customer needs. We keep investing in new technologies, concentrating on technological breakthroughs that drive the display industry forward.
What does SWI offer the world?
With a wide range of standard and customized display products, SWI provides customers the specific and integrated solutions and technologies best suited for the applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
Who does SWI work with?
Externally, we rely on our customers. They are at the center of everything we do, and we create value for them with innovative products. Internally, we rely on our dedicated employees. Dedication is a core part of our work ethic. At SWI, those who contribute more get more.
We work with stakeholders including distributors, suppliers, partners, industry organizations and research institutes all over the world to facililate an integrated group that thrives on shared success.
ABOUT WATERPROOF TV
What's Waterproof TV
A waterproof television (TV) is a TV that is safe to use around humid environment. The TV is typically sealed in such a way that they can be splashed, rained on, or, in some cases, submerged in water and other liquids and still function. A waterproof TV is often useful in places where there may be a threat of contact with liquids, such as in bathrooms, kitchens or outdoors. Both homeowners and businesses may be able to utilize a waterproof television. The TV’s can be built in the wall or furniture, or mounted on the wall.
The waterproof TVs have flat panel monitors, like LCD and LED (LCD panel with LED backlight). These TVs are equipped with a waterproof remote control that can be used in the same wet environment as the television.

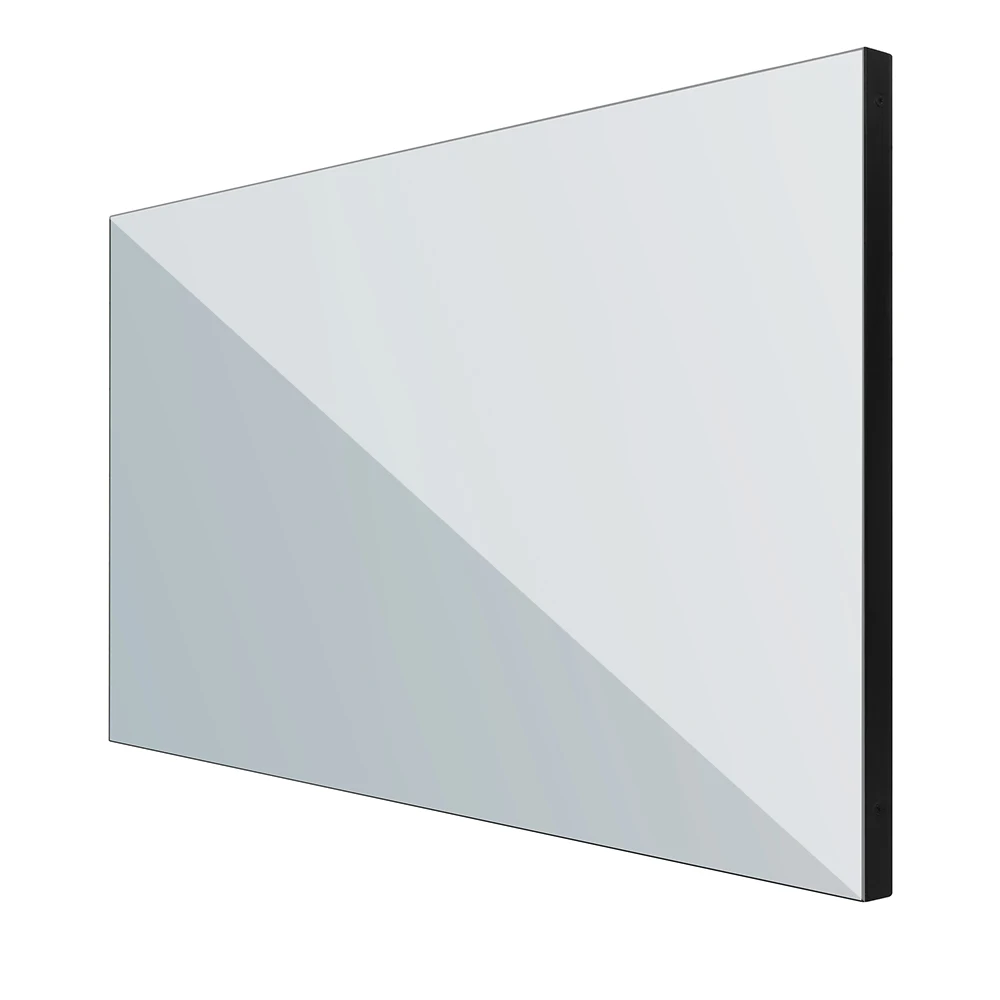

Some TVs have mirror finish that allows them to be used as a normal mirror when they are not in use. They are called mirror TV.
The mirror panel can also be bigger than TV screen if needed. Also, they may have screens that are heated so that they will not fog over in the bathroom environment. This heated screen option is useful for TVs in rooms with a lot of steam, such as showers or saunas.
Applications:
The waterproof TVs have flat panel monitors, like LCD and LED (LCD panel with LED backlight). These TVs are equipped with a waterproof remote control that can be used in the same wet environment as the television.
Some TVs have mirror finish that allows them to be used as a normal mirror when they are not in use. They are called mirror TV.
The mirror panel can also be bigger than TV screen if needed. Also, they may have screens that are heated so that they will not fog over in the bathroom environment. This heated screen option is useful for TVs in rooms with a lot of steam, such as showers or saunas.
Applications:

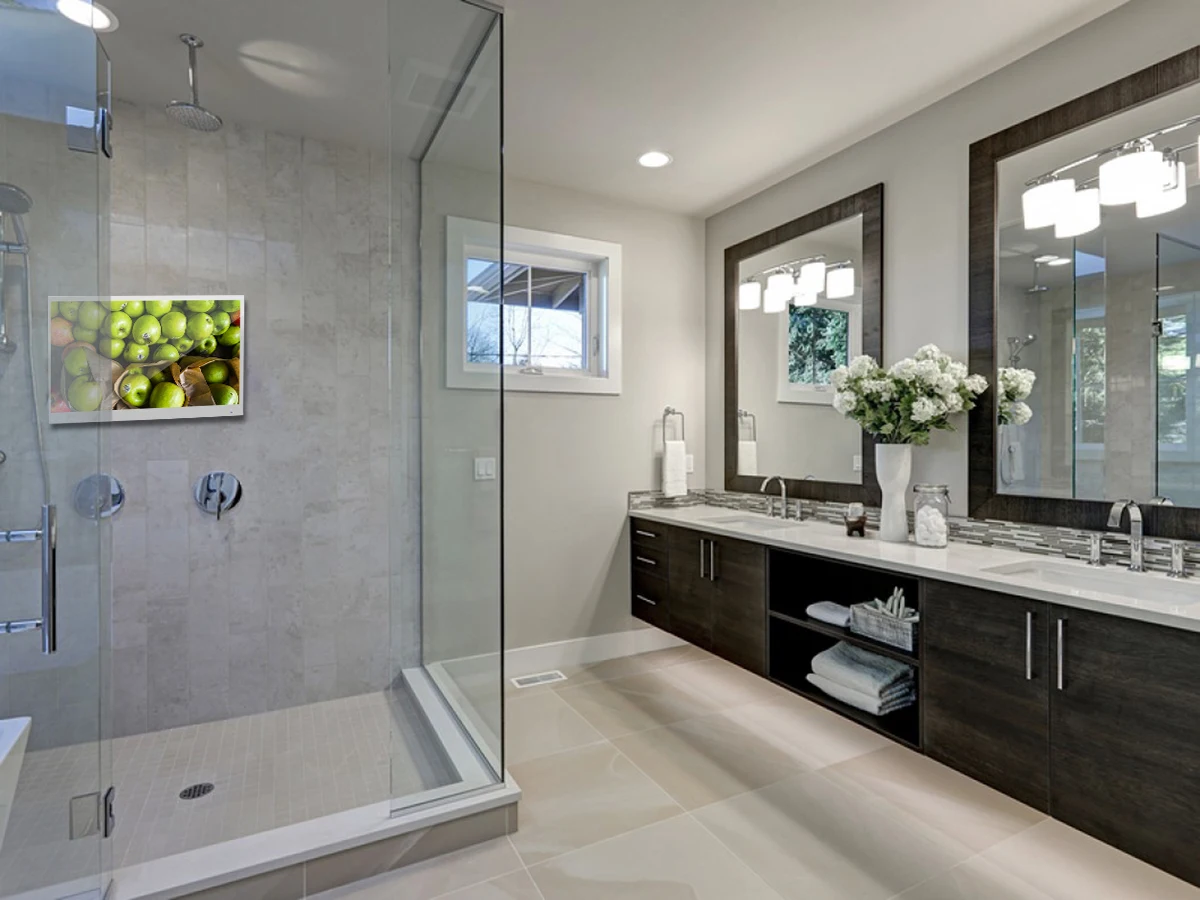

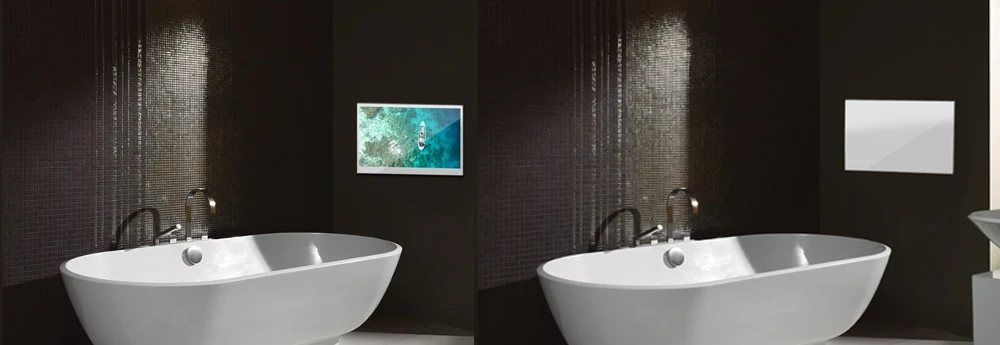

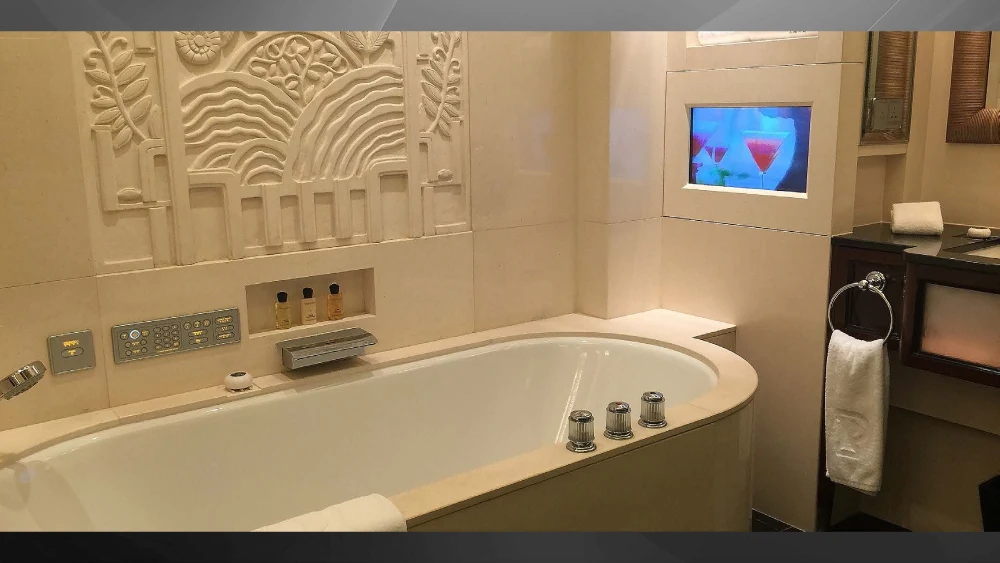

Bathroom, Shower Room, SPA Pool, Sauna, Swimming Pool, Luxury Hotel, Kitchen, Hair Salon, Marine, Puband Any Place with a Humid Environment. With the water, heat, dustproof television, you will be able to watch your favorite programs and movies even while you enjoy a steamy hot bath or shower.
Why Waterproof TV
Imagine this: luxuriating in a steamy, bubbly bathtub with a glass of wine while watching your favorite TV show. However, making this addition does require special considerations. Standard TVs are not designed to withstand moisture. Humidity can be an issue in the kitchen, but it is a serious concern in bathrooms, where steam is a regular part of your routine. Choose a waterproof TV, and you’ll have no worries.
CERTIFICATION
FAQ
Why can't I just install a regular television in my bathroom?
A regular television is designed for use in dry areas, such as your living room or bedroom. They are not waterproof. The rear of the television is vented to allow for cooling, however, these vents will also allow moisture and condensation to accumulate inside the television. This can be extremely hazardous, with risks to the television shorting and potentially causing an electrical malfunction or fire.
The waterproof TV is a completely sealed design, engineered for use in wet areas. It is rated IP65 or higher and can withstand not only moisture, but also water from any direction.
What is the difference between a waterproof TV and a weatherproof outdoor TV?
The waterproof televisions are designed for indoor use. They are a completely sealed design, rated IP65 or higher, and are capable of withstanding water from any direction.
Outdoor weatherproof televisions are quite different, as they not only have to deal with water, but also sunlight and are exposed to the environment. For this reason they have a number of specific features:
Built in cooling systems ensure that the TV does not overheat under the sun.
Anti-reflective glass reduces glare caused by high ambient light.
Powder coated to ensure long term survivability in the elements.
High brightness LED TV panel so the screen can be easily viewed during the day.
Anti-theft mounting hardware secures your investment from theft.
What warranty do you provide?
Our standard warranty provides 12 months of cover. Ask us for updated warranty and more information when you purchase your television.
How easy are the products to install?
This depends on the television models and the installation method you are interested in.
For the models that are designed to be installed and recessed into your wall. It therefore requires a cavity to be cut into your wall, with size of cavity depend on the size of television you purchase. It is recommended that power and input cables are made available adjacent to the cavity opening inside the cavity. This will give you a seamless looking installation.
The on-wall mount method is like any normal flat panel television. They use VESA compliant mounting hardware and are therefore relatively simple to install.
Most of the models are with recessed bracket and VESA screw holes on the back so you can install them either in wall or on wall.
What type of inputs are available for most TV's?
Most televisions consist of one or more HDMI ports, USB ports, TV. We can make the inputs as required for the customized products.
Do you supply waterproof remote controls with all your products?
Yes. All of the waterproof televisions come equipped with IP68 waterproof remote controls as standard(IP68 is a standard of ingressionprotection). You can also order a aditional mini mouse remote control to ship with the TV.
What is an IP rating?
Ingression Protection Ratings (IP Ratings), evaluate the performance of a particular products ability to keep out moisture or dust and other debris. IP ratings are made up of 2 digits. The first digit indicates the products ability to stop the ingression of dust. 0 being no protection, and 6 being the highest degree of dust protection (dust proof).
The second digit indicates the products ability to stop the ingression of water. Again, 0 being no protection, with 8 being the highest degree of water protection (continuous immersion in water).
As an example, the models IP65 rated means they are dust tight (6), and can take high pressure water from any direction (5).
Are all televisions Full HD (1080p)?
This depends on the models. Please refer to the specifications.
Does the TV come with everything I need to install, power and control?
All of our Bathroom TVs come complete with relevant bracket and instructions (for installation), and accessories to power and control (power adapter and remote control).
Can you install the bathroom TVs at the end of your bath or within a shower area?
All our bathroom TVs conform to IP65 or IP66 standard, they can be installed at the end of the bath, of which is the most popular installation location.
Do you deliver worldwide?
Absolutely – we can ship all over the world, but delivery times do vary. We recommend you contact us before you order so we can give you a more accurate delivery date estimate.
What voltage is required to power the TV?
To ensure that our waterproof TVs are safe for use in a wet environment, they come with a 12V power supply.
Can you invoice by proforma for organisations that issue purchase order?
Yes. Please feel free to email purchase orders to us, and we can raise an order/invoice accordingly. Goods will then be dispatched after receipt of payment.
Why are your waterproof TVs cheaper?
We manufacture and distribute our own product. We manage the complete supply-chain. This effectively allows you to benefit from factory-direct prices. And some of the models continue to increase sales, so the manufacturing and material costs are reduced accordingly.
Are your TVs fit for commercial and / or residential use?
Soulaca TVs are fit for both residential and commercial use.
My TV is out of warranty, do you offer a repair service?
We do have an internal service department and are on hand to assist and support our customers with any repair works required in an affordable, effective and timely manner. Simply contact us for more information. swi@swi-cn.com
Can I connect external speakers?
It depends on the models. For the models with the audio-out or optical audio-out, they allow you to use either the internal speakers or use the audio-out facility to connect with external speakers of your choice. It is important to note that you can only use either the internal or external speakers and not in conjunction with one another. You can also customize the output ports when you place the orders. For the models with bluetooth, you can just connect your bluetooth speakers through it.
Are the speakers waterproof?
Yes. The speakers are waterproof. They are located inside the TV and with waterproof treated.
What other products are available in your range?
We keep developing new display products. We also have smart mirror and whiteboard available in our range.
A regular television is designed for use in dry areas, such as your living room or bedroom. They are not waterproof. The rear of the television is vented to allow for cooling, however, these vents will also allow moisture and condensation to accumulate inside the television. This can be extremely hazardous, with risks to the television shorting and potentially causing an electrical malfunction or fire.
The waterproof TV is a completely sealed design, engineered for use in wet areas. It is rated IP65 or higher and can withstand not only moisture, but also water from any direction.
What is the difference between a waterproof TV and a weatherproof outdoor TV?
The waterproof televisions are designed for indoor use. They are a completely sealed design, rated IP65 or higher, and are capable of withstanding water from any direction.
Outdoor weatherproof televisions are quite different, as they not only have to deal with water, but also sunlight and are exposed to the environment. For this reason they have a number of specific features:
Built in cooling systems ensure that the TV does not overheat under the sun.
Anti-reflective glass reduces glare caused by high ambient light.
Powder coated to ensure long term survivability in the elements.
High brightness LED TV panel so the screen can be easily viewed during the day.
Anti-theft mounting hardware secures your investment from theft.
What warranty do you provide?
Our standard warranty provides 12 months of cover. Ask us for updated warranty and more information when you purchase your television.
How easy are the products to install?
This depends on the television models and the installation method you are interested in.
For the models that are designed to be installed and recessed into your wall. It therefore requires a cavity to be cut into your wall, with size of cavity depend on the size of television you purchase. It is recommended that power and input cables are made available adjacent to the cavity opening inside the cavity. This will give you a seamless looking installation.
The on-wall mount method is like any normal flat panel television. They use VESA compliant mounting hardware and are therefore relatively simple to install.
Most of the models are with recessed bracket and VESA screw holes on the back so you can install them either in wall or on wall.
What type of inputs are available for most TV's?
Most televisions consist of one or more HDMI ports, USB ports, TV. We can make the inputs as required for the customized products.
Do you supply waterproof remote controls with all your products?
Yes. All of the waterproof televisions come equipped with IP68 waterproof remote controls as standard(IP68 is a standard of ingressionprotection). You can also order a aditional mini mouse remote control to ship with the TV.
What is an IP rating?
Ingression Protection Ratings (IP Ratings), evaluate the performance of a particular products ability to keep out moisture or dust and other debris. IP ratings are made up of 2 digits. The first digit indicates the products ability to stop the ingression of dust. 0 being no protection, and 6 being the highest degree of dust protection (dust proof).
The second digit indicates the products ability to stop the ingression of water. Again, 0 being no protection, with 8 being the highest degree of water protection (continuous immersion in water).
As an example, the models IP65 rated means they are dust tight (6), and can take high pressure water from any direction (5).
Are all televisions Full HD (1080p)?
This depends on the models. Please refer to the specifications.
Does the TV come with everything I need to install, power and control?
All of our Bathroom TVs come complete with relevant bracket and instructions (for installation), and accessories to power and control (power adapter and remote control).
Can you install the bathroom TVs at the end of your bath or within a shower area?
All our bathroom TVs conform to IP65 or IP66 standard, they can be installed at the end of the bath, of which is the most popular installation location.
Do you deliver worldwide?
Absolutely – we can ship all over the world, but delivery times do vary. We recommend you contact us before you order so we can give you a more accurate delivery date estimate.
What voltage is required to power the TV?
To ensure that our waterproof TVs are safe for use in a wet environment, they come with a 12V power supply.
Can you invoice by proforma for organisations that issue purchase order?
Yes. Please feel free to email purchase orders to us, and we can raise an order/invoice accordingly. Goods will then be dispatched after receipt of payment.
Why are your waterproof TVs cheaper?
We manufacture and distribute our own product. We manage the complete supply-chain. This effectively allows you to benefit from factory-direct prices. And some of the models continue to increase sales, so the manufacturing and material costs are reduced accordingly.
Are your TVs fit for commercial and / or residential use?
Soulaca TVs are fit for both residential and commercial use.
My TV is out of warranty, do you offer a repair service?
We do have an internal service department and are on hand to assist and support our customers with any repair works required in an affordable, effective and timely manner. Simply contact us for more information. swi@swi-cn.com
Can I connect external speakers?
It depends on the models. For the models with the audio-out or optical audio-out, they allow you to use either the internal speakers or use the audio-out facility to connect with external speakers of your choice. It is important to note that you can only use either the internal or external speakers and not in conjunction with one another. You can also customize the output ports when you place the orders. For the models with bluetooth, you can just connect your bluetooth speakers through it.
Are the speakers waterproof?
Yes. The speakers are waterproof. They are located inside the TV and with waterproof treated.
What other products are available in your range?
We keep developing new display products. We also have smart mirror and whiteboard available in our range.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
