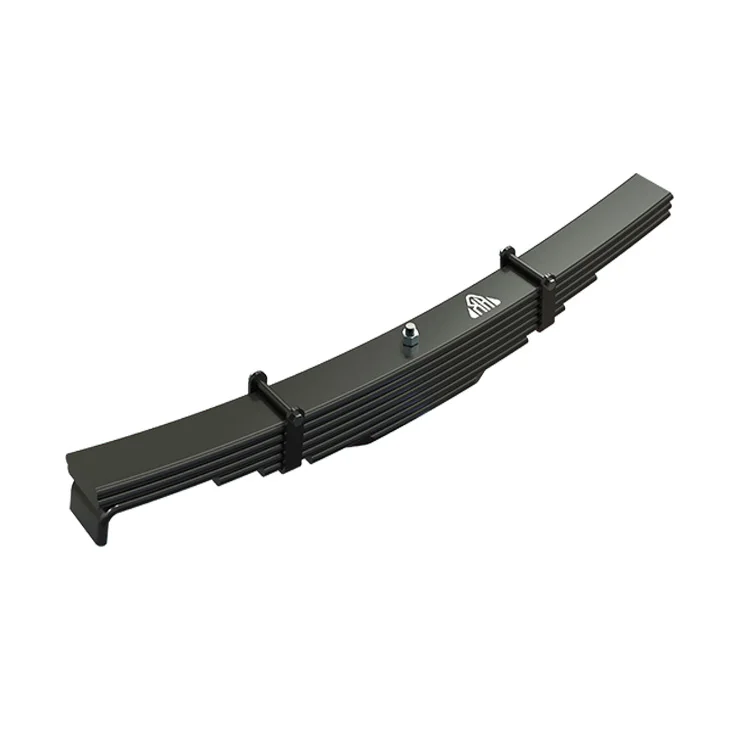

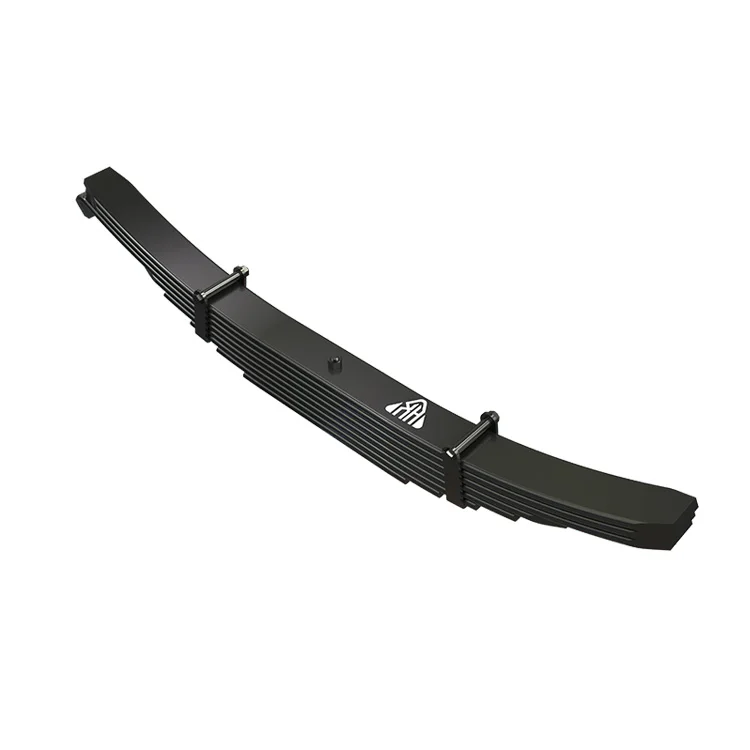

XH Good quality suspension single leaf spring

Product Overview

Description

XH Good quality suspension single leaf spring

 Single piece leaf spring hardness need to be HB378-445 after heat treatment;

•  Overheating, overburning, cracking, folding, bruising and other defects are not allowed on surface;


• Each sinlgle leaf spring need to do stress shot peening treatmnet;


•  After the spring assembling, the center bolt must be punched and riveted;


• Bolt mechanical performance level: 8.8-GB3098.1-2000;


• The surface defects of bolts shall be implemented according to GB5779.1-2000;


• Tolerance of bolts is according to GB3103.1-1982 Grade B product ;


• The spring assembly is painted with black paint or as requested, according to QC / T484-TQ9;


• Other technical requirements shall be implemented according to GB / 19844-2005.

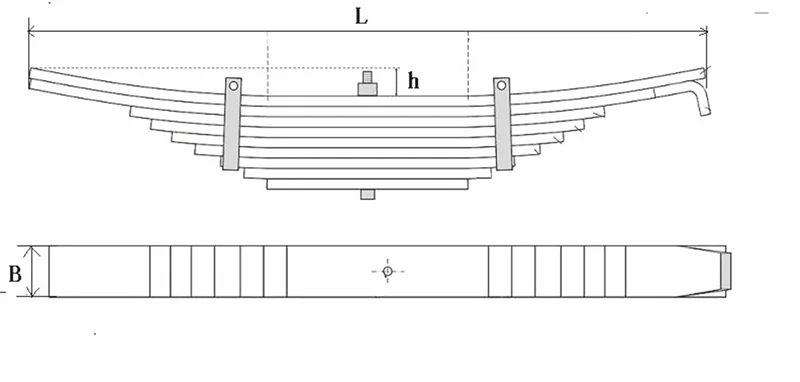

Type	Parameter	Sign	Chord length (mm)	Chord Height (mm)	Total pcs	Thickness (mm)	Width (mm)	Assembly weight (kg)
ENXIN3-90-10			1130	80	10	13	90	71
ENXIN13-90-13			1130	80	13	13	90	79
ENXIN12-100-12			1135	80	12	12	100	83
ENXIN16-75-10			1110	90	10	16	75	71
ENXIN16-90-9			1115	80	9	16	90	79
ENXIN12-900-12A			1200	120	12	12	100	95
ENXIN16-90-9A			1130	70	9	10	90	82
ENXIN13-90-9A			1120	80	9	13	90	62

          Team

• We have a professional &efficient technology team to ensure the high quality products.And we will provide the professional solution and help you to solve the problems at first time.

         Quality Control

• Confirm each detail before production.


• The materials will be fully inspected before the production.


• The strict management system control each production processing during production.


• The completed products will be inspected again before delivery.


• We provide the photos and videos to clients who can learn the updated order progress at any time.

           Shipment

• We choose the economy and fast shipping solutions for clients.And deliver the related commercial documents to clients ASAP in order for clients to clear the goods in time.
