China Hydraulic Press Q35Y 25 hydraulic combined punching machine Ironworker Machine
- Category: >>>
- Supplier: Anhui Runbang Heavy Industry Machinery Co. Ltd.
Share on (1600103348390):
Product Overview
Description
Product Description
E21 200 ton hydraulic ironworker machine with one year Warranty
Using hydraulic transmission.it is the latest multi-function combined punching and shearing machine in china.

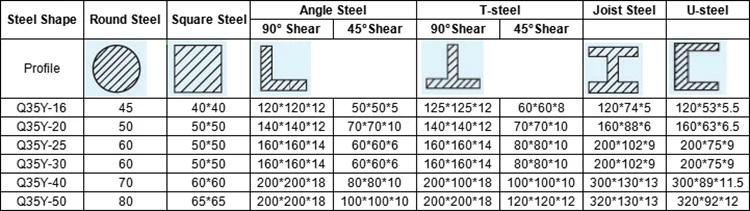

plate steel , square steel , round steel , angle steel , channel steel , and joist steel can be used for shearing , punching and die shearing , and equipped with shear block device.
Standard Toolings | Unit | Custom Toolings | ||
punching die ( single hole punching ) | 1 free | Bending dies | ||
round bar square bar cutting die | 1 free 1 extra cost 180 USD | Special shape punching dies | ||
C channel steel cutting die | Design service | |||
I beam cutting die | we need work piece size | |||
plate cutting blade | 1 free | work piece drawing | ||
angle steel cutting blade | 1 free | |||
notching blade | 1 free | |||

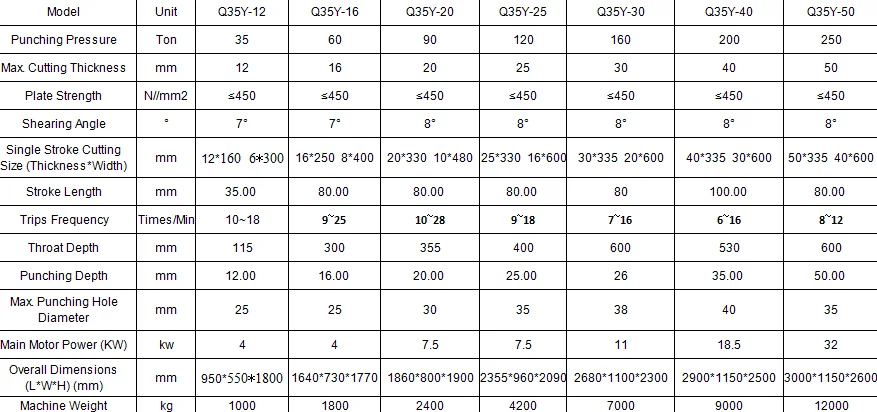

Ironworker Parameters
Max plate thickness 20 mm
Detailed Images
Profile cutting stations
rod clamping & optional hydraulic clamping
Plate cutting station
beam clamping & optional hydraulic clamping
Punching station
Avoid injuiry
Notching station
90
E21 control system
X axis numeric control, Blade angle button control
The back gauge motor
famous brand
Control Button
Compact control
Schneider electric cabinet
reliable electric components
Germany Bosch Rexroth hydraulic Valve
precise pressure control
Siemens Motor
famous brand for 100 years
Cooling fan
powerful wind
foot pedal
2 sets for 5 stations
Manual back gauge
Cheap effective and fast
Antirust painting layer
no rust if the painting stays on
Packing & Delivery
Lead time
30 ton to 200 ton press brake 15 days
250 ton to 1000 ton 20 to 40 days
Payment Method
30% T/T in advance, the balance paid before shipping
irrevocable L/C at sight
Packaging | ||
Size | 1800*900*1900mm | |
Weight | From 1.8 ton | |
Packaging Details | Plastic film packge plywood box package | |
Delivery Details | FCA to your consignee FOB PORT to ShanghaiCIF PORT in your country | |
Our Company
Anhui Runbang Heavy Industry Machinery Co., Ltd.
MTCNC concentrates on the research, development, manufacture, sale and service in metal fabrication equipment.
MTCNC not only supplies metal sheet shearing, bending, punching, rolling machine tool. but also provides you complete metal fabrication solution.
Manufacturing Part
gantry milling machine
gantry drilling machine
gantry boring machine
Material Stock Part
Different Size for press brake and shearing machine with different pressure
Warehouse Part
Abundant Stock
