Высокий крутящий момент 1,2 градусов (Национальная ассоциация владельцев электротехнических 52 50Nm 130BYG350 шагового двигателя в Китае для диспенсер для машинного оборудования (1600103441354)

Share on:


Price:128,00 $ - 130,00 $
Price in USD:Details

Quantity:


Product Overview

Description





Products Description


Motor MODEL
130BYG350-290
Leads
3
Current (A)
6AA
Shaft type(mm)
19(6*30)
 Resistance(Ω)
2.75
Shaft L(mm)
48
 Inductance(mH)
32

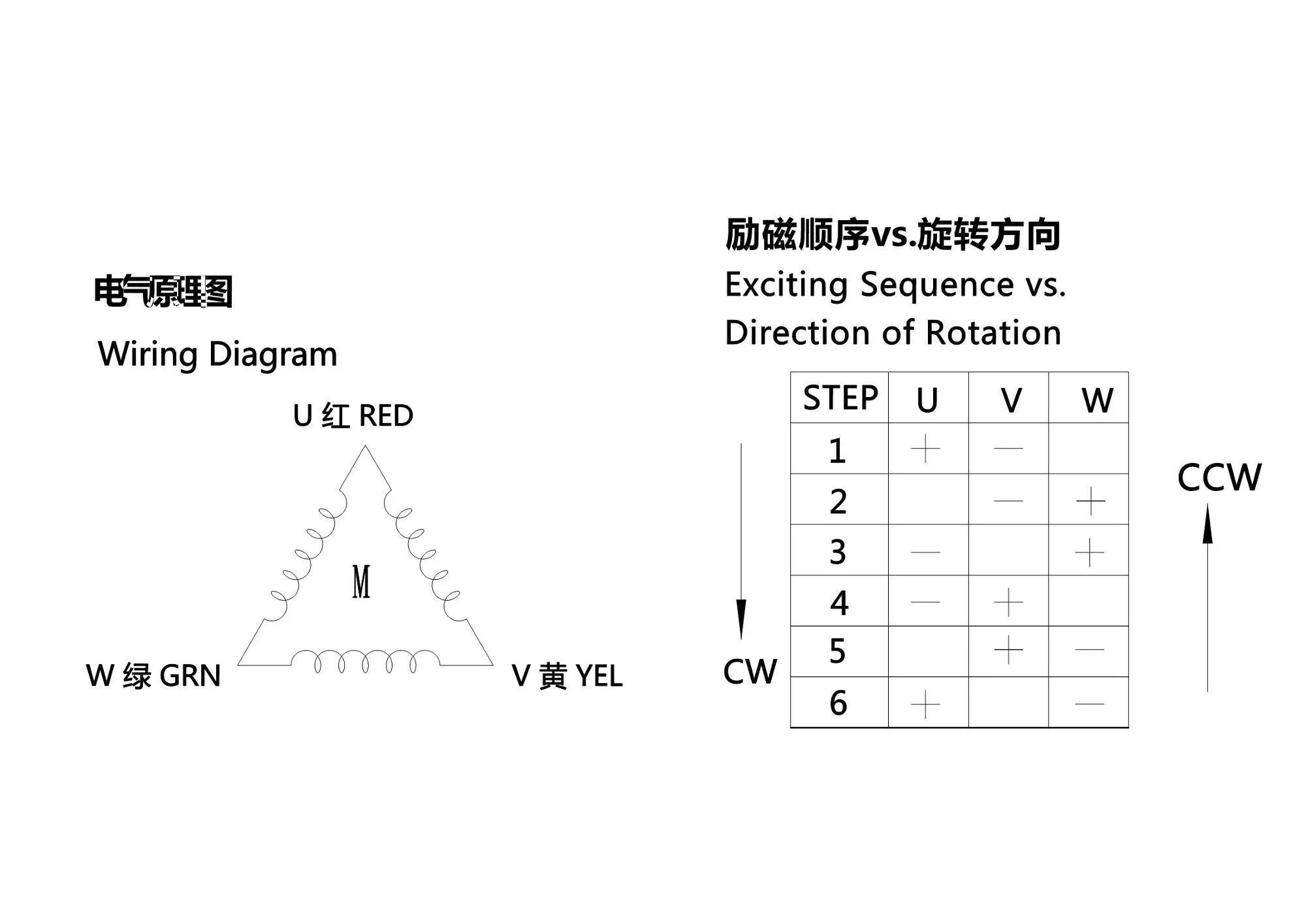

Wiring Diagram
U :RED V:YEL W:GRN





















Changzhou Chuangyi Motor &Electric Appliance Co.,ltd is located in Wujin District, Changzhou City, Jiangsu Province, which
specializes in the hybrid stepping motor. Our company was founded in 2002. Our company carries forward the business
philosophy”Customer Focus,Keeping on Progress”.And we stick to the principle of “Customer Focus” to provide good quality service
to our customers. Our company is a manufacturer of stepper motor with well- equipped testing facilities and strong technical
force.
