Hydraulic side clamp and grip vibrating pile driver vibro hammer
- Category: >>>
- Supplier: TYSIM,PILING,EQUIPMENT,CO.,LTD
Share on:
Product Overview
Description
Products Description
Data/Model | AT45B | AT55B | AT65B | AT75B |
Exccentric Moment(kgm) | 4.6 | 5.5 | 6.5 | 7.5 |
Centrifugal force(KN) | 268 | 320 | 378 | 451 |
Max Centrifugal force(KN) | 455 | 545 | 645 | 787 |
Frequency(HZ/rpm) | 2300-3000 | 2300-3000 | 2300-3000 | 2300-3000 |
Side clamp force(kn) | 332 | 382 | 456 | 558 |
Bottom clamp force(kn) | 384 | 382 | 456 | 550 |
Hydraulic system operation pressure(bar) | 300 | 384 | 550 | 320 |
Rotate/tilt degree(℃) | 360/30 | 360/30 | 360/30 | 360/30 |
Size | 1320*1450*2550 | 1320*1450*2550 | 1320*1450*2550 | 1320*1450*2550 |
Weight(kg) | 2300 | 2600 | 3200 | 3500 |
Excavator Weight(kg) | 20~25 | 25~32 | 32~40 | 40~50 |
Construction Photos

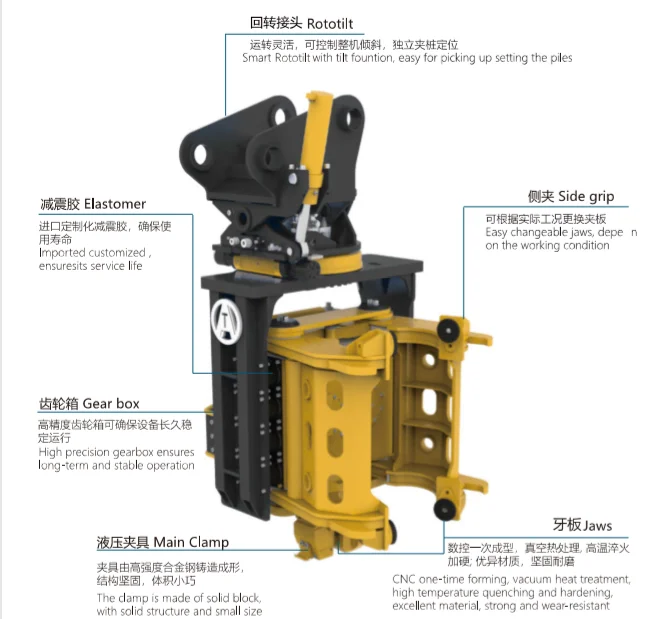

Product Advantage
1. Easy installation
Side grip easy to be installed in the excavator, just take off the bucket and install the hammer, connect the pipeline, then it
can work.
2. Side grip and Bottom grip
Side grip can drive the sheet piles both from the side and the top, no lifting height limit of the excavator boom, no need to
prolong the boom to drive long piles, thus can drive 6m piles, 12m piles, or even 18m pile.
3. Economical
It will save you a lot in prolong boom cost and also local transportation cost.
4. No modification and safety
no modification in excavator, it means more safety, excavator has less possibility to fall down.
5.Work under different geological situation
It is suitable to drive and extract sheet piles for different geological situation except the hard rock layer.
6. Optimum solution in limited space and sensitive environment
7. Excellent components
TYSIM adapts famous brand components to ensure good performance and long life-time, such as Germany FAG bearing, Rexroth motor,

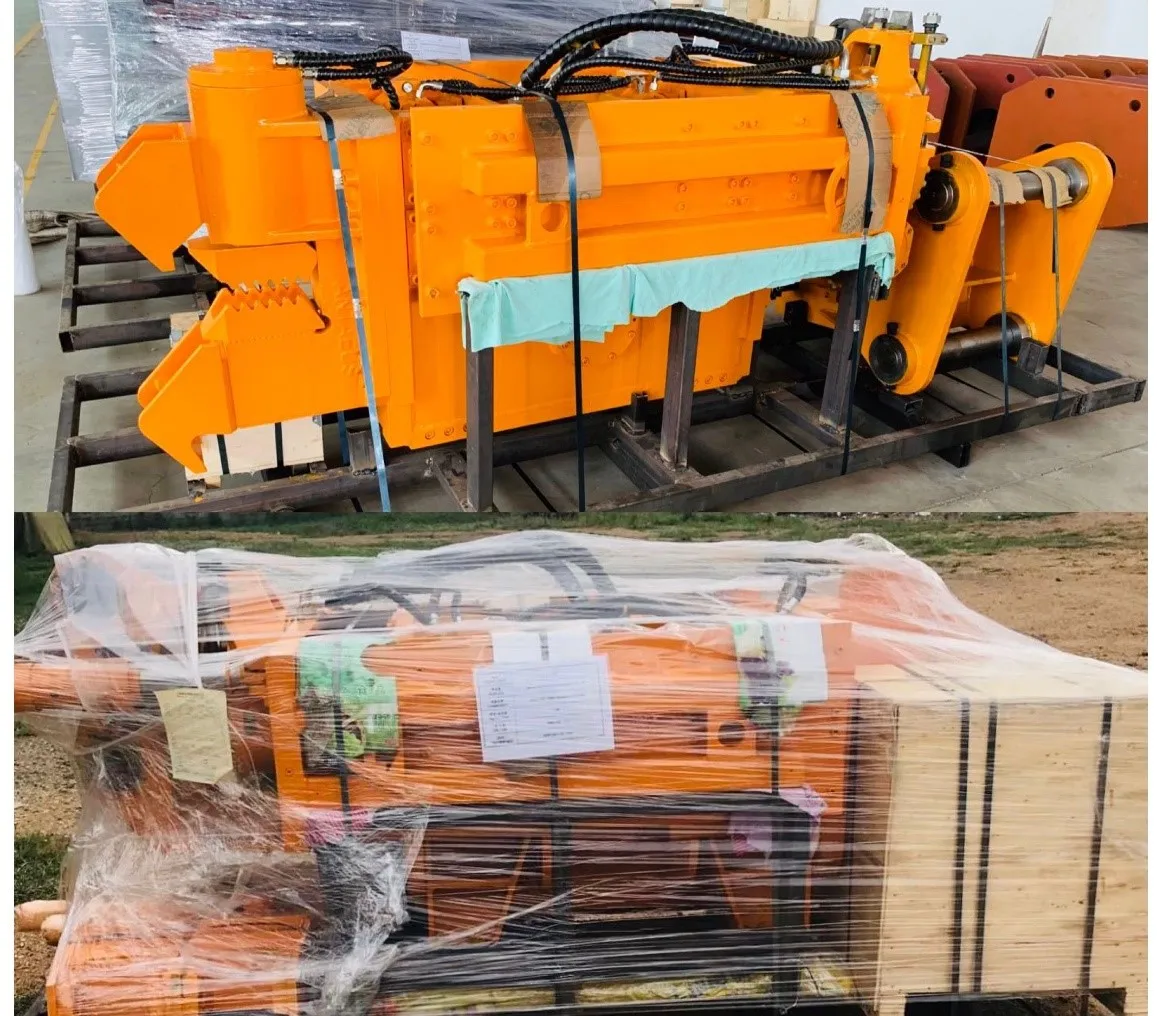

Packing & Shipping
FAQ
Q. Can the price be discounted?
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical
problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2. After-sales Service Overseas.
A. Products due to various configuration issues such as accessories, you can bargain, welcome to inquire
Q. Where are the products more advantageous?
A. Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can recommend the suitable product to them.
Q. Why choose you?
A. our company are specialized on the pile driver for 37 years, we have a lot of experience on it. So if you have technical
problems and difficulties on choosing the suitable machine, please find us.
Q. Can you customize?
A. we can do the OEM.
Q. Does the product have after sales service?
A. More services we can provided:
1, Great quality with reasonable price.
2. After-sales Service Overseas.
