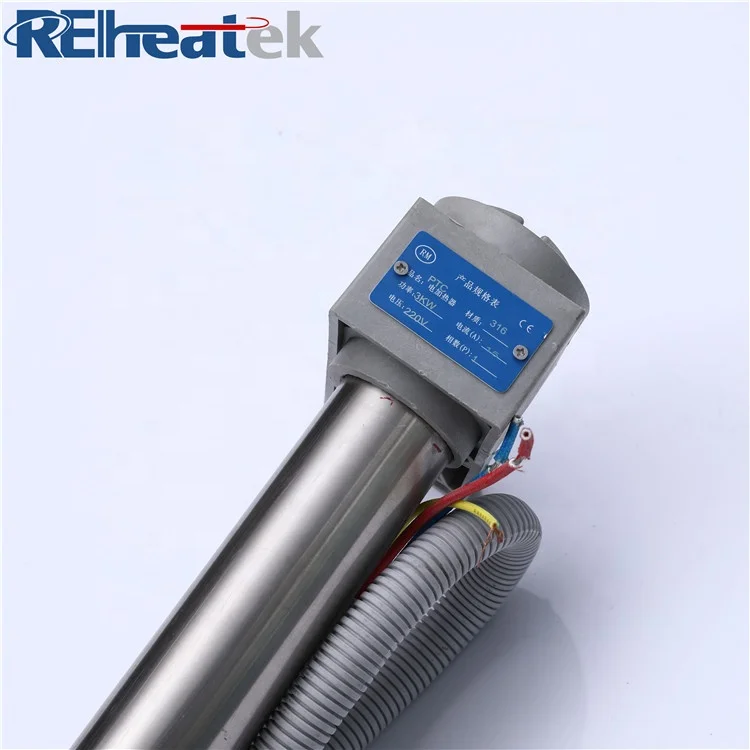

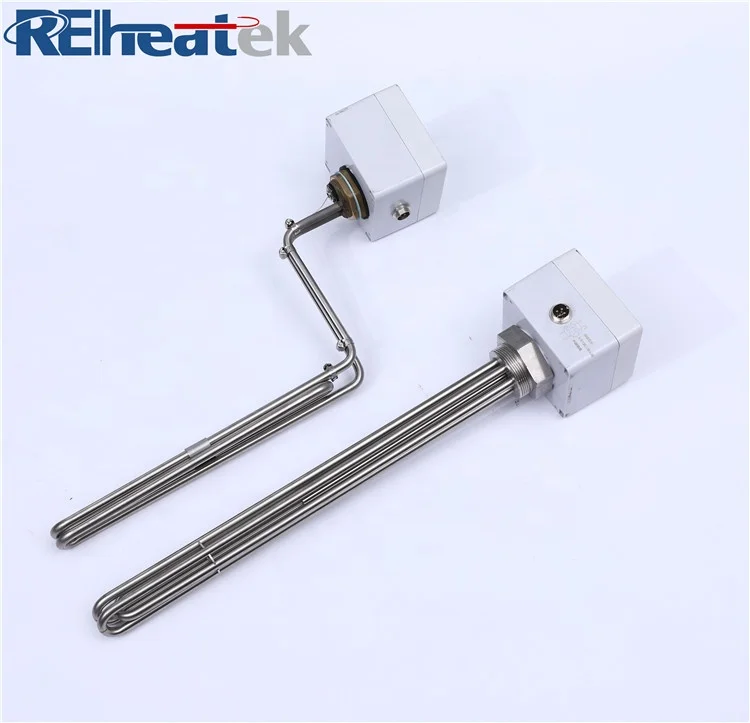

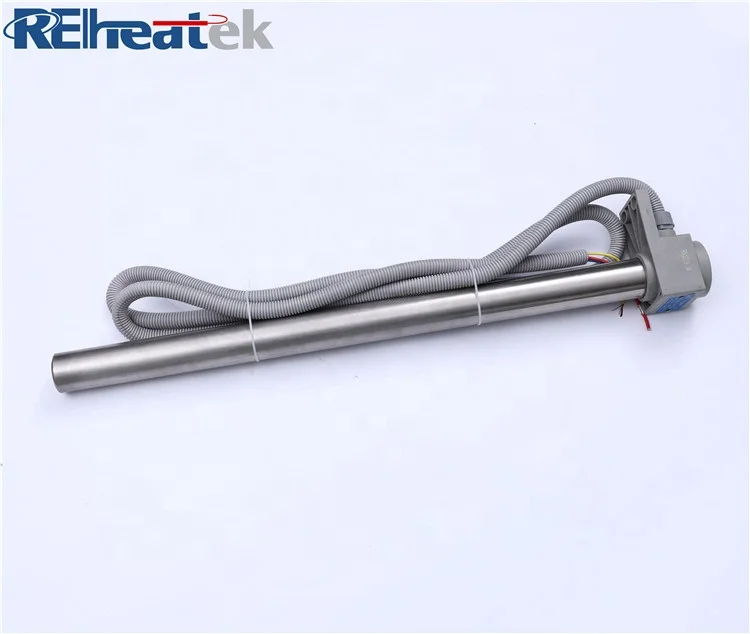

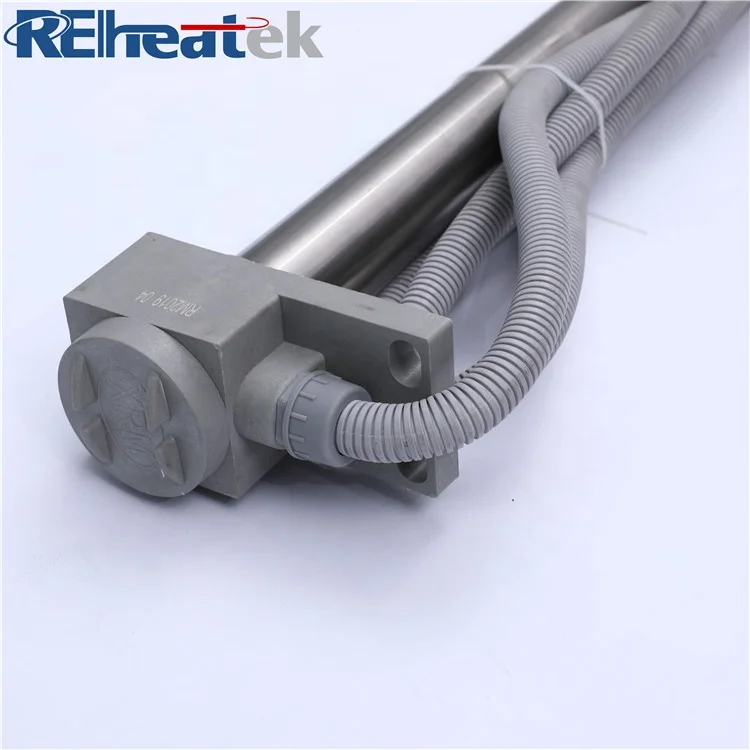

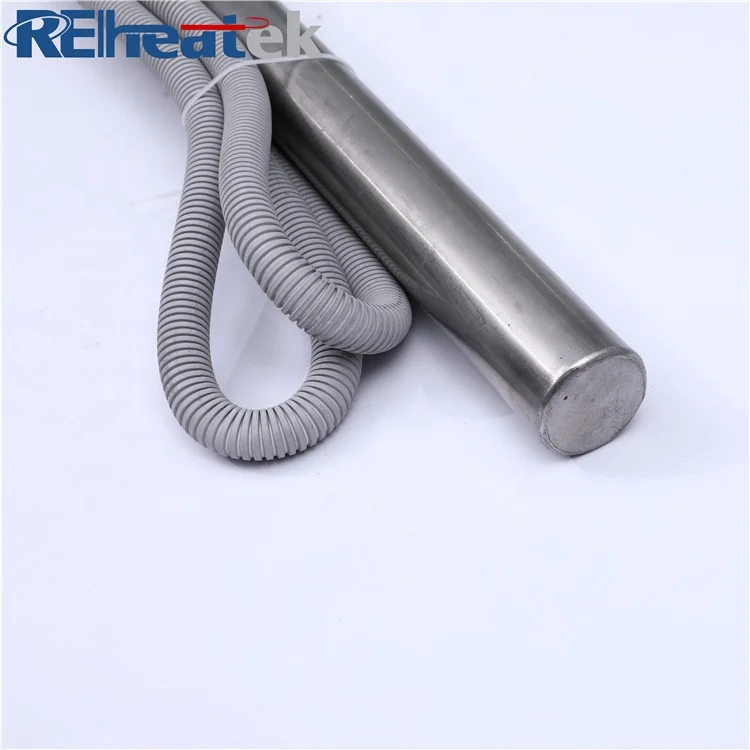

Industrial Electric Titanium Tank Immersion Heater Heating Element With Thermostat
- Category: >>>
- Supplier: Suzhou Reheatek Electrical Technology Co. Ltd.
Share on (1600103663941):
Product Overview
Description
Product Description
Reheatek immersion heaters are an efficient and cost-effective way of heating up various liquid solutions in processing equipment, as well as in large tanks or vessels.
Immersion Heater Advantages
1. Immersion heaters heating up liquids using direct heat transfer, allows the medium to reach the desired temperature quickly.
2. With minimal maintenance requirements, immersion heaters are an excellent solution to rapid heating in almost any industrial environment.
3. Easy installation with flange, over the side, or with screw plug.
4. Easy custom lengths, watt densities, thermostat control options, and connection fittings.
5. Corrosive resistant immersion heaters are also available.
They are used to heat liquids such as water, oil, chemical processes, electro-plating and salt solutions.
Specification
Sheath Materials | ||
Copper | Water, non-corrosive liquids | |
Stainless Steel (304,310,316) | Process water, corrosive liquids, oils, acid, alcaline baths, asphalt, wax, heavy fuel, food processing equipment, | |
Incoloy (800, 840) | Water, oils, asphalt, wax, heavy fuel | |
Titanium | Highly corrosive liquids | |
Reheatek provide customization services to fit different applications.
Options including below details:
1. Flange immersion heaters
2. Over the side immersion heaters
3. Screw plug immersion heaters
4. Over the side immersion heaters
5. Corrosive liquid immersion heaters
6. Sheath material
7. Thermo control
8. Custom non-heating section
OPTION 1 - FLANGE IMMERSION HEATERS
Mounted on the side of tanks, it is extremely strong and provides excellent heat. Flange plate size, thickness and shape are determined by the application.
OPTION 2 - OVER THE SIDE IMMERSION HEATER
A practical method of heating open tanks from the top (typically). It offers the ability to use this heater for multiple tanks while other immersion heaters can’t be conveniently installed.
OPTION 3 - SCREW PLUG IMMERSION HEATERS
These heaters screw into your tank and provide heat to liquids in smaller tanks and compartments. They are installed into threaded openings or couplings in the tank or vessel.
OPTION 4 - CORROSIVE LIQUID IMMERSION HEATER
Corrosion resistant sheath materials are available as well special surface treatment.
OPTION 5 - BUILT-IN THERMO SENSOR
Thermocouple could be built in to measure the temperature of liquid heated, which helps to control the heater
OPTION 6 - OVER HEAT PROTECTION
Immersion heaters could be made with thermostat for over heat protection.
1. Energy efficient
2. Provide uniform temperature3. Can be formed and shaped into various geometries
4. Easy to install, remove and maintain
5. Oxidation and corrosion resistant
6. Durable
More Products
Why Choose Us
We were founded with over 10 years’ experience. We provide customized heating elements and thermal heating solutions.
How Reheatek can work for you?
Design, engineering, manufacture
Quality - ISO9001 /CE&RoHS /100% Inspection
Expertise - Designs services to support from concept to production.
Professional - Functional and thermal stability of each new designs will be tested in our professional the laboratory.
Reheatek Product Certificates
CE CERTIFICATE
ROSH CERTIFICATE
ISO9001 CERTIFICATE
Production Process
Wire Winding
MgO Filling
Tube Shrinking
Welding
Assembling
Test
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: What is the lead time for Reheatek products?
A: Samples - within 3 working days with materials in stock
Mass production - usually 7-14 days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
Got more questions? Please call or send us a mail. Will get you to the best answers fast.
A: Samples - within 3 working days with materials in stock
Mass production - usually 7-14 days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
Got more questions? Please call or send us a mail. Will get you to the best answers fast.
