Forklift Clamp Forklift Attachment Foam Rubber Clamps F THMJ2A20A 1600 2300

Product Overview

Description

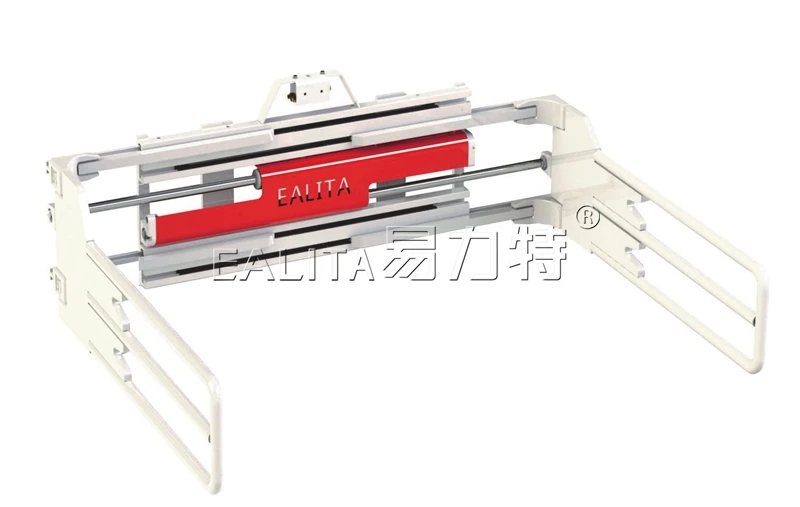

Forklift Attachment Bale Clamps F-THMJ



Suitable for all kinds of paper bags, cotton bags, wool bags, chemical fiber bags and other soft bags material shipment. T-type sliding rod material high strength, good wear resistance, long service life. All steel structure, valve and cylinder rod open part of the bafle protection, excellent visual field operation.

- Please obtain the actual load capacity of the forklift / attachment from the forklift manufacturer.

- Requires 2 additional oil circuit for the forklift.

- Other size available on request.



Specification



Type	Class	Side Shift	Opening Range	Arm Height	Arm Length	Frame Width	Lost Load	VCG	HCG	Weight	Suit Forklift
F-THMJ2A20A-1600-2300	II	NO	490-2300mm	450mm	1800mm	1600mm	134mm	217mm	478mm	670kg	2-2.5t
F- THMJ2A20B-1600-2300	II	YES	490-2300mm	450mm	1800mm	1600mm	134mm	217mm	478mm	670kg	2-2.5t
F- THMJ3A30A-1600-2300	III	NO	490-2300mm	450mm	1800mm	1600mm	134mm	217mm	478mm	670kg	3-3.5t
F- THMJ3A30B-1600-2300	III	YES	490-2300mm	450mm	1800mm	1600mm	134mm	217mm	478mm	670kg	3-3.5t





About us



EALITA is professional manufacturer who supply a wide range of attachments include: Forklift & Lifting attachments, Warehouse solution, Frame machines and Construction equipment.



Our new factory of 23000 square meters located in Longzhou Industrial Zone, Longyan City. We have the capacity to custom make the products as your special needs.



Please contact us to discuss!
