Product Overview
Description
Products Description
500J 1000J 2000J 0-35KV High Voltage cable fault locator tester for discharging signal

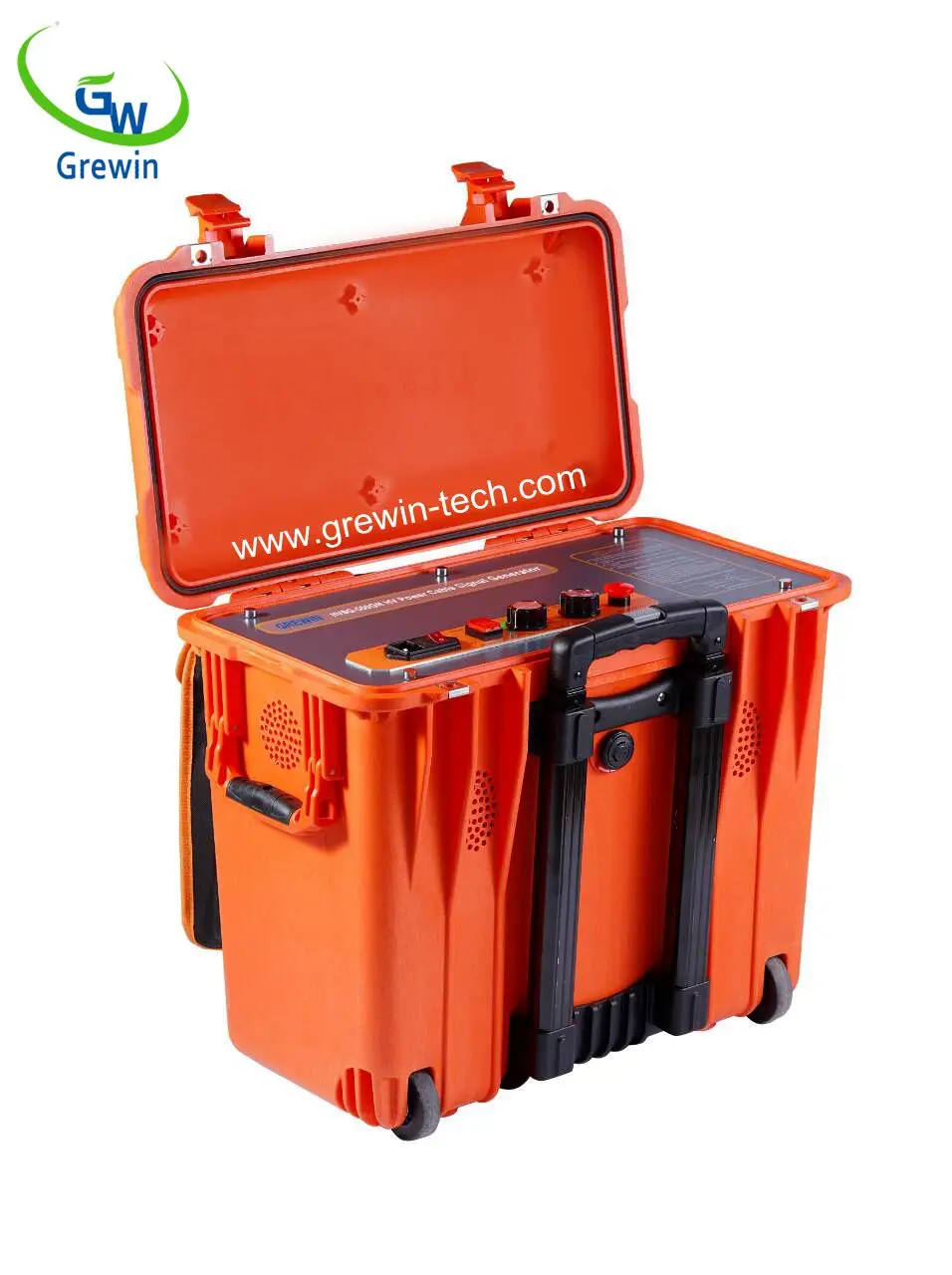

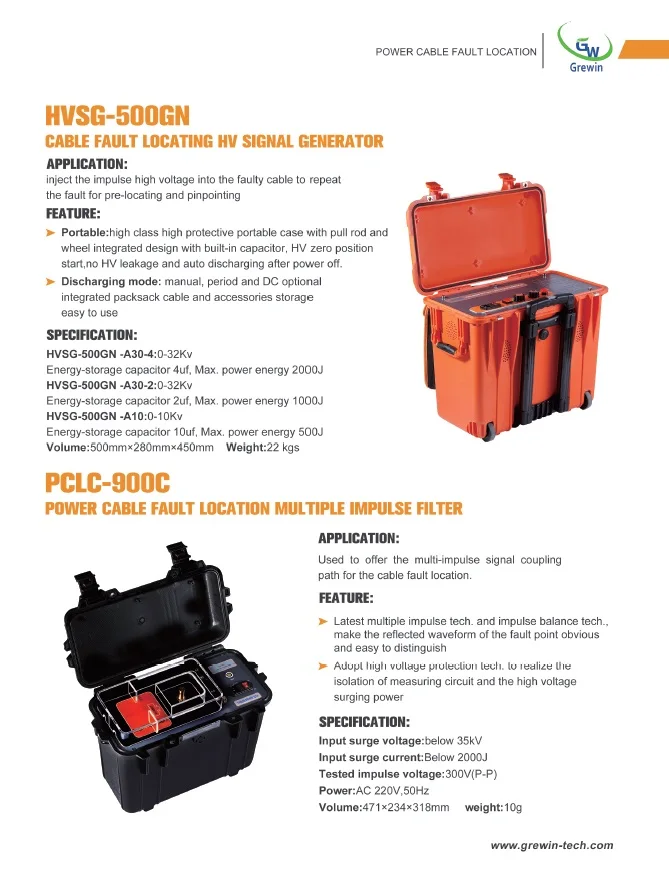

HVSG-500GN Integrated High Voltage Surge/Impulse Generator
500J 1000J 2000J 0-35KV High Voltage cable fault locator tester for discharging signal is used to offer
signal source for the fault locating and pinpointing. Together with the
PCLC-901D&PCLD-901P items, it’s easy to do:
Impulse current distance measurement
Sound magnetic synchronous method for pinpointing
signal source for the fault locating and pinpointing. Together with the
PCLC-901D&PCLD-901P items, it’s easy to do:
Impulse current distance measurement
Sound magnetic synchronous method for pinpointing
Specifications
Output surge voltage | 0～32KV, 0～10KVStep variable | ||||||
Max. power energy | 2000J 1000J 500J | ||||||
Energy-storage capacitor | 4μ F 2μ F 10μ F | ||||||
Power | AC 220V.50Hz | ||||||
Volume | 400mm×460mm×300mm | ||||||
Weight | 25kgs | ||||||
Operating Temperature | -10℃－40℃ | ||||||
Humidity | 5-90％RH | ||||||
Elevation | <4500m | ||||||
Design Feature
1.HVSG-500GN Integrated High Voltage Generator
2.Integrated design with small size and light
3.Different sub-models with difference specification
4.Imported safety case,professional and portable
5.Built in energy-storage capacitor without HV leak and safe operation
6.HV directly connect with the faulty cable, easy wiring and safe operation
7.Built-in high power quick charging and short discharge period
8.Multiple safety protection support Zero position start and release HV power energy after power off
9.Multiple working methods of single,period and DC
10.Step adjustable voltage with LED indication
2.Integrated design with small size and light
3.Different sub-models with difference specification
4.Imported safety case,professional and portable
5.Built in energy-storage capacitor without HV leak and safe operation
6.HV directly connect with the faulty cable, easy wiring and safe operation
7.Built-in high power quick charging and short discharge period
8.Multiple safety protection support Zero position start and release HV power energy after power off
9.Multiple working methods of single,period and DC
10.Step adjustable voltage with LED indication
