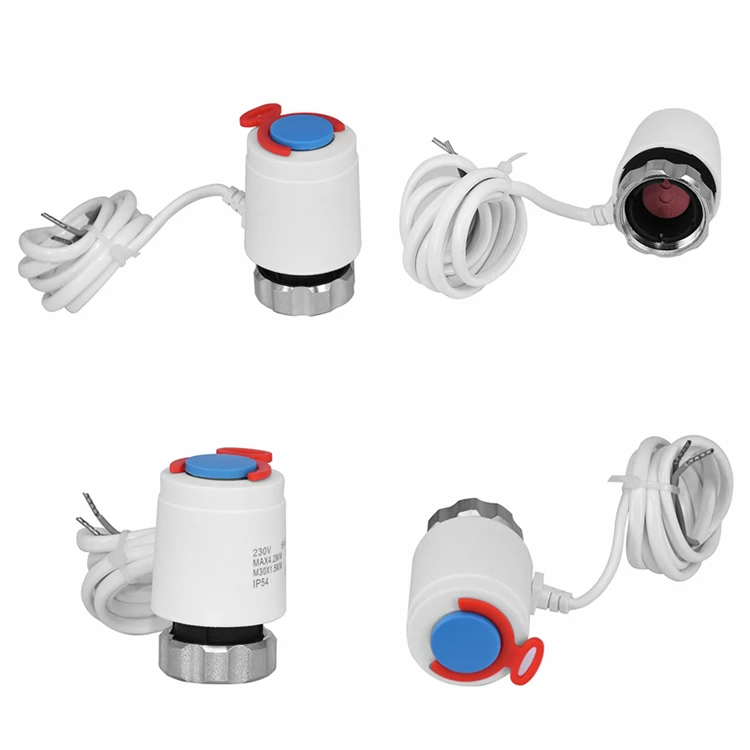

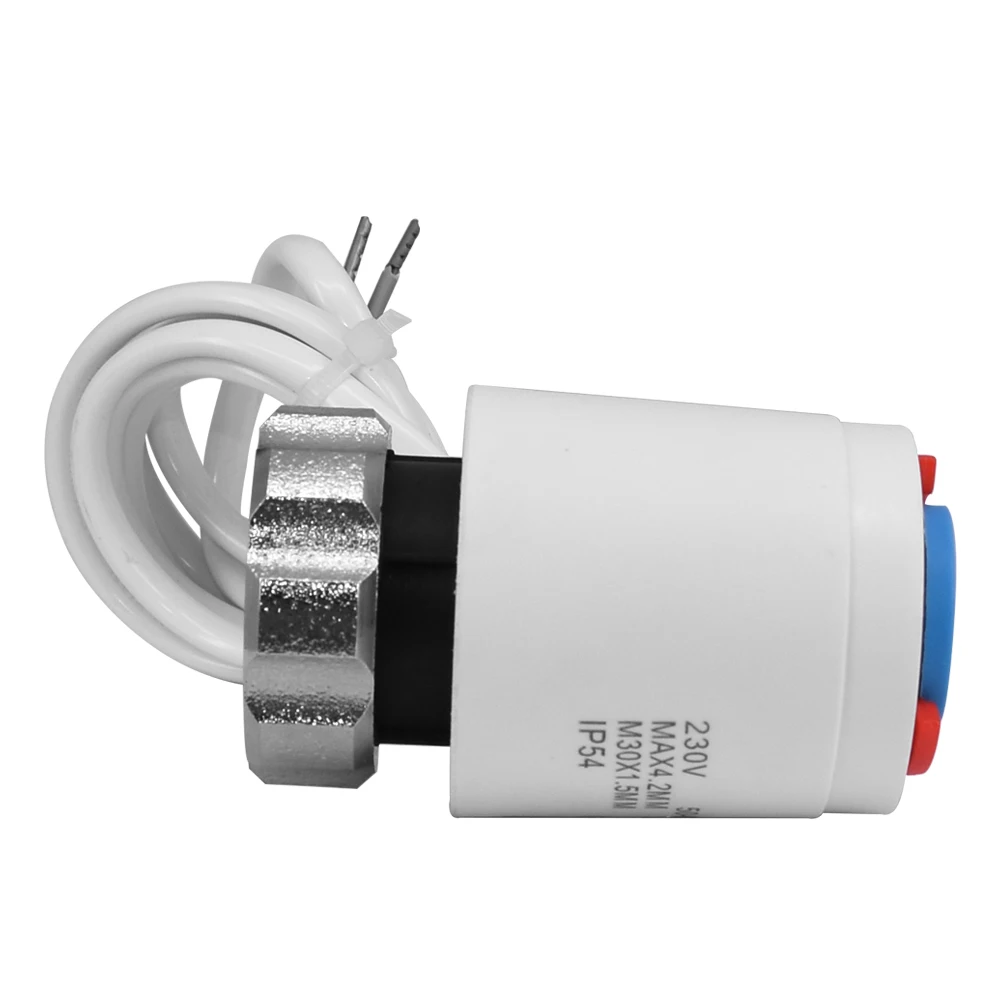

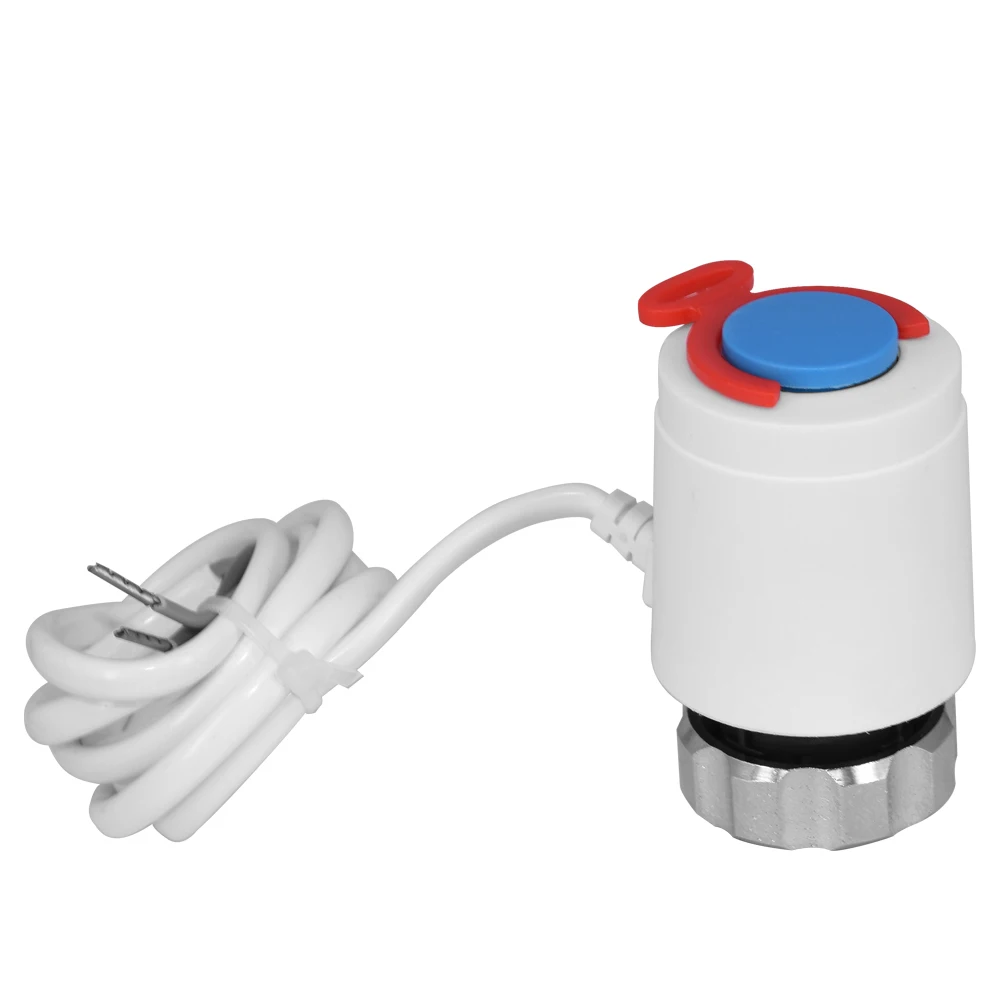

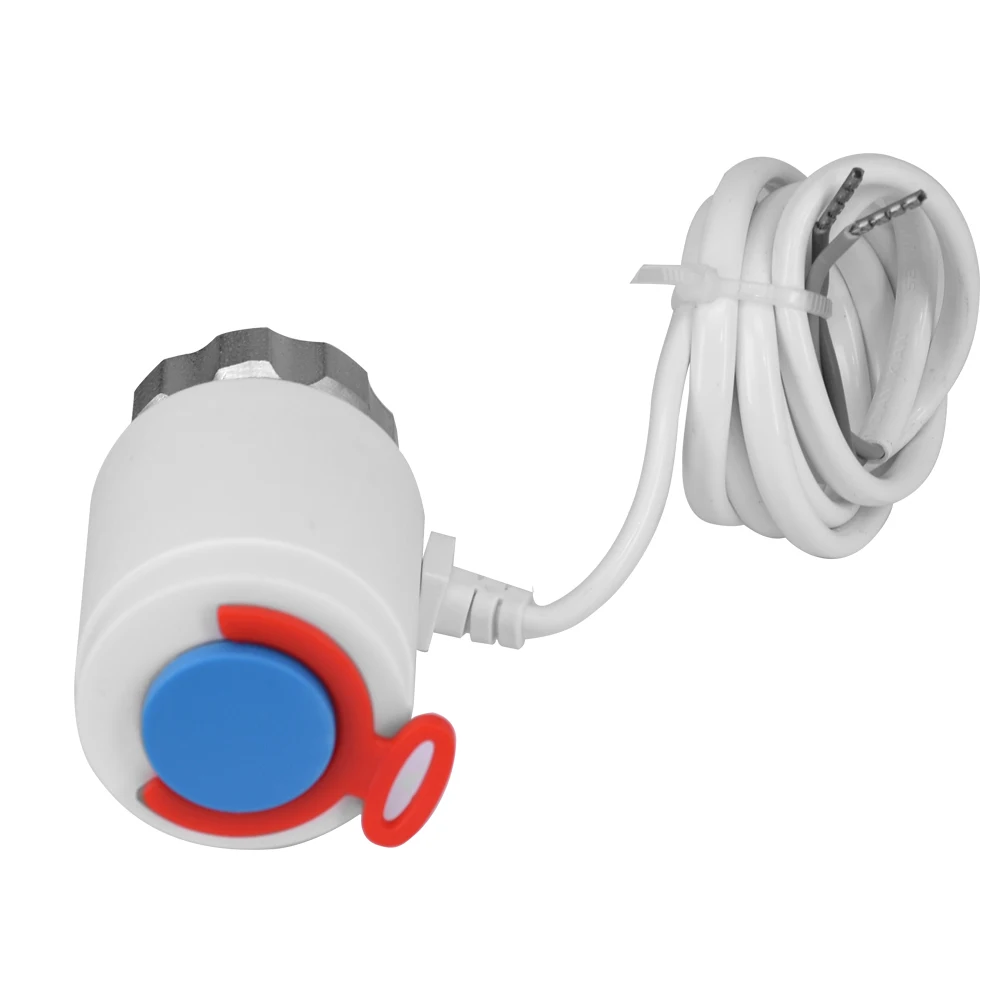

230V Normally Closed Electric Thermal Actuator

Product Overview

Description

230V Normally Closed Electric Thermal Actuator

Overview and Features

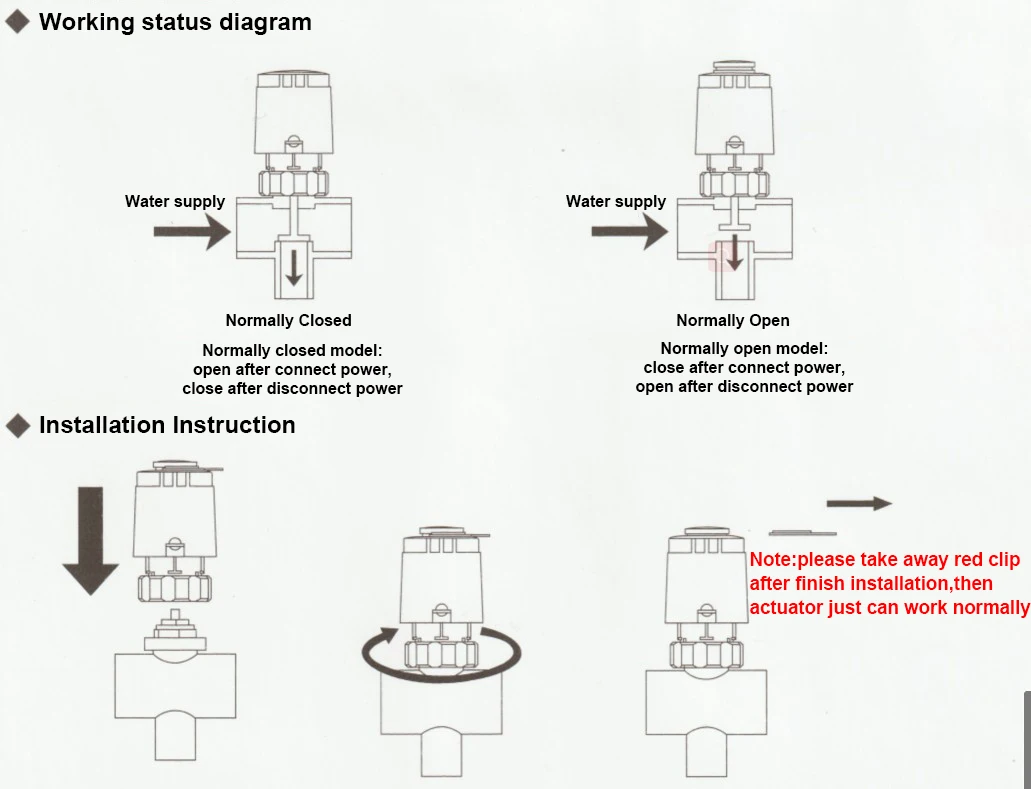

Used for controlling normally closed switch of small valves or PDM executive control on-off an stable control of closed loop valve,Mounted on the pipeline of the water collector loop and the thermostatic valve,The valve is closed when the electric actuator has a power failure,The paraffin propeller is driven by heating PTC,Spring-return function, the valve closed with power failure,No noise during the running,Indicate the stroke location and the opening,Simple and fast installation of the nuts connecting, easy to disassemble

Type	Normally closed
Model	H30
Working Voltage	230VAC;24VAC
Power Consumption	2W
Protection Grade	IP54
Working Journey	4.5mm
Working Temperature	-20~50℃
Storage Temperature	-20~70℃
Security Class	II(Double Insulation)
Cable Length	100cm
Running Time	180seconds (open-closed)
Initial Current	About 50MA
