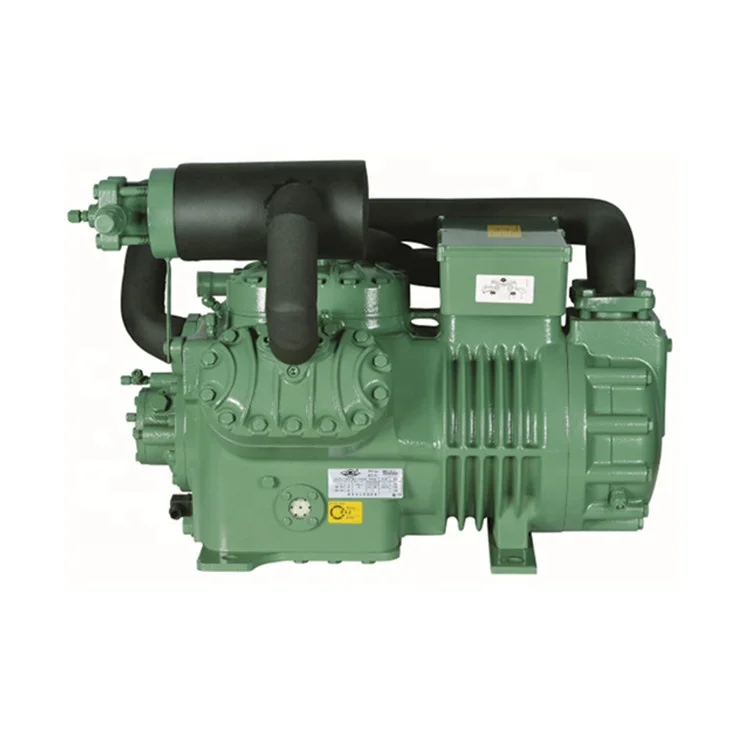

CC062 Cheap Price Hermetic C Type Compressor Model Numbers 3Ds3F46Ke Tfc Refrigeration Compressor
- Category: >>>
- Supplier: Hangzhou Sino-Cold Sci-Tech Co. Ltd.
Share on (1600104208641):
Product Overview
Description
Product Description
Product Name | compressor |
Product Model | SC4YD-3.2 |
Nominal Power(HP/KW) | 3/2.2 |
Displacement m³/h 50Hz | 18.1 |
Number of Cylinders×Diameter×Stoke | 4×φ41×39.3 |
Oil Volume L | 2L |
Max Operating Current(A) | 15.9/9.2 |
Starting/ Locked Current(A) | 76.6/44.2 |
Power V/φ/Hz | 220-240△/380-420Y/3/50 265-290△440-480Y/3/60 |
Oil Supply Method | Centrifugal Lubrication |
Weight (Including Refrigerating Oil) Kg | 82kg |
Detailed Images
·Wide range of application
\u2029The machine uses R22 as refrigerant.R134a,R404a,R407b and R407e are also approved.R12 and R502 are not suggesteddue to the international environment protection requirement.The machine can be used at a low or high condensingtemperature.
·General spare parts
The spare parts like valve plate,the piston and connecting rod are generally used and it's convenient for maintainence.
The spare parts like valve plate,the piston and connecting rod are generally used and it's convenient for maintainence.
·Product features
1.Mature technology and compact structure
2.Small size and small space requirement
3.High-precision processing ensures that the compressor's various indicators meet the standard
5.Smooth operation, low vibration and low noise
6.Electronic protection device, effectively protect the motor
7.Wear-resistant drive parts, long service life
8.High-efficiency valve plate design, large cooling capacity, low energy consumption
9.High versatility of parts and parts, easy to dismantle and maintain
2.Small size and small space requirement
3.High-precision processing ensures that the compressor's various indicators meet the standard
5.Smooth operation, low vibration and low noise
6.Electronic protection device, effectively protect the motor
7.Wear-resistant drive parts, long service life
8.High-efficiency valve plate design, large cooling capacity, low energy consumption
9.High versatility of parts and parts, easy to dismantle and maintain
Advantage
1·Low noise
Due to the scientific design and high precision,the machine owns a fine dynamic balance and works smoothly with a low
noise.
noise.
2·Excellent performance
The compressor has a scientific structure design , strictly chosen material and precise procession and it is strictly inspected.The factory has obtained the National Compulsory Products CCC Certification
3·No leakage
The compressor could operate without the leak of refrigerant and oil since the motor is built-in without shaft seal device.The machine contains a oil separation device,so the oil won’t spoilover.The compressor could work stablely at a low temperature environment.
4·Reliable safety device
4·Reliable safety device
The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.
WARNING
1.Do not use gas that is inflammable and explosive.
1.Do not use gas that is inflammable and explosive.
2.Do not check the leakage with high pressure above 1.63MPa.IndustrialN2is suggested.
3.Do not use the compressor to de-pressurize and start the compressor when it is under vacum.
Refrigeracion dondurucu compresseur condensator congelador congeladora frigorifico frigorifica dondurucu buzdolabi kompresor compresor frigo compressore kulkas Pendinginan
Related Products
Certificate
Company Introduction
SinoCold is a professional refrigerator full supply chain solution provider, specializing in designing and producing refrigeration equipment. The main products include cold room solution, semi-hermetic, hermetically sealed refrigerant compressors and condenser units, various kinds of air-cooled condensers, air coolers and industry humidifier related accessories. It is our consistent principles and pursuits to produce high quality products, provide excellent after-sale service and establish sincere credibility. Our company has been awarded the ISO9001International Quality Management System Certification. All the products have obtained the production license of national refrigeration industry.
ONE-STOP service is our core advantage, that means you can get almost everything about refrigeration equipments for cold storage.
ONE-STOP service is our core advantage, that means you can get almost everything about refrigeration equipments for cold storage.
Our Factory
Packing&Shipping
FAQ
Q: How about the warranty for your products?
A: All of our products have one year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get
fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A:We will offer technical support like operating manual, operating videos to support or provided training material of the detailed
products you are interested in.
Q: May I have a free sample? I need test your quality first.
A: We are regret to tell you that we could not offer free sample to our customers, which is our company rule. But if you agree, we
can quote special price to better support you for trail order.
fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A:We will offer technical support like operating manual, operating videos to support or provided training material of the detailed
products you are interested in.
Q: May I have a free sample? I need test your quality first.
A: We are regret to tell you that we could not offer free sample to our customers, which is our company rule. But if you agree, we
can quote special price to better support you for trail order.
