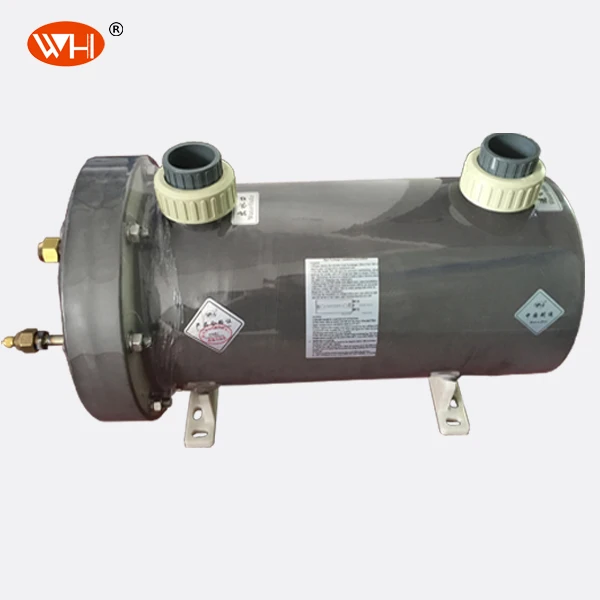

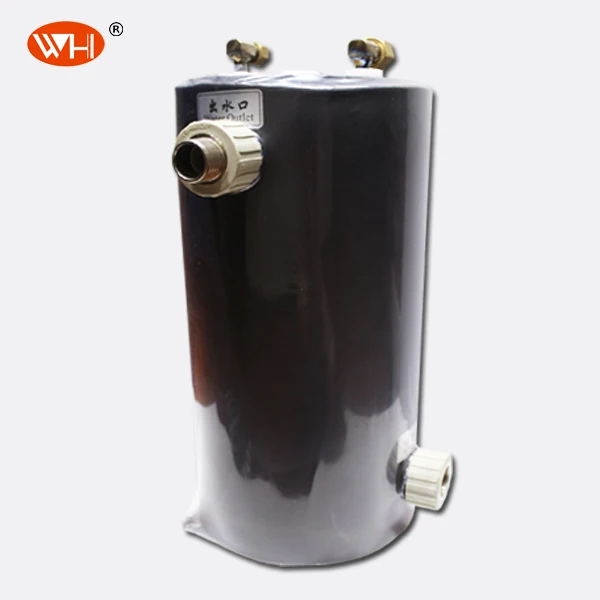

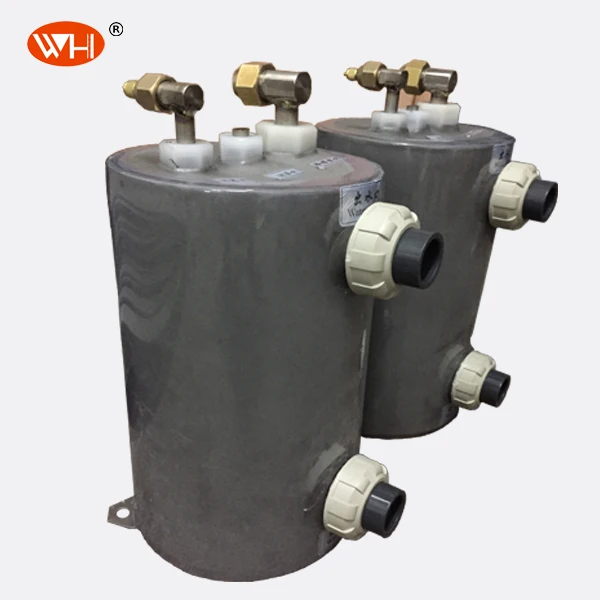

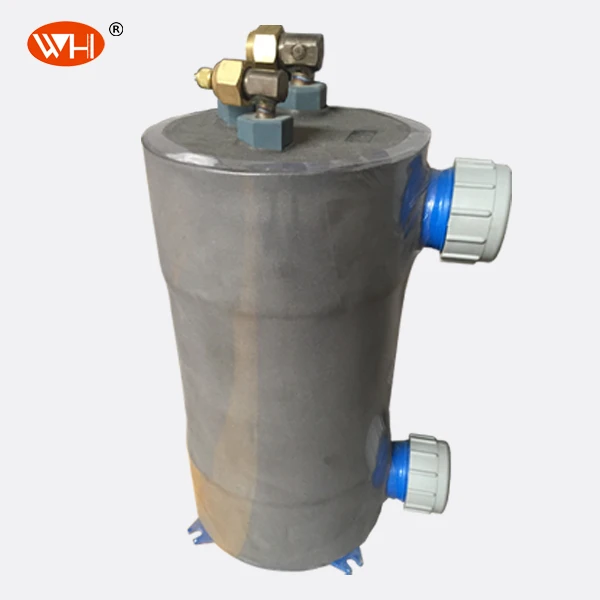

Swimming Pool Equipment 0.5 HP Aquarium Chiller Heat Exchanger Titanium Chiller
- Category: >>>
- Supplier: Wuxi New Wuhuan Energy Saving Technology Co. Ltd.
Share on (1600104263282):
Product Overview
Description
Products Description
Swimming Pool Equipment 0.5 HP Aquarium Chiller Heat Exchanger Titanium Chiller
Work Condition:
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
1)Refrigerant side: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater, saltwater, ground water etc .
Material:
1)Heat transfer Tube: 316L / SUS304 / Copper / Titanium
2)Shell: 316L / SUS304 / Carbon steel / PP / PVC
Model | Specification | Type | Heat Exchanger Capacity | Freon In | |
HP | Heating | Cooling | |||
WHC-0.5DRL | 0.5 | Single Circuit | 1.5KW | 1.2KW | |
WHC-1.0DRL | 1.0 | 3.0KW | 2.3KW | ||
WHC-1.5DRL | 1.5 | 4.5KW | 3.5KW | ||
WHC-2.0DRL | 2.0 | 6.0KW | 4.6KW | ||
WHC-3.0DRL | 3.0 | 9.0KW | 6.9KW | ||
WHC-5.0DRL | 5.0 | 15.0KW | 11.5KW | ||
WHC-6.0DRL | 6.0 | 18.0KW | 13.8KW | ||
WHC-8.0ERL | 8.0 | Double Circuits | 24.0KW | 18.4KW | |
WHC-10ERL | 10.0 | 30.0KW | 23.0KW | ||
WHC-12ERL | 12.0 | 36.0KW | 27.6KW | ||
WHC-15SRL | 15.0 | Triple Circuits | 45.0KW | 34.5KW | |
WHC-15SRL | 20.0 | 60.0KW | 46.0KW | ||
Product Feature
This series of products adopts vertical placement. The inlet and outlet of refrigerant are rotated at 90° for easy connection.
Stainless steel foot is installed for more flexible fixation, which can be placed in the case or on the shelf .The overall
implementation of installation and maintenance is more convenient.
It is made of Industry seamless pure titanium with strong corrosion resistance. The titanium content is 99.8%;
The equipment has a light weight, flexible design, and small space for easy installation;
The product passes through the specialized technology welding.Thus,the welding joint is tight and firm, not easy to leak.It has a compact structure,a light weight,and high power with small size.
It can be completely customized.
It can be completely customized.
Hot Products
Our Service
About Us
Wuxi New Wuhuan Engery Saving Technology Co.,Ltd.designs and manufactures a wide range of heat exchangers for refrigeration, industrial and special applications .Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW. We are prepared for the solution of different heat exchange problems, thanks to the widest experience of technical departments able to suggest technical solutions best suited to each customer's need.
FAQ
1.Are you factory?
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.
2.Are there any discount for the heat exchangers?
Yes. Bigger quantity will enjoy lower discount!
3.What information needed if I want a quotation?
Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out ,Refrigrant Freon Type, Quantity, or any requirements in size.
4.What is the MOQ?
We accept loose quantity order,mixed order,any trial orders.
5.When can I get the price?
We usually quote within 8 hours after we get your inquiry.
