High performance PLA straw making machine,straw extruding machine

Product Overview

Description

Straight/ Spiral Stripes Drinking Straw Making Machine



1. Introduction

An ideal drinking straw machine for making colorful stripy straws.

SDSI series high speed straight drinking straw making machine is our new design. It adopts the screw diameter 50mm instead of 45mm, and L: D is 28: 1. The new design makes it much easy to plasticize and increase output. It is an economical perfect machine for drinking straw.



2. Characteristics

Colours: Single, two, three or five, spiral stripes, straight stripes.
Cut end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°
All the direct contact parts made from stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The breaker, AC contactor and knob switch brand is SCHNEIDER
The inverter is DELTA



3. Technical data

Colour	Single	Two	Three
Diameter of screw:	50mm	50mm+1x25mm	50mm+2x25mm
L:D	28:01:00	28:1 / 20:1	28:1 / 20:1/20:1
Max. extrusion capacity	35kgs/h
Material	PE / PP
Specification of straw	Diameter.:φ2- φ 14mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Capacity	30000-60000pcs/h
Power of extruder	11kw,380v,50hz	11kw+0.75kw,380v,50hz	11kw+2x0.75kw,380v,50hz
Power of hauling machine	0.75kw,380v,50hz
Power of cutter	0.75kw,380v,50hz
Power of gathering system	0.18kw,380v,50hz
Temperature controlling	5 sections	8 sections	11 sections



4. Photos:

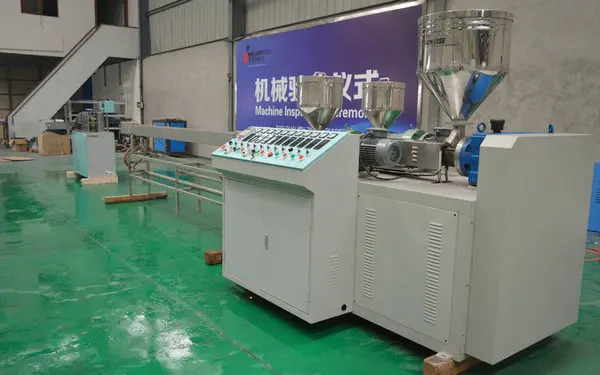

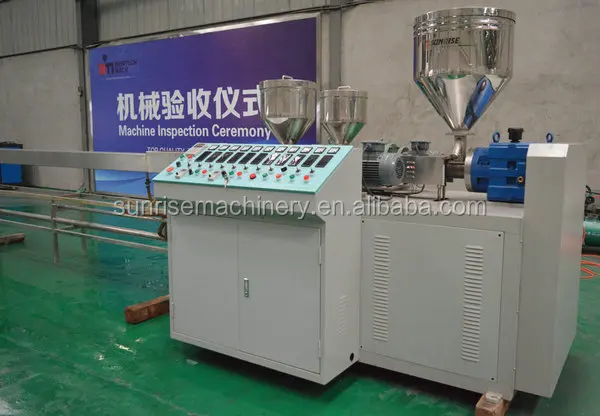

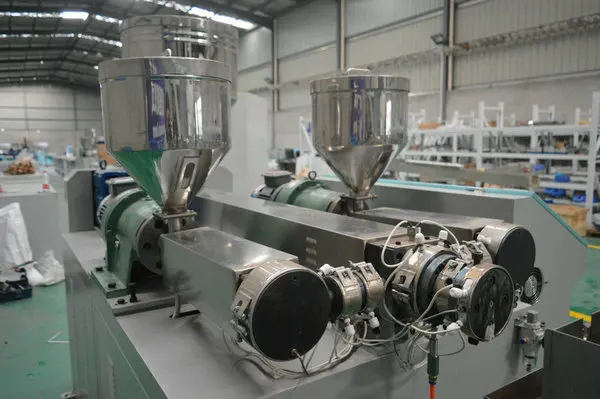

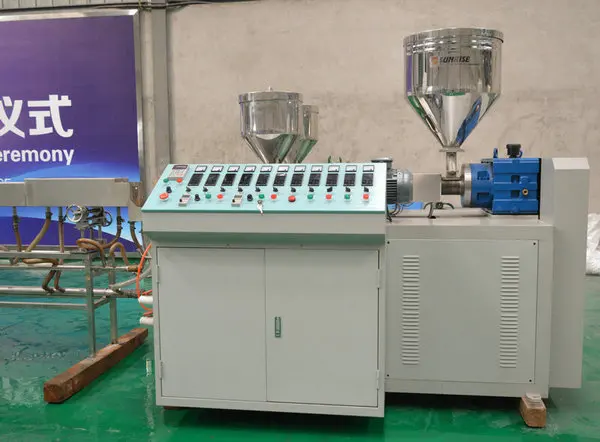

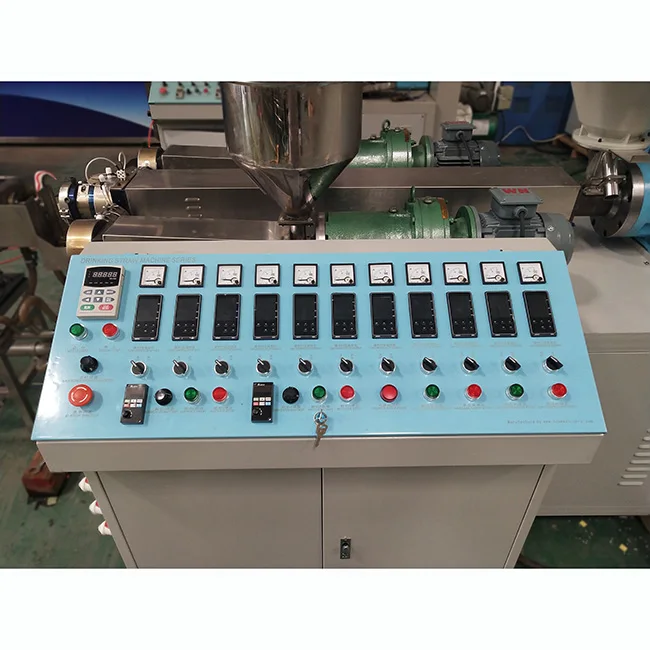

Extruder :

mould  :

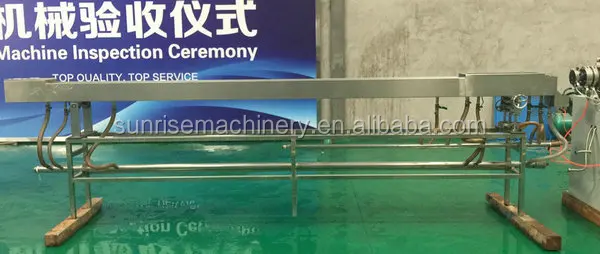

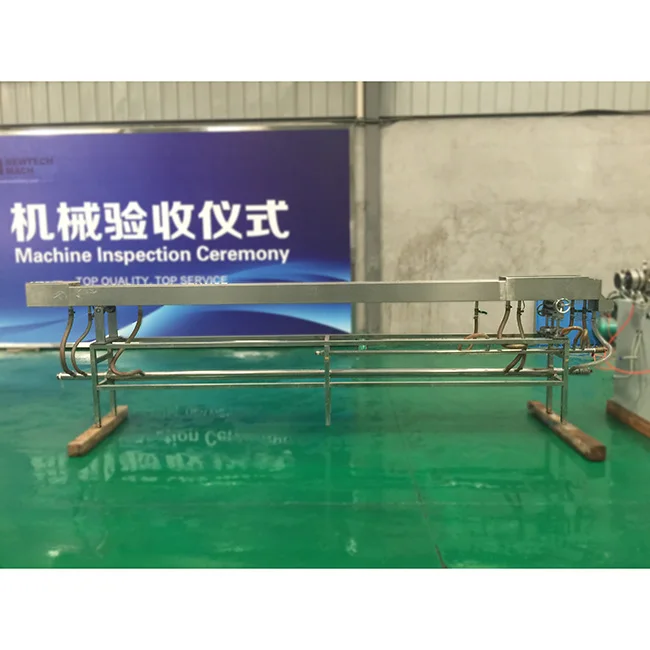

water cooling tank :

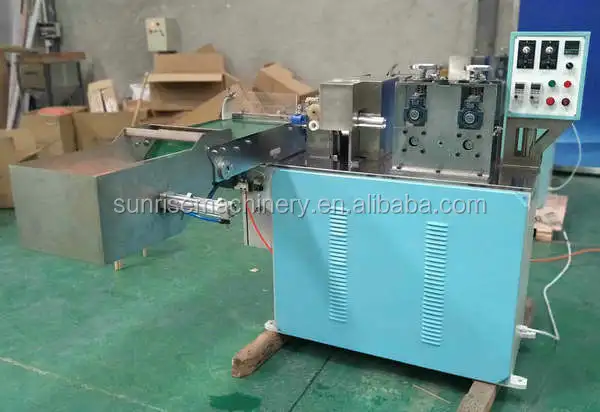

hauling and cutting machine :

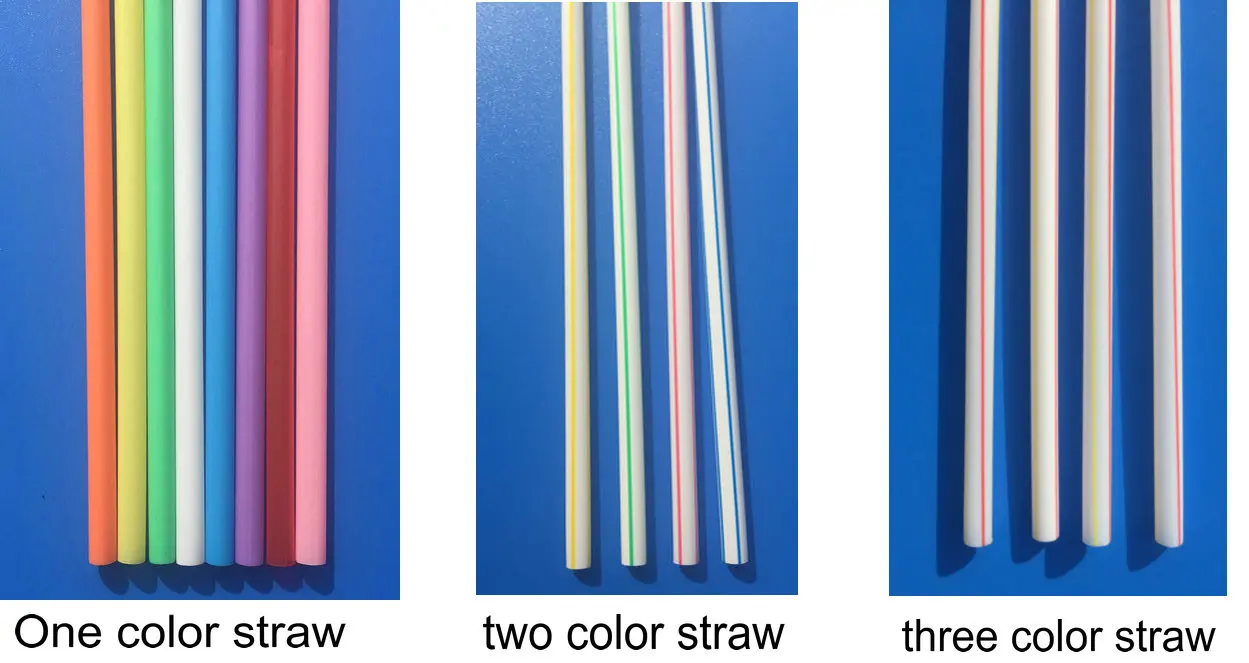

samples :







5.Quality control

1. All of our machines design and produce according to the CE standard.
2. When the machines are ready,our workshop director will run and check first,if it is ok,then
3. our QC department will testing it again to ensure the machine is runing and working well.
4. Then we will send the testing report to client for confirmation.
5. Our principle: only after testing, machine can leave the factory. and only qualified, it can be delivered.

Our main parts supplier





6. Our Main Markets
1 China Mainland
2 Middle East (Have agent in Jordan,Egypt,Morocco,Iraq,Kuwait,Oman.)
3 East Africa (Have agent in Kenya and Uganda)
4 South America ( Have agent in Argentina ,Mexico and Brazil)
5 Australia



After 8 years development,we have established stable realations with our client and agents. We are looking for sales and service agent in local,welcome to our team.
