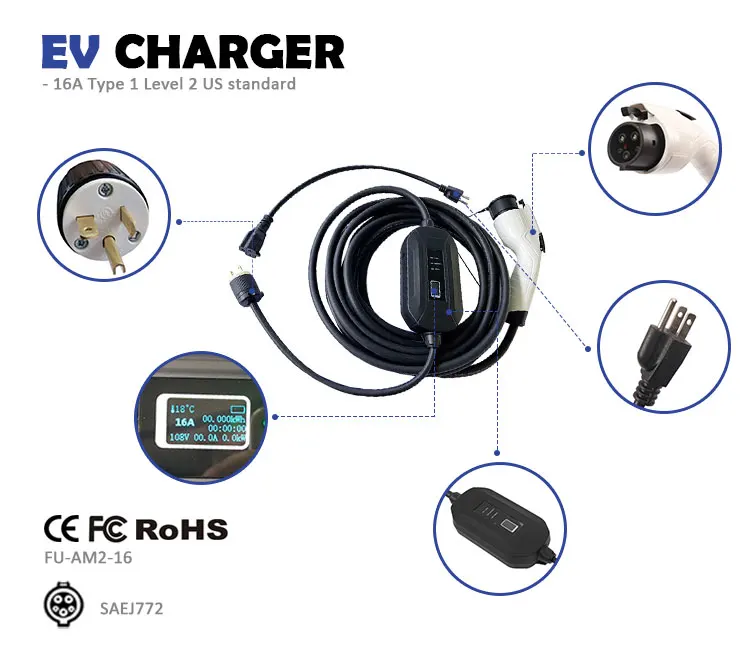

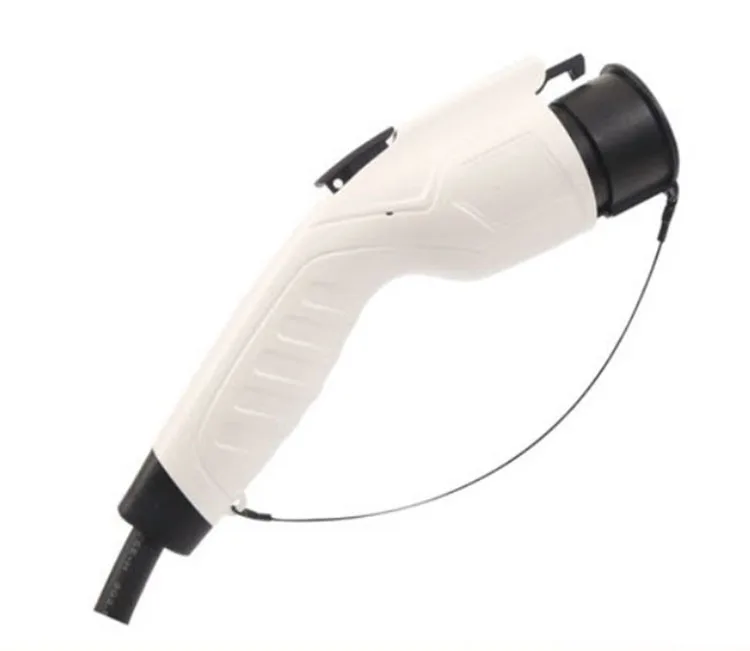

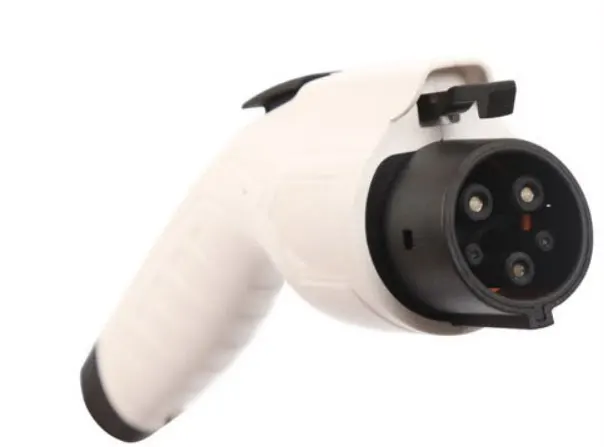

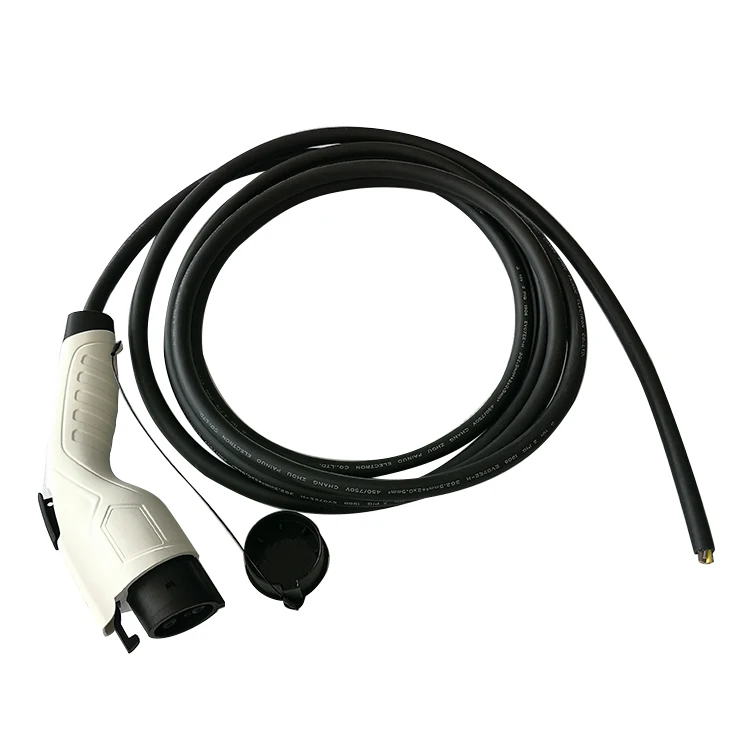

electric vehicle type 1 to type 1 j1772 16A 32A 5m American standard ev charging cable
- Category: >>>
- Supplier: Dongguan Ovar New Energy Technology Co. Ltd.
Share on (1600104862879):
Product Overview
Description
Product Description
electric vehicle type 1 to type 1 j1772 16A 32A 5m American standard ev charging cable
| Rated current | 16A or 32A |
| Operating voltage | 240V |
| Mechanical life | No-load plug in/pull out>10000times |
| Coupled insertion force | >45N<80N |
| Impat of external force | can afford 1m drop and 2t vehicle run over pressure |
| Insulation resistance | >1000MΩ(DC500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | 0.5mΩ Max |
| Contact bush | Copper alloy, sliver plating |
| Operating temperature | -30℃~+50℃ |
| Cable specification |
16A 3*2.5mm²+2*0.5mm² 32A 3*6mm²+2*0.5mm²
|
| Cable color | black |
| Charging standard | SAE J1772 |
