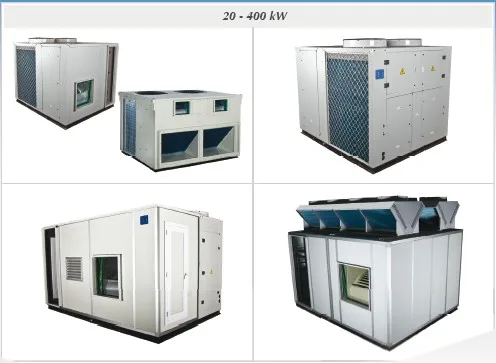

Rooftop Packaged Airconditing Unit
- Category: >>>
- Supplier: Ningbo Lance Imp. & Exp. Co. Ltd.
Share on (1600105102448):
Product Overview
Description
Introduction
Rooftop packaged systems are unobtrusive, quiet and designed to provide year round comfort for warming in winter and cooling in summer. Green's wide product range offers a unit to suit small to large packaged air conditioner applications, e.g. offices, shops, hotels, fast food outlets, restaurants, petrol stations, open plan office and work spaces, supermarkets, shopping malls and auditoriums.
Units are suited to high static pressure applications where large volume spaces are to be air conditioned. Long duct runs are possible enabling greater installation flexibility. This range of units has been developed to meet the needs of typical applications.
Main Feature
1. Various products and wide application
This unit has option of cooling only and heat pump, refrigerant: R410A, cooling capacity is from 25kw to 400kw in standard series.Other cooling capacity can be customized.
2. The refrigeration system is efficiency and reliability, can meet all types of air conditioning requirements
Adopt international famous brand of components and parts, suitable to be mounted on rooftops, plant rooms or ground level.
3. Low noise, high static pressure, compact structure

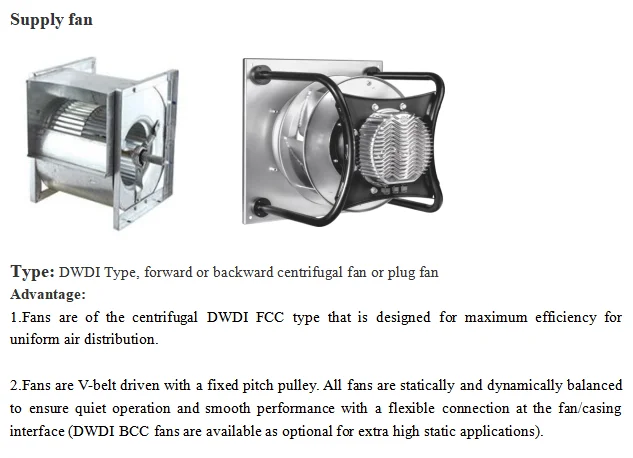

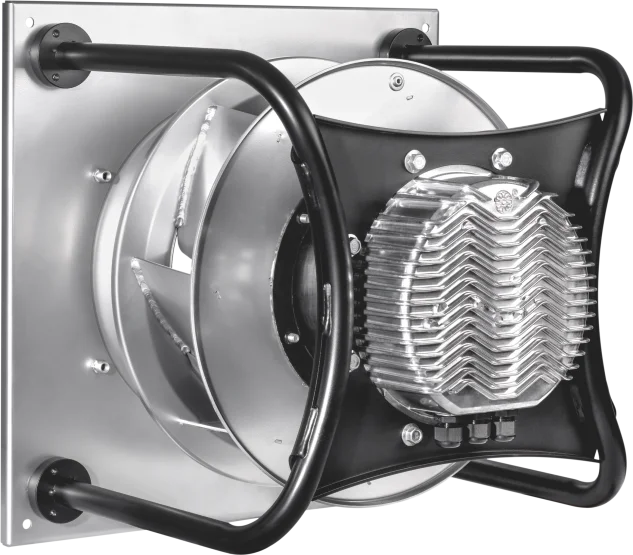

It is high efficiency and low noise centrifugal fan applied for quiet operation, EC plug fan is for option.
4. Weatherproof, polyester epoxy power electrostatic paint casing
Galvanized steel and Zinc galvanized steel are for standard type. Stainless steel is for option
This unit has option of cooling only and heat pump, refrigerant: R410A, cooling capacity is from 25kw to 400kw in standard series.Other cooling capacity can be customized.
2. The refrigeration system is efficiency and reliability, can meet all types of air conditioning requirements
Adopt international famous brand of components and parts, suitable to be mounted on rooftops, plant rooms or ground level.
3. Low noise, high static pressure, compact structure
It is high efficiency and low noise centrifugal fan applied for quiet operation, EC plug fan is for option.
4. Weatherproof, polyester epoxy power electrostatic paint casing
Galvanized steel and Zinc galvanized steel are for standard type. Stainless steel is for option

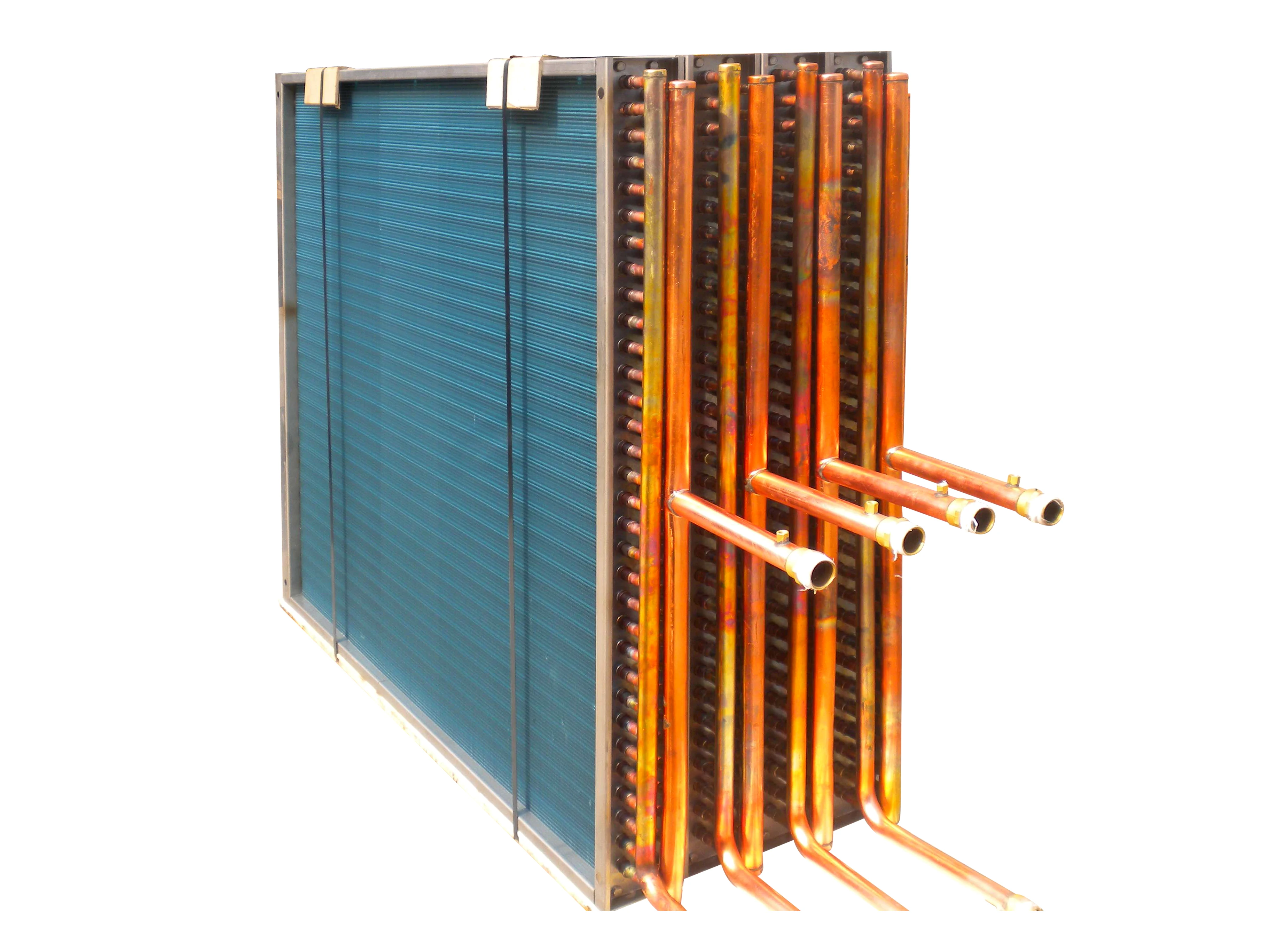

Heat exchanger
Type: Copper tube and aluminum fin
Advantage:
1. designed to deliver their respective duties at optimum performance at all design conditions.
2. Coils are manufactured from seamless copper tubes mechanically expanded into aluminum fins.
3. All coils are tested (under water to avoid leakage) at 30kg/cm2 (450 Psi) air pressure..
4. They also undergo cleaning after manufacturing for optimum system cleanness.
Advantage:
1. designed to deliver their respective duties at optimum performance at all design conditions.
2. Coils are manufactured from seamless copper tubes mechanically expanded into aluminum fins.
3. All coils are tested (under water to avoid leakage) at 30kg/cm2 (450 Psi) air pressure..
4. They also undergo cleaning after manufacturing for optimum system cleanness.
Humidifier
Type: electrode
Advantage:
1. Precise controlling
2. Drainage pump mounted
3. Security and reliability
4. Auto washing
Advantage:
1. Precise controlling
2. Drainage pump mounted
3. Security and reliability
4. Auto washing
Company Profile
Company & factory
Our company was founded in January 2018, is a joint venture invested by biggest air conditioning company in the South Africa and Ningbo ECOAIR environment Technology Co.,Ltd.
In recent year, ECOAIR's product line has been extended to Rooftop Package unit, DX duct unit, water cooled package unit, Fresh air unit with heat recovery, Medium/High static pressure Fan Coil Unit and more than 100 models, in addition to Hospital Theatre Package Units and Fresh Air Unit .
In recent year, ECOAIR's product line has been extended to Rooftop Package unit, DX duct unit, water cooled package unit, Fresh air unit with heat recovery, Medium/High static pressure Fan Coil Unit and more than 100 models, in addition to Hospital Theatre Package Units and Fresh Air Unit .
Our Vision:To be the best supplier of HVAC equipment.Providing the cutting-edge technology,perfect quality,best service to all our clients globally.
Our factory
Our project
Why Choose Us
We have rich experience in product design and precise customization ability.
We have rich experience in product design and precise customization ability.
Which can help our customer to get a most suitable products instead of just good products.
Product packaging
After the production of the unit, we will make protective supports for those vulnerable parts.
Waterproof material is also used to wrap the product to avoid water damage of the unit.Ensure that the goods are not damaged in transit.
As for other requirements of packing, we will try our best to meet our customers!
After-sales Service
Quality assurance
1. One year warranty.
2. Remote technical guidance.
3. Provide wearing parts replacement.
Project selection
1. Since we are specialized in non-standard products,we make the necessary
selection for the project according to the customer's requirements.
2 .Can be customized according to the local market customer needs.
Door to Door
Goods can be delivered directly to the construction site or other designated location.
