Plastic shredder machine for PET bottle recycling machine PET flakes crushing washing line with steam boiler
- Category: >>>
- Supplier: Suzhou Polytec Machine Co. Ltd.
Share on (1600105586544):
Product Overview
Description
Waste PET Bottle Crushing Washing Recycling Machine Line
Ⅰ. Waste PET bottle crushing washing recycling machine line features:
1. The waste PET bottle crushing washing recycling machine line is used for crushing, cleaning, separation of bottle cap and label, depriving of impurity and glue material, and drying for bottle flakes. Then those waste PET bottle will become reusing PET materials.
2. We have several different standards of PET bottle crushing washing recycling machine line according to different production capacity and requirement for cleaning (capacity of 300-3000kg/h).
3. Customers can have PET bottle crushing washing recycling machine line to produce high quality PET flakes for selling, drawing filament, producing PET particles or blowing bottles.
Ⅱ. Waste PET bottle crushing washing recycling machine line machine list
|
Belt conveyor |
1set |
|
Label Remover |
1set |
|
Metal detector + automatic separation device |
1set |
|
Manual Sorting Table |
1set |
|
Belt Conveyor |
1set |
|
Crusher |
1set |
|
Screw loader |
1set |
|
Floating tank |
1set |
|
Screw loader |
1set |
|
Steam washer |
1set |
|
Screw loader |
1set |
|
Steam washer |
1set |
|
Screw loader |
1set |
|
High speed friction machine |
1set |
|
Floating washer |
1set |
|
Spray washer |
1set |
|
Centrifugal dewatering machine |
1set |
|

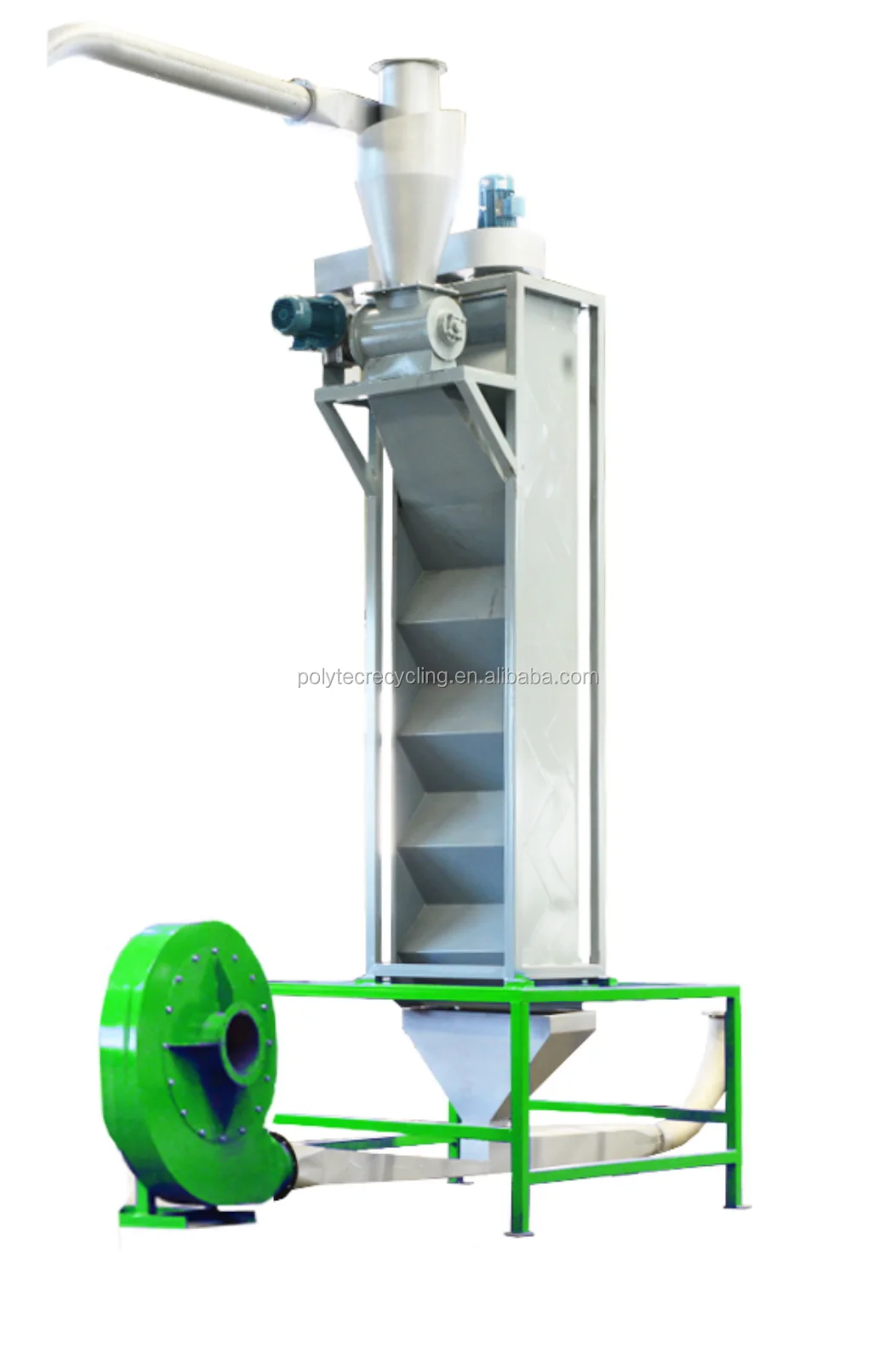

Zig-zag label blower |
1set |
|
Silo |
1set |
|
Electric cabinet |
1set |
Ⅲ. Detailed description for waste PET bottle crushing washing recycling machine line
1.Final PET flakes’ humidity below 1%, impurities 100ppm, PVC label content 100ppm.
2.Parts which contact PET materials use SUS304.
3.World famous brand components will be applied to the waste PET bottle crushing washing recycling machine line, such as NSK bearing, Siemens contactor, Omron temperature controller, Siemens invertor, Siemens PLC controller, etc.
4. The whole production line with CE certification
Belt conveyor
1) Belt material: PVC
2) Speed adjusted by inverter
3) Equipped with wheels for easy moving, with tightening device

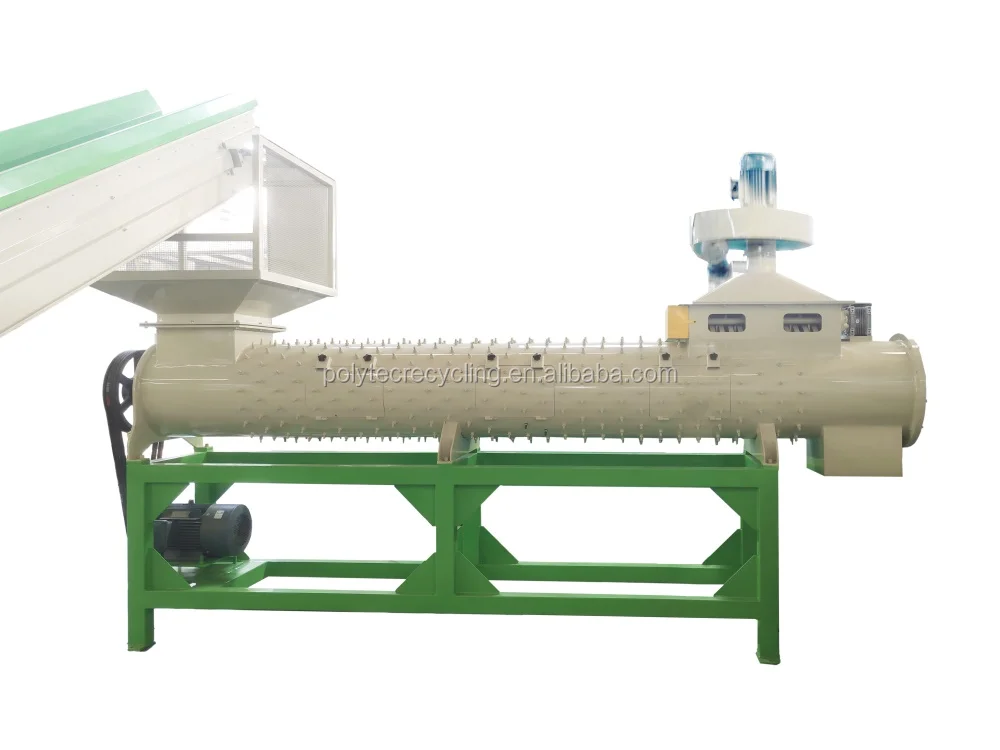

Label remover
1. Service life:
Blade and barrel wall are made of 10mm thick material, longer service life of label remover (3-4 years). (most of the market is between 4-6mm)
2. Loss rate:
Without affecting the remove-label rate and make sure output unchanged, our company reduce the speed of rotary blades, so as to minimize the breakage rate of bottle nozzle, more efficient & reduce wastage.
3. Humanity design:
Easy opening the machine and changing the blades.
Separation rate: ≥98%

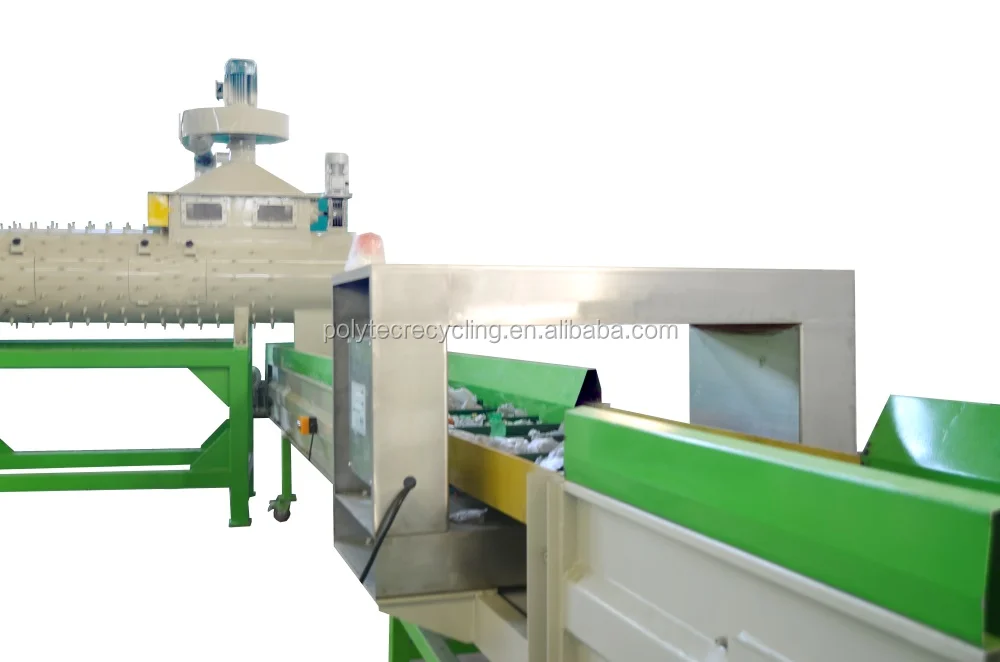

Metal detector & manual sorting table
Wet crusher
1.Advantages: 20-40% additional output, 15% additional power saving
2.Blades are externally adjustable, material DC53 with cryogenic treatment, longer service life
3.Anti-wear machine housing, replaceable wear plates
4.Installed between wall and spindle, prevents the friction of the spindle after a long period of operation, which leads to the increase of sealing clearance and leakage.
5.Heavy duty bearings, oversized external bearing housings
6.More convenient housing opening way
7.Hydraulic control / Electrical screw control
8.Screen change: Special design, easy to change
Screw loader

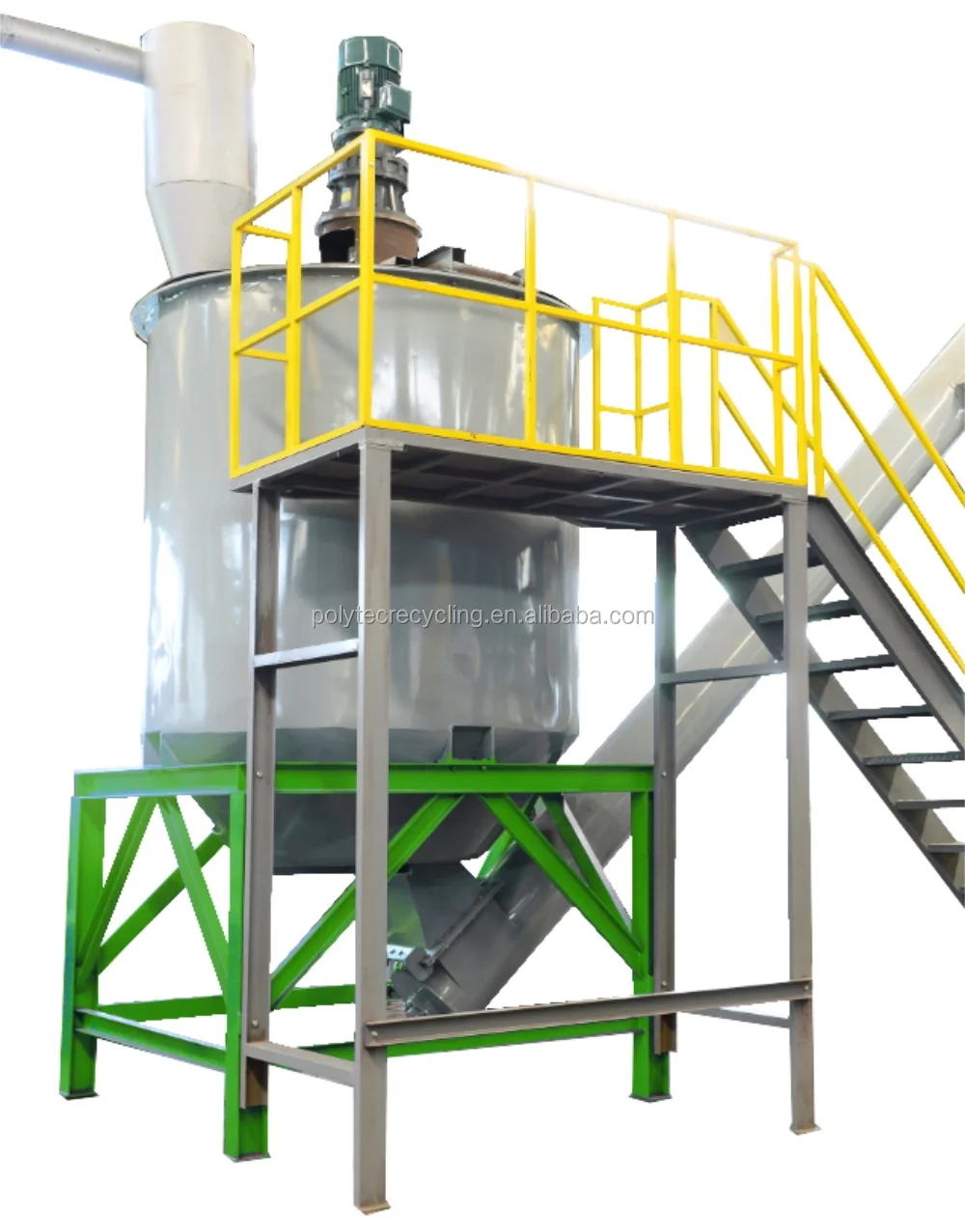

Hot washer
1.Both electrical heating and steam heating for option.
2.Caustic soda concentration: about 1-2%
3.Full Stirring paddles with motor power: 4-7.5 kW
4.With special paddles inside to stir the flakes with water, flakes will remain in hot washer for at least 12 mins, to ensure entirely washed.
5.PH value automatic detect & control system
6.Temperature controller
7.Hot water can be reused through our special design, Energy saving 15%-20%
8.Bottle caps separating & collecting design

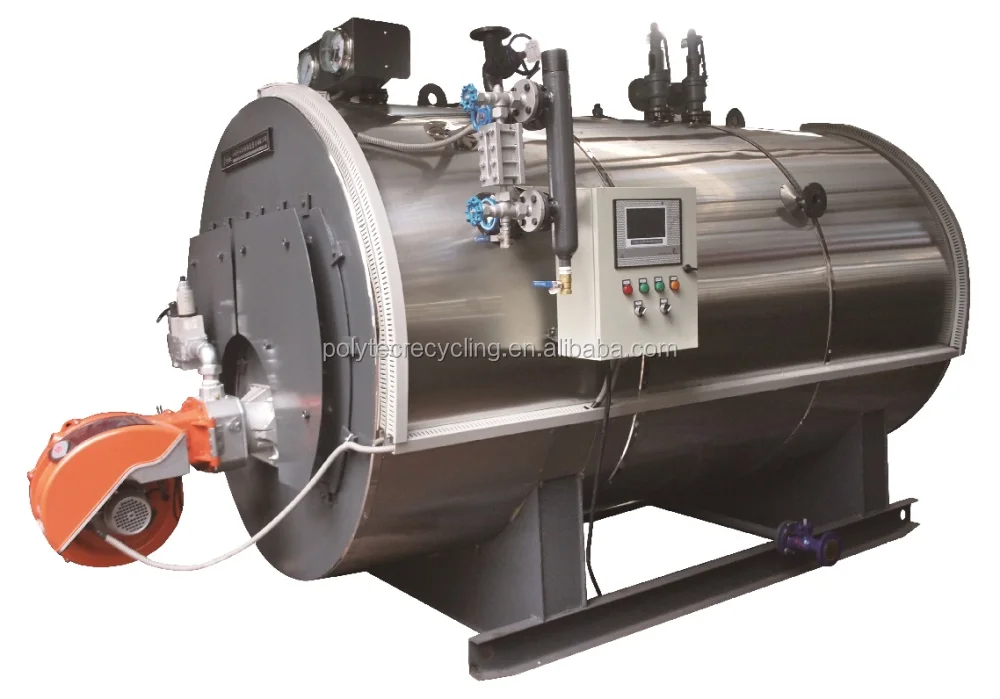

Boiler (to support hot washer usage) also available!
Friction washer
1.Special blade arrangement, uniform discharge, sufficient friction cleaning, high water utilization rate, effective removal of paper labels and other impurities.
2.Frame structure body, smaller vibration

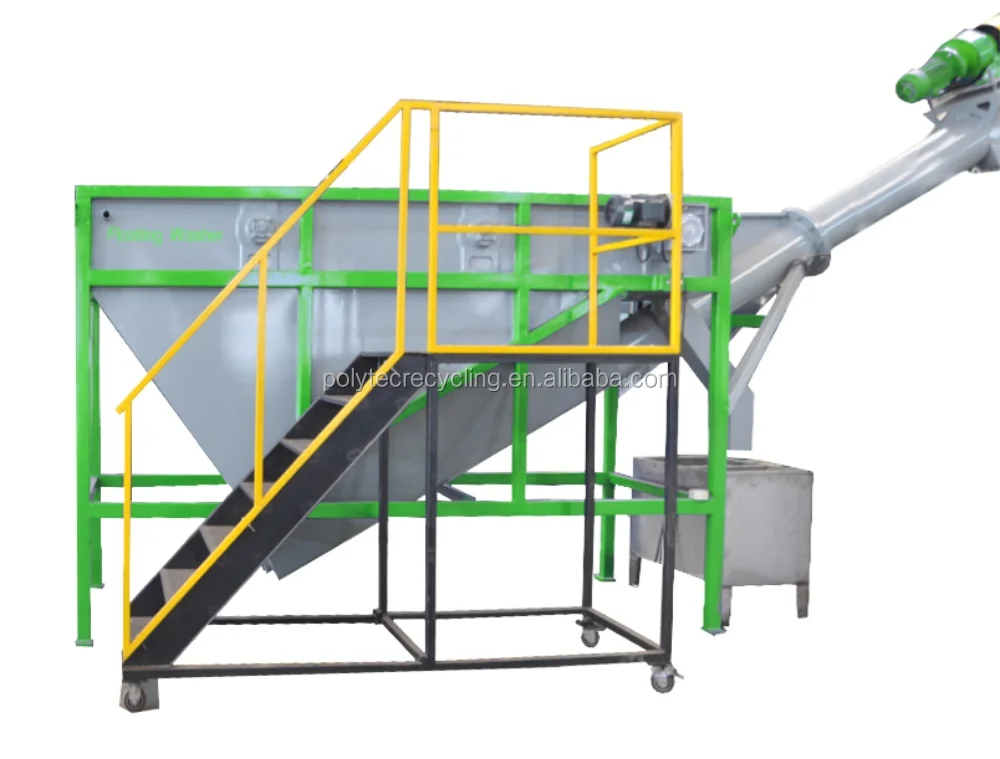

Floating washer
1.Sewage discharge valves at the bottom for regular cleaning
2.Inclined lifting screw design
3.The parts contact with wet PET flakes is made of SUS304

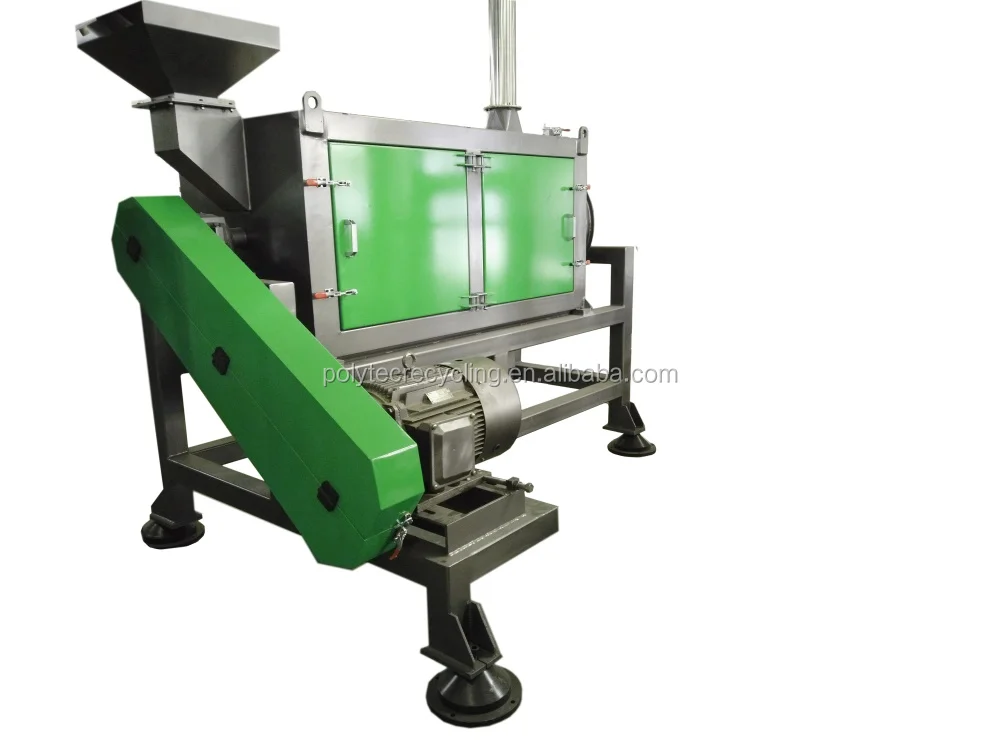

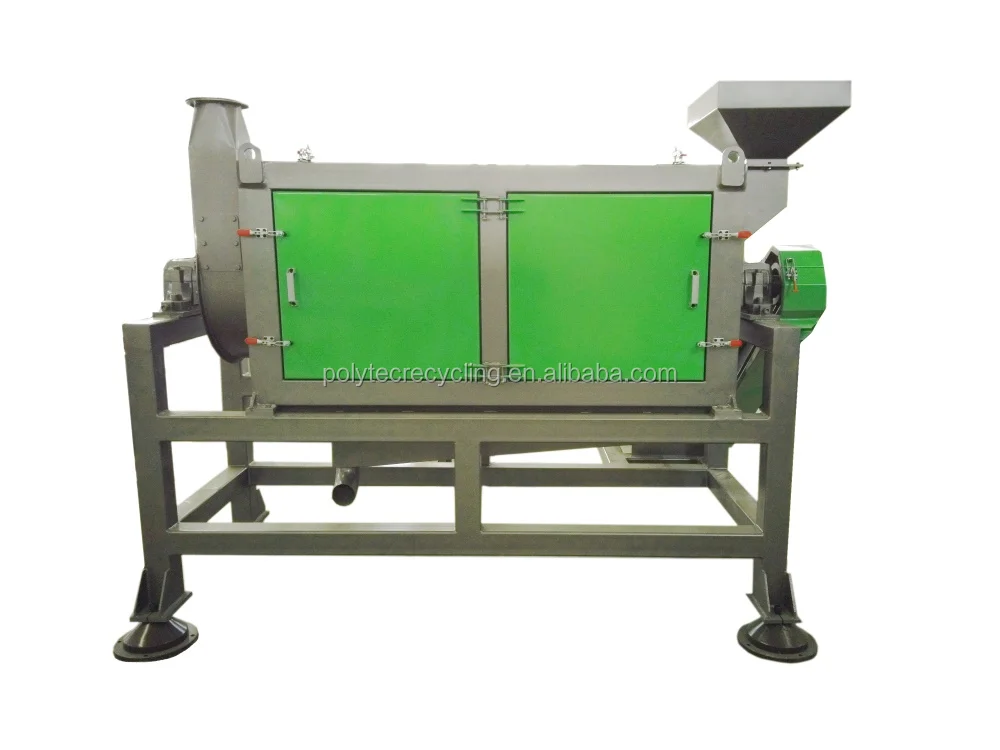

De-watering machine
1.The integrated design of the dewatering machine and the fan, no need for a separate fan, which saves energy and enables smooth feeding and discharging, no blocking.
2.Adopt high-speed heavy-duty bearings, stainless steel spindles and blades, dynamically balanced
3.Automatic screen cleaning device which is driven by air pressure, labor saving.
4.Rotation speed: 2000 rpm. dewatering rate: 98.5%
PVC label remover
