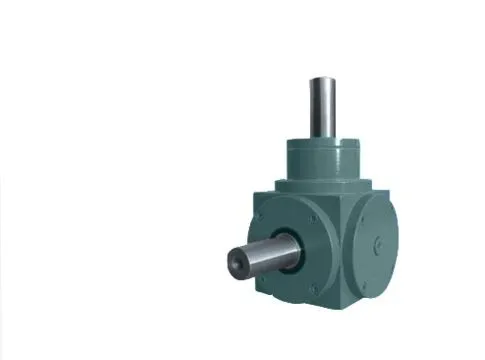

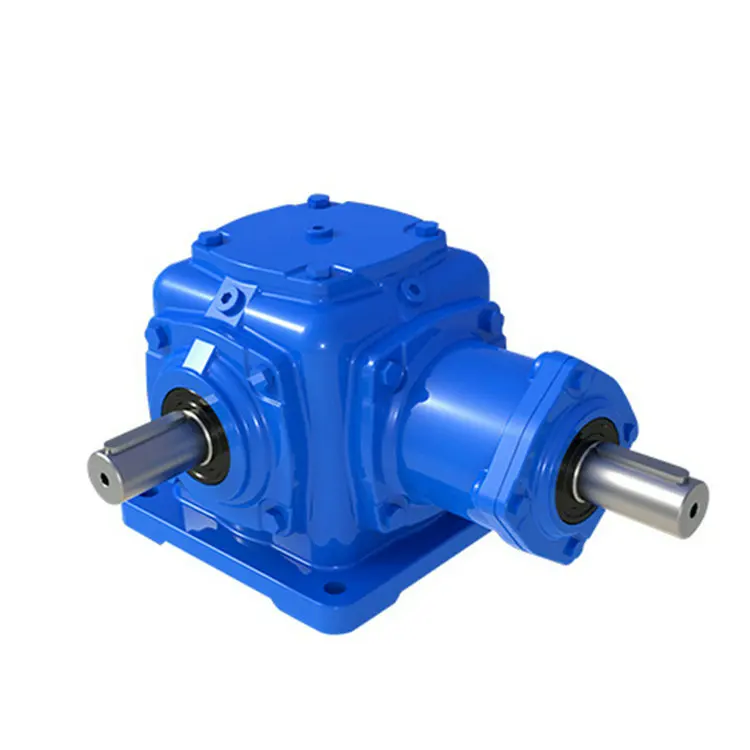

Спиральная коническая коробка передач серии T для сельского хозяйства 90 градусов коробка передач рулевого механизма
- Category: >>>
- Supplier: Ynd (hangzhou) Machinery Co. Ltd.
Share on (1600105839632):
Product Overview
Description
Products Description
Overview
Quick Details
Gearing Arrangement: Bevel / Miter

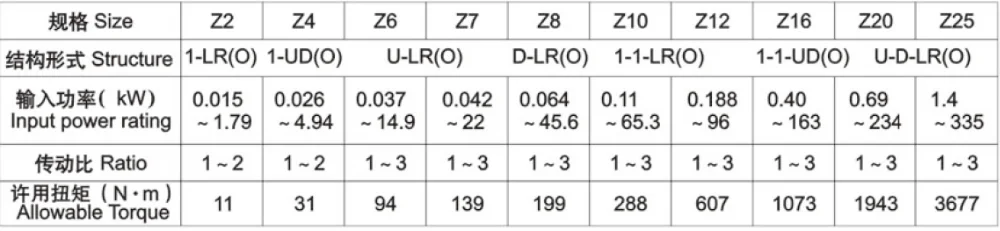

Output Torque: 11.2-3677N.m
Rated Power: 0.01-3675kw
Input Speed: 10-2000rpm
Output Speed: 3-1800
Place of Origin: Zhejiang, China (Mainland)
Model Number: T2-25
Brand Name: YND
Color: Customer Requests
Application: transmission in line / Elevating system/Packing machine
Ratio: 1:1, 1.5:1, 2:1, 2.5:1,3:1
Mount Position:
Horizontal (foot Mounted)
Type: T2-T25
Weight: 2-500kg
Certification: ISO9001
Heat Treatment: Carburising, Quenching,Gear Grinding
Material of Gear: High-purity alloy steel
Material of Housing: HIgh-rigidity T250 cast iron

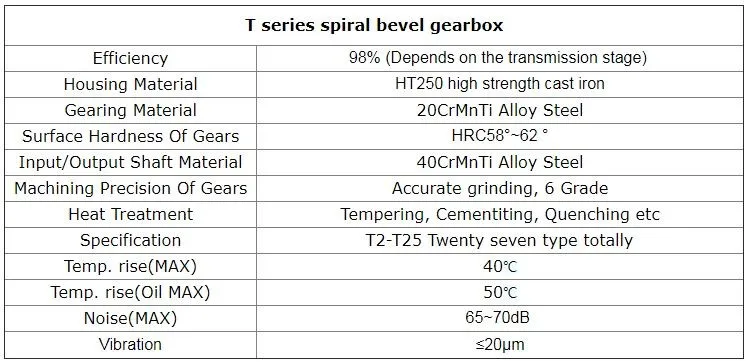

Main Features
1. Housing: High rigidity T250 cast iron
2. Gear: Excellent high-purity alloy steel 20CrMnTi
3. Main Shaft: Quenched and tempered alloy steel with the capacity of bearing heavy load
4. Bearing: Rolling cone bearing with the capacity of bearing heavy load
5. Oil Seal: Double-lip oil seal with the capacity of preventing dust and oil leak.
Detailed Images
Machine Parts
output speed: ≤10-1800(rpm)
transmission: ≥1-5
Model no. :T2/T4/T6/T7/T8/T10/T12/T16/T20/T25
T series first bevel spiral bevel gear transmission case, standardization, various kind, speed ratio 1:1, 1.5:1, 2:1, 2.5:1, 3:1 all are actual transmission rate;

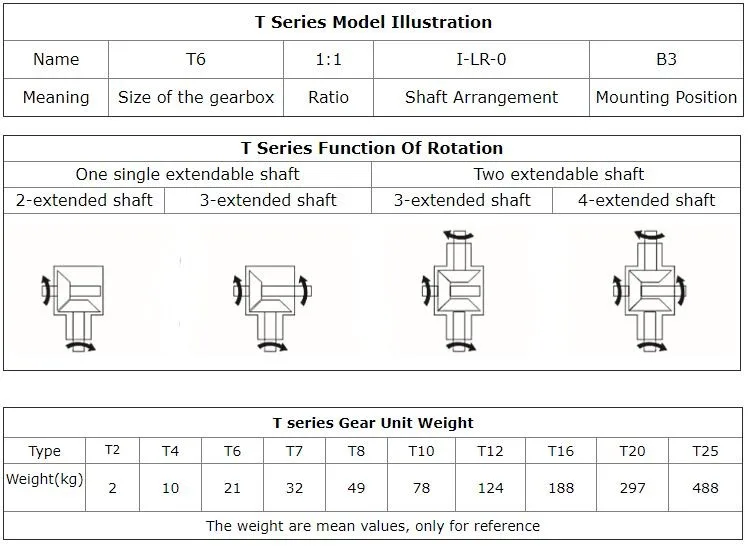

Single abscissa axis, double abscissa axis, single vertical axis, double vertical axis can be chosen;
Spiral bevel gear can run backward and forward, and low speed or high speedtransmission are equal. Low noise, little vibration and high bear.
Recommend Products
K series helical-bevel gearbox with hollow shaft for sewing machine transmission
91.8% Response Rate
ZGY series suspension gearbox reducer for belt conveyor
91.8% Response Rate
NMRV series worm gearbox speed reducer machine
91.8% Response Rate
Our Advantages
Company Profile
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Product packaging
Packaging | ||
Shipping | by sea, by air or others | |
Weight | according to product | |
Packaging Details | The normal package is wooden box or pack it according to customers special request. | |
FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
4. Doyou sell motors?
We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors
with high quality.
