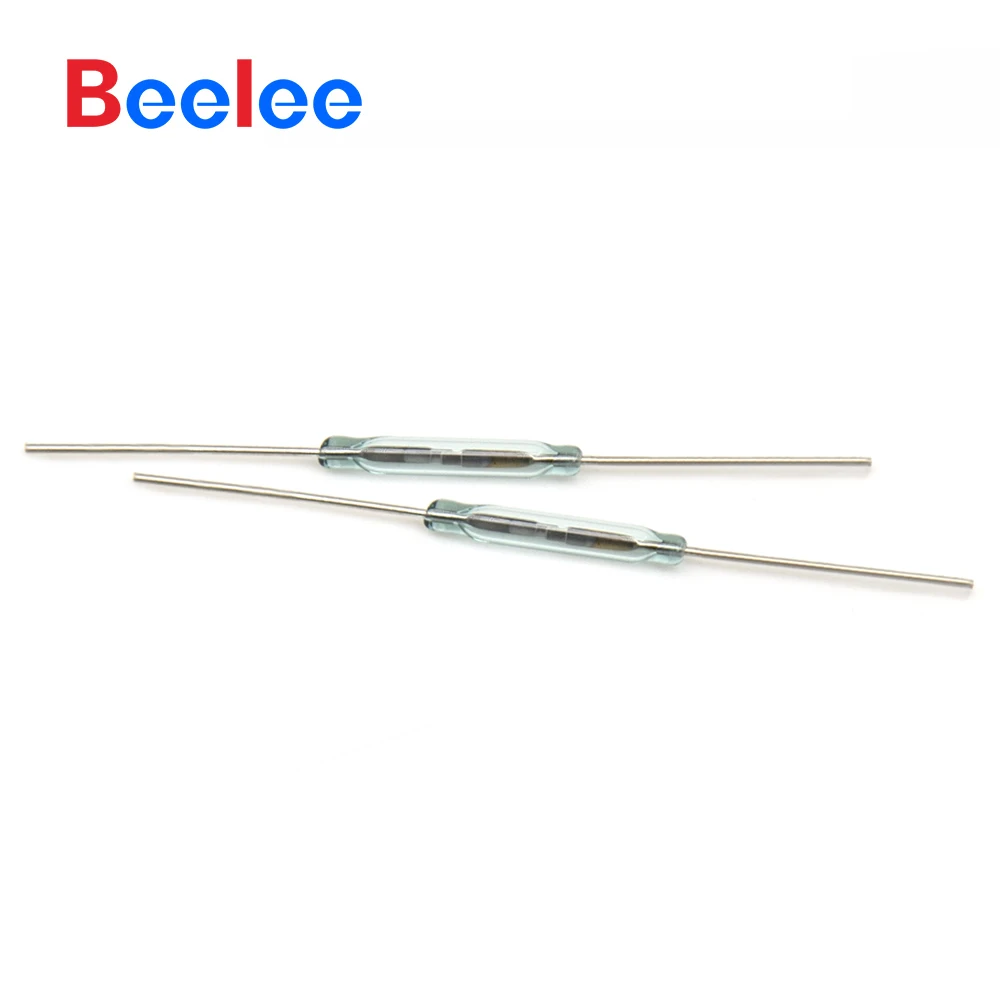

Beelee 14.5mm latching glass reed switch normally closed magnetic reed switch
- Category: Electronic Accessories & Supplies >>>
- Supplier: Dongguan,Bailing,Electronics,Co.,Ltd.
Share on:
Product Overview
Description

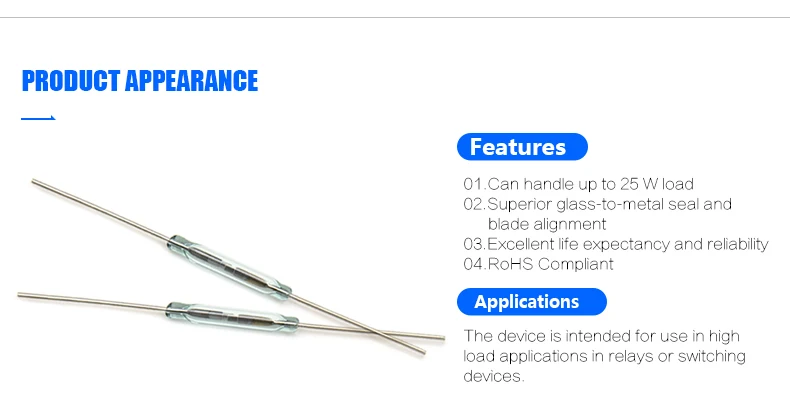

01. Micro reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds.
02.The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in high load applications in relays or switching devices.
| Switched Power (max) | W | 10 | |
| Switched Voltage DC (max) | V | 200 | |
| Switched Voltage AC, RMS value (max) | V | 140 | |
| Switched Current DC (max) | mA | 750 | |
| Switched Current AC, RMS value (max) | mA | 750 | |
| Carry Current DC (max) | A | 1.5 | |
| Breakdown Voltage (min) | without test coil | V | 200 |
| Contact Resistance (initial max.) | mΩ | 100 | |
| Contact Resistance (initial typ.) | mΩ | 70 | |
| Contact Capacitance (max) | pF | 0.3 | |
| Insulation Resistance (min) | RH 45% | MΩ | 10 6 |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
