TC300 QIPANG машина для намотки проводов, машина для намотки кабеля, намотка, машина для намотки канатов, намотка проводов серии
- Category: >>>
- Supplier: Shanghai Qipang Industrial Co. Ltd.
Share on (1600106501907):
Product Overview
Description
Product Description

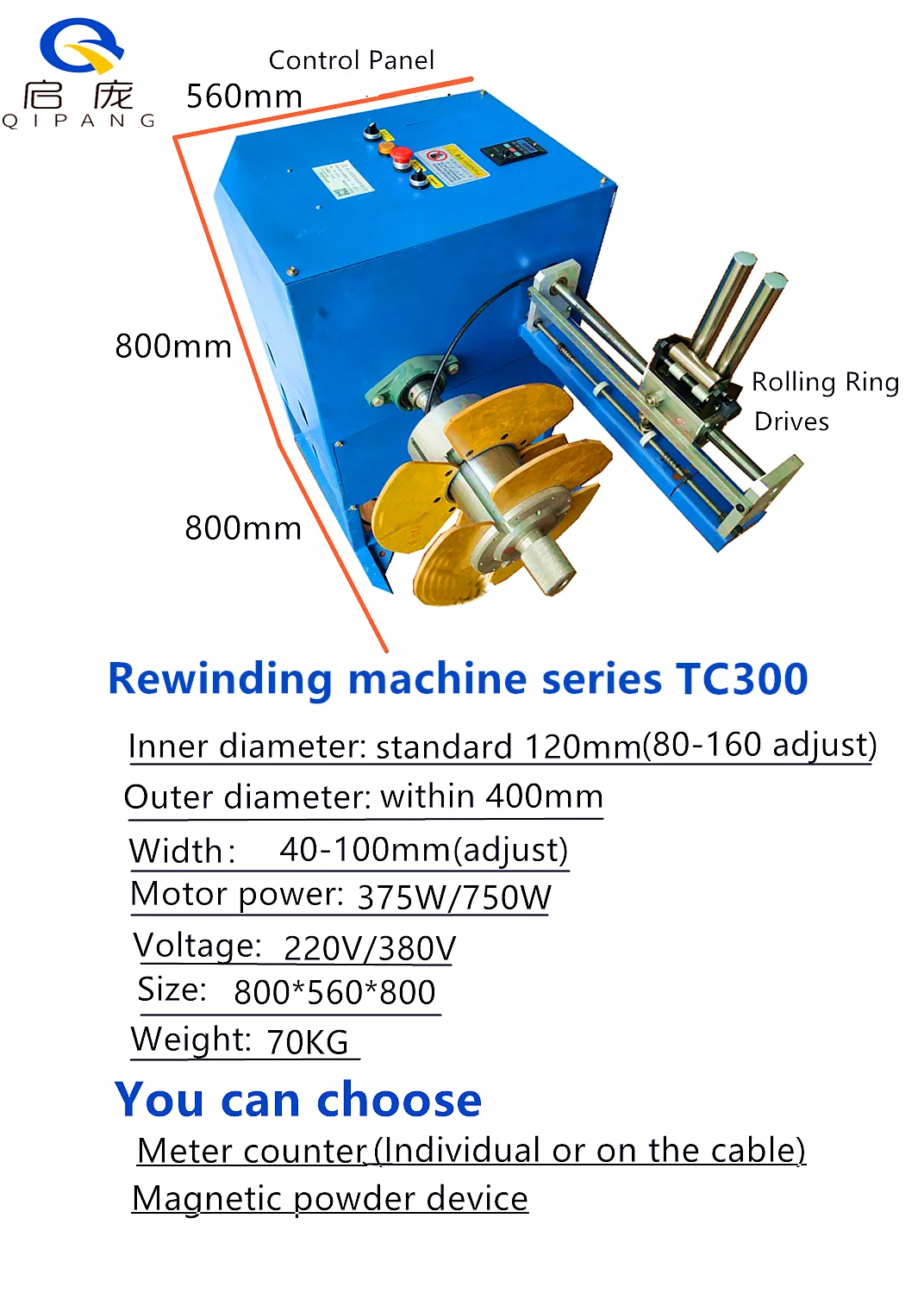

TC300 QIPANG wire spooler machine cable winding machine coiling winder machine rope coiling rewinder series
Model | Wire diameter | Spoolsize (flange OD) | Coiling speed | Take-up motor |
TC300 | 0.1-3mm | Within 300mm | 110r/min | 1*0.18KW |
TC400 | 1-5mm | Within 400mm | 280r/min | 1*0.37KW |
TC500 | 0.1-5mm | Within 500mm | 280r/min | 1*O.37KW |
Winding type | Winding tension | Load bearing | Accessories | Suitable wire material |
Traverse unit | 8N/M | 20KG | Meter counter | wire |
Traverse unit | 10N/M | 30KG | Reducer | cable |
Traverse unit | 10N/M | 30KG | Fixed head | fiber |
2.Specific configuration：
1、Base Frame: square steel, it is strong
1、Base Frame: square steel, it is strong
2、1 pair of tapered tips (compatible with a variety of inner hole bobbin).
3、One power distribution cabinet( include the power supply and Frequency converter).
4、Adjustable speed (120 revolutions per minute, other speeds can be customized)
5、There are 4 fixed expansion screw eyes in the bottom
6、There is anti-slip device at the top, bearing weight 30 KG.
7、 The winding part choose precision rolling ring drives.
8、 220 V power.
8、 220 V power.
3.Select configuration：
1、Calculation the meter（Set the number of meters to stop and alarm）
2、Reducer（Recommended for installation below 800 rpm）
3、Fixed head 1 pair
4、Tension device (equipped with assembly line，Let the line speed be certain)
1、Calculation the meter（Set the number of meters to stop and alarm）
2、Reducer（Recommended for installation below 800 rpm）
3、Fixed head 1 pair
4、Tension device (equipped with assembly line，Let the line speed be certain)
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shanghai Qipang Industrial Co., Ltd., superior geographical location, head office is located in Shanghai, connected to Shanghai Port, trade prosperity, economic development, office and R & D personnel in Shanghai.The company has rich enterprise resources, excellent corporate culture, strong enterprise concept, to serve customers as the purpose, committed to creating industry leading brands, and domestic brands to the world, is one of the outstanding representative enterprises in the rapid economic development of the 21 century.The main products of the company are wire arrangement, I-disk rewinding machine, circular machine, rewinding machine, wire drawing and release machine, wire release machine,straightener,hydraulic straightening and cutting machine.
The company to: "quality-oriented, reputation first, customer first" for the business purpose, the establishment and improvement of a huge sales service network, to provide customers with fast and convenient services, products have been in the leading position in China for many years. Specializing in wire and cable industry. Wire drawing equipment, metal products, textile industry and so on.
The company to: "quality-oriented, reputation first, customer first" for the business purpose, the establishment and improvement of a huge sales service network, to provide customers with fast and convenient services, products have been in the leading position in China for many years. Specializing in wire and cable industry. Wire drawing equipment, metal products, textile industry and so on.
If you have any questions,please contact me.Thank you! Whatsapp/Wechat:+86 13472640466
FAQ
We have professional packing workers to pack your products!
Packing:
1.Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
Packing:
1.Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
