gantry type robot welding machine manufacturers china

Product Overview

Description

 gantry type robot welding machine manufacturers china

Product Description

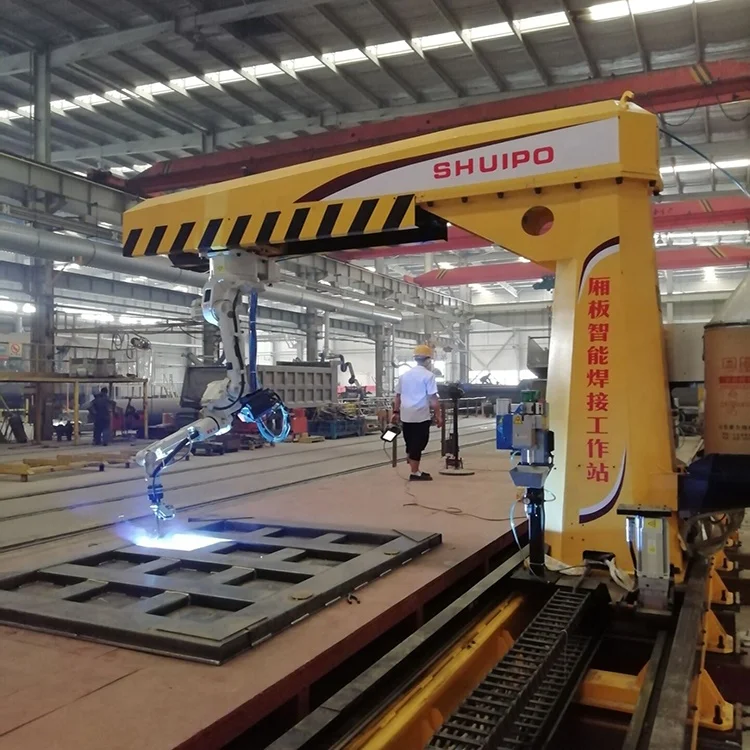

 1. Product Picture Of gantry type robot welding machine manufacturers china

Idle running speed of robot in the up and down movement (maximum)			12m/min
Effective distance of robot in the up and down movement			2000mm
Idle running speed of robot in the horizontal movement (maximum)			12m/min
Effective distance of robot in the horizontal movement			4500mm
Longitudinal movement speed (idle running) of robot (maximum) (long travel)			12m/min
Gauge			5500mm
Rail Length			12000mm
Effective distance of robot in the longitudinal movement			10000mm
Positioning accuracy			Within ±0.3mm
Technical specification of the robot body
Type			TA-1400
Structure			Independent joint type
Degree of freedom			6-shaft
Movement range	Maximum coverage area		1374mm
	Minimum coverage area		352mm
	Back and forth movement range		1022mm
Movement velocity	Arm	RT	2.97rad/sec(170°/sec)
		UA	3.32rad/sec(190°/sec)
		FA	3.32rad/sec(190°/sec)
	Wrist	RW	6.46rad/sec(370°/sec)
		BW	6.54rad/sec(375°/sec)
		TW	10.5rad/sec(600°/sec)
Maximum weight capacity			6kg
Repositioning accuracy			Within ±0.1mm
Driving capacity			2800W
Installation position			Hang upside down
Grounding			Special robot grounding above D kind of grounding (the robot body is grounded independently)
Weight of the robot body			About 161kg 161kg

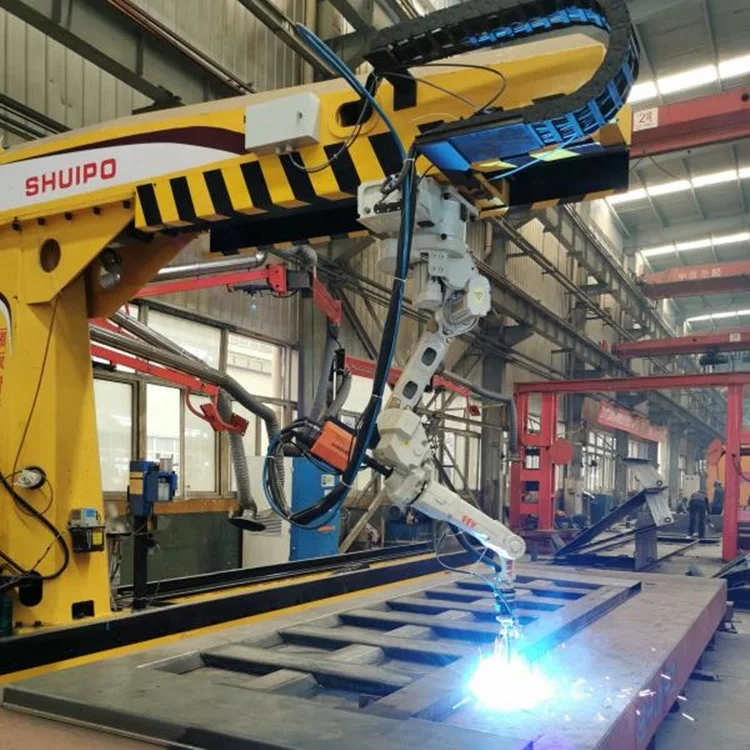

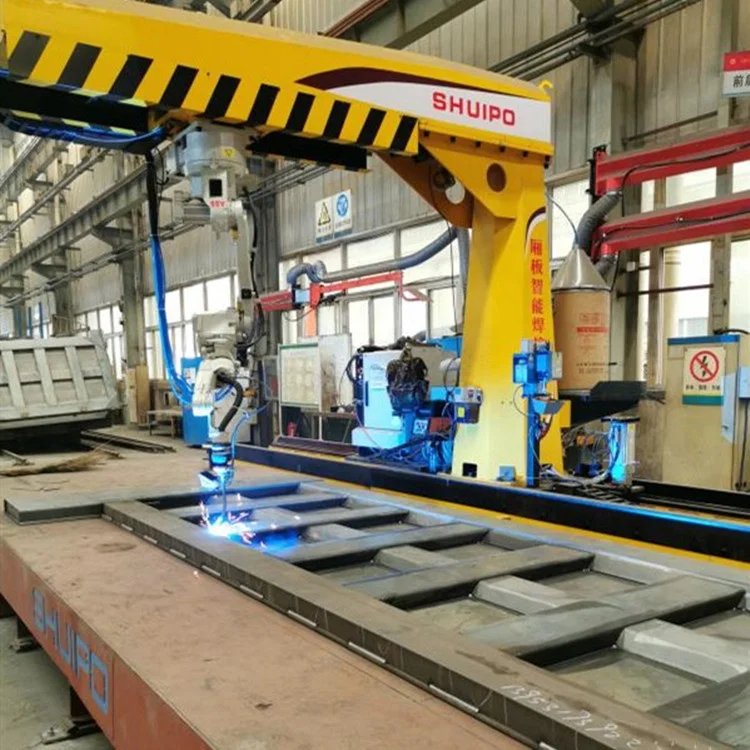

gantry type robot welding machine manufacturers china working process

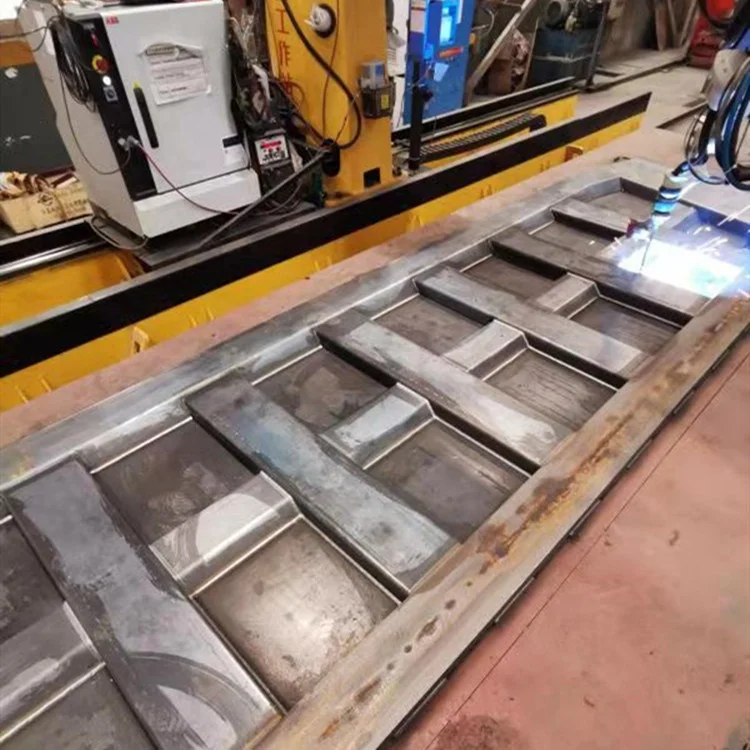

gantry type robot welding machine manufacturers chinawelding effect





 3.More products of gantry type robot welding machine manufacturers china
