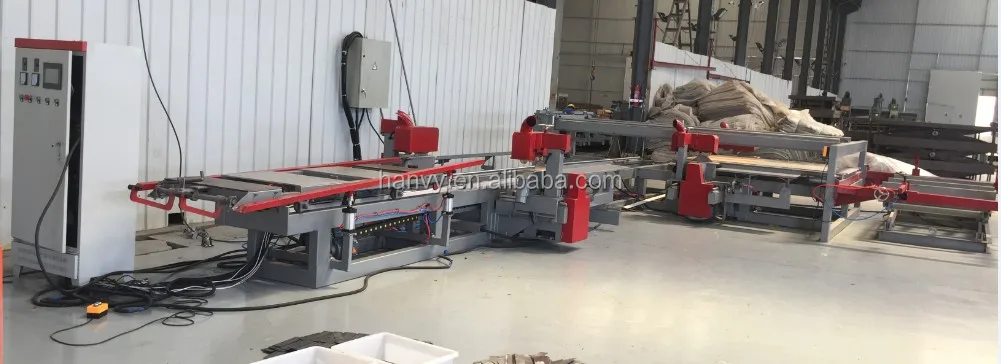

4x8ft & 5x10ft Automatic High Speed Plywood Edge Trimming DD Saw
- Category: >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (1600106577645):
Product Overview
Description
Product Description
Product Application
4x8ft & 5x10ft Automatic High Speed Plywood Edge Trimming DD Saw
could make veneer peeling line, veneer dryer, glue spreader,cold press and hot press etc.
So far, we have so many buyers allover the world,such as USA,Chile, Colombia,Brazil,Malaysia,Indonesia,Vietnam,Russia, Ukraine,
Poland,Slovakia,Turkey,Egypt,Ghana and Ethiopia etc.
Our plywood edge trimming saw could process three sizes,5*5ft,5*10ft and 4*8ft.
Manual loader or vac-sorb loder.
Automatic plywood stacker
Schneider electric component.
Free installation and training for 7 days.
Manual loader or vac-sorb loder.
Automatic plywood stacker
Schneider electric component.
Free installation and training for 7 days.
4x8ft & 5x10ft Automatic High Speed Plywood Edge Trimming DD Saw
Model | HJ4X8 |
Working size | 4ftx8ft,5ftx5ft,5ftx10ft |
Maximum cutting thickness | 50 mm |
Blade quantity | 5 pieces |
Motor power per motor | 7.5 kw |
Default voltage | 380V |
Main Features
Plywood edge cutting trimming saw D.D. Saw machine
Saw blade diameter is 305mm.Two pcs to cut short edges,(5ft and 4ft)
When cutting 5*5ft plywood, install the fifth blades in middle of cross conveyor,so one sheet of 5*10ft plywood will be cut into two sheets of 5*5ft plywood.
Detailed Images

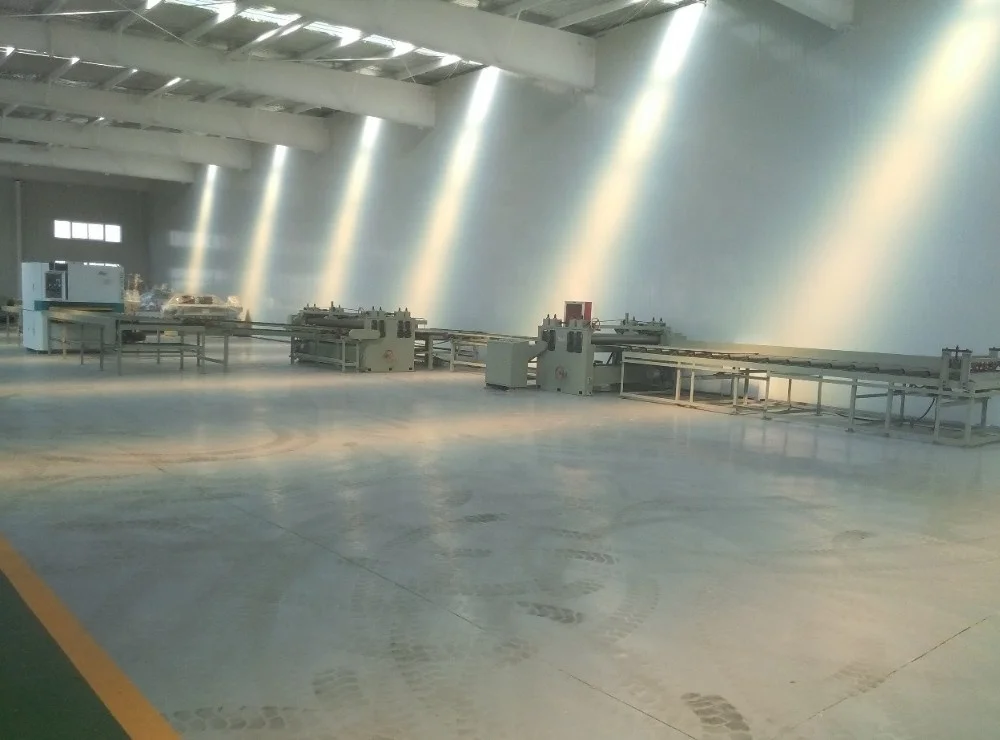

D.D. Saw Edge trimming saw
The cutting width could be changed by sliding the blade seats. Manual adjus only.
Independent control closet for plywood double sizer
Schneider electric components.
Plywood size cutting saw machine
Saw blade diameter is 305mm.Two pcs to cut short edges,(5ft and4ft)
When cutting 5*5ft plywood, install the fifth blades in middle of cross conveyor,so one sheet of 5*10ft plywood will be cut into
two sheets of 5*5ft plywood.
When cutting 5*5ft plywood, install the fifth blades in middle of cross conveyor,so one sheet of 5*10ft plywood will be cut into
two sheets of 5*5ft plywood.
Production Chart
HANVY PEELING LINE
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
HANVY PRESSING LINE
The pressing line incudes 500Ton cold press machine with automatic infeed and outfeed device,SIEMENS PLC Control.600Ton or 800Ton
hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
Certifications
We've got ISO and CE certificates for many plywood machines,widely sold to EU, US, Australia, African, Mexico,Southeast Asia,etc.
About Us
HANVY PLYWOOD MACHINERY-ABOUT US
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.
Hanvy plywood machines are widely sold to over 60 countries so far,such as
Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Hanvy plywood machines are widely sold to over 60 countries so far,such as
Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Packing & Delivery
Packaging | ||
Size | 20ft | |
Weight | 7600kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
Contact Us
Contact: Jessica
WhatsApp/WeChat: +86 183 8912 8370
Email: sales07@hanvymachinery.com
