Product Overview
Description
Product Description

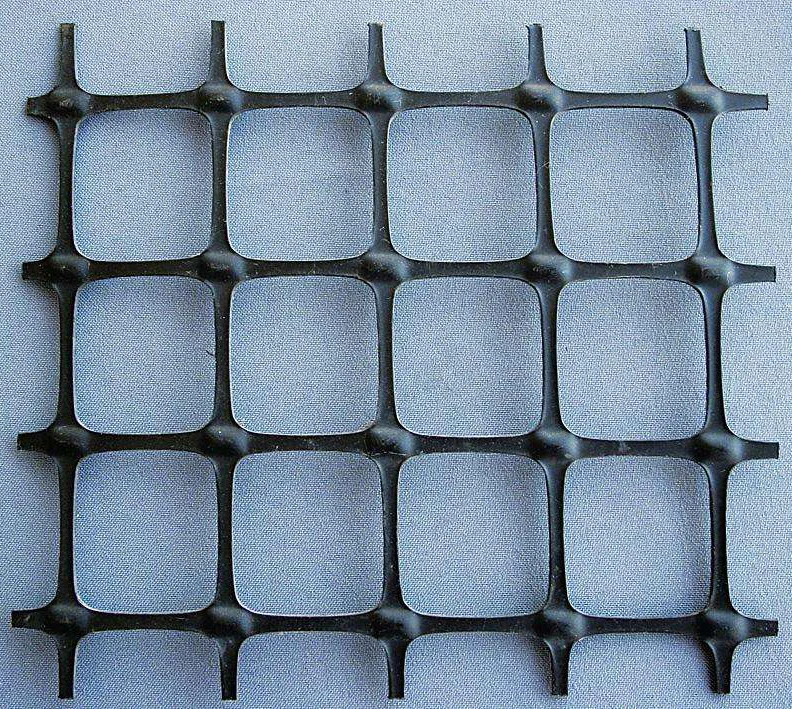

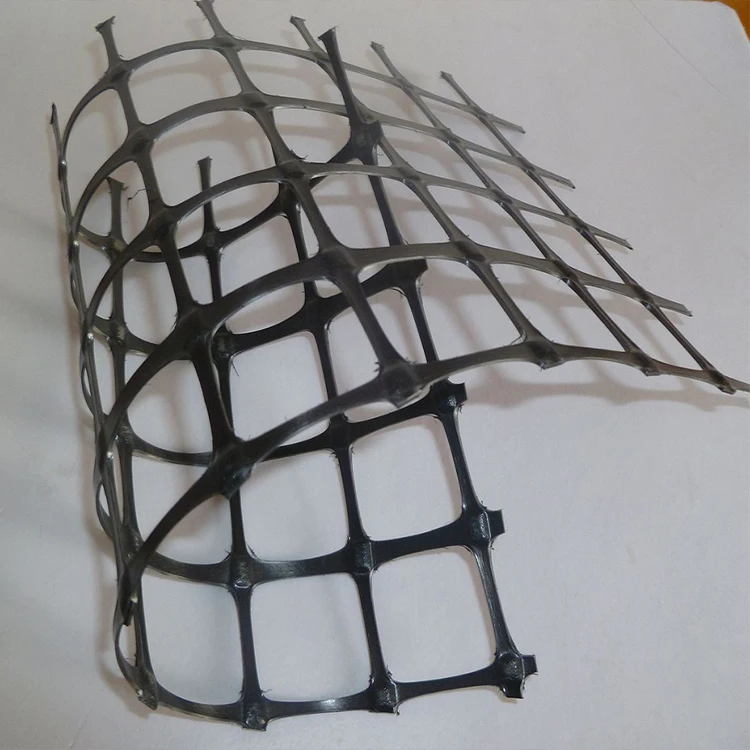

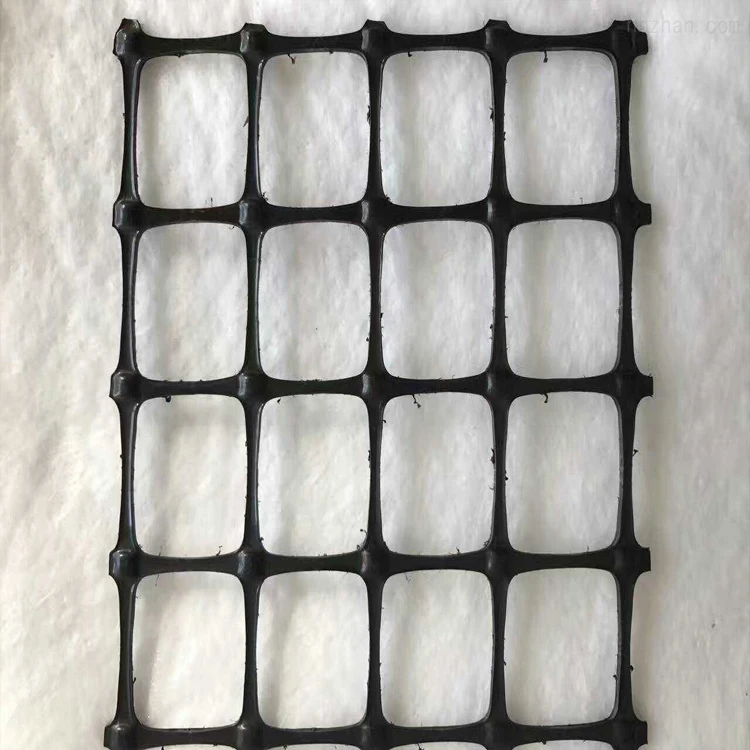

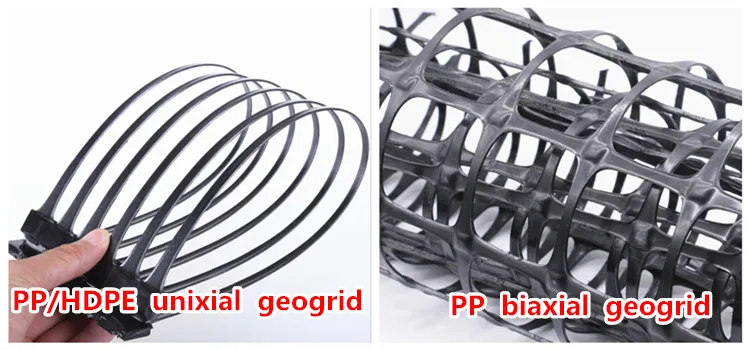

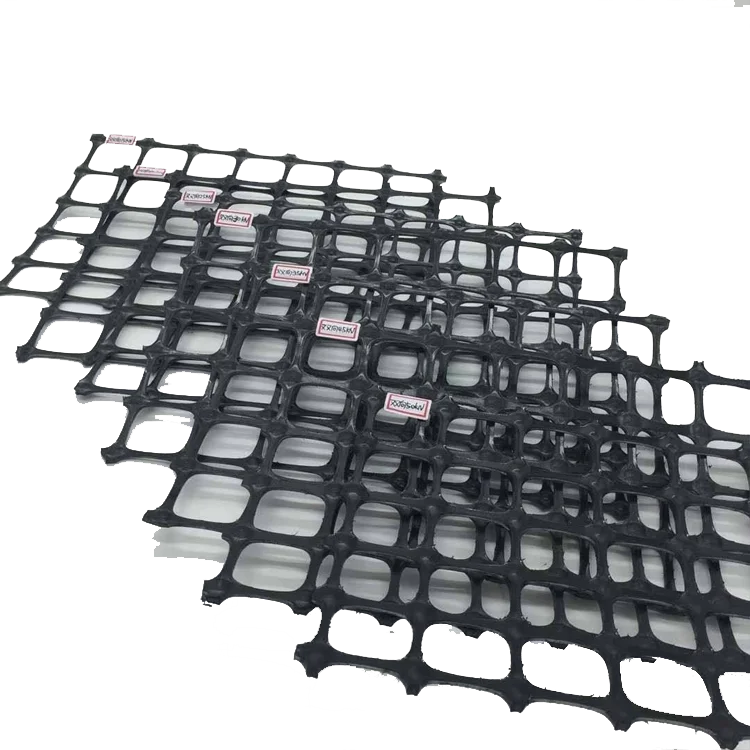

 | PP Biaxial Geogrid
It's grid shape structure with near square. It uses polypropylene and |
Features 1. High tension resistance, high plane torsion resistance modulus, good creep resistance and stable chemical nature. durability and large friction factor with sandy stone. and extend the service life of the roadbed. for reaching same effect, save cost. shortening construction period and reducing maintenance cost. erosion. 7. Can replace metal mesh, used in coal mine underground false roof network. greening environment. |
|
Specification
| Property | Test Method | TGSG 15-15 | TGSG 20-20 | TGSG 30-30 | TGSG 40-40 | TGSG 50-50 | TGSG 60-60 | |
Ultimate tensile strength(1)(kN/m) | MD | ASTMD 6637 | 15 | 20 | 30 | 40 | 50 | 60 |
| CD | 15 | 20 | 30 | 40 | 50 | 60 | ||
| Elongation at maximum load(%) | MD | 13 | ||||||
| CD | 13 | |||||||
| Tensile strength at 2% elongation(kN/m) | MD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | |
| CD | 5 | 7.5 | 10.5 | 14 | 18 | 27.5 | ||
Tensile strength at 5% elongation(kN/m)
| MD | 7 | 14 | 21 | 28 | 35 | 48 | |
| CD | 7 | 14 | 21 | 28 | 35 | 48 | ||
Minimum Carbon black | % | ASTMD 4218 | 2% | |||||
| Roll Width(m) | 2/3.9/3.95/5/5.9/6 | |||||||
Roll Length(m) | 50/75/100 | |||||||

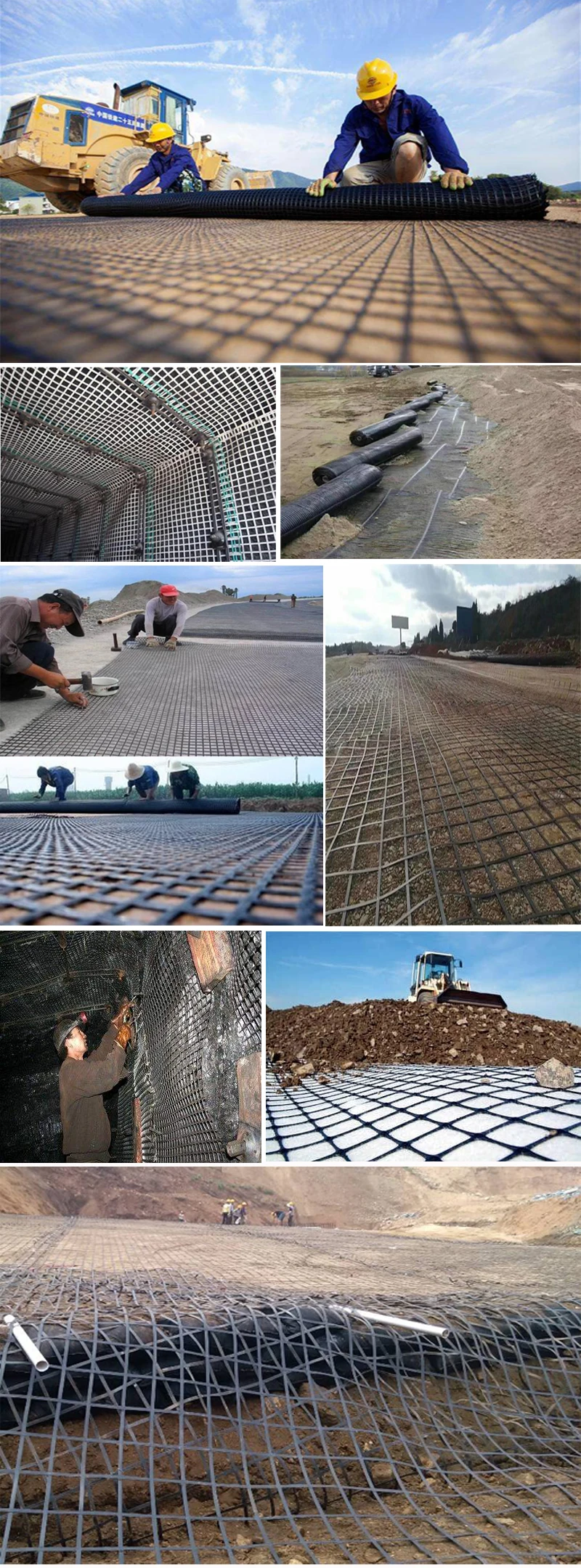

Application
1. Make reinforecment treatment for various of soft soil foundation and improve load capacity
of the roadbed,used in roadbed of highway and railway,and connection between old and new highways.
2. Applicable to permanent foundation reinforcement for large parking lot, pier.
3. Applicable to railways’ and highways’ slope protection.
4. Applicable to mines’ and tunnels’ reinforcement.
Construction Method
In construction, the geocell can be pulled into a network and launched into a three-dimensional honeycomb grid, then filled with soil, macadam, concrete or other granular materials to constitute to be a structure with strong lateral restriction and large stiffness
------Open the superimposed geocell.
------Fixed with nails or connected with the framework of stretching device.
------Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.
------At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.

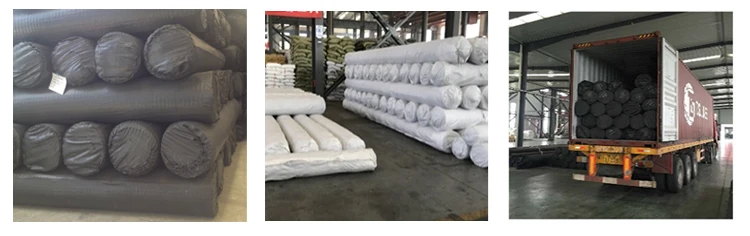

Packing & Delivery
Packed with PP woven bags or in bundles.
Generally 3.95m *50 m per roll, one 40HQ load 225rolls.
Company Information
Shandong Bring Plenitude New Materials Co.,Ltd. is located in Tai’an city, China. Which is a large private enterprise specializing in the production and management of geotechnical and waterproof materials. Include geomembrane, steel and plastic/fiberglass/polyester geogrid, non woven geotextile, geocell, geomat, waterproofing sheet, GCL etc., They are widely used in water conservancy, tunneling, railway, highway, electric power, municipal, port and other large-scale projects. Our workshop quipped with a number of advanced production lines, the company and has obtained ISO9001, ISO14001 and other certifications, our products are not only popular in domestic engineering projects and bidding, but also exported to more than 30 countries and enjoyed a high popularity and reputation. Shandong Bring Plenitude New Materials Co.,Ltd. is looking forward to cooperating with you and welcomes your visit.
Certifications
The company has passed ISO9001 / ISO14001 / OHSAS18001 and CE certificate.
