NEW LED colorful touch wifi air conditioner thermostat for fan coil unit
- Category: >>>
- Supplier: Shenzhen Toupwell Technology Co. Ltd.
Share on (1600106955949):
Product Overview
Description
Product Description
THP1000 WiFi Thermostat
The THP-1000 series thermostat range has been developed to control fan coil unit ,chiller of BMS system
.With amazing large display LCD.It has design to used in domestic.commercial,civil properties.With wifi and weekly
programmable.Easy convenient and energy saving for you to use.WIFI control.You could control via your mobile phone anywhere.This is very convenient and enjoyable.
.With amazing large display LCD.It has design to used in domestic.commercial,civil properties.With wifi and weekly
programmable.Easy convenient and energy saving for you to use.WIFI control.You could control via your mobile phone anywhere.This is very convenient and enjoyable.
Thermostat Features
1. Powerful Functiones availabl.Just like WIFI.Modbus.Modulating etc.
2. 0.5°C Accuracy keeps temperature within the level you set.
3. Humidity sensor helps you know the humidity around you.
4. Data memory when power is off.
5. 7 days six periods programmable maximize comfort and economy.
6. Interated with Amazon Echo ,Google Home.
7. All languages are according to your area.If there is no local language.It will show english only
8. 2.4G/5G both available now
9. No limit to add rooms and support device sharing with family.
3. Humidity sensor helps you know the humidity around you.
4. Data memory when power is off.
5. 7 days six periods programmable maximize comfort and economy.
6. Interated with Amazon Echo ,Google Home.
7. All languages are according to your area.If there is no local language.It will show english only
8. 2.4G/5G both available now
9. No limit to add rooms and support device sharing with family.
10.2pipe/4pipe option
Specification
Power supply | 95-240V,50/60Hz | Storage Temp. | -5 ~ 45 ℃ |
Current Load | Fan relay resistance:5A,Inductive:3A Valve relay resistance:3A,Inductive:1A | Power Consumption | <1.5W |
Sensor | NTC3950,10K±1% | Timing Error | < 1% |
Accurancy | ±0.5℃ | Shell Material | PC +ABS ( Fireproof) |
Set Temp. Range | 5-35℃ | Installation box | EU 60Round box Or 86 Box |
Dispaly Temp.Range | 5-99℃ | Wire Terminals | 2 x 1.5 mm2 or 1 x 2.5 mm2 |
Ambient Temp. | 0 ~ 45 ℃ | Protection Class | IP20 |

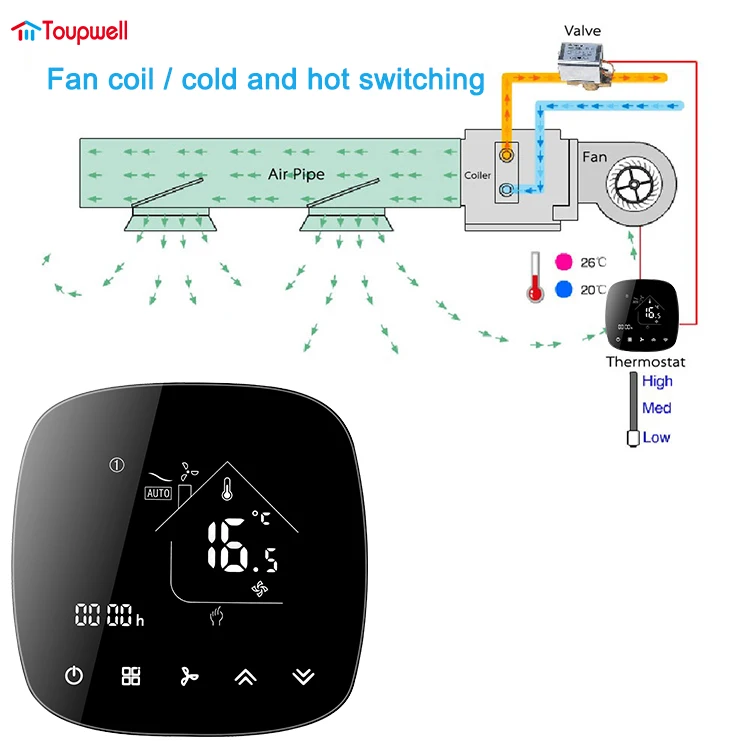

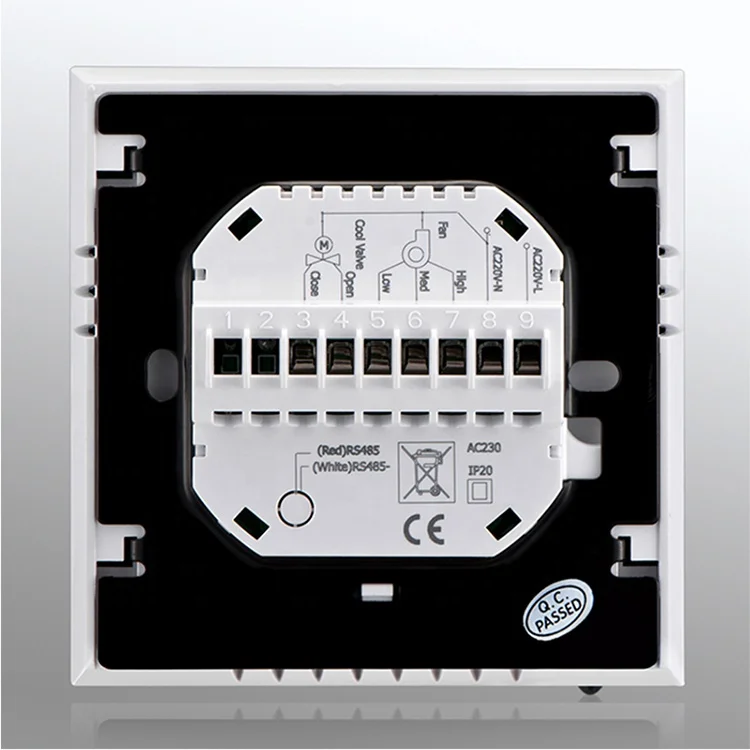

Thermostat's Wiring Diagram &Application system
2pipe fan coil unit system.Model :THP1001AL
4Pipe fan coil unit system Model;THP1001EL
2pipe wifi fan coil unit system Model;THP1001ALW
4Pipe wifi fan coil unit system Model:THP1001ELW
2PIPE window card function with modbus Model;THP1001ALNW2
2pipe keycard function with modbus Model:THP1001ALNK
.........
.........
...........
More functiones.Could contact our sales person to know more

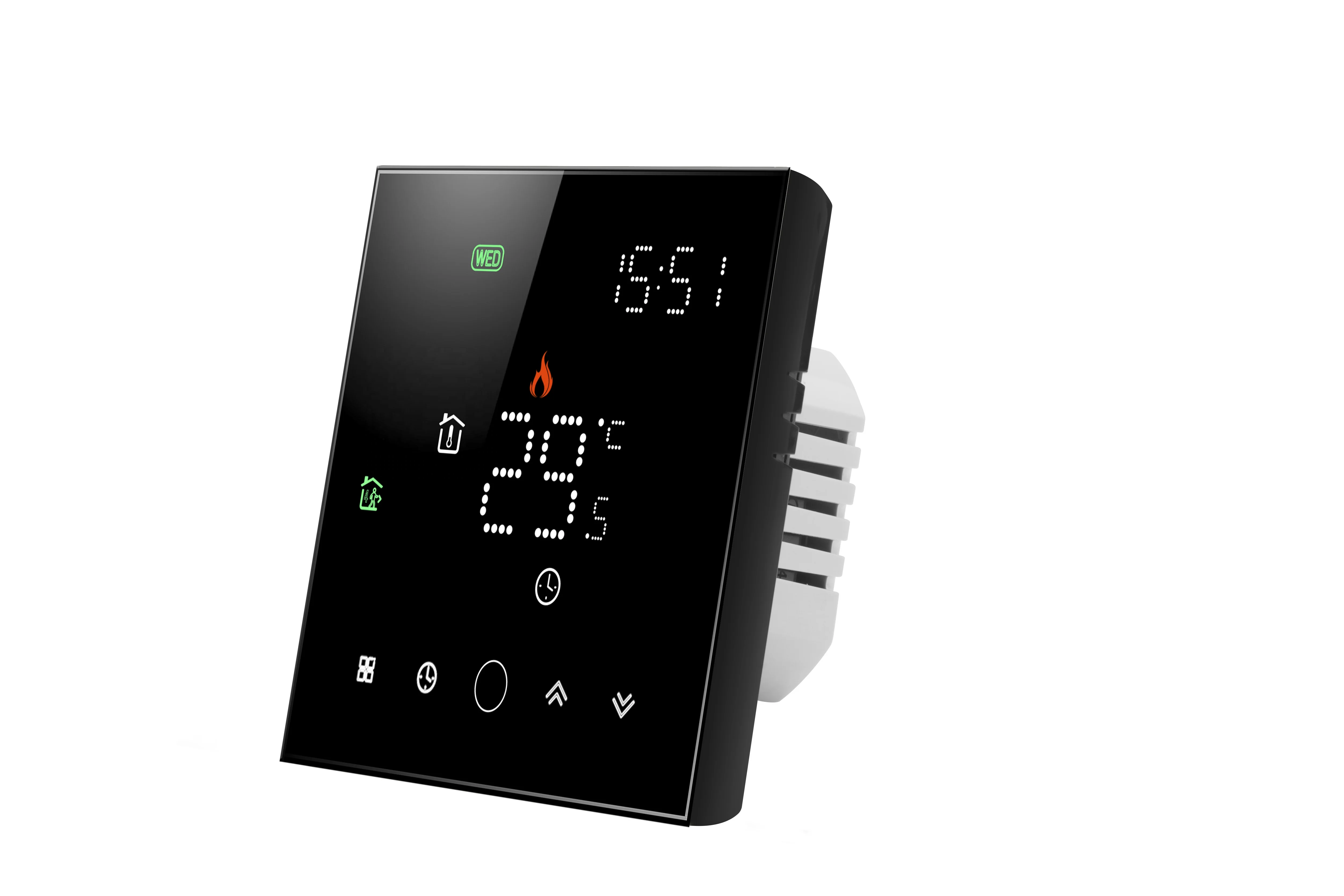

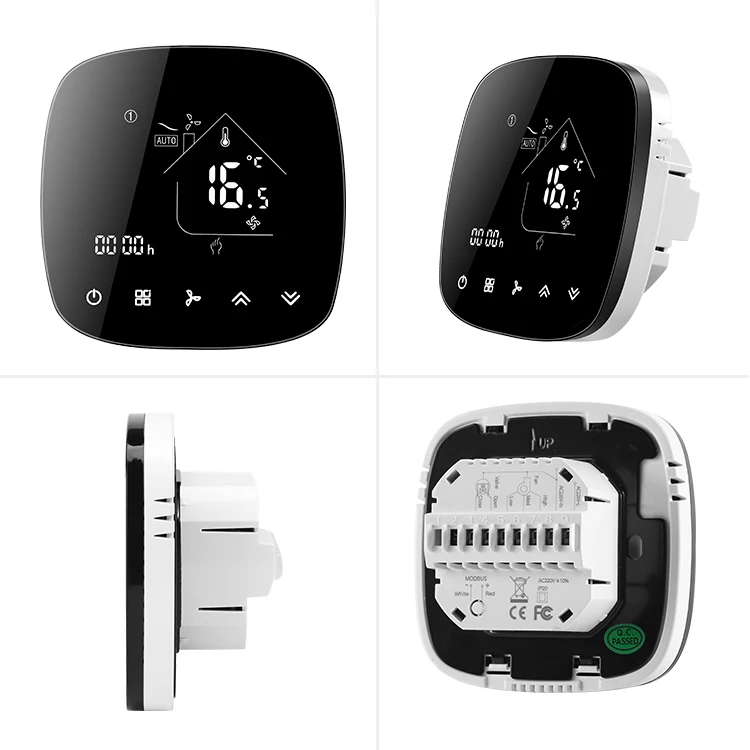

Thermostats detail pictures
Other releated products
Packing & Delivery
Carton size:49*45*33Cm100PCS/CTN
GW:27KGS
We will shipping via TNT,DHL,UPS,FEDEX or by sea for you
Sample delivery time:3days Bulk order:7-20days depends on production reply
GW:27KGS
We will shipping via TNT,DHL,UPS,FEDEX or by sea for you
Sample delivery time:3days Bulk order:7-20days depends on production reply
Company Profie
Toupwell is one of the main HVAC products suppier in China.Inlcuding room thermostats ,valves ,sensors .With more than 13years of
HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are
locted in ShenZhen nearby HongKong.This is very convenient to export products or meet customers..
HVAC line.We have strong R&D experiences .Fast reaction ,Quickly delivery.These help us have many famous brand partners.We are
locted in ShenZhen nearby HongKong.This is very convenient to export products or meet customers..
Thermostats Produce Steps .
Certifications
FAQ
Q1.Why choose us?
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could satisfied
customers.B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
A:With more than 10years experiences in room thermostats and valves line.We are confidient about our products could satisfied
customers.B:Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete
satisfaction.
C. 100% QC inspection before shipping.
Q2. What about the lead time?
A:Sampleneeds 3-5 days, mass production time needs 2-4 weeks.
Q3. Do you have any MOQlimit for your prodcuts?
A: 50pcs. 10pcs for samplechecking is available.OEM/ODM order MOQ:300PCS
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples we usually ship byDHL, UPS, FedEx, TNT.It usually takes 3-5 days to arrive.
Bulk orders,We generally choose airline and sea shipping is also optional.
Airline need 3-6 days and sea shipping need 20-35 days.
Q5 Payment
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.
Q6. How to proceed an order ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7:Whats the warranty of your product?
Normally 18months after goods shipping out. Human damaged item do not including
Q8:Do you have certificate of your products?
Yes.All items are approved by CE.Some have Rohs
