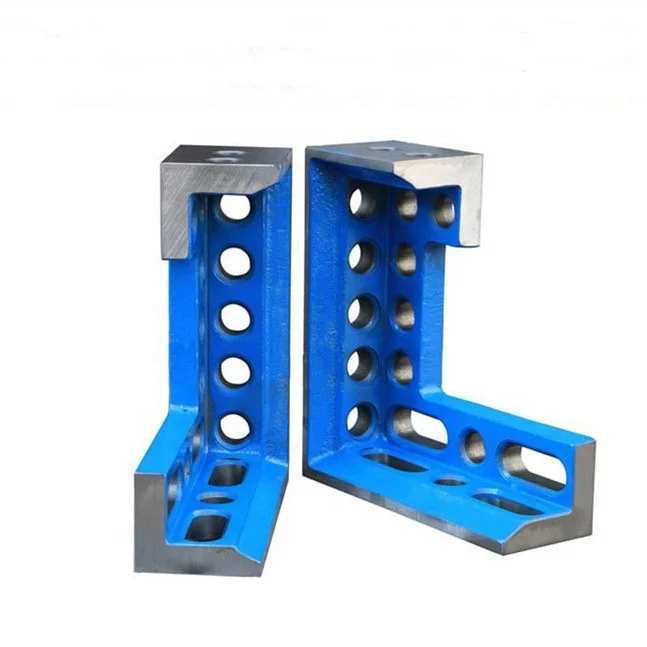

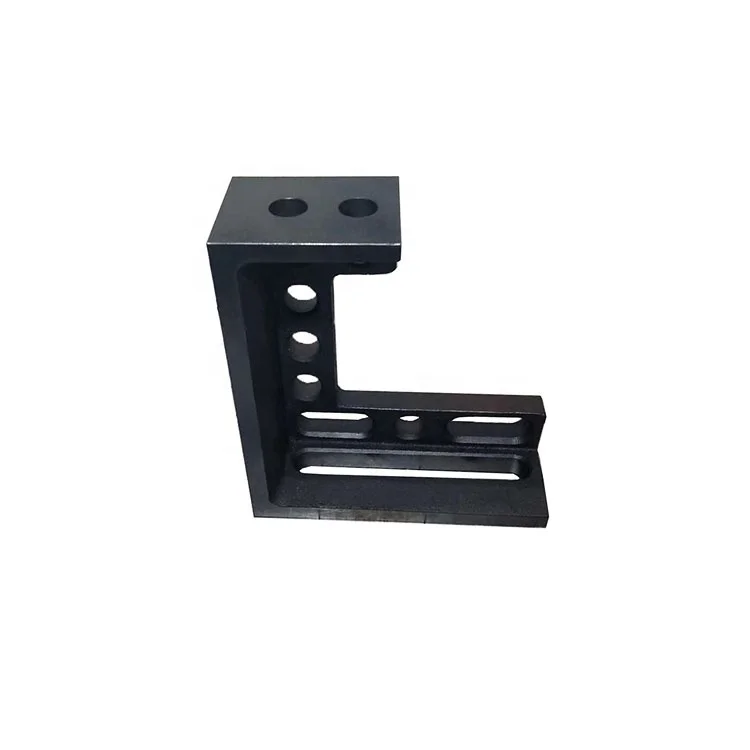

3D Universal Hole Supporting Angle Iron with Welding Assembly
- Category: Weld Holders >>>
- Supplier: Botou Jinrui Machine Tool Manufacturing Co. Ltd.
Share on (1600107110239):
Product Overview
Description
The 3D welding platform has the advantages of modularity, variability, high precision, high availability, and reusability. It is widely used in mechanical engineering, automobile manufacturers, automobile manufacturing, ships, and railway transportation.

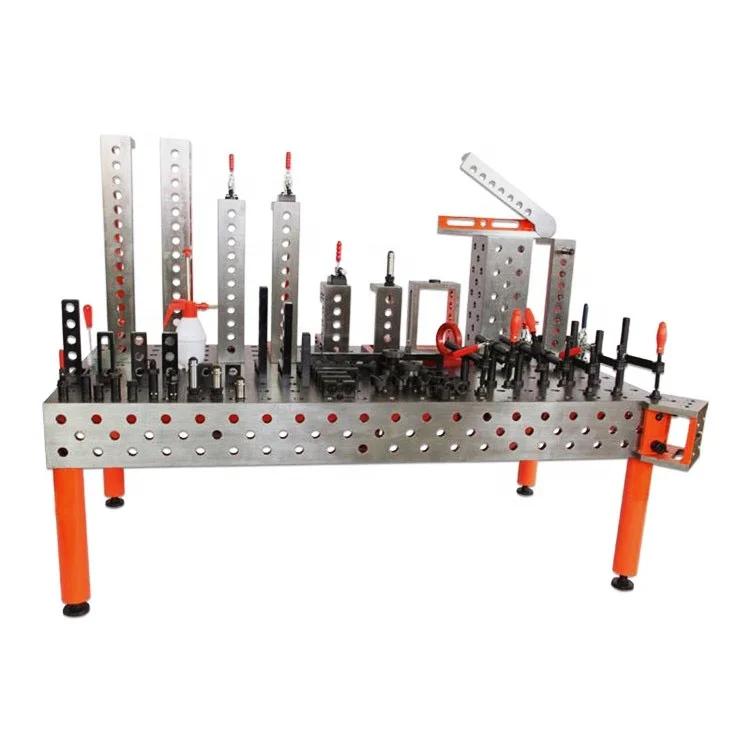

3D welding table —— D28 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mmx100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mmx50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mmx100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mmx50mm
Hole pitch: 50mm
Material thickness: approx.14mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs
Product Parameter
Specification
Techniacl Parameter(28 series) | ||
1.Material: | 45#steel/Q345/High hardness steel plate welding | |
2.Aperture (A): | A=φ28.065--φ28.149mm | |
3.Hole Spacing (L1): | 100±0.05mm | |
4.Scribe (W1): | 100±0.05mm | |
5.Flatness: | 0.1/1000mm | |
6.Verticality: | 0.1/200mm | |
7.Surface Roughness: | Ra1.6 | |
8.Hardness: | Material hardness | |

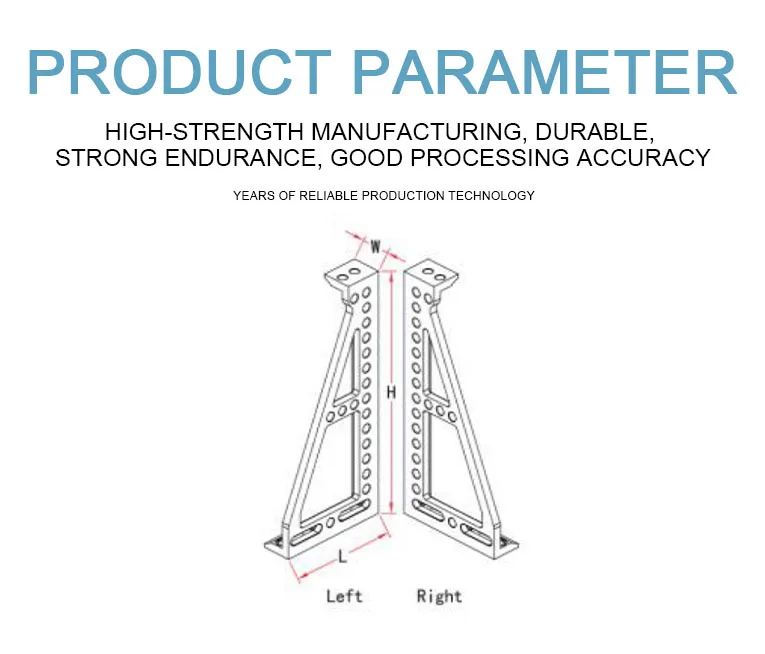

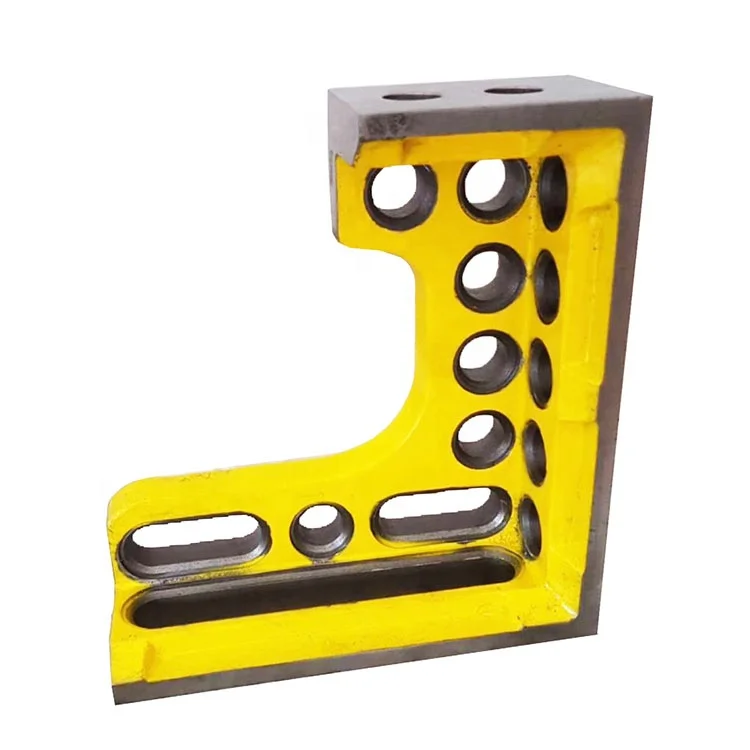

Steel Welding Table Locating Angle(D28): | ||
Size L*W*H（mm） | Weight(Kg) | |
300x275x100(L) | 22 | |
300x275x100(R) | 22 | |
600x275x100(L) | 40 | |
600x275x100(R) | 40 | |
800x375x100(L) | 50 | |
800x375x100(R) | 50 | |

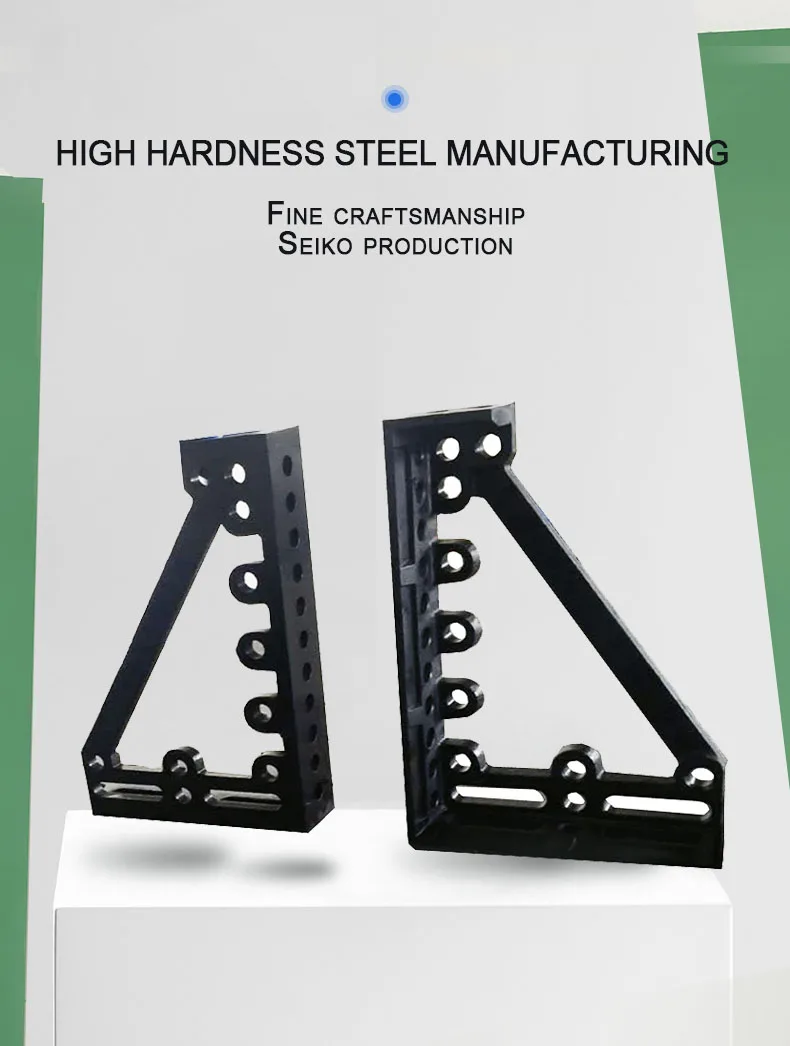

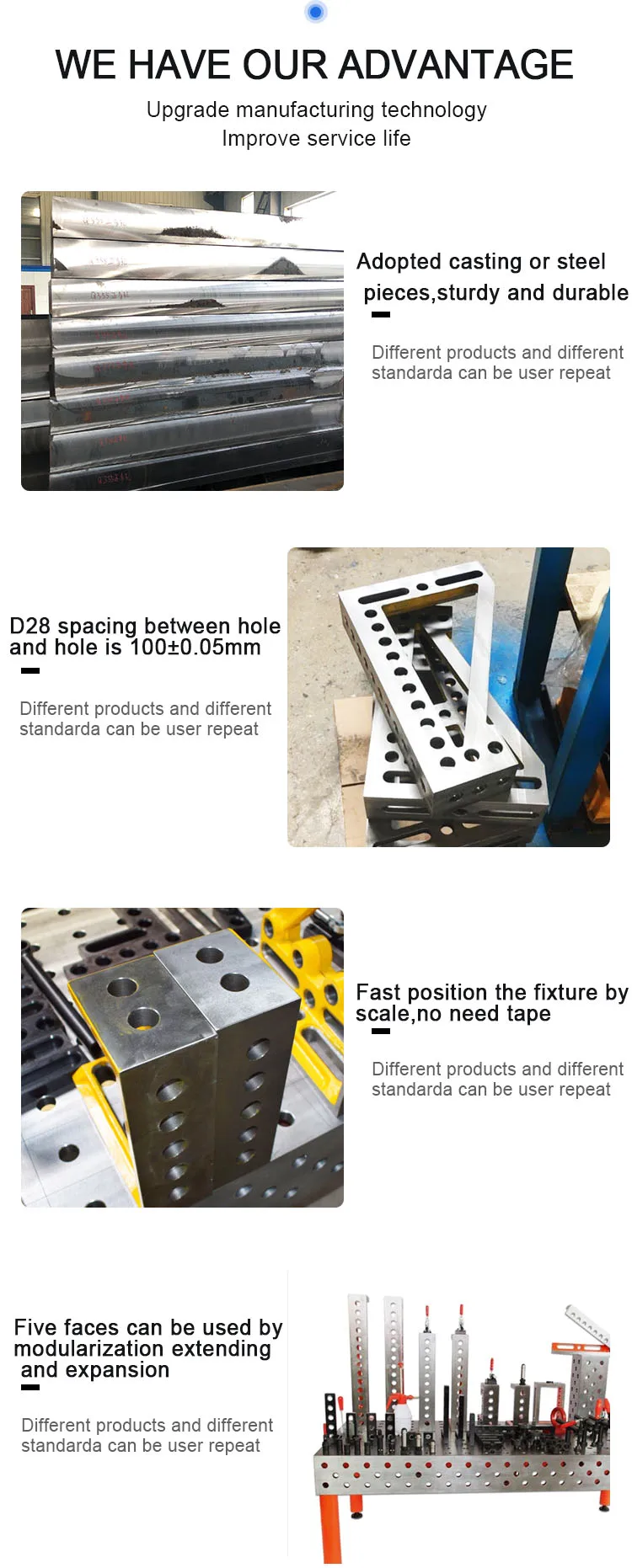

Product Advantages

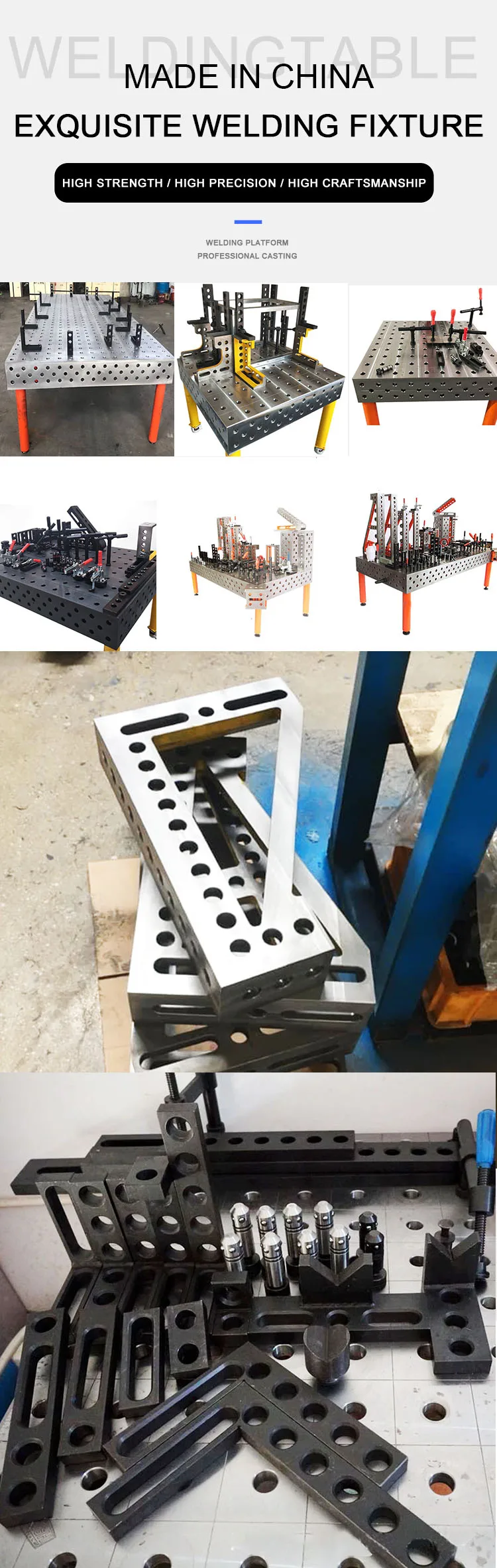

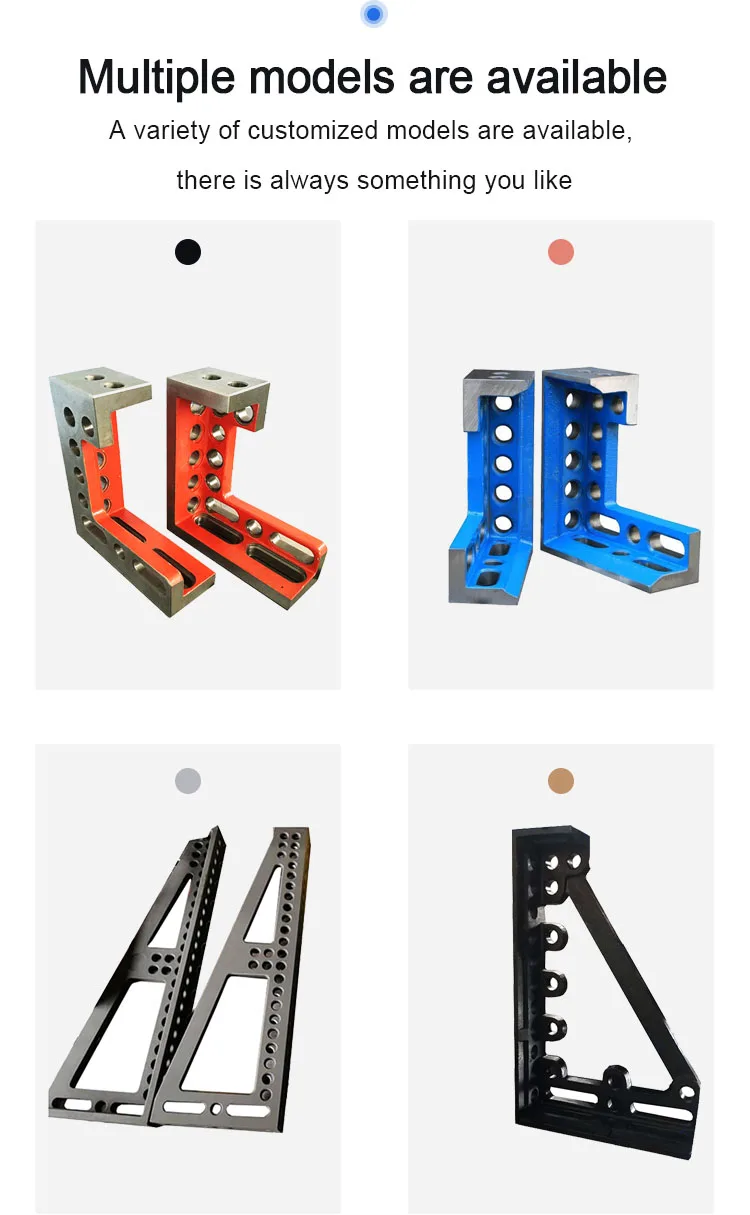

Product Display

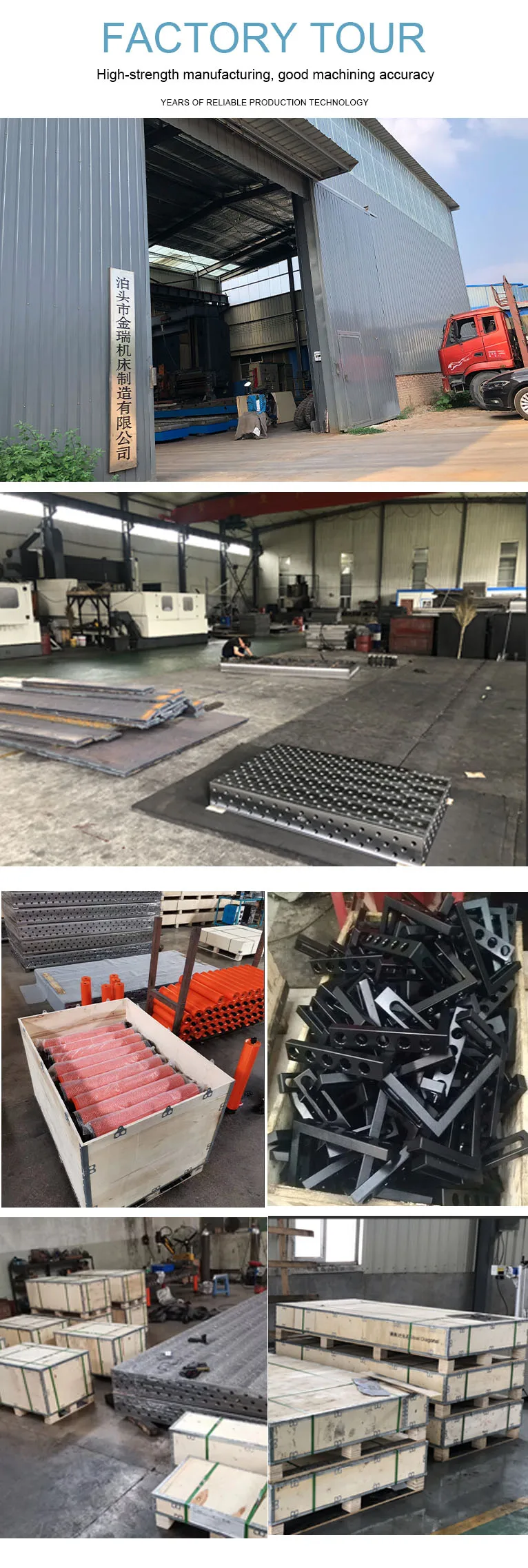

Company Profile
Jinrui Machine Tool Manufacturing Co., Ltd.
Our company is located in Botou,the hometown of casting.Our company is a large-scale enterprise integrating design,production casting,maching,installation and commissioning,and after-sales serbice.
The main products include 3D flexible platform,welding fixture series;flat gauge series,machine tool casting series.Proucuced according to national standards all technical indicators have reached national standards,the products are smooth at home and abroad,and are well received by users at home and abroad.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
