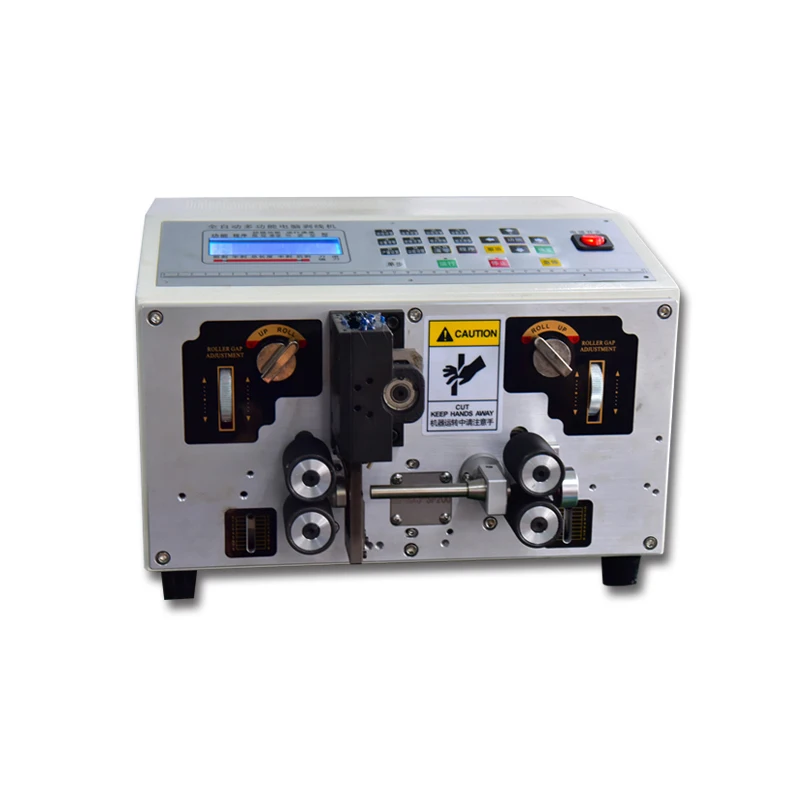

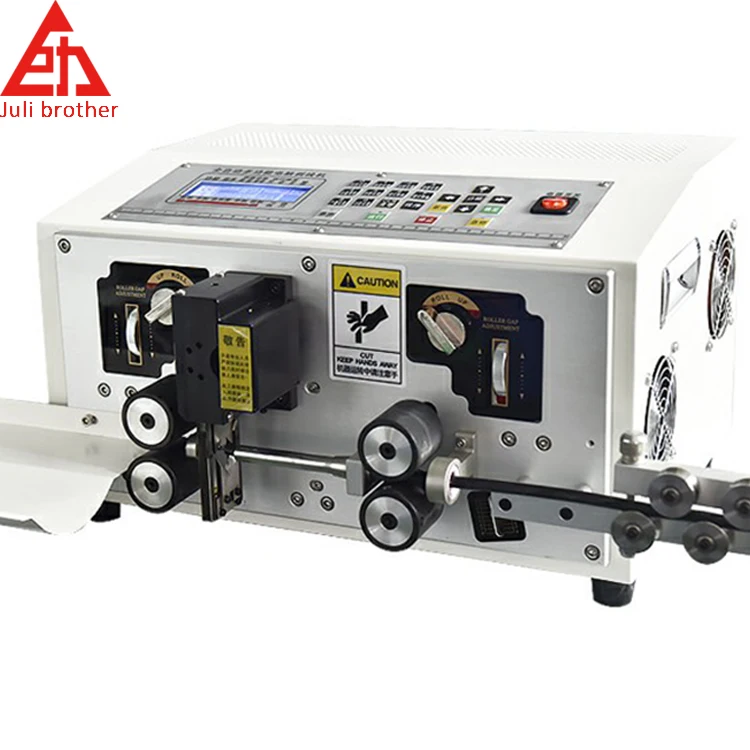

JL 800 10 automatic computer cable wire stripping and cutting machine

Share on (1600107296355):


Price:RUB 52,736.53

Quantity:


Product Overview

Description

Product Description

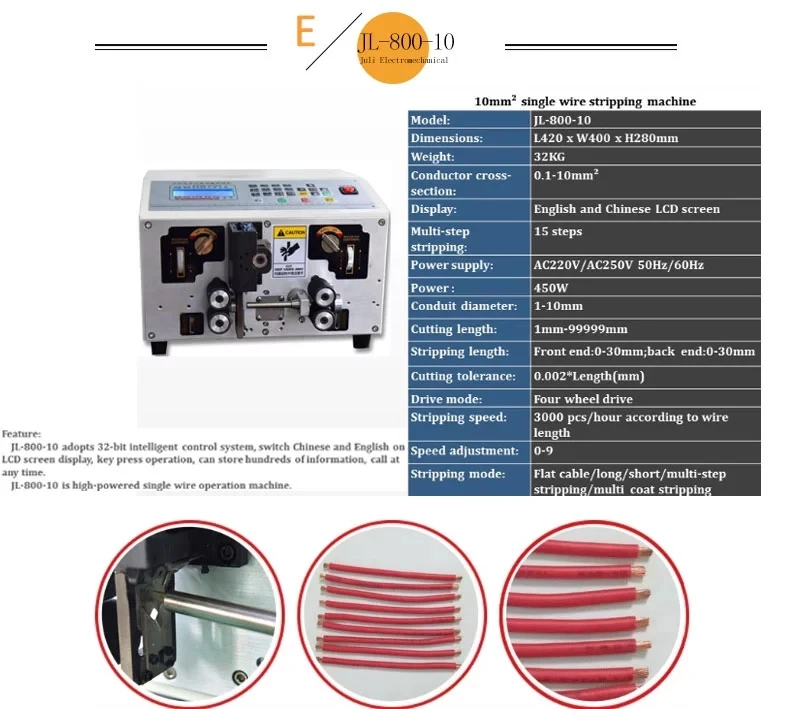

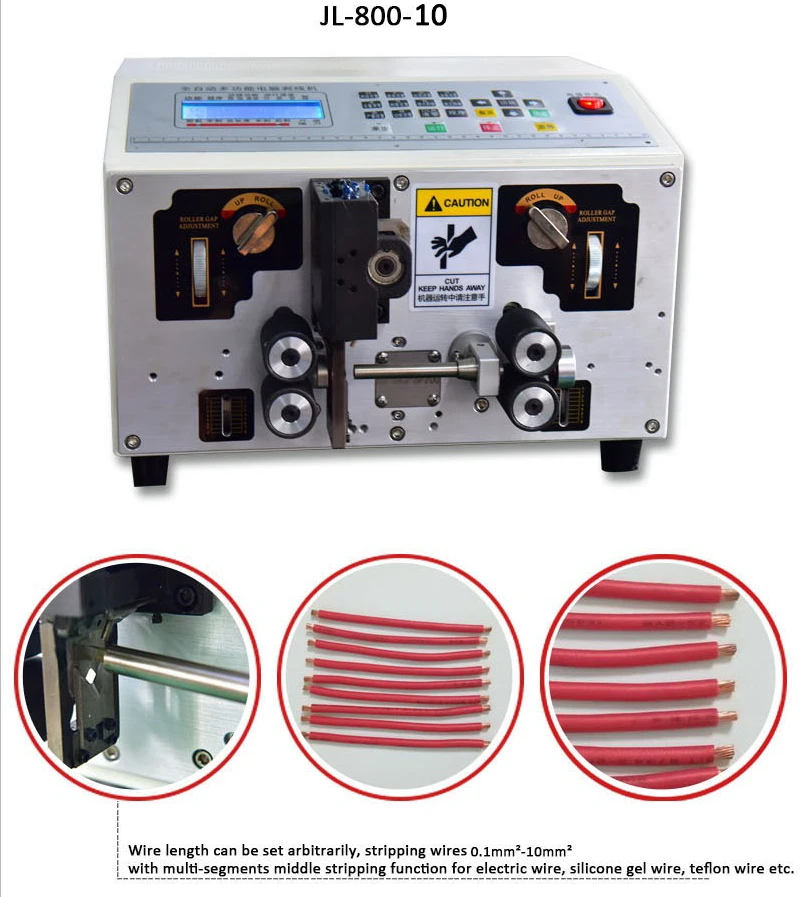

10mm² single wire stripping machine

Model:

JL-800-10

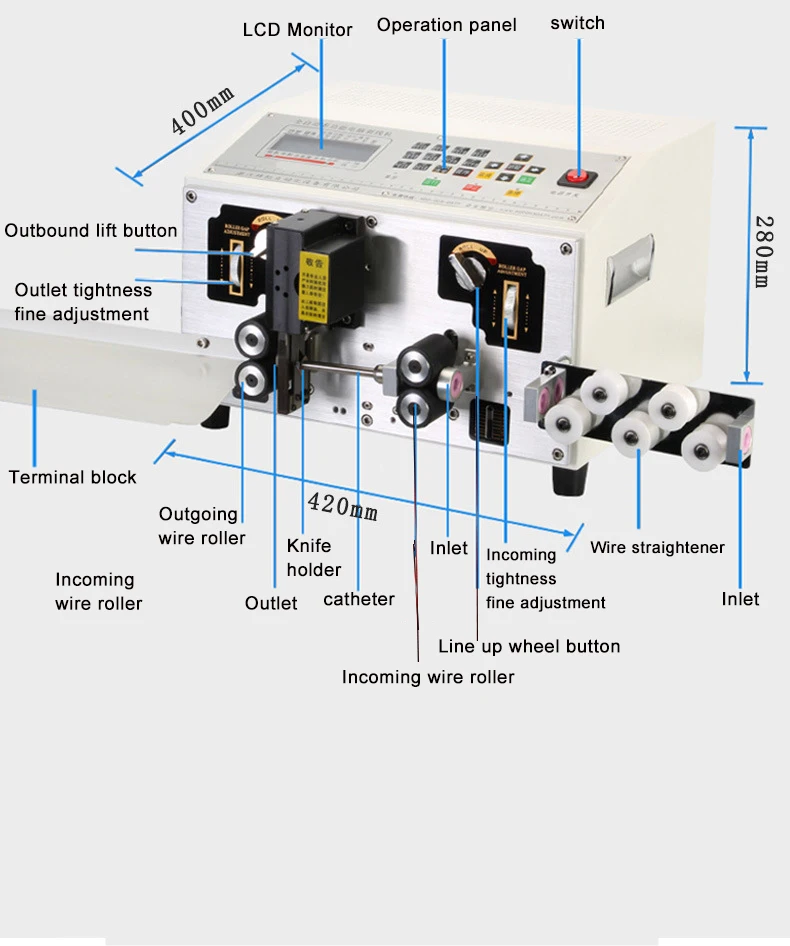

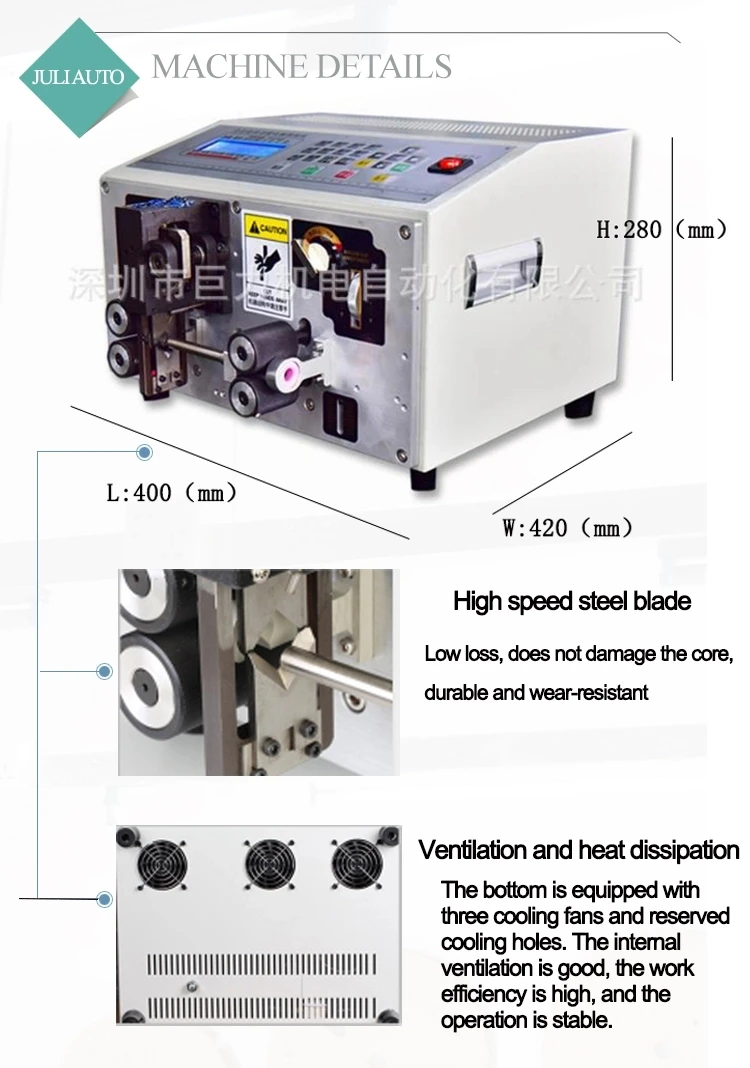

Dimensions:

L420 x W400 x H280mm

Weight:

32KG

Conductor cross-section:

0.1-10mm²

Display:

English and Chinese LCD screen

Multi-step stripping:

15 steps

Power supply:

AC220V/AC250V 50Hz/60Hz

Power :

450W

Conduit diameter:

1-10mm

Cutting length:

1mm-99999mm

Stripping length:

Front end:0-30mm;back end:0-30mm

Cutting tolerance:

0.002*Length(mm)

Drive mode:

Four wheel drive

Stripping speed:

3000 pcs/hour according to wire length

Speed adjustment:

0-9

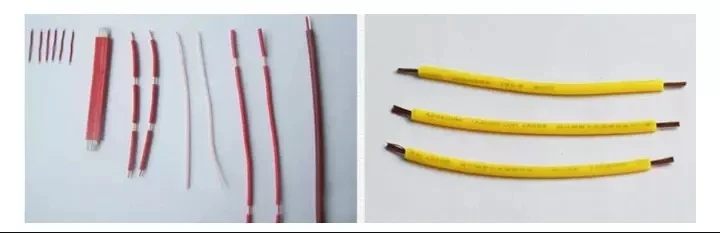

Stripping mode:

Flat cable/long/short/multi-step stripping/multi coat stripping


Packaging & Shipping

16

Our Services

We Provide
1. On-time delivery and the shortest delivery time.
2. OEM and customized service.
3. User manuals will go with relative machines.

Purchase guidance



If you are not sure which model is the best choice within your budget, please contact us and we are happy to advise you and compare the models.



Technical Support


All products will be checked before delivery. If you have any problem with operation and professional technical support , please feel free to contact us.



After Sale Service


Don’t worry, we are here to help. we provides high quality after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!

Company Information


Certifications


FAQ

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.



2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery



3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.

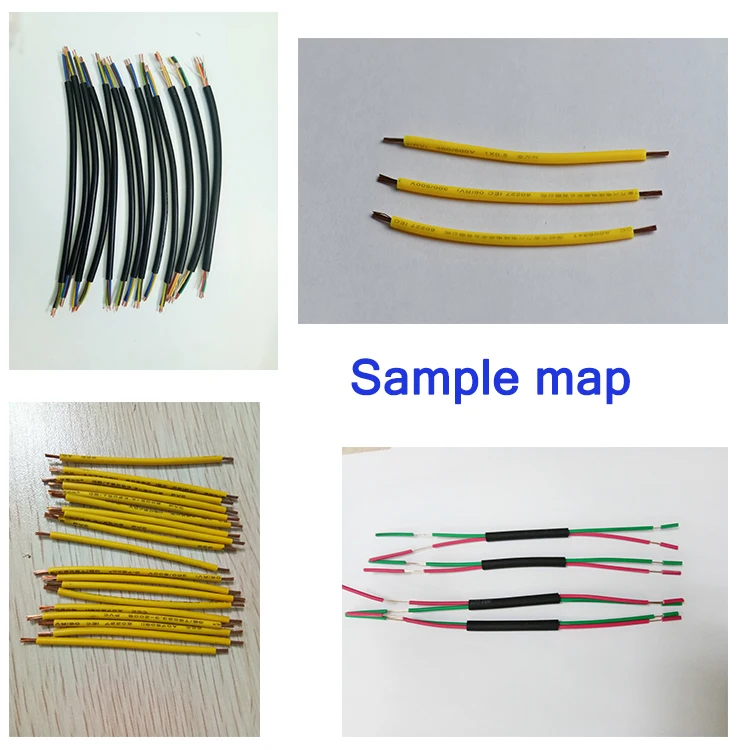

Video for you to make samples



4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication



5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
