10.1 inch IPS 1024*600 GT9271 capacitive touch tft LCD display for Raspberry Pi 3/3B/4B
- Category: Touch Screen Monitors >>>
- Supplier: Etouch Technology Co. Limited
Share on (1600107475751):
Product Overview
Description
Product Parameters
3H hardness PET to glass touch panel display module monitor for raspberry PI HDMI interface
10.1 inch IPS 1024*600 Raspberry Pi tft LCD display with capacitive touch screen for Raspberry Pi 3/3B/4B with HDMI and double USB interface and 3.5mm Jack inteface for Headphone
General Information | Contents | Unit |
LCD Display Size (Diagonal) | 10.1 | inch |
Module Structure | LCD Display + CTP Touch + PCB | |
LCD Display Type | TFT/TRANSMISSIVE | |
LCD Display Mode | Normally White | |
Recommended Viewing Direction | IPS | |
Capacitive touch panel | 5 point touch | |
Capacitive touch panel hardness | 3 | H |
Touch panel structure | PET cover lens+Glass sensor | |

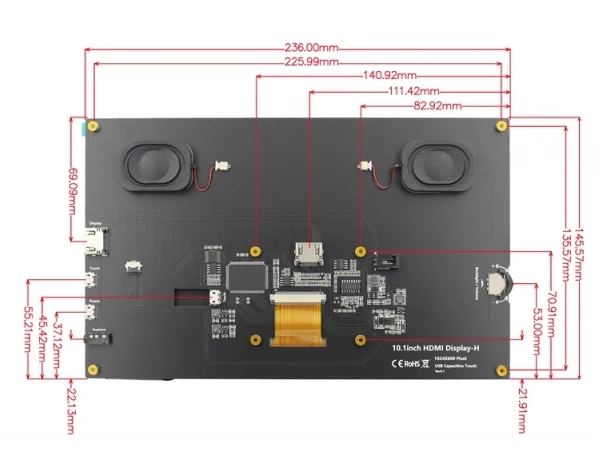

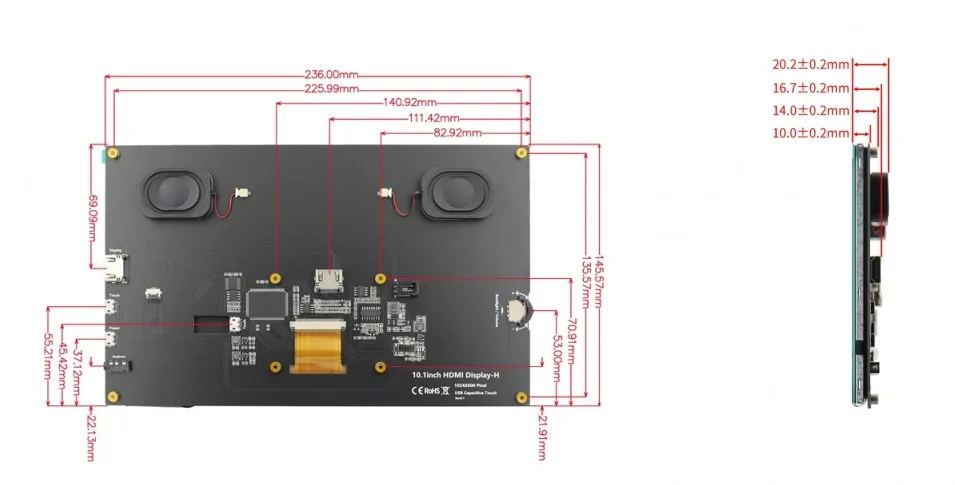

Module size (W×H×T) | 236.00x145.57x20.00 | mm |
Active area (W×H) | 222.72×125.28 | mm |
Number of pixels (Resolution) | 1024RGB×600 | pixel |
Pixel pitch (W×H) | 0.2175×0.2088 | mm |
Color Pixel Arrangement | RGB Stripe | |
Module Interface Type | LCD HDMI interface | |
CTP Micro USB interface | ||
System Support | Win7/Win8/Win10(Plug and play) | |
Android/Linux (need to be configured) | ||
Power Supply | USB 5V 2A | |
Color Numbers | 16.7M | |
Backlight Type | White LED | |
Brightness | 300 | CD/M2 |

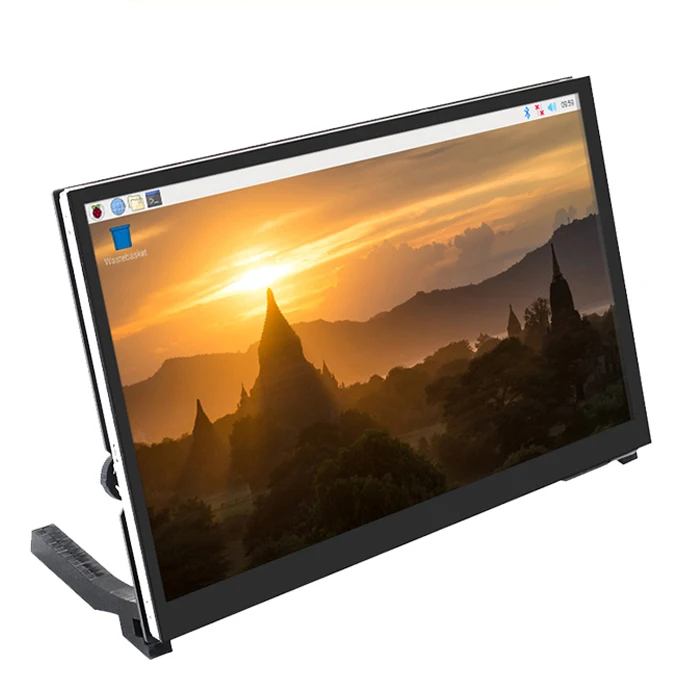

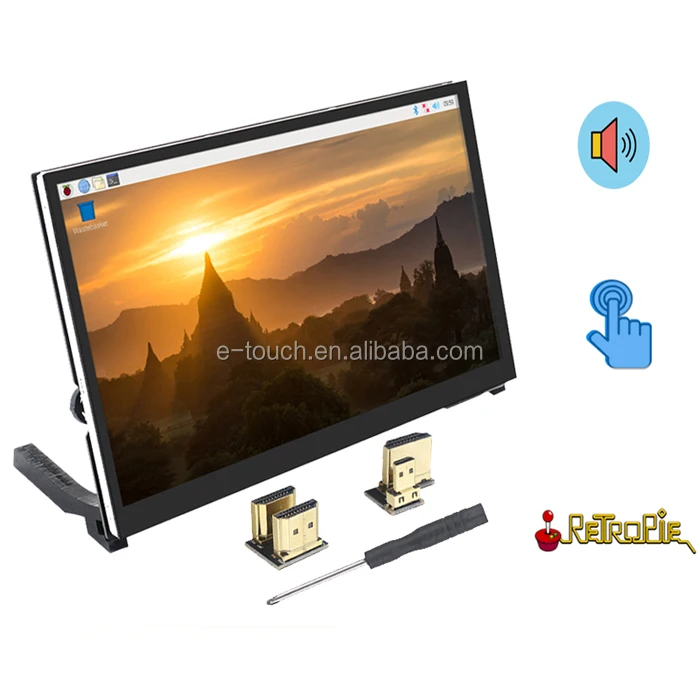

10.1 inch IPS display with capacitive touch panel ( without raspberry Pi board)

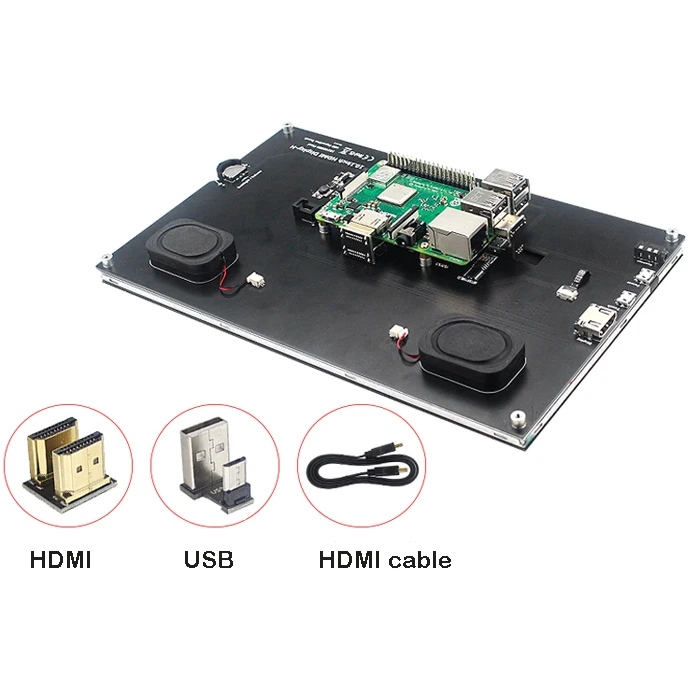

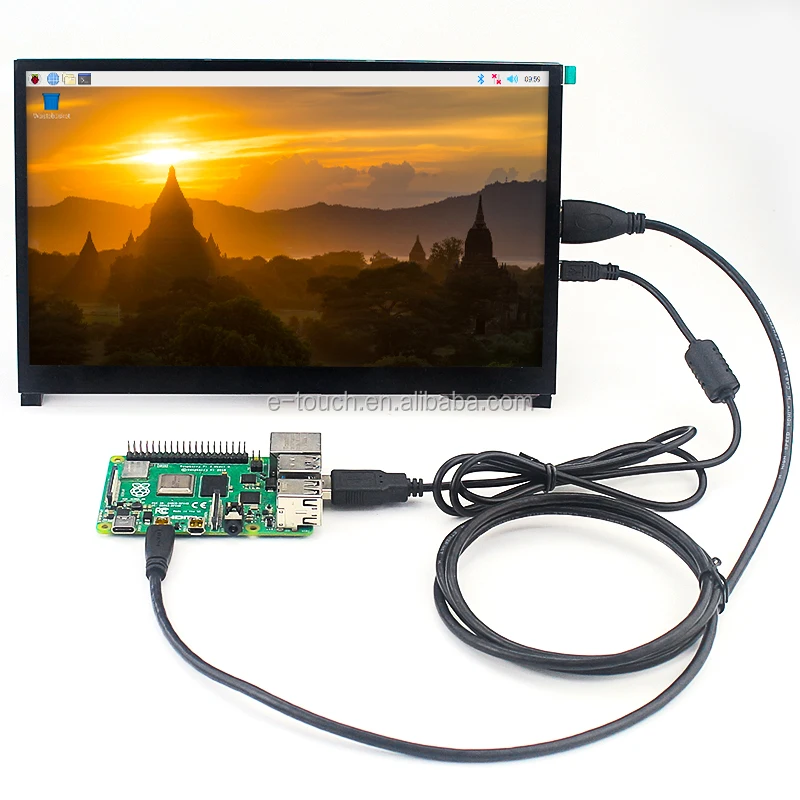

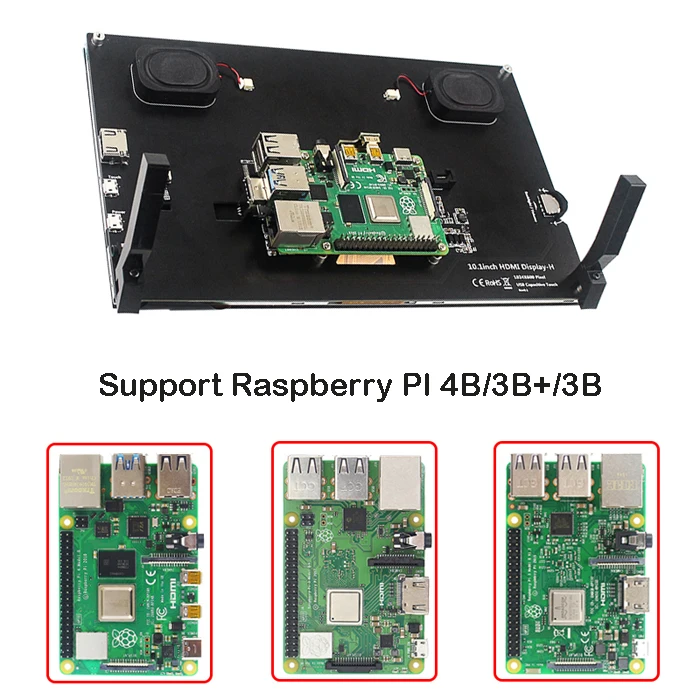

Raspberry Pi board only show the function, this link price without this board, if you need raspberry Pi 4B 3B board, please contact us.
Raspberry Pi board only show the function, this link price without this board, if you need raspberry Pi 4B 3B board, please contact us.
Raspberry Pi board only show the function, this link price without this board, if you need raspberry Pi 4B 3B board, please contact us.

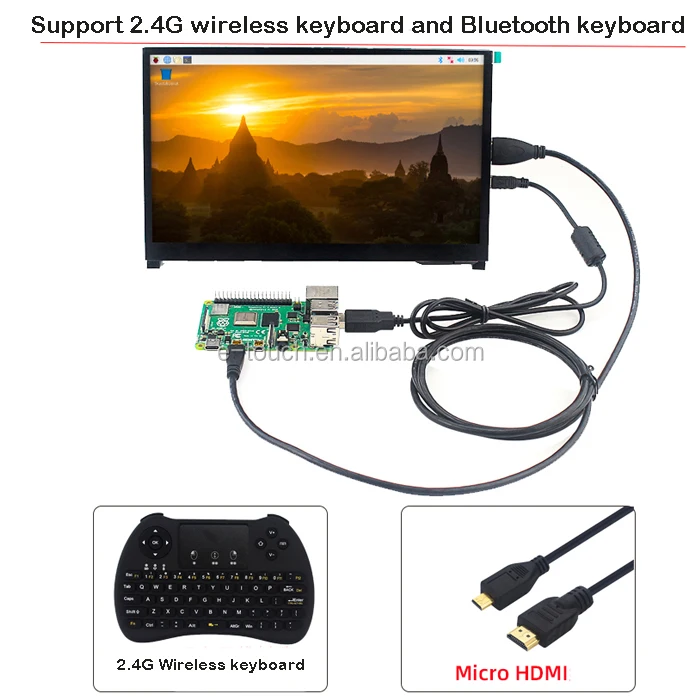

Raspberry Pi board only show the function, this link price without this board, wireless keyboard and bluetooth keyboard, if you need raspberry Pi 4B 3B 3B+ board, wireless keyboard and bluetooth keyboard, please contact us.

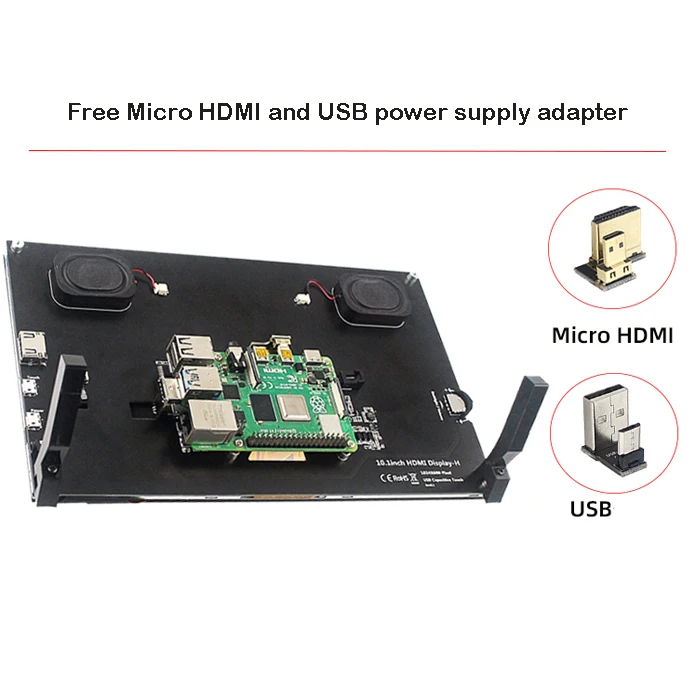

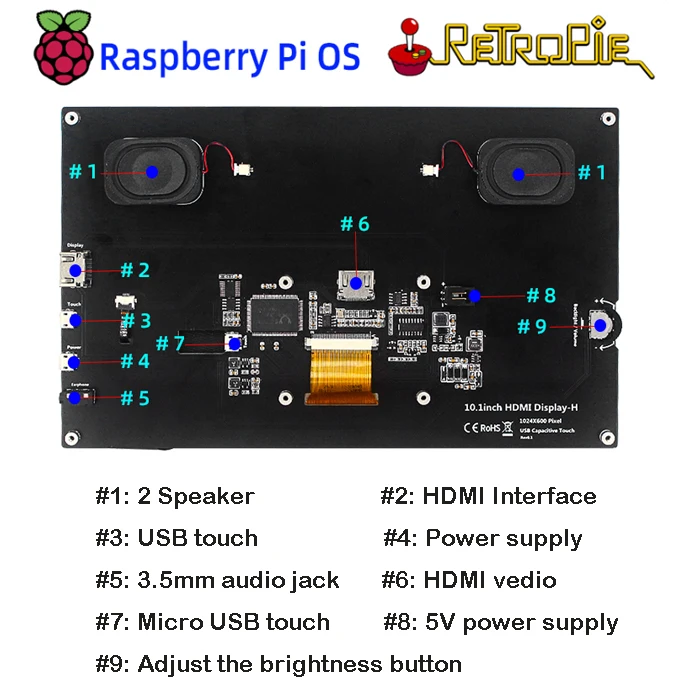

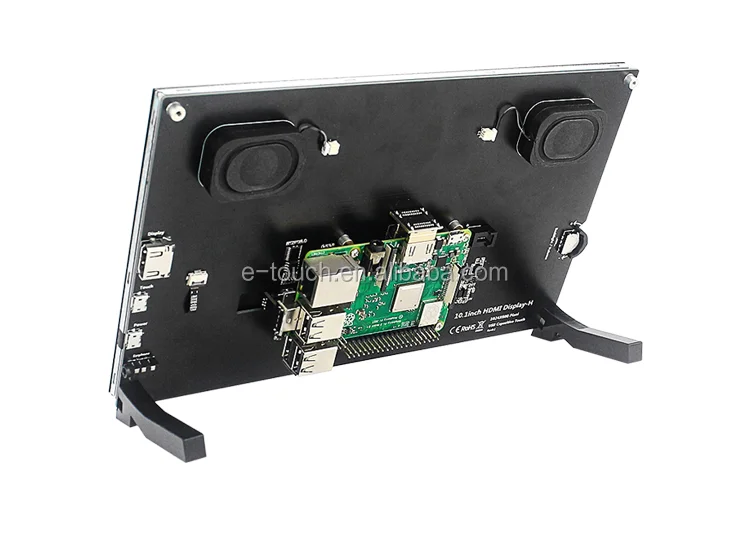

Back View of 10.1 inch display with capacitive touch panel product list
10.1" standard display, 1024 × 600 and 1024x600 Hardware resolution, Up to
1920x1080 software configuration resolution.
Capacitive touch screen, maximum support 5 point touch
Support backlight control alone, the backlight can be turned off to save power
Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
Can be used as general-purpose-use HDMI monitor, for example: connect with oc
1920x1080 software configuration resolution.
Capacitive touch screen, maximum support 5 point touch
Support backlight control alone, the backlight can be turned off to save power
Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
Can be used as general-purpose-use HDMI monitor, for example: connect with oc
a computer HDMI as the sub-display

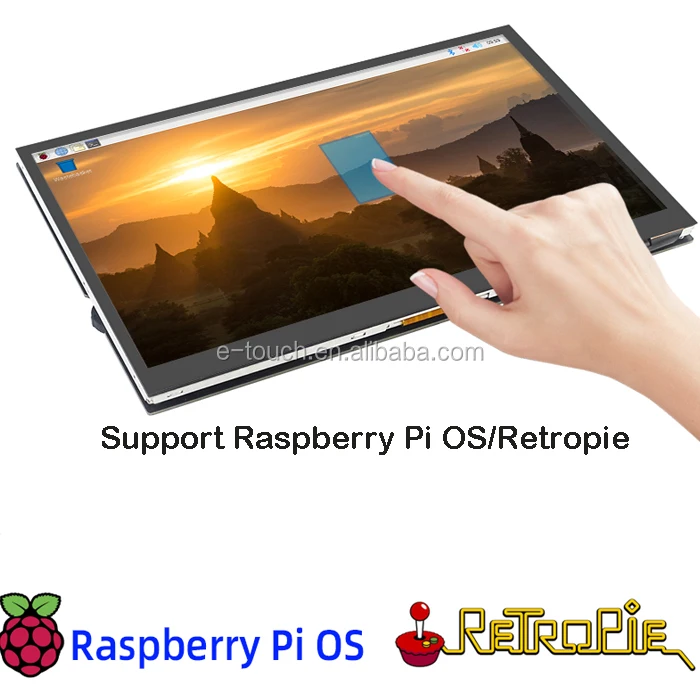

Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
Customer Feedback
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color
