CS 10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing
CS-10 digital portable colorimeter for plastic paint printing food cement weaving dyeing

CS 10 digital portable colorimeter for plastic paint printing food cement weaving dyeing

Share on (1600107668207):


Price:RUB 15,302.04

Quantity:


Product Overview

Description

CS-10 is widely used in different industries such as plastic, paint, printing, food, fruit, cement,weaving,dyeing and other material surface color measurement. It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.
Features
* Both Chinese and English language menu
* Ultra stable performance
* Display accuracy 0.01
* Repeatability accuracy E standard deviation 0.08
* Measure at multiple spots for average
* Enhance the measure accuracy through white and black board calibration
* Large data storage space
* Multiple modes of color values
* PC software and data control
* USB for data transmission
* Provide accurate test time settings
* Suitable for a company's internal and external color evaluation and data control
Specification
Illumination system
8/d（8°/diffused illumination）
specular component included（SCI）
Display modes

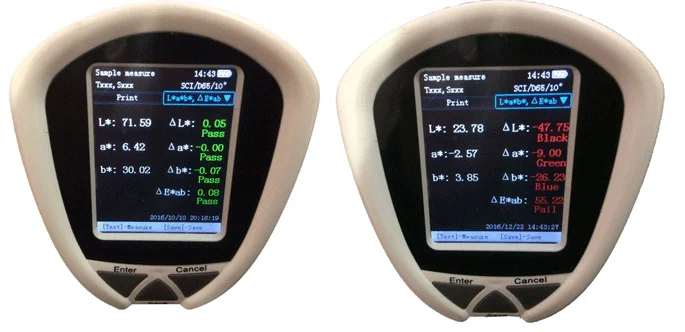

Colorimetric values: L*a*b，L*C*h，△E*ab，XYZ，relative RGB values;
Color difference values: △(L*a*b)，△(L*C*h);
Measuring caliber
About 8mm
Measuring conditions
CIE 10° standard observer; CIE D65 light source
Measuring range
L*：1-100
Repeatability
Standard deviation within△E*ab*，0.1(condition: measure the white calibration board 30 times for average
Storage
100 sets of standard samples; up to 100 under each standard sample
Measuring time
About 0.5 seconds
Measuring light source
LED
Interface languages
Chinese,English
Power source
Four AA1.5V Alkaline battery or nickel-metal hydride batterys;Exclusive DC5V adapter
Port

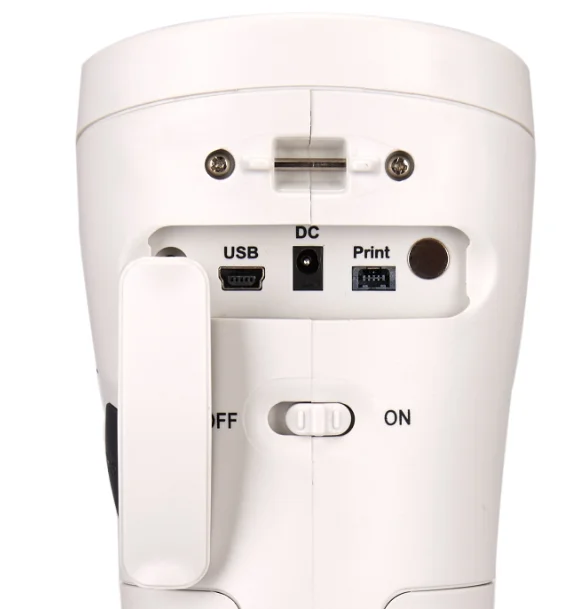

USB2.0, Printer (Optional Accessories)
Weight
550g
Size
77×86×210mm
