Product Overview

Description

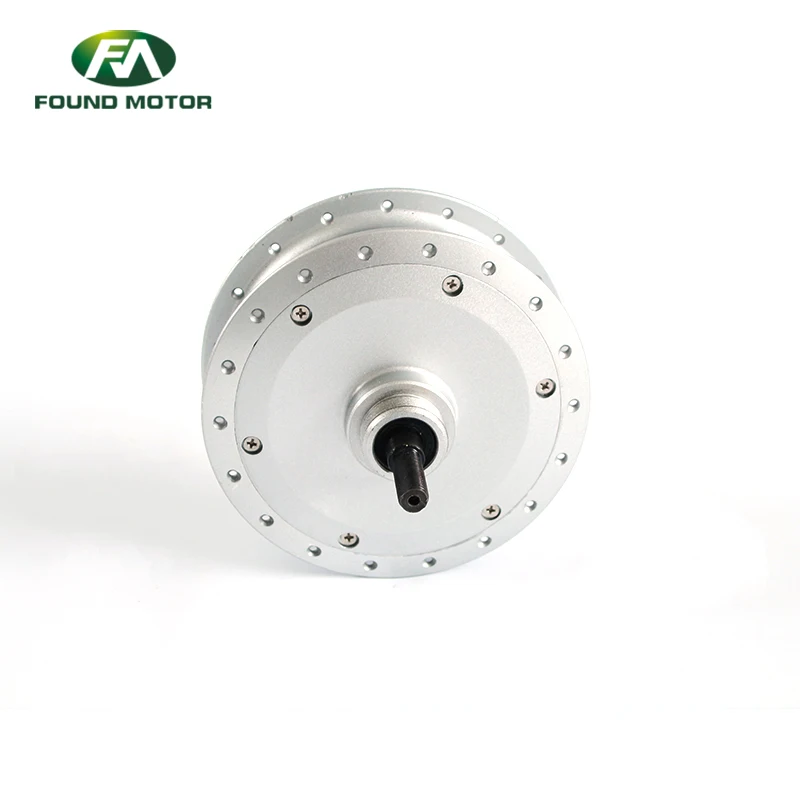

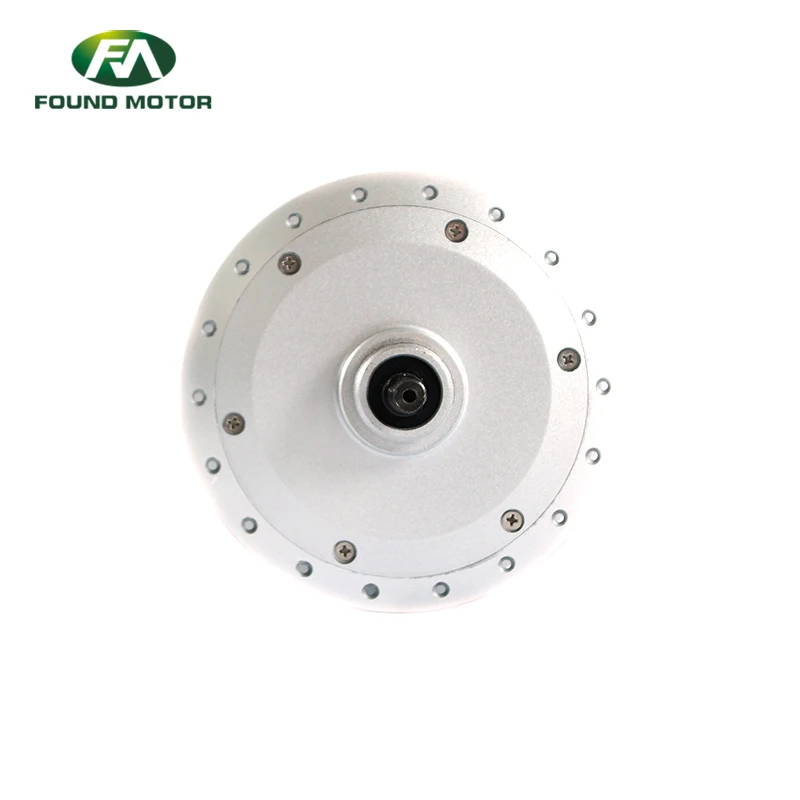

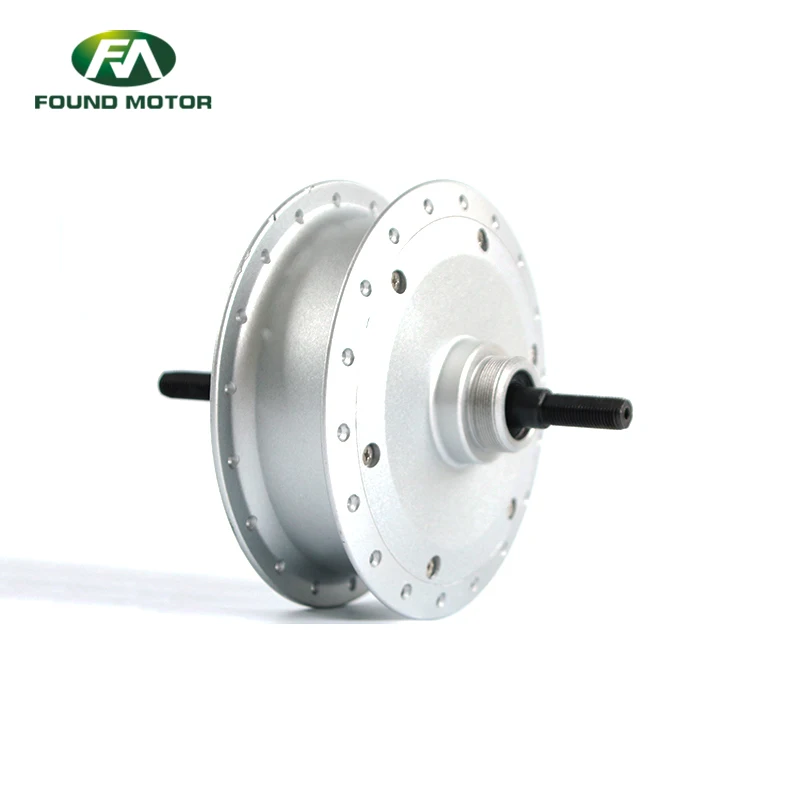

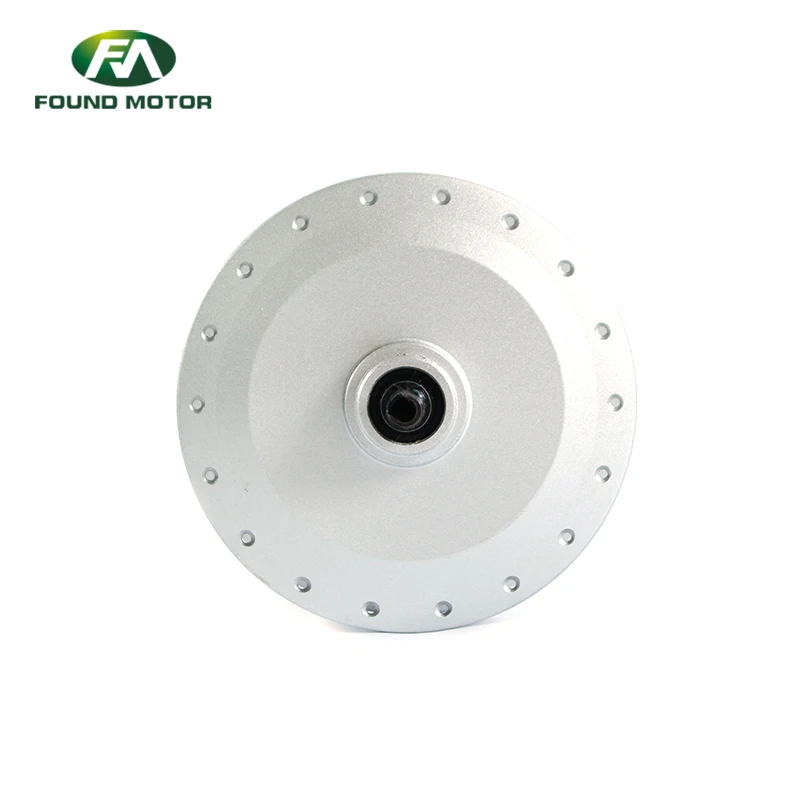

FOUND MOTOR 26" 48V 500W BLDC gearless rear  hub  motor with waterproof cable



Model	FM-01-02-112B
Rated  Voltage(V)	24/36/48/52
Rated  power(W)	180-500
Wheel  Size	14”-28”
Spoke Specification	12G/13G
Spoke holes	36
Rated  Speed(km/h)	25
Rated  Efficiency(%)	≥80
Reduction Ratio	NA
Weight (Kg)	3.8
Open  Size(mm)	135
Drive And Freewheel	Rear drive/1S
Cable  Location	Optional
Hall  Sensor	Optional
Integrate  Speed sensor	Optional
Surface	Black/Silver
Brake Type	V brake/Disc brake
Salt fog test(h)	24/96
Noise (db)	<55db
Waterproof Grade	IP54/IP65

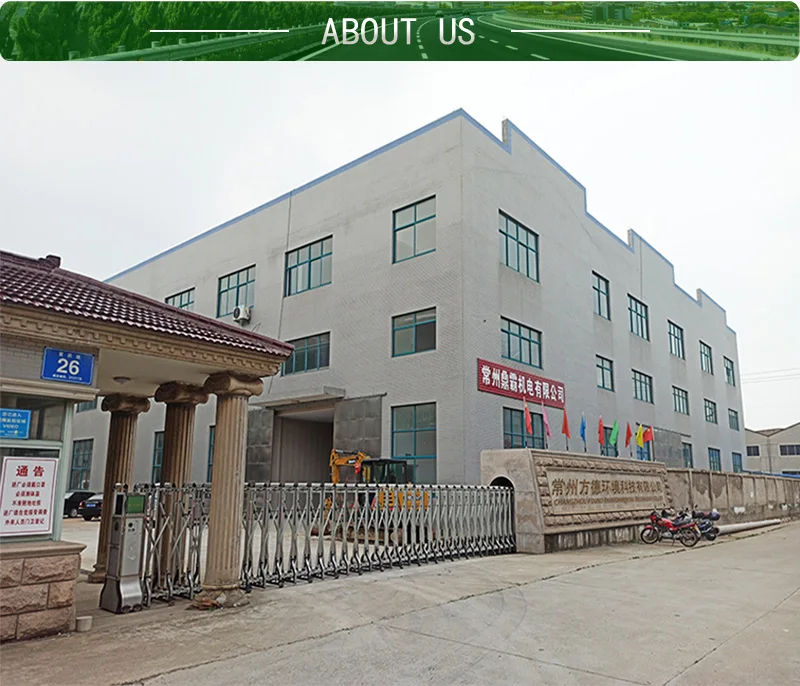

CHANGZHOU FOUND ENVIRONMENTAL TECHNOLOGY CO., LTD,A Professional Electric Motor Manufacturer & Experienced Motor Kit Supplier in China,located in Changzhou City,Jiangsu Province.

We recommend a low-carbon green lifestyle and support green environmental travel , we love riding culture,We want to enjoy green and healthy life with you!

Our products:

1.Electric Bike Motor&Electric Scooter Motor

(1)Spoke Hub Motor

(2)Integrated wheel motor

(3)Magnesium Alloy Motor

(4)Custom motor

(5)Mid drive motor

(6)Switched reluctance motor

2.Electric bicycle conversion kit

3.Electric bike accessories

Controller,Throttle&Grips&Brake lever&Switch,LCD display&LED display&PAS&Front light,Electric bike frame &Front fork

4.Electric bike & Electric scooter

FOUND defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded Found product in its own unique solution for sale to its customers. The proof of this concept is that the Found product must be significantly transformed. The OEM The firm side uses its own company logo and brand name on its solution and it markets, sells and providing technical and warranty support directly to its customers.

1.Q: Is it available for sample?

    A:Yes. We offer sample, but free sample are not available at beginning.

2.Q: What's your warranty for products?

    A: a.) If you import goods from us, we will be full refunds protection if goods itself has quality problems.

        b.) We can return your money if you are not satisfied with our product within 7 days after you get the goods, you only need take the freight.

        c.) We promise to replace the goods freely if there are some problems within 6months.

        d.) We promise 2 years' warranty. First year, exchanging products for free and second year, maintenance free. You only need to do is pay the freight.

3.Q:What our motors’ max rotaing speed?

    A:350RPM—1200RPM

4.Q:How much voltage we can do for motors?

   A:24V,36V,48V,60V,72V,96V as your required.

5.Q:How much power we can do for motors?

    A: Electric bike motor 180W-5000W.

   Switched reluctance motor 1200W-10.5KW

6.Q:How much speed we can do for motors?

    A:For normal electric bike motor,25-60km/h as your bike wheel size.

       For switched reluctance motor,10-60km/h.

       For electric motorcycle motor,60-120km/h.

       For customized motor,6-120km/h,depend on your demands&requirements.

 7.Q:Special order as your required?

   A:Products can be ordered as you need. Technical department can provide you with professional solutions.
