Qixiang 24ft PMSM Gearless Motor HVLS Ceiling Fan

Gearless direct drive hvls ceiling fan specially dedicated for large scale space. The streamlined fan blade adopts aerodynamics principles and advanced process , the diameter is from 2.4-7.2 meters, with coverage 14860m3/min. Only using the efficient direct drive motor, it can creat plenty of comfortable natural wind.

Motor will be inspected when producing ,and after gearless servo direct fan finished, we will inspect the motor with fan blades, in order to make sure the qualified fans to our clients. Quality is our culture.

Detailed Images

Fan blades

1.7075 aviation aluminum magnesium alloy with T6 anodizing heat treatment.High resistance to deformation and anti fracture.Tensile strength is 572mpa, the thickness is 2.00mm.
2.5 strength ribs in the inner fan, and one is 3mm thickness for more strong structure and not easy to deform and bench.

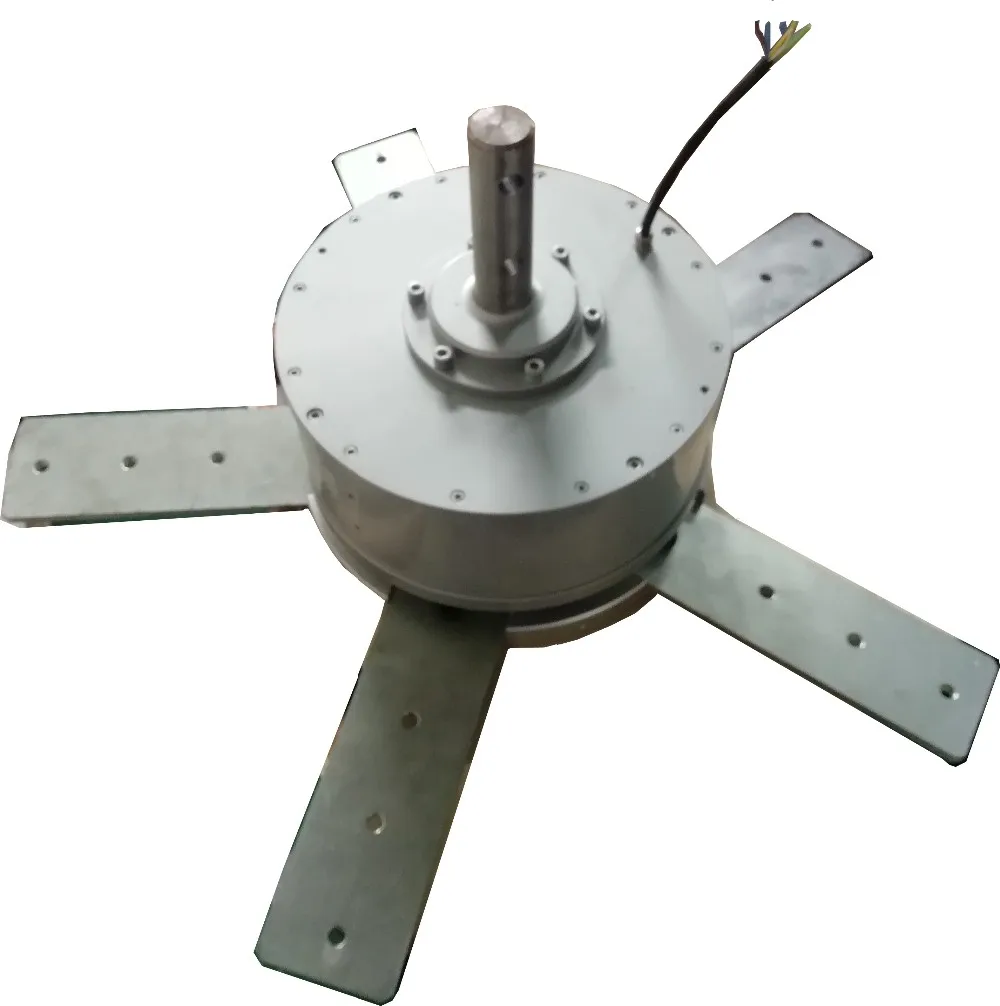

Rare earth permanent magnet servo drive motor

1.IP64,small volume, no lubrication oil, low energy consumption with no maintenance, it can work for almost 15 years, beautiful appearance, specially for villa, church, cafe shop, restaurants etc.
2.Motor design with high heat pyrolysis technics, the running temperature is around 38℃.
3.The digital closed control with inner precision Hall induction can control on-off station correctly and continuously variable.

Integrated control box

1.Servo drive system can make fan have a fast reaction with DSP control core and inner complex control algorithm.

2.In addition, it has continuously variable, precise localization and the protection system with over voltage,over currents.

SKF bearing (deep groove ball bearing + thrust ball bearing)

1.Bearing transmission adopts high strength low alloy steel construction.
2.Strong mechanical properties, precision measurement to ensure longer life.

High strength bolts and fasten glue

High strength bolt in level 12.9, made of 30 CrMnSi, with 271 screw fastening glue to prevent loosening.

Related Products

Our Company



Packing & Delivery


Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. Material checking, producing progress inspect, and finished testing.

Q: How do you make our business long-term and good relationship?

A: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q: How about your delivery time?

A: Regual fan will be finished with in 7 days to delivery.

Q: What certificate are you passed?
