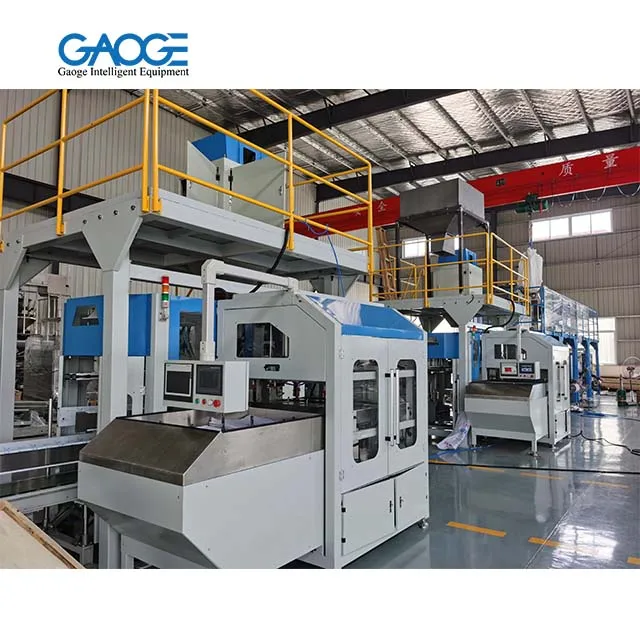

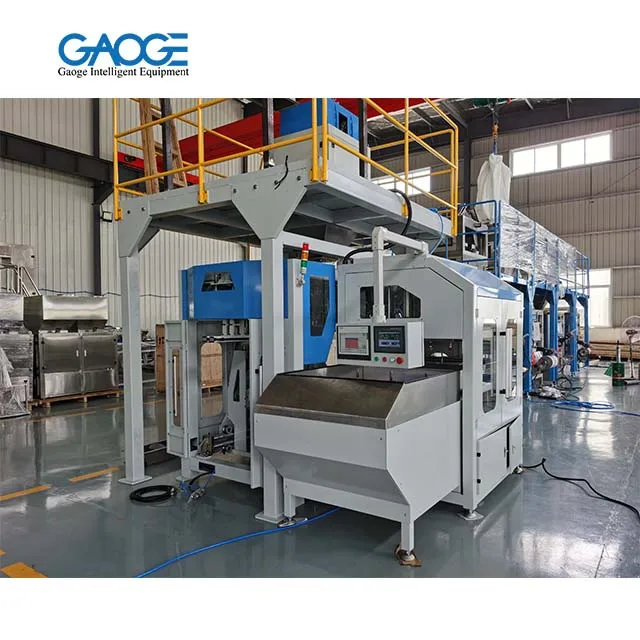

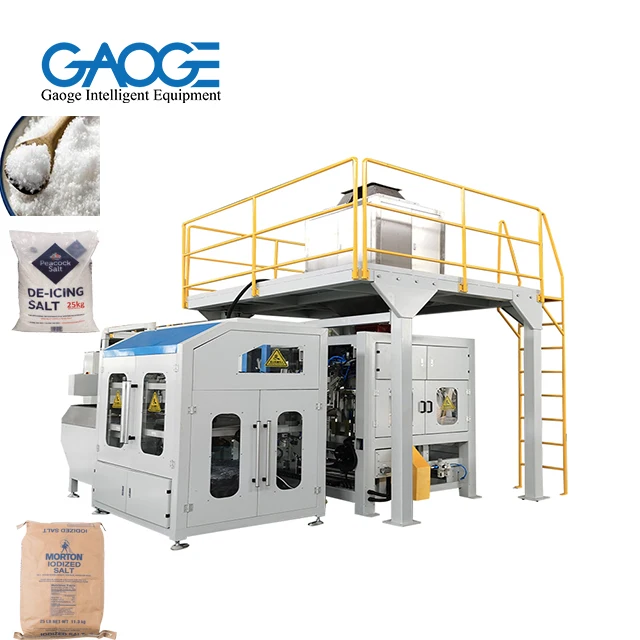

It is a reliable and heavy duty automatic packaging line for handling bulk granule products, salt, sugar, rice, seeds, pet foods, fertilizers. The product is conveyed to the weighing container by its own weight, the main feed and fine feed can be adjusted using a cut-off gate with a variable opening that, depending on production capacity, it’s driven pneumatically.
Features

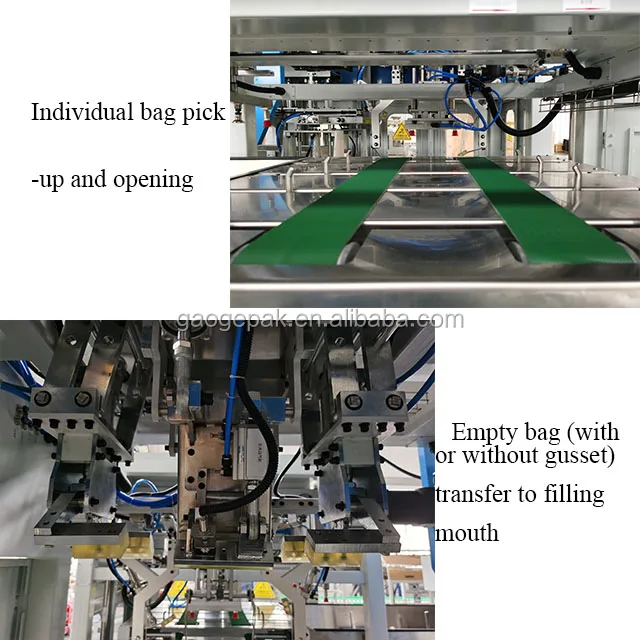

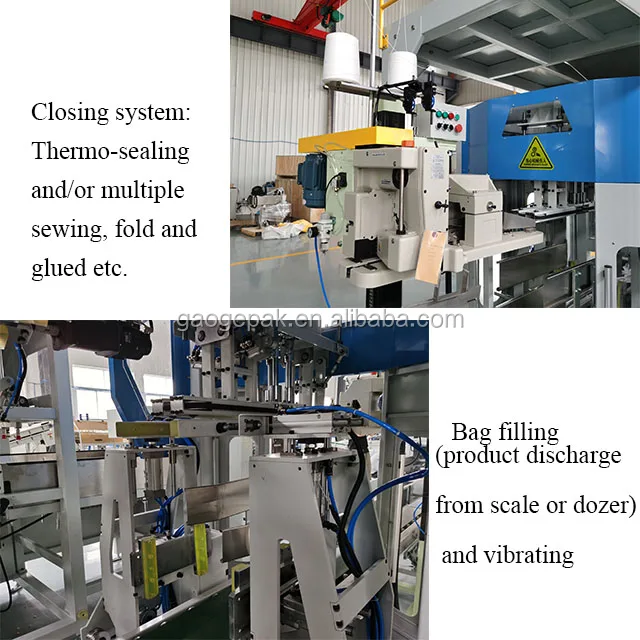

* Individual bag pick-up and opening * Empty bag (with or without gusset) transfer to filling mouth * Bag hermetic fastening on filling mouth * Bag filling (product discharge from scale or dozer) and vibrating * Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.

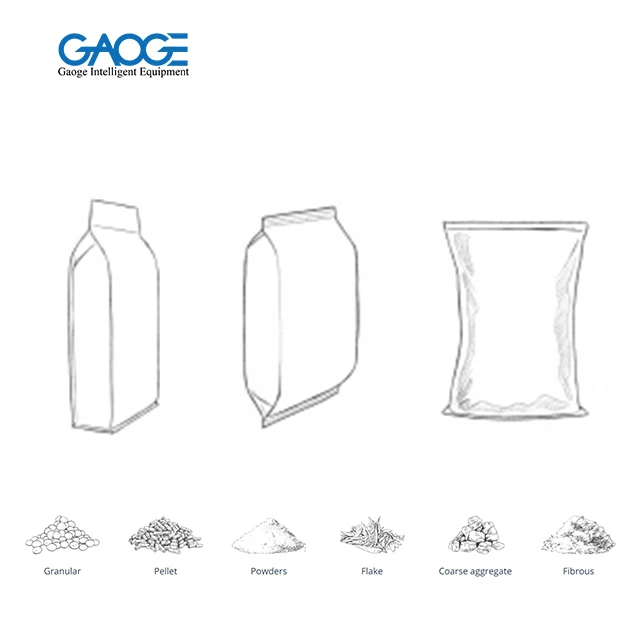

Bag Types: Pre-made open mouth bag with gussets, standard pillow bag or block/cross bottom bag, with or without handle.
Bag Materials: Laminated polywoven, paper bags, PP, PE etc.
Product Paramenters
Model
GW-450
GW-550
GW-650
Applicable materials
granular（good liquidity)
Weighing range
5 to 50kg (10lb to 110lb)
Bag Matirical
Woven bag, kraft paper bag, PE bag
Bag Type
One line pocket, M side pocket
Speed
3 to 16 bags/min
Ambient temp
-10°C to +45°C
Electrical
380V/50Hz, 3phase or customized per specification
Power
3KW
Air Pressure & Consumption
0.7Mpa, 0.6 M3／min
Bag size(mm)
L630-830mm x W 350-450mm
L800-1000 x W450-550mm
L 900-1100mm x W 550-650mm
Packing weight(kg)
10-20kg/bag
25-30kg/bag
40-50kg/bag

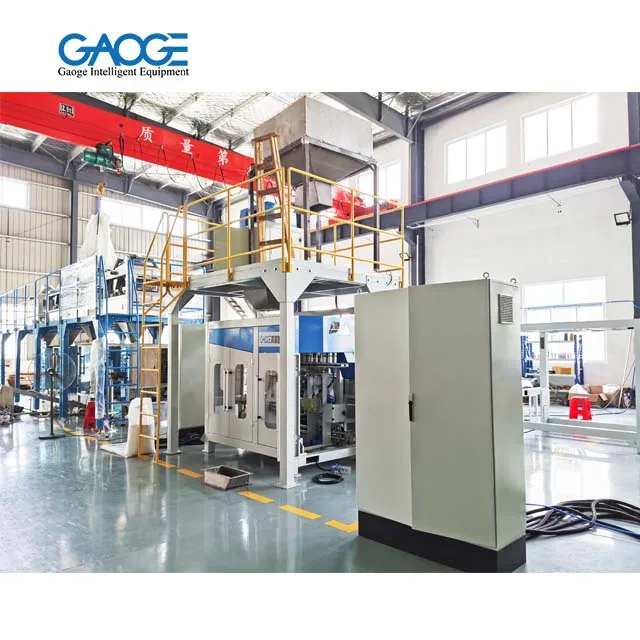

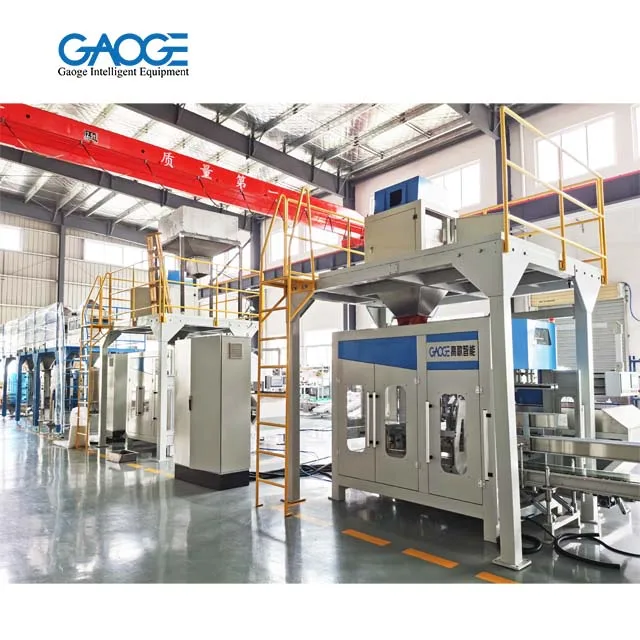

Detailed Images
Certifications
Exhibition
Trade Show Name:Eurasia Packaging Istanbul 2019
Date Attended:2019 .10
Host Country/Region:TR
Introduction:The fair of Eurasia Packaging Istanbul on Oct. 23-26, 2019, at Booth B5, Hall 405
Packing&Shipping
We provide professional packaging and logistics services for you.With rich experience and careful preparation. We ensure that the machine is delivered to you safely and soundly.
The normal package is wooden box(Size: L*W*H).
Company Introduction
GAOGE develops, designs, manufactures and installs complete plants for weighing, packaging, bagging, palletizing, wrapping and conveying bags and pallets. Automatic lines that stand out for their high level of reliability, quality, and technological innovation. GAOGE is appreciated by a large client, both nationally and internationally, for its innovation, reliability and high quality level of its technical solutions. The competence and the experience of our technical department ensure personalised, specific solutions, to fulfil the requirements of any client. So far lots of companies in China and worldwide have chosen to rely on us for our solutions, which stand out due to their high quality, reliability and efficiency.
WHY GAOGE
Packaging production is not ‘one-size fits all.’ Instead, there could be a variety of solutions to increase your overall productivity, improve the efficiency of your packaging operations and reduce operating expenses. At GAOGE, we are dedicated to understanding your production operations in order to provide recommendations on the right packaging machines for your specific application. GAOGE’s VFFS packaging machines, Open-mouth Bag Packaging Machine, Pre-made Pouch Packaging machine，Secondary Packaging Machine provide companies with what today’s market requires – a consistent supply of relevant and competitive packaging for their high quality products. Designed with industry-leading versatility, you are assured that the machine you buy today is the machine you need tomorrow. The combination of versatility, high speed and efficient operation make GAOGE machines your viable solution and safe investment. The durability and reliability of GAOGE’s machines deliver the value you need for the long-term. GAOGE provides customers with turnkey solutions for packaging needs, including: Project development Engineering Layout drawing Technical service Installation Space parts Film and consumable materials Support & maintenance Remote assistance
FAQ
When is the delivery or lead time? Depends on your order, for whole production line such as bag in case packing, bag in bag packing, normally it is 45-60 days. Single equipment such as VFFS packaging machines, pre-made pouch packaging machines, open mouth bagging machines, normally it is 30-45 days. In peak season, it also has something to do with our production schedule.
Is there a minimum quantity to place an order? Yes, you only need to purchase 1 set of any machines as minimum order quantity. Such as 1 set of VFFS packaging machine, 1 set of pre-made pouch packaging machine, 1 set of open mouth bagging machine.
How about the payment way? We accept TT, 50% TT as down payment and 50% TT as balance payment before shipment.
What is the mode of delivery? Machines can be shipped either by sea or by air, we can provide FOB, CNF, CIF term according to customer ‘s requirement. For big size of machine such as open mouth bagging machine, we would rather suggest shipping by sea.
What is the power supply requirement? Generally speaking, it could be customized according to customer's requirements either 220v 1phase or 110v 1phase or 380v 3phase or 220v 3phase, etc.
What about the shipment packing? We are using standard export packing materials. For Europe and Australia, we are using fumigated wooden case. For North America, South America and Africa, we are using three-ply wooden case or fumigated wooden case. For Asia, we are using wooden case or three-ply wooden case.
Who is going to install the equipment? For single equipment such as VFFS packaging machine, pre-made pouch packaging machine, open mouth bagging machine, generally we will provide manual book and videos to help customer to install the equipment. For whole packaging line such as bag in case packing, bag in bag packing, we will send technician to help in customer’s factory, buyer only need to pay for round trip air ticket, food, lodging expenses and daily allowance.
How about the after sales service? We will provide maintenance support for any issue with the equipment. If the equipment is still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general, we are able to ship the faulty part which are in stock within 1 day.
