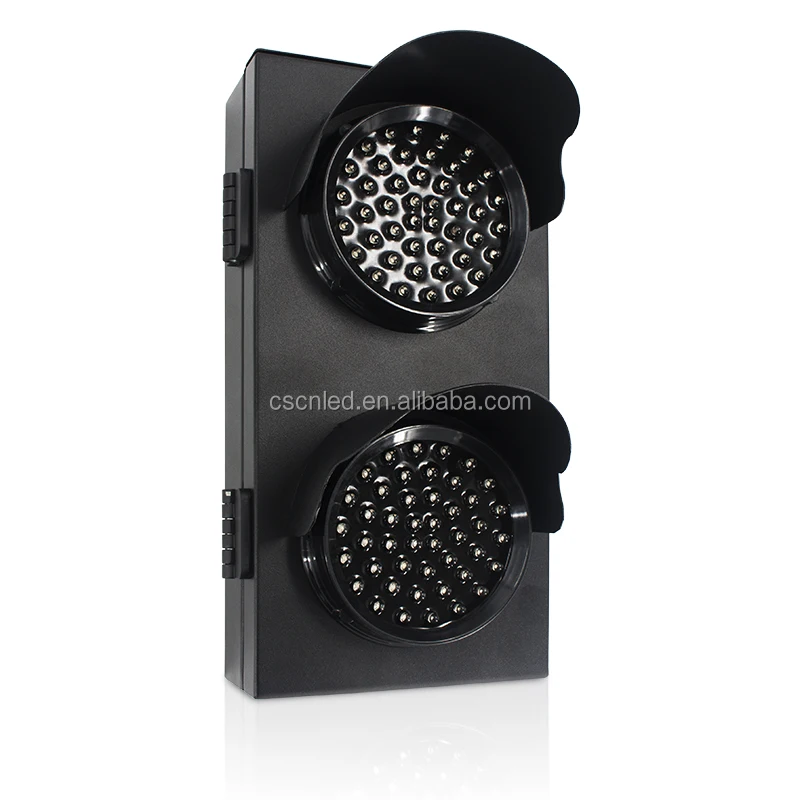

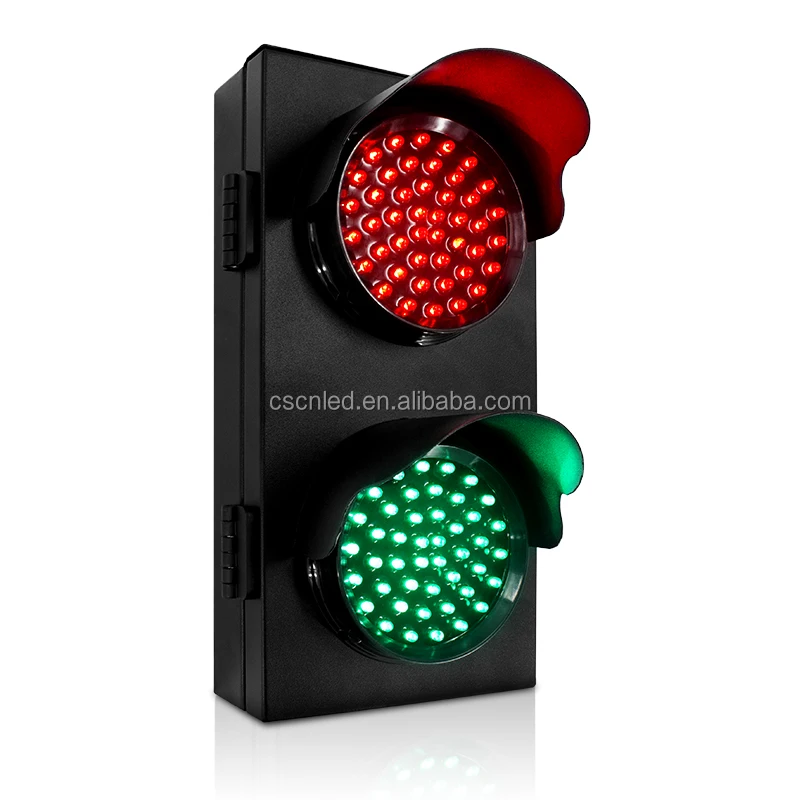

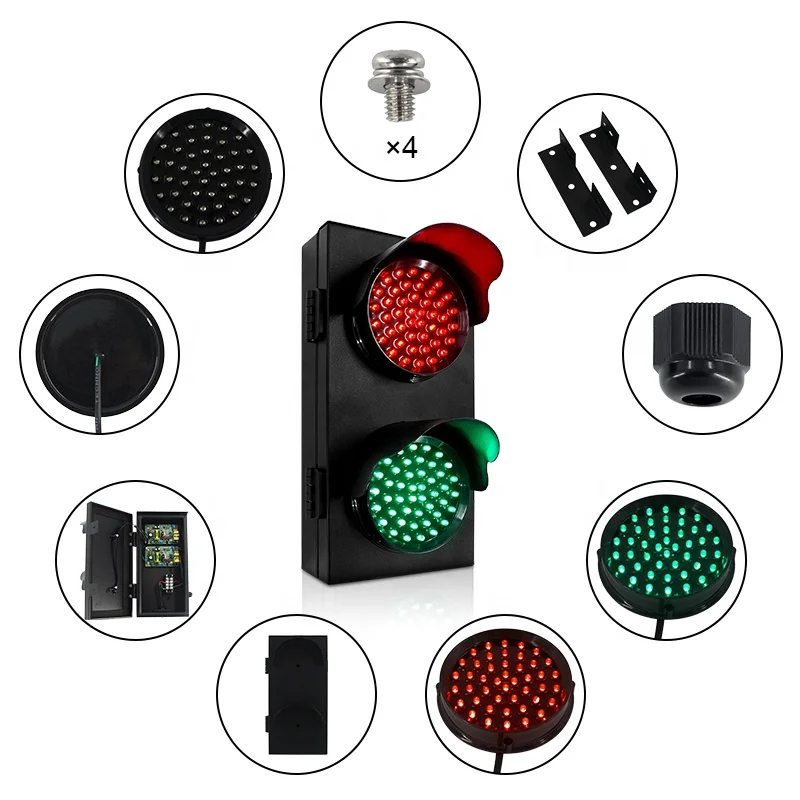

Маленький светодиодный светофор 100 мм со стальным корпусом

Product Overview

Description

100mm small led traffic light with steel case

Model:JD100-3-25A









Technical Parameters:

Color	LED Q.ty	Light Intensity	Wave Length	Power Fact	Viewing Angle	Power	Working Voltage	Housing Material
RED	45pcs	≤255cd	625±5nm	0.9	30°	≤3W	85-265VAC or 9-36VDC	Cold-rolled plate
GREEN	45pcs	≤428cd	505±5nm			≤4W

Packing Info:

Carton Size	Q'TY	GW	NW	Wrapper	Volume(CBM)
99*36*22cm	5pcs/carton	13.38kg	12.78kg	K=K Carton	0.08



 Features:

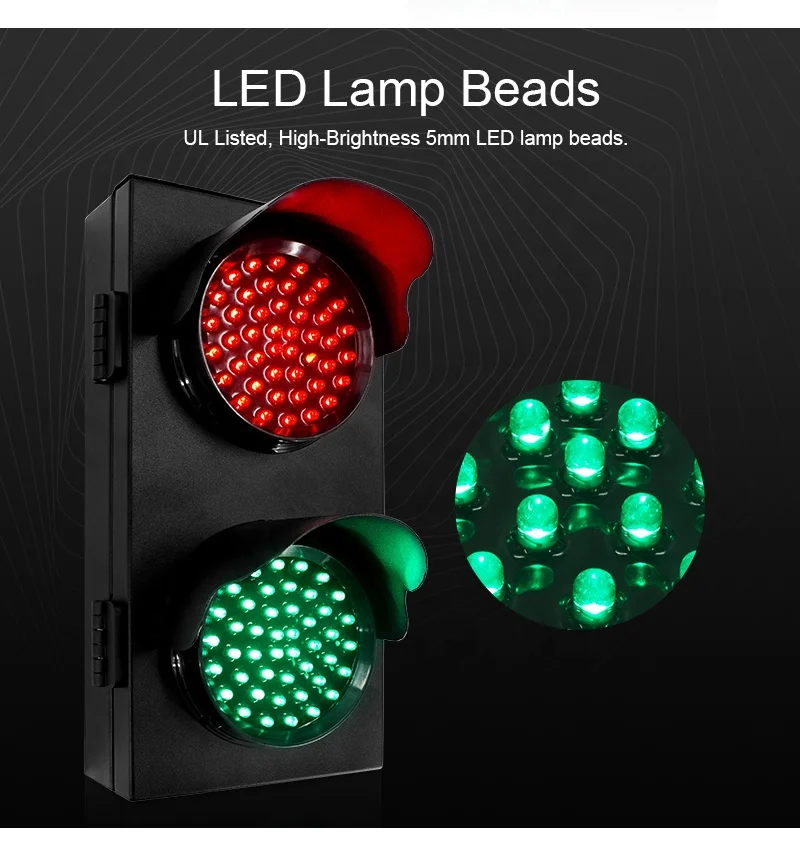

1. LED: Our LED lamp beads are UL Listed, each LED is imported from Taiwan. The LED life span up to 100000 hours. Red LED with 4000-5000mcd brightness, Green LED with 7000-9500mcd brightness. LED light-emitting diode is a light source, with stable performance and ideal display effect.

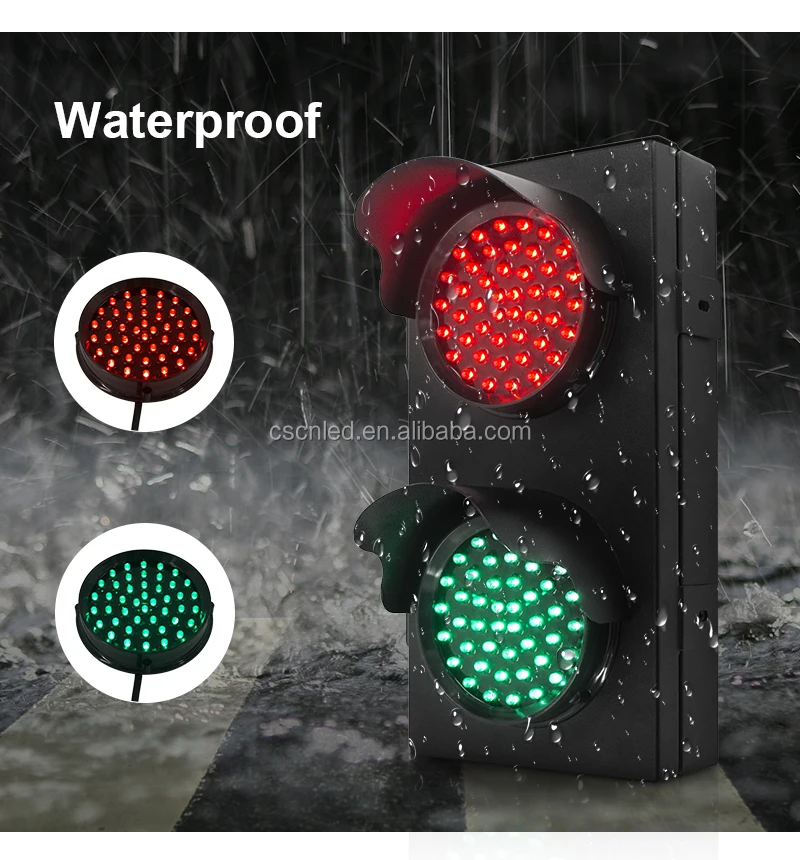

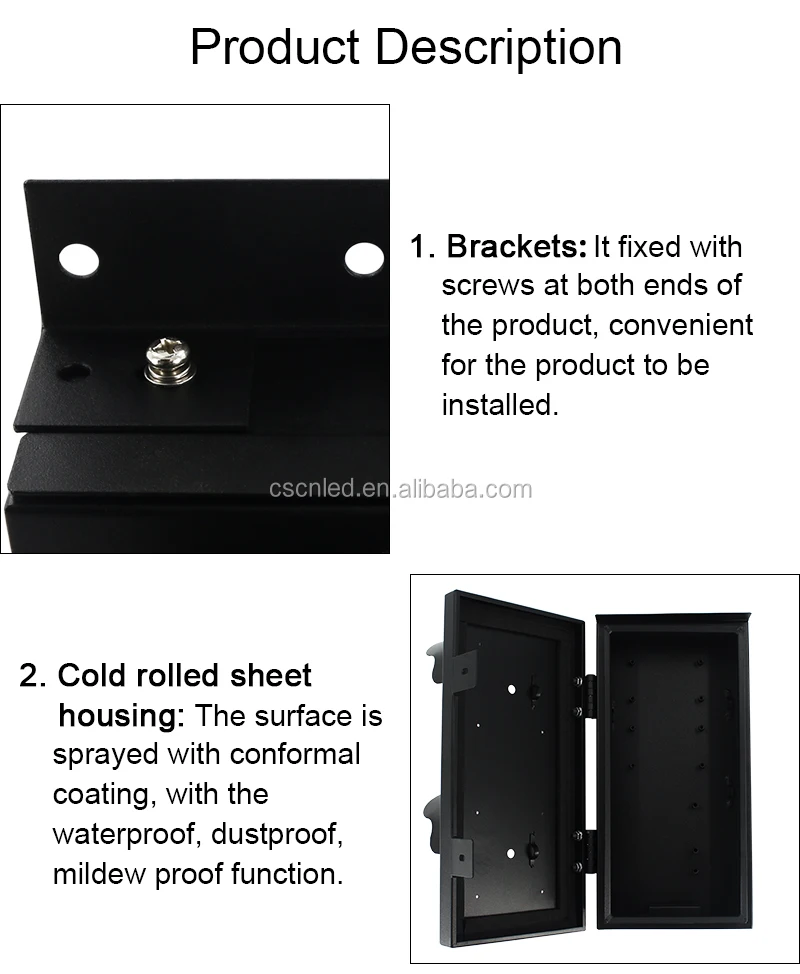

2. COLD ROLLED PLATE HOUSING& MODULES: The surface is sprayed with conformal coating, with the waterproof, dustproof, mildew proof function. The modules diameter about 100 mm(4 inch). Its surface injection of pollution-free glue, have waterproof and dust resistance.

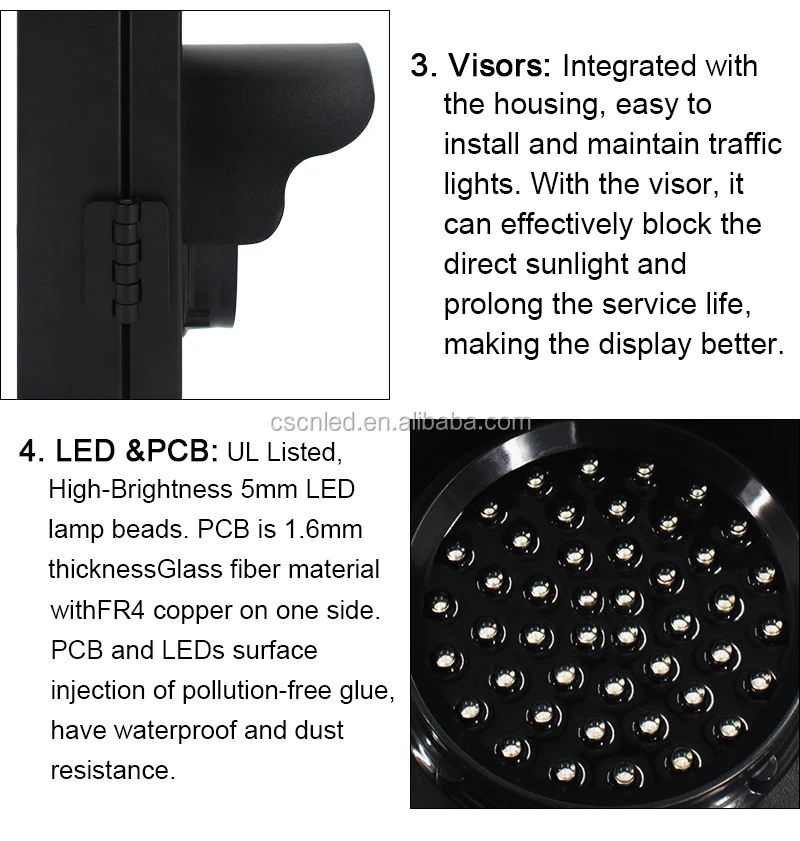

3. VISORS : Integrated with the housing, easy to install and maintain traffic lights. With the visor, it can effectively block the direct sunlight and prolong the service life, making the display better.

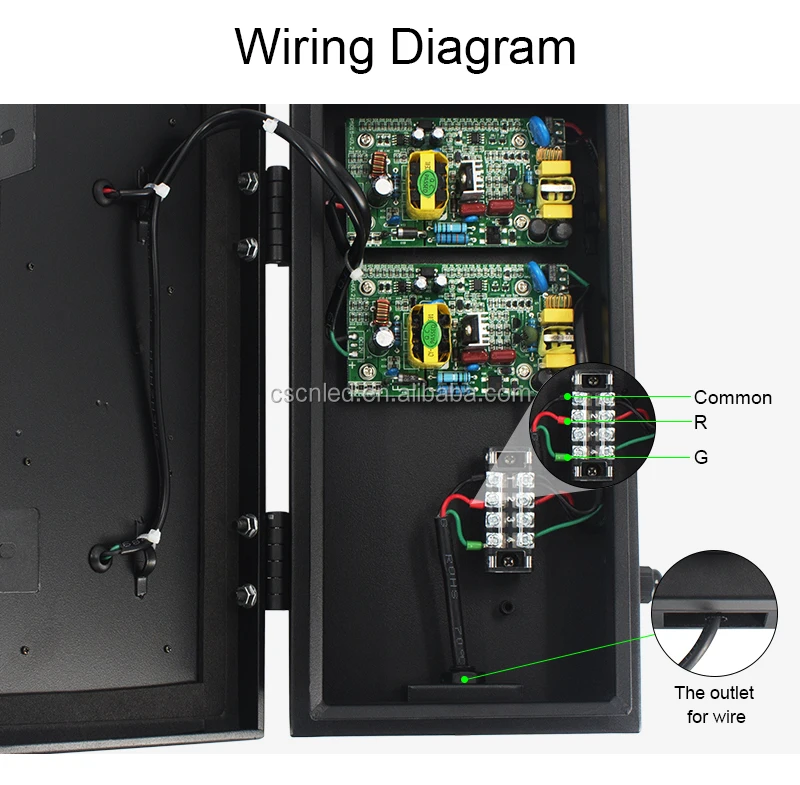

4. WORKING VOLTAGE & EASY INSTALLATION: Operating voltage of DC9-36V or 85V-265VAC; Red light to R terminal, Yellow light to Y terminal, Green light to G terminal, common is public line.



5. WARRANTY: Two years warranty promise.

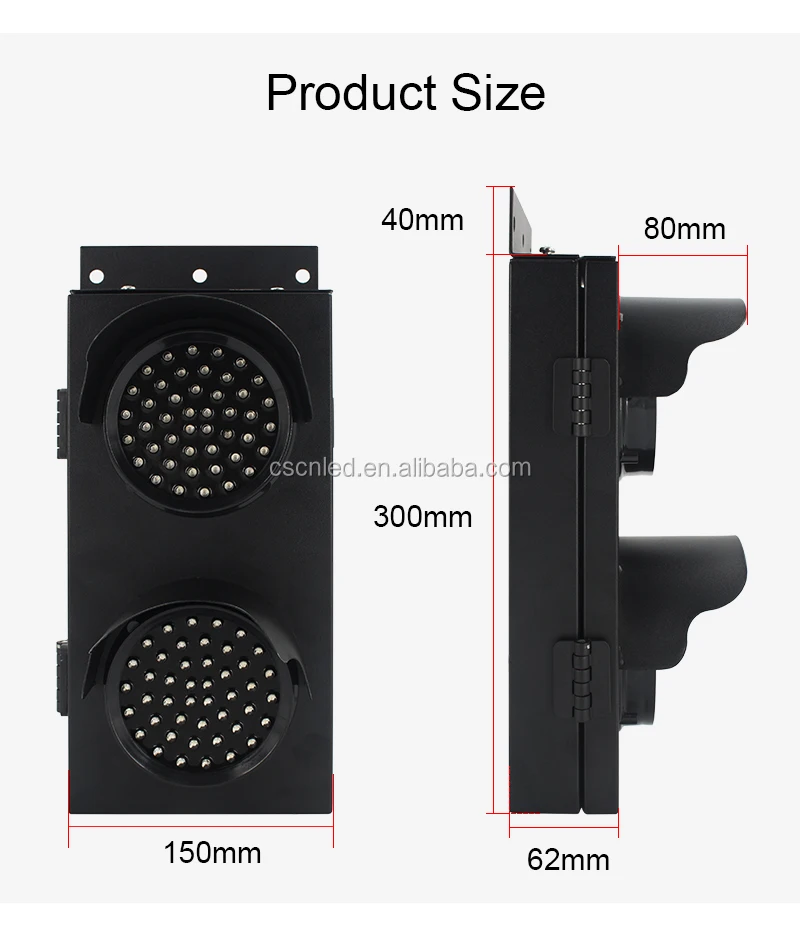

Dimension Figure:





Aging Test Show:



Factory Show :

  BBM Technology Company Limited was founded in August 2005 in Shenzhen, China. It is a high-tech enterprise devoted to developing, manufacturing and marketing.Which is professional with LED Traffic lights and Related traffic light modules/cores, solar led traffic lights, solar led traffic warning lights, led Gas price Changer Display and related Led Segments. We are one of the largest manufacturer, supplier and exporter of led traffic signal light and led gas price changer products.



 Certification:





 Project Show:

BBM have a lot of projects of Traffic Signal, LED Traffic Light Modules, LED Pedestrian Lights, Traffic Countdown Meters, Intelligent Traffic Controllers, Solar Warning Lights and so on. Here we present some of the typical projects for your reference.





 Exhibition:

 BBM traffic light have passed the inspection of the Ministry of Public Security's traffic safety supervision GB14887-2011;Certified by ISO9001-2008, CE (EN12368, LVD, EMC), RoHS, TUV, SGS;8 Years R&D Experiences of Traffic Lights. Relying on excellent product quality and excellent after-sales service,our business coverage European and American regions, with yellow led traffic light traffic signal light traffic warning light exporting to all over the world.
