3V 1PCS BR2032 DL2032 CR2032 Button Cell Batteries 2032
- Category: >>>
- Supplier: East (shenzhen) Technology Co. Ltd.
Share on (1600108588352):
Product Overview
Description
Product Description
Brand | Eunicell (ODM&OEM are acceptable) |
Model | CR2032 |
Battery Type | Manganese dioxide Lithium Battery |
Nominal Voltage | 3.0 volts |
Nominal Capacity | 210mAh (Load: 15K ohms, End voltage 2.0V) |
Outside Dimensions | D 20mm * H 3.20mm |
Weight | 2.90 g |
Instantaneous Short-cut Circuit | ≥300mA |
Replacements | 2032, 6032, BR2032, CA14, DL2032, EA2032, ECR2032,E-CR2032, WCCR2032, UL2032, GPCA14, GPCR2032, KCR2032, KECR2032, KECR2032-1, KL2032, L14, L2032, LF1/2V, LF-1/2V, RFA-35, RFA-35-11, SBT15, SB-T15, SB-T51, 5004LC |
Open Circuit Voltage | 3.25~3.45V |
Storage Temperature | 0~40℃ |
Appropriated Temperature | -20~60℃ |
Discharge Life | ≤2%/yr |
Disposable | Yes |
Rechargeable | No |
Quick Test Use Of Life | Initial: ≥200H |
After 12 months: ≥196 H | |
Guarantee | 1 year (at the temperature of less than 25 deg. C and the relative humidity of less than 75%RH.) |
Appearance | Will be free from flaw, stain, deformation, uneven tone, electrolyte leakage and other defects which impair the value of the commodity. |
Product performance description
1.12 months quality warranty.
2. Ultra environmental friendly button cell battery.
3. Long working time.
4. Made from high-quality materials.
5. Excellent performance.
6. Multi-applicable.
7. Excellent storage performance and low self-discharge rate.
8. Excellent safety performance.
9. MSDS / RoHS / SGS / CE certificate
10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
2. Ultra environmental friendly button cell battery.
3. Long working time.
4. Made from high-quality materials.
5. Excellent performance.
6. Multi-applicable.
7. Excellent storage performance and low self-discharge rate.
8. Excellent safety performance.
9. MSDS / RoHS / SGS / CE certificate
10. Also if the customers want the battery with PCB tabs, we can do as their drawing.
Product usage introduction
Warning:
1. Keep separated in a tray and cool place.
2. Do not throw in fire. Do not throw then into a dustbin.
3. Keep clean, wipe the cell with dry cloth.
4. Keep out of the reach of the chidren. If swallowed, visit a doctor.
5. Not rechargeable, remove when fully drained.
6. Connect + to - Correctly.
2. Do not throw in fire. Do not throw then into a dustbin.
3. Keep clean, wipe the cell with dry cloth.
4. Keep out of the reach of the chidren. If swallowed, visit a doctor.
5. Not rechargeable, remove when fully drained.
6. Connect + to - Correctly.
Product Usage
Related Products
MODEL | NOMINAL VOLTAGE(V) | MAX.SIZE | NOMINAL CAPACITY (mAh) | SUGGESTED OPERATION CURRENT | WEIGHT (g) | ||||||
NOMINAL VOLTAGE(V) | DIAMETER MAX.SIZE (mm) | HEIGHT MAX.SIZE (mm) | NOMINAL CAPACITY (mAh) | STANDARD CURRENT (mA) | MAX. CURRENT (mA) | CONTINUOUS CURRENT (mA) | EACH PIECE WEIGHT (g) | ||||
CR632 | 3.0V | 6.8 | 3.2 | 15 | 0.03 | 3 | 1 | 0.2 | |||
CR927 | 3.0V | 9.5 | 2.7 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1025 | 3.0V | 10 | 2.5 | 30 | 0.05 | 5 | 1 | 0.6 | |||
CR1130 | 3.0V | 11.6 | 3 | 40 | 0.05 | 5 | 1 | 0.9 | |||
CR1216 | 3.0V | 12.5 | 1.6 | 25 | 0.05 | 5 | 1 | 0.7 | |||
CR1220 | 3.0V | 12.5 | 2 | 40 | 0.05 | 5 | 1 | 0.85 | |||
CR1225 | 3.0V | 12.5 | 2.5 | 48 | 0.1 | 5 | 1 | 1.3 | |||
CR1616 | 3.0V | 16 | 1.6 | 50 | 0.1 | 8 | 1 | 1.15 | |||
CR1620 | 3.0V | 16 | 2 | 70 | 0.1 | 8 | 2 | 1.2 | |||
CR1625 | 3.0V | 16 | 2.5 | 90 | 0.1 | 8 | 2 | 1.4 | |||
CR1632 | 3.0V | 16 | 3.2 | 120 | 0.2 | 10 | 2 | 2.4 | |||
CR2020 | 3.0V | 20 | 2 | 115 | 0.2 | 15 | 2 | 2.1 | |||
CR2016 | 3.0V | 20 | 1.6 | 75 | 0.2 | 15 | 2 | 1.75 | |||
CR2025 | 3.0V | 20 | 2.5 | 150 | 0.2 | 15 | 3 | 2.4 | |||
CR2032 | 3.0V | 20 | 3.2 | 210 | 0.2 | 15 | 5 | 2.9 | |||
CR2050 | 3.0V | 20 | 5 | 300 | 0.4 | 20 | 3 | 3 | |||
CR2320 | 3.0V | 23 | 2 | 150 | 0.2 | 18 | 8 | 2.9 | |||
CR2325 | 3.0V | 23 | 2.5 | 210 | 0.2 | 18 | 8 | 3.5 | |||
CR2330 | 3.0V | 23 | 3 | 250 | 0.2 | 18 | 8 | 4 | |||
CR2354 | 3.0V | 23 | 5.4 | 480 | 0.2 | 18 | 8 | 6 | |||
CR2412 | 3.0V | 24.5 | 1.24 | 100 | 10 | 2.1 | |||||
CR2430 | 3.0V | 24.5 | 3 | 275 | 0.2 | 18 | 10 | 4.5 | |||
CR2450 | 3.0V | 24.5 | 5 | 540 | 0.4 | 18 | 13 | 6.2 | |||
CR2477 | 3.0V | 24.5 | 7.7 | 1050 | 0.5 | 20 | 13 | 8.7 | |||
CR3032 | 3.0V | 30 | 3.2 | 580 | 0.5 | 20 | 13 | 8 | |||

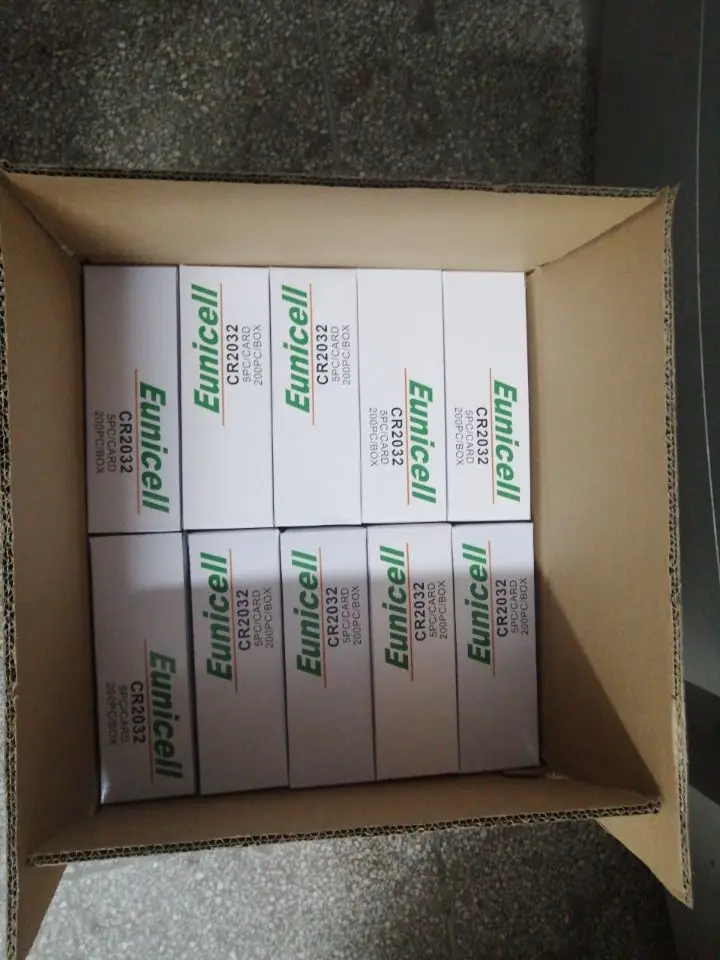

Packing&Shipping

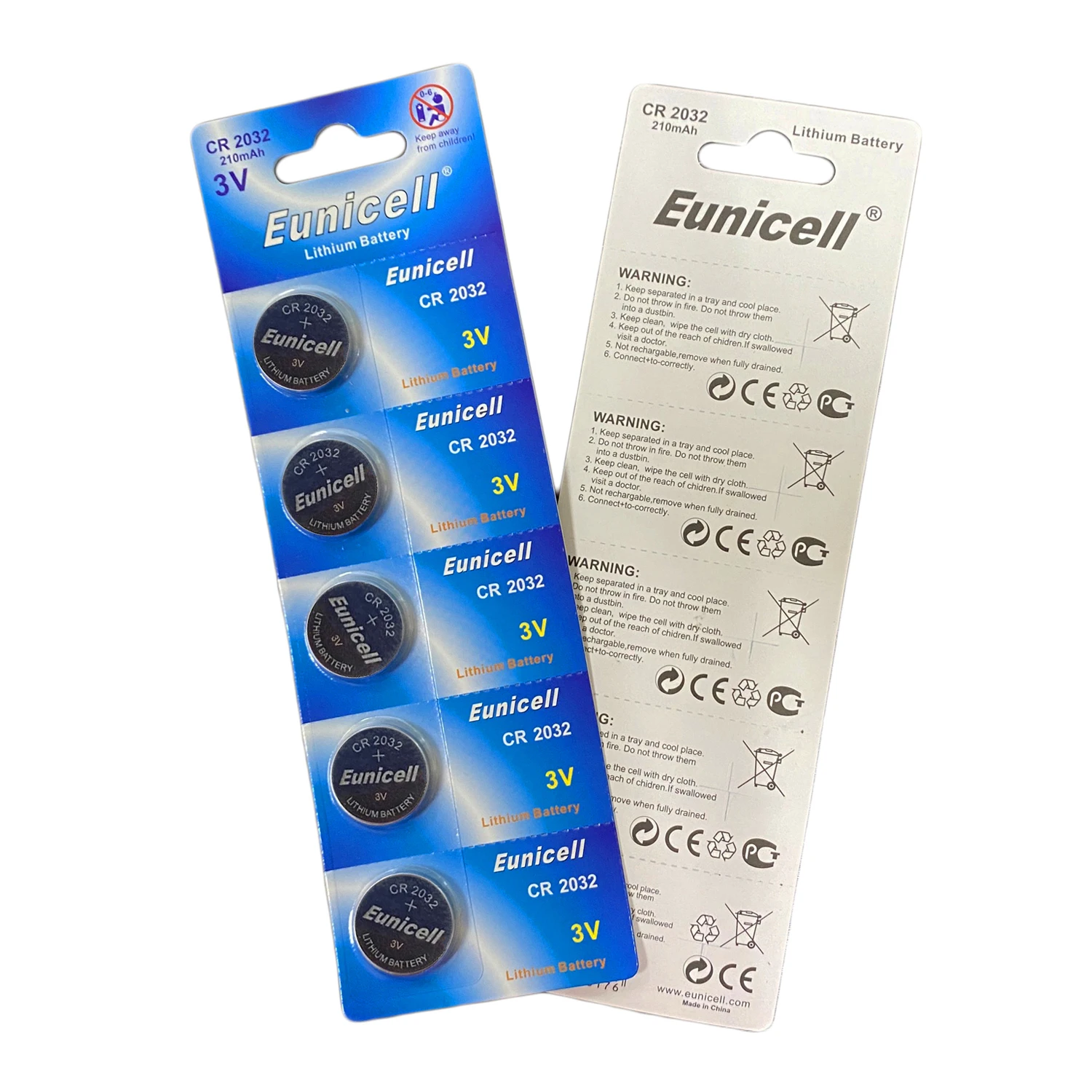

Package: 5 pcs batteries per blister card

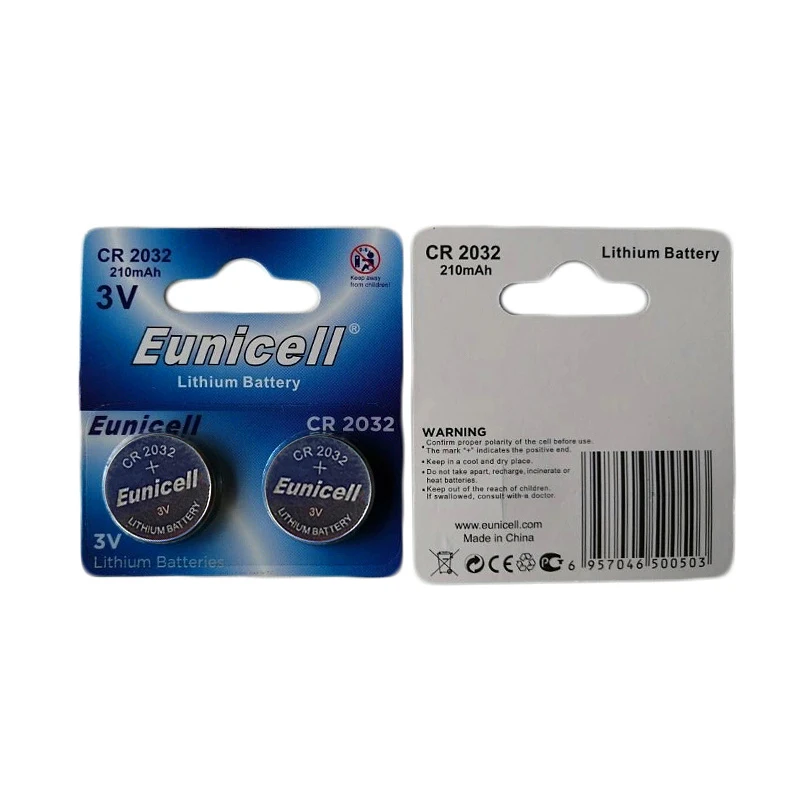

Package: 1 pcs batteries per blister card
Company Introduction
FAQ
Q: Can I do OEM?
A: Sure! OEM are welcome.
Q:Can I get a lower price if I order large quantities?
A: Yes. More quantity, cheaper prices.
Q: How long is delivery time?
A: 2-7 days after deposit received if use our package. OEM will be need 14-20 days.
A: Sure! OEM are welcome.
Q:Can I get a lower price if I order large quantities?
A: Yes. More quantity, cheaper prices.
Q: How long is delivery time?
A: 2-7 days after deposit received if use our package. OEM will be need 14-20 days.
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
Q: Can you print my logo on the battery cover?
A: Yes, custom logo service and branding is available.
Q: Is sample order acceptable?
A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Alibaba trade assurance order and offline orders are both acceptable.
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents(Certification) required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
Q: Can you print my logo on the battery cover?
A: Yes, custom logo service and branding is available.
Q: Is sample order acceptable?
A: Yes, for most of the batteries, sample orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Alibaba trade assurance order and offline orders are both acceptable.
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents(Certification) required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
