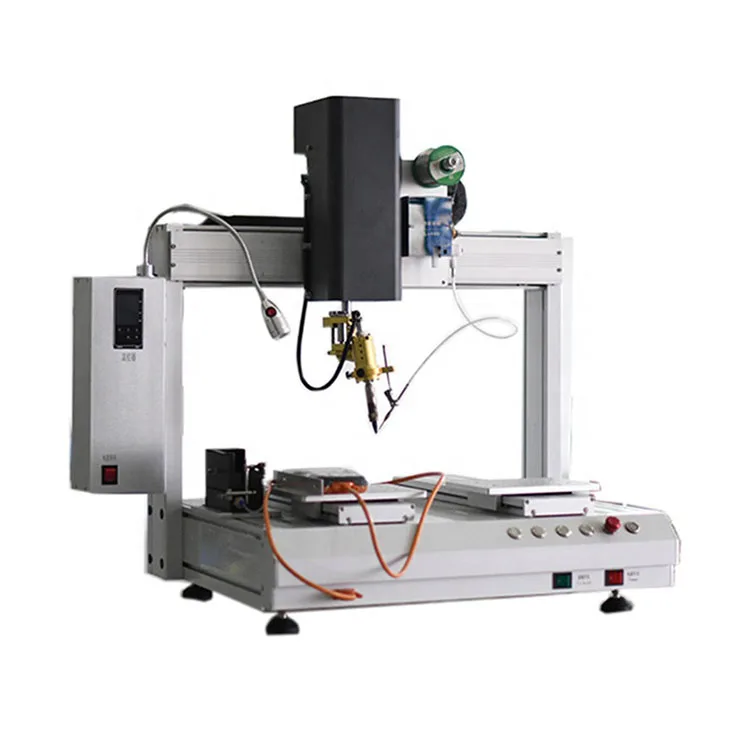

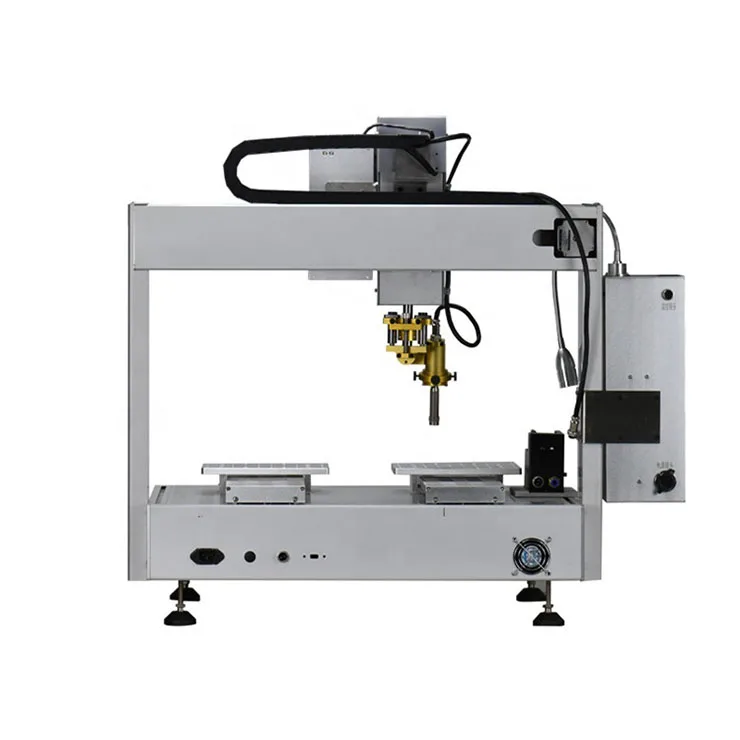

Plane side spot welding drag welding explosion proof tin automatic soldering robot Four axis desktop soldering robot
- Category: >>>
- Supplier: Shenzhen Juli Mechanical & Electrical Automation Co. Ltd.
Share on (1600108933136):
Product Overview
Description

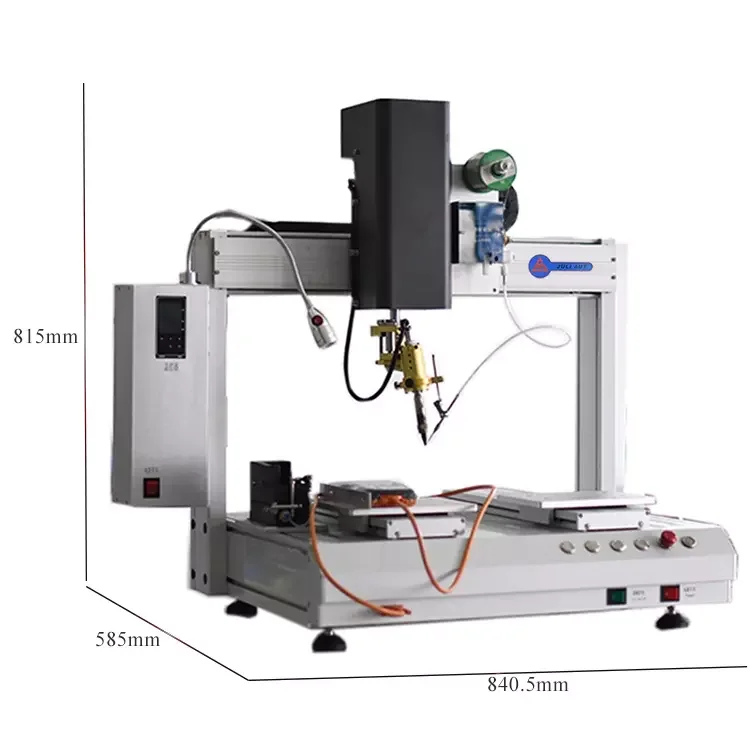

Automatic four-axis soldering machine Electric toy electronic components transformer rotating desktop soldering robot
Product Description
|
Parameter |
||||
|
Model |
JL-H5331 |
|||
|

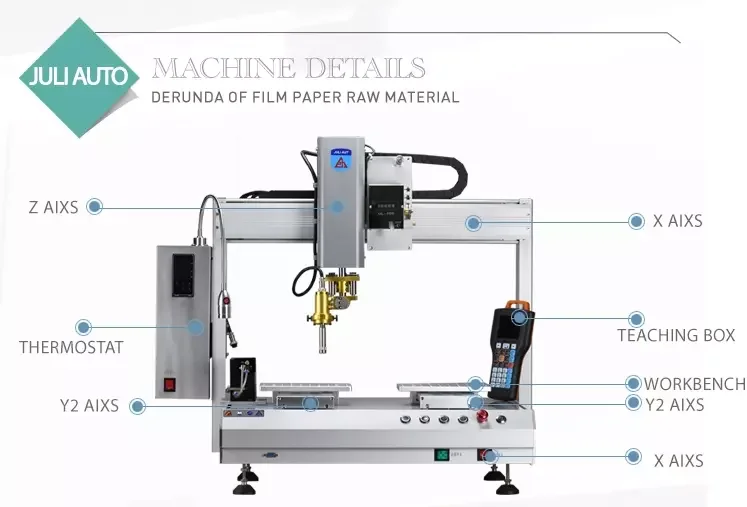

Number of controlled axes |
Five axis |
|||
|
Effective travel |
X axis |
Y1 axis |
Y2 axis |
Z axis |
|
|
500mm |
300mm |
300mm |
100mm |
|
Transmission mode |
Double-track timing belt |
|||
|
Power source |
Stepper motor |
|||
|
Top speed |
X, Y axis 500mm / sec, Z axis 300mm / sec |
|||
|
Repeat accuracy |
±0.05mm |
|||
|
Maximum load |
X/Y/Z-5kg/5kg/3kg |
|||
|
Control System |
Three-axis control system |
|||
|
File storage space |
A single processing file takes up to 3M storage space (5000 processing points) |
|||
|
Supporting Documents |
CAD,CorelDRAW |
|||
|
Machine power |
AC110-250V 50-60HZ 350W |
|||
|
Heating power |
150W |
|||
|
Temperature range |
50-500 degrees |
|||
|
Tin feeder |
Standard tin broken tin feeder |
|||
|
Cleaning box |
Air blow cleaning box |
|||
