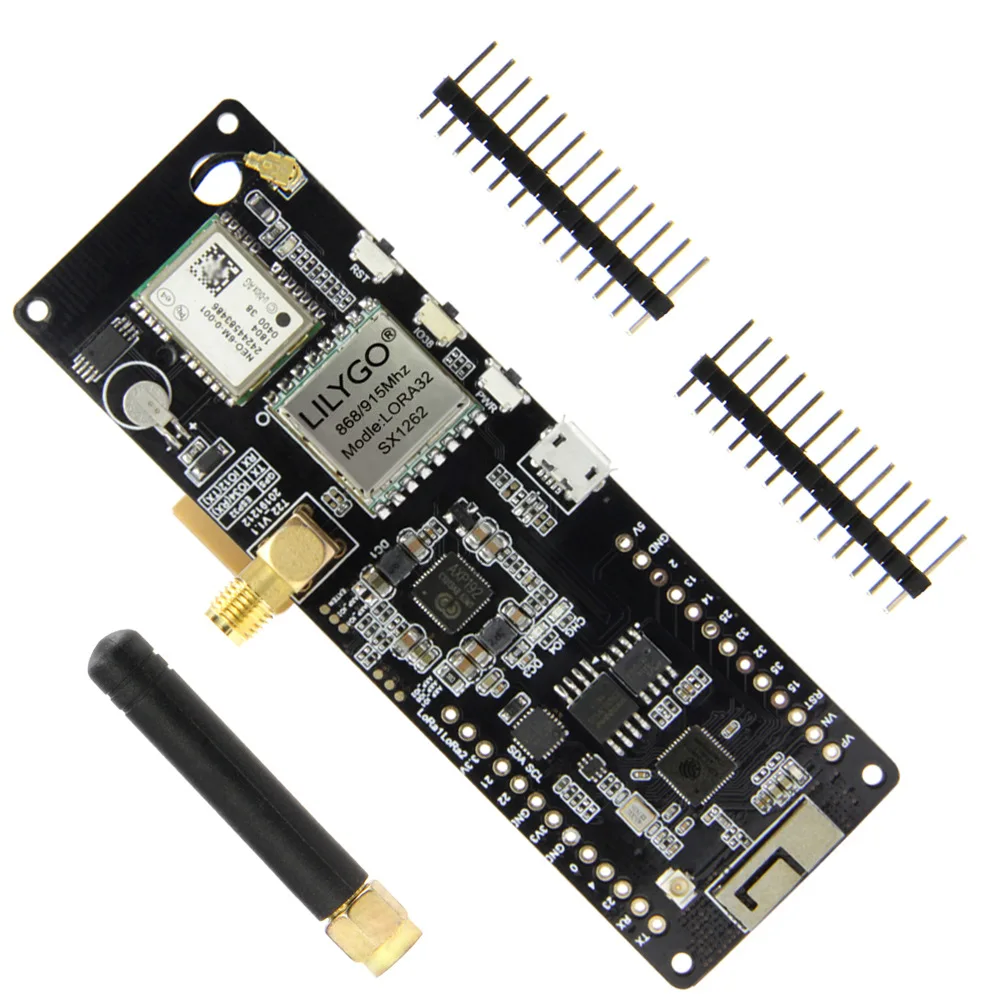

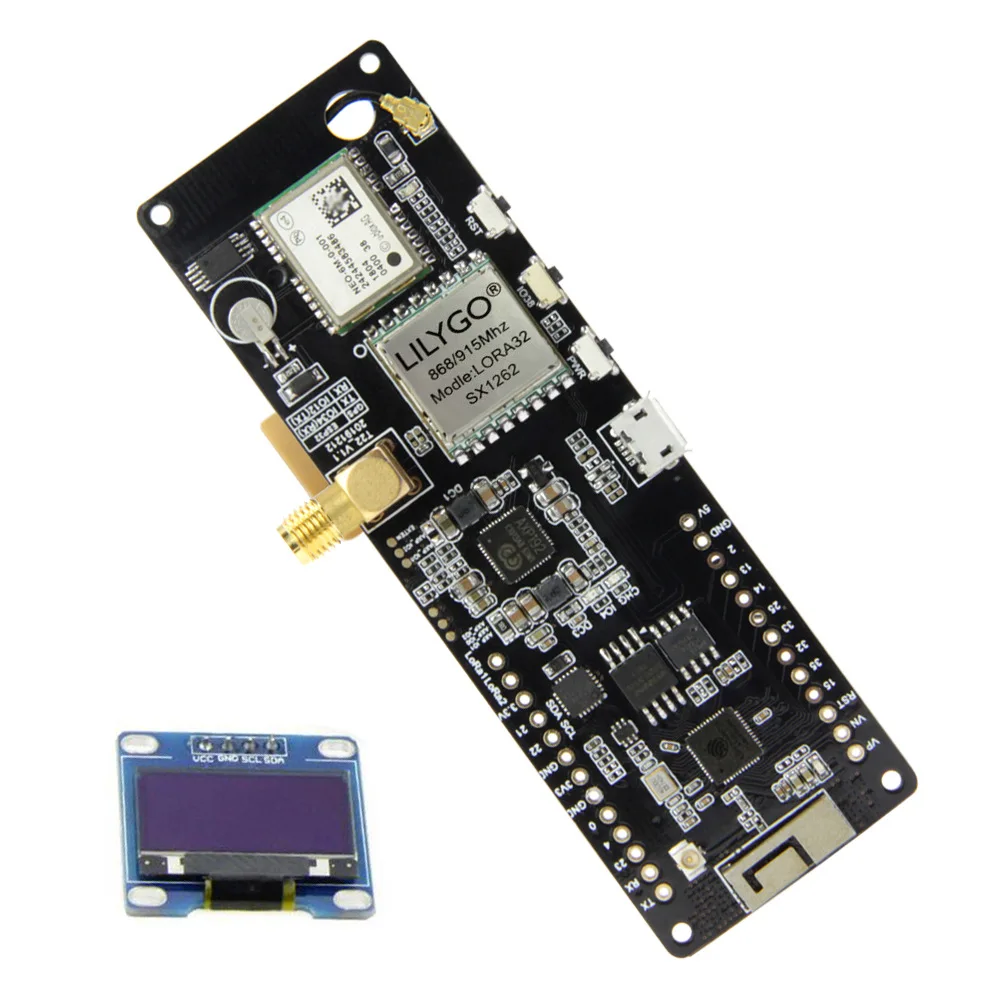

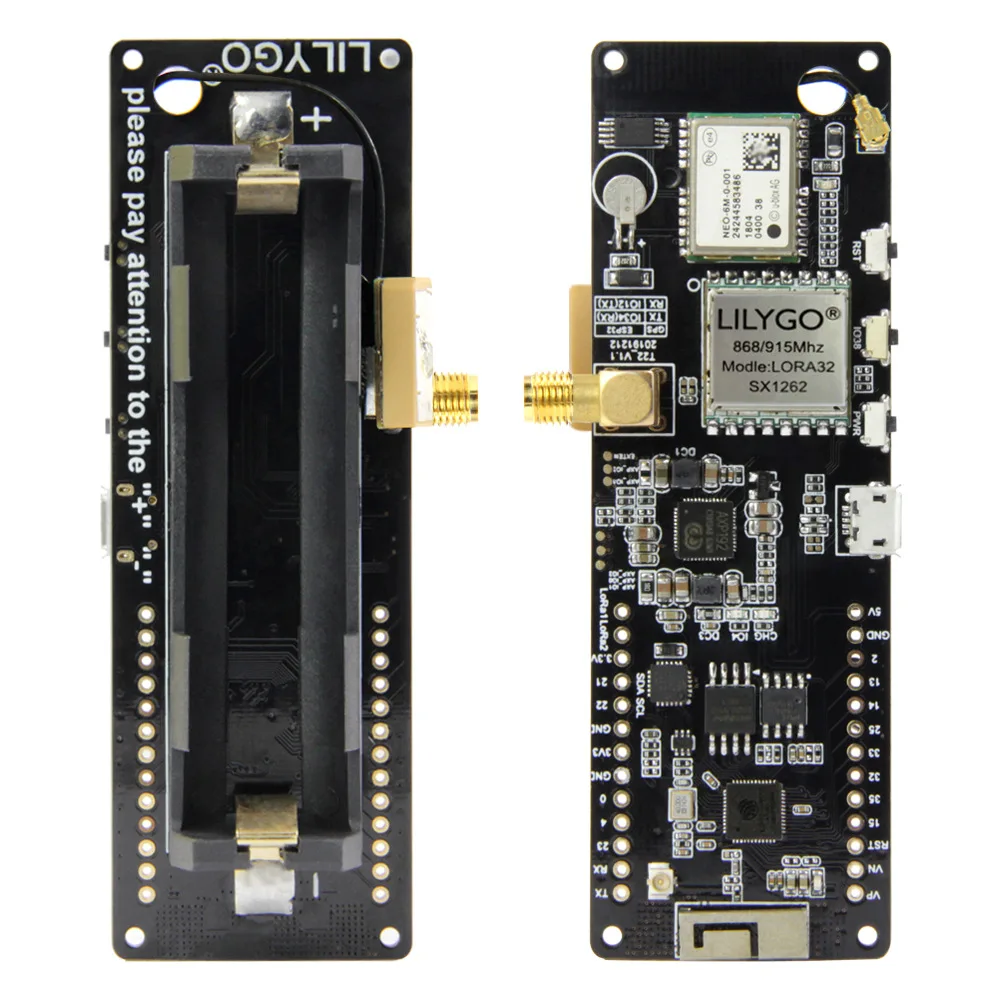

T Beam V1.1 ESP32 433/868/915/923Mhz WiFi Blue tooth Module ESP32 GPS 18650 Battery Holder

What's the details of the product ?

Product Features
ESP32
Load test ESP32 version: Rev1
WiFi

8MB pSRAM
4MB flash memory.
Three-dimensional antenna
LORA

Working voltage: 1.8 ~ 3.7 v
Receive current: 4.2 ~ 8.2 ma
Working frequency: 433.92M, 470M, 868M, 915M
Transmit power: + 22 dbm
Frequency error: +/-0.5ppm@TCXO crystal

FIFO space: 256Byte
Data rate: 0.6 k ~ 300 kbps@fsk
0.018 k ~ 62.5 kbps@ LoRaTM
Modulation method: FSK, GFSK, MSK, GMSK, LoRaTM, OOK

Electrical parameters
Test conditions: power supply 3.3V, temperature 25℃
Minimum parameter, maximum typical value, unit condition

Working conditions:
Working voltage 1.8 3.3 3.7 v
Working temperature -40 +25 +85℃

Power consumption
Emission current 89 100 114 400~520MHz
124 130 135 mA 830~945MHz
Receive current 4.2 5.3 8.2 400~520MHz
Sleep current 0.016 1.2 1.5 uA Sleep mode

RF parameters
Operating frequency 400 433.92 /470 520 MHz 400~520MHz
840 868 /915 945 830~945MHz
Transmit power 19.2 20.6 21.2 dbm 400~520MHz
21 21.3 21.5 830~945MHz
Receiving sensitivity -116 -118 -120 868MHz@GFSK
DR=1.2Kbps,Δf=+/-35KHz
-133 -136 -139 dBm 868MHz@Lora BW=125KHz,
SF=12, CR=4/5

harmonic
0 -38 433.92MHz, 2~6harmonics
0 -43 470MHz, 2~6 harmonics
0 -37 868MHz, 2~6 harmonics
0 -40 915MHz, 2~6 harmonics

Frequency error
-0.434 0 +0.434 KHz 433.92MHz
-0.95 0 +0.95 915MHZ

transfer speed
0.6K~300Kbps@FSK
0.018K~62.5kbps@LoRaTM

Modulation method
FSK, GFSK, MSK, GMSK, LoRaTM, OOK
Data interface SPI
Antenna interface requires welding external antennaa

GPS
Gps module neo-6m, 3v-5v power supply universal
Pre-defined module with ceramic antenna, super signal
Save configuration parameter data EEPROM
With data backup battery
With LED signal indicator
Default baud rate: 9600

power
Power input USB 5V/1A
Charging current 500 mA
Battery input 3.7-4.2V
Charge ICAXP 192

Product upgrade content (compared to V1.0)
1. Add reverse battery protection module
