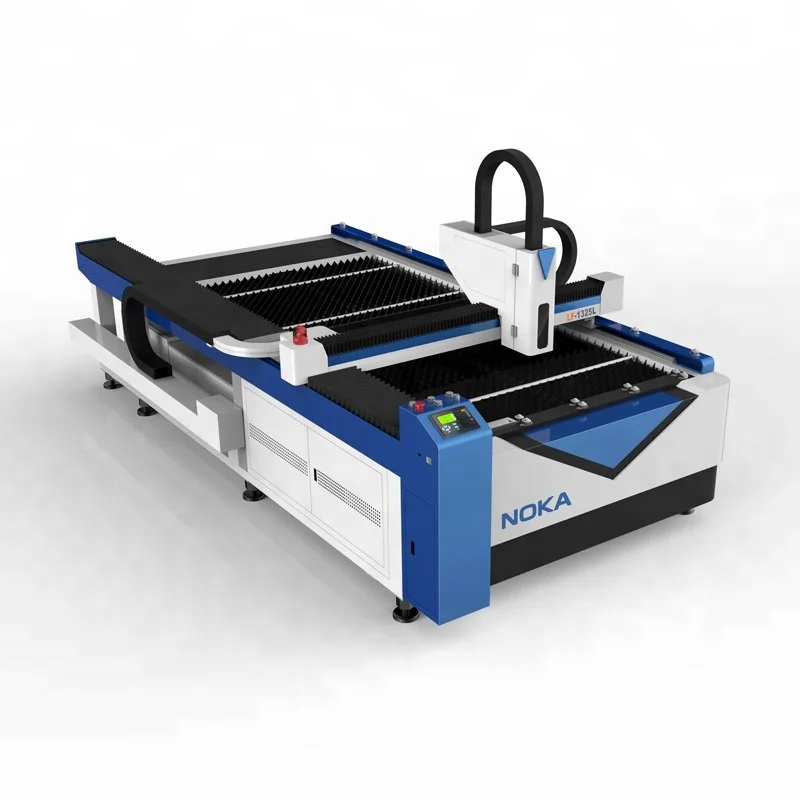

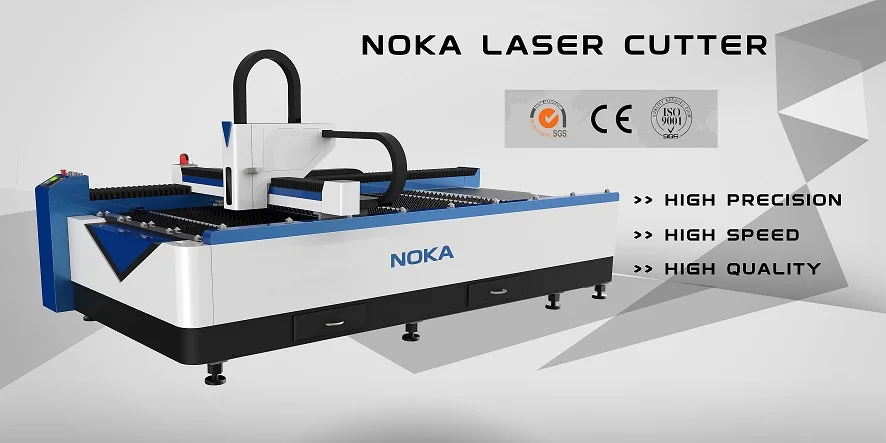

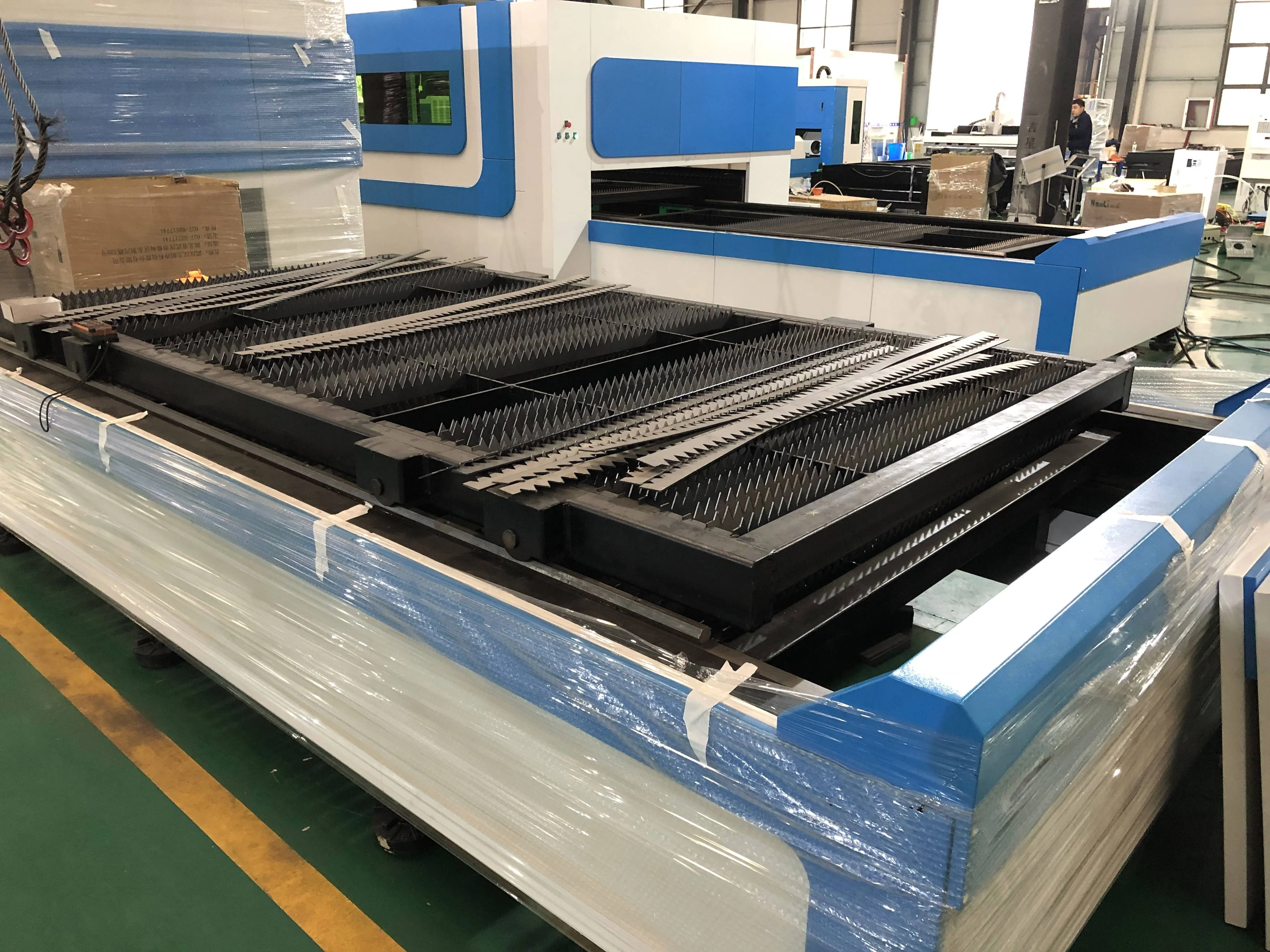

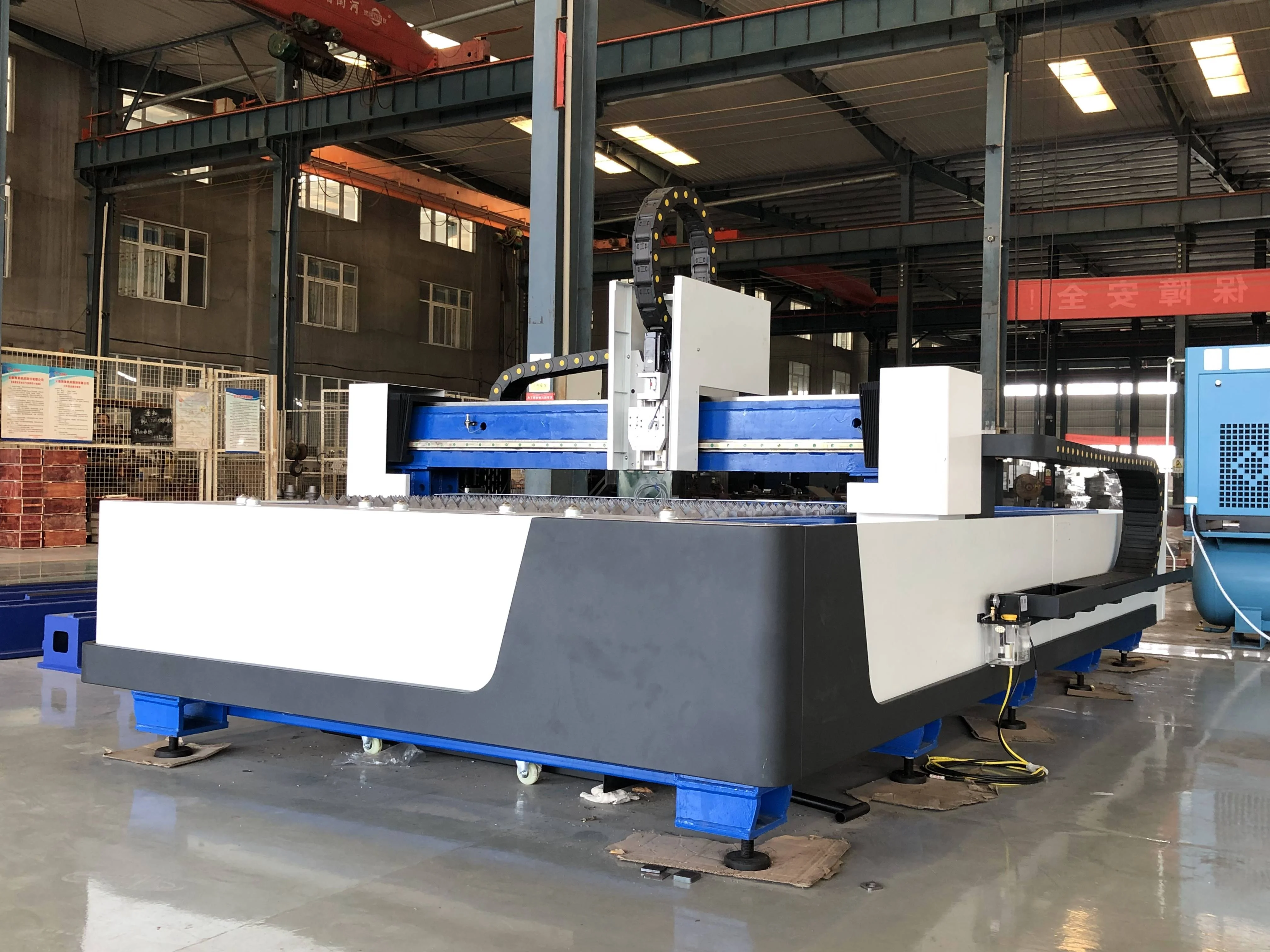

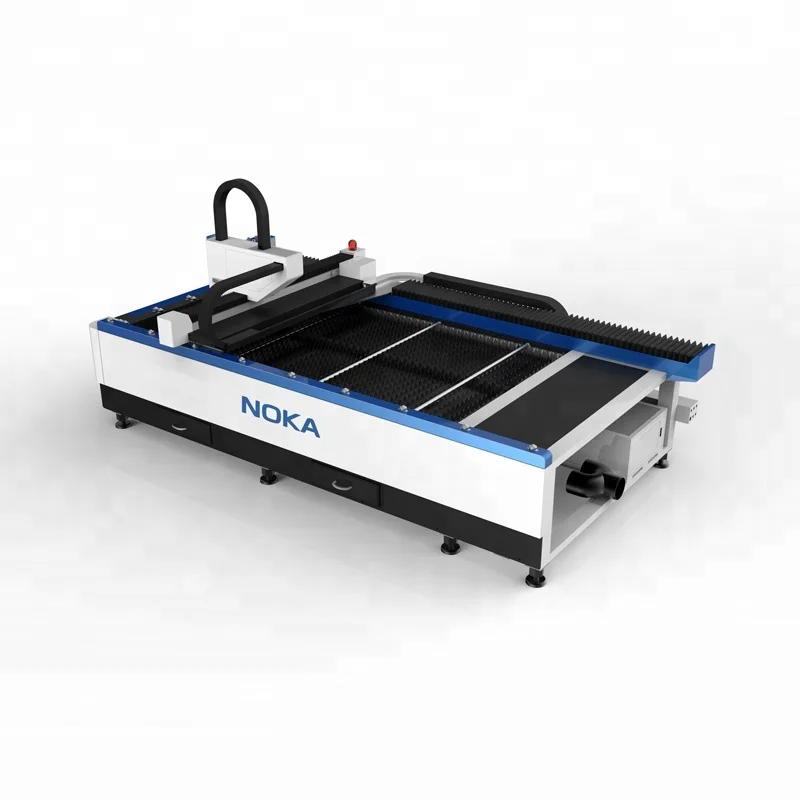

1000W 2000W 3015 4020 6020 Large Enveloping High speed Fiber Laser Cutting Machine For Cutting Metal Plates
- Category: >>>
- Supplier: Noka Machine (anhui) Manufacturing Co. Ltd.
Share on (1600109099201):
Product Overview
Description
Products Description
Function Description
◆Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to ensure high processing accuracy.

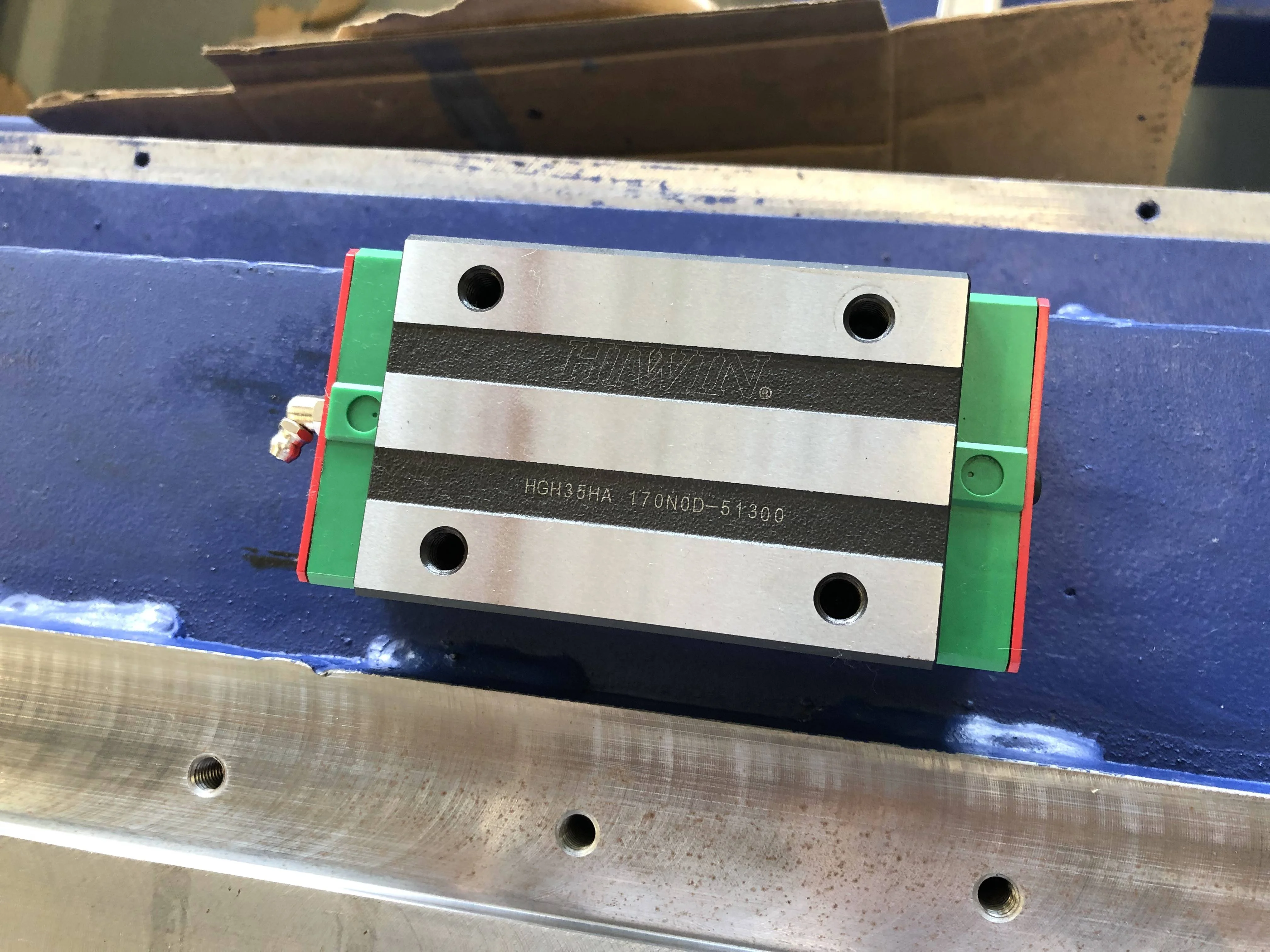

◆Configure with Taiwan HIWIN linear rail for all axis, to ensure durable and high precision for long time processing.
◆X,Y axis configure with high accuracy grinding type gear and rack, Japan Shimpo reducer, high speed and precision can be ensured. Z axis are transmitting by high accuracy rolling ball screw.
◆Adopt France Schneider AC servo motor, large power, stronger torque force, working speed is more stable and faster.
◆Adopt Japan SMC intelligent gas group, dual gas control, automatic adjustment for gas type and gas software.

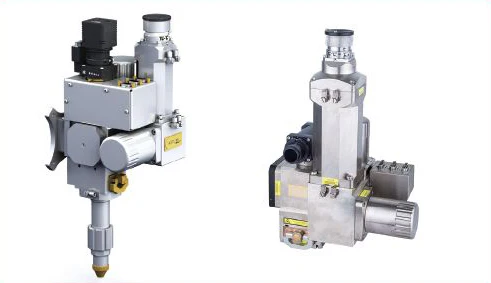

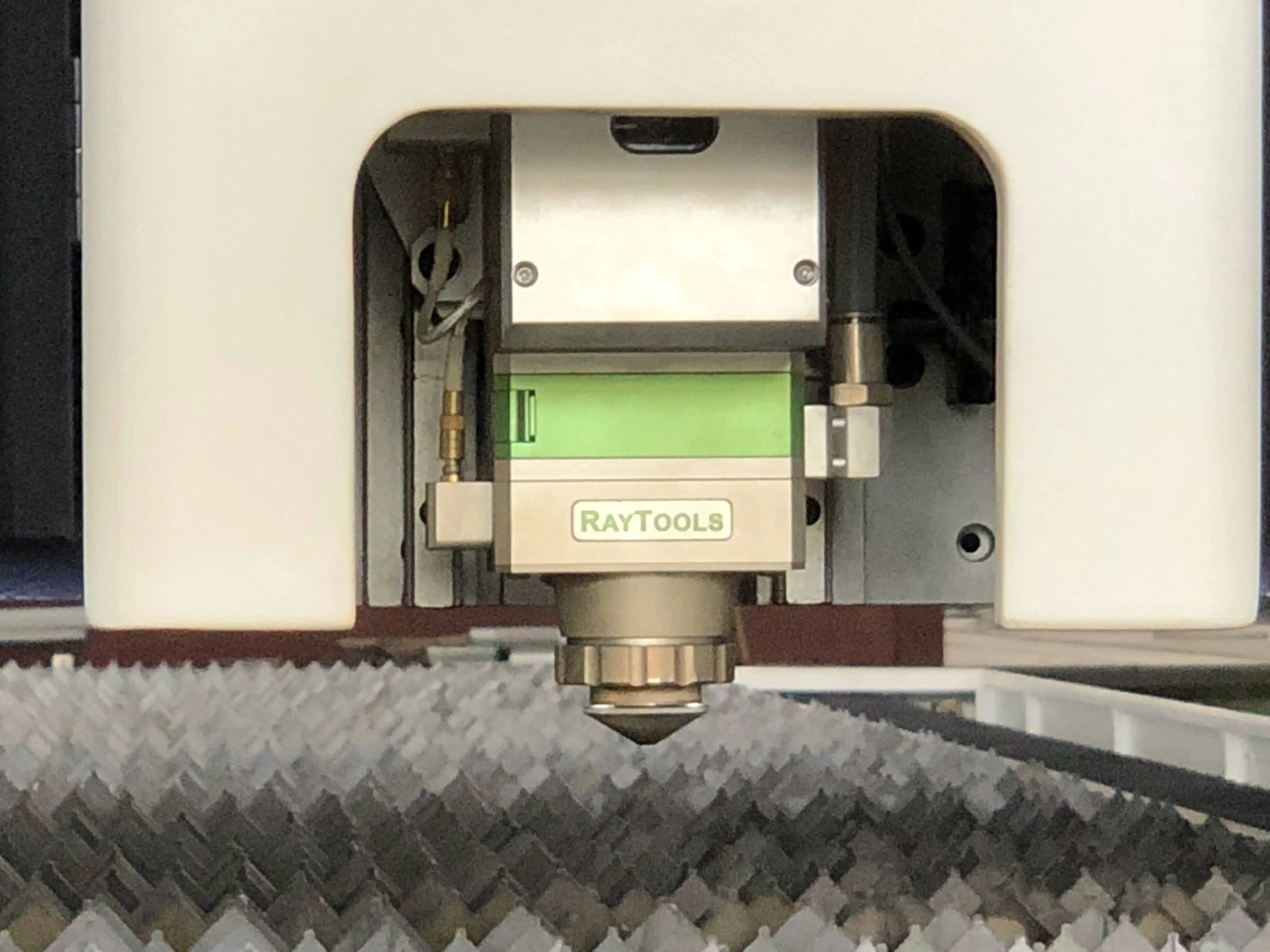

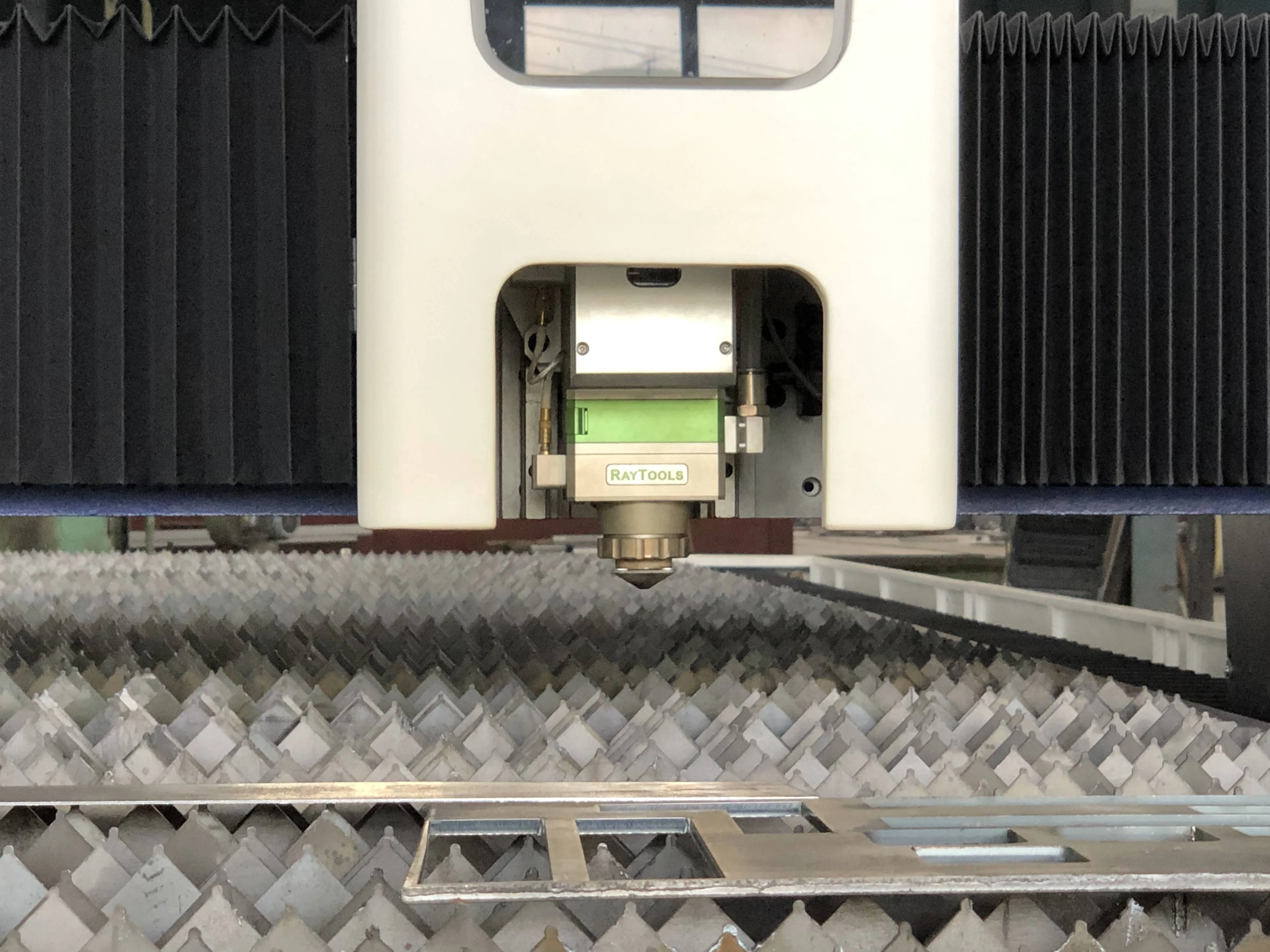

◆Adopt professional IPG, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.
◆Configure with non-contact auto follow function, ensure the best focal length and cutting effect.
◆Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.

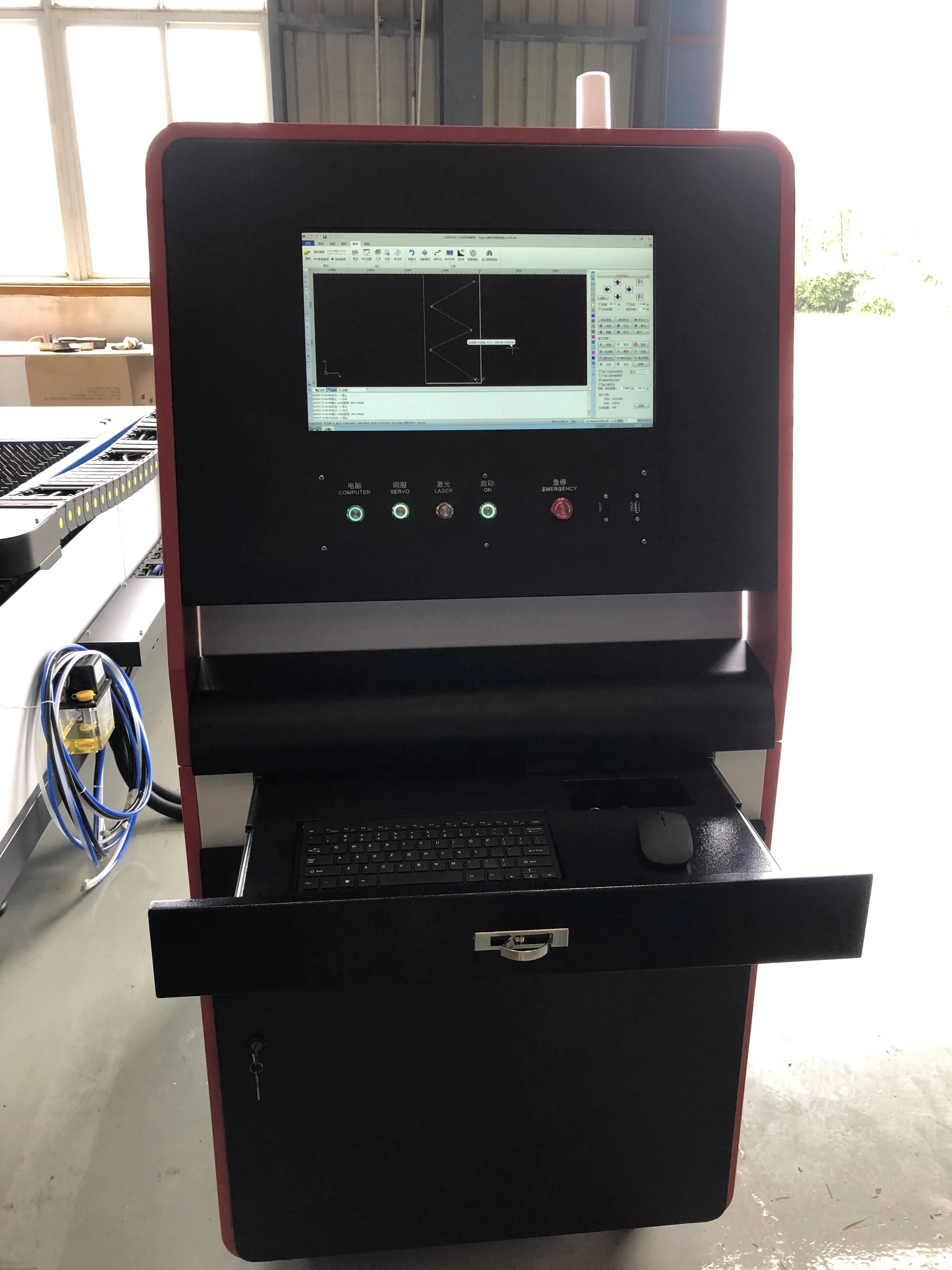

◆Professional laser cutting CNC control system, connected with computer, simple operation.
◆Configure professional industrial chiller with double temperature control molds, high cooling efficiency and high transferring ratio of laser,.
◆Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
PRODUCT SPECIFICATIONS
Laser type | 1000W/1500W/2000W/3000W/4000W/6000W/10000W/15000W(Optional) |
Laser working medium | YVO4 |
Laser wavelength | 1070 nm |
Beam quality | <0.373mrad |
X-axis travel | 1500~2000 mm |
Y-axis travel | 3000/4000/6000 mm |
Z axis travel | 120mm |
Effective cutting range | 1500*3000/1500*4000/1500*6000/2000*4000/2000*6000 |
Tube cutting range | Round pipe with a diameter of ≤220mm \\ square pipe side length ≤160 * 160 |
Effective cutting length of pipe | ≤6000mm（Optional） |
Axial positioning accuracy of table | ≤ ± 0.03㎜ / m |
Repeatability of table positioning | ≤ ± 0.03㎜ / m |
Positioning speed | 140m / min |
Maximum worktable load | 2400KG |
Voltage Requirement | 220V or 380V/50Hz~60Hz |
Features

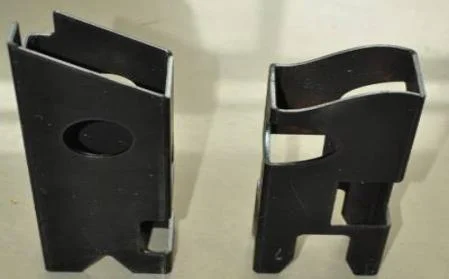

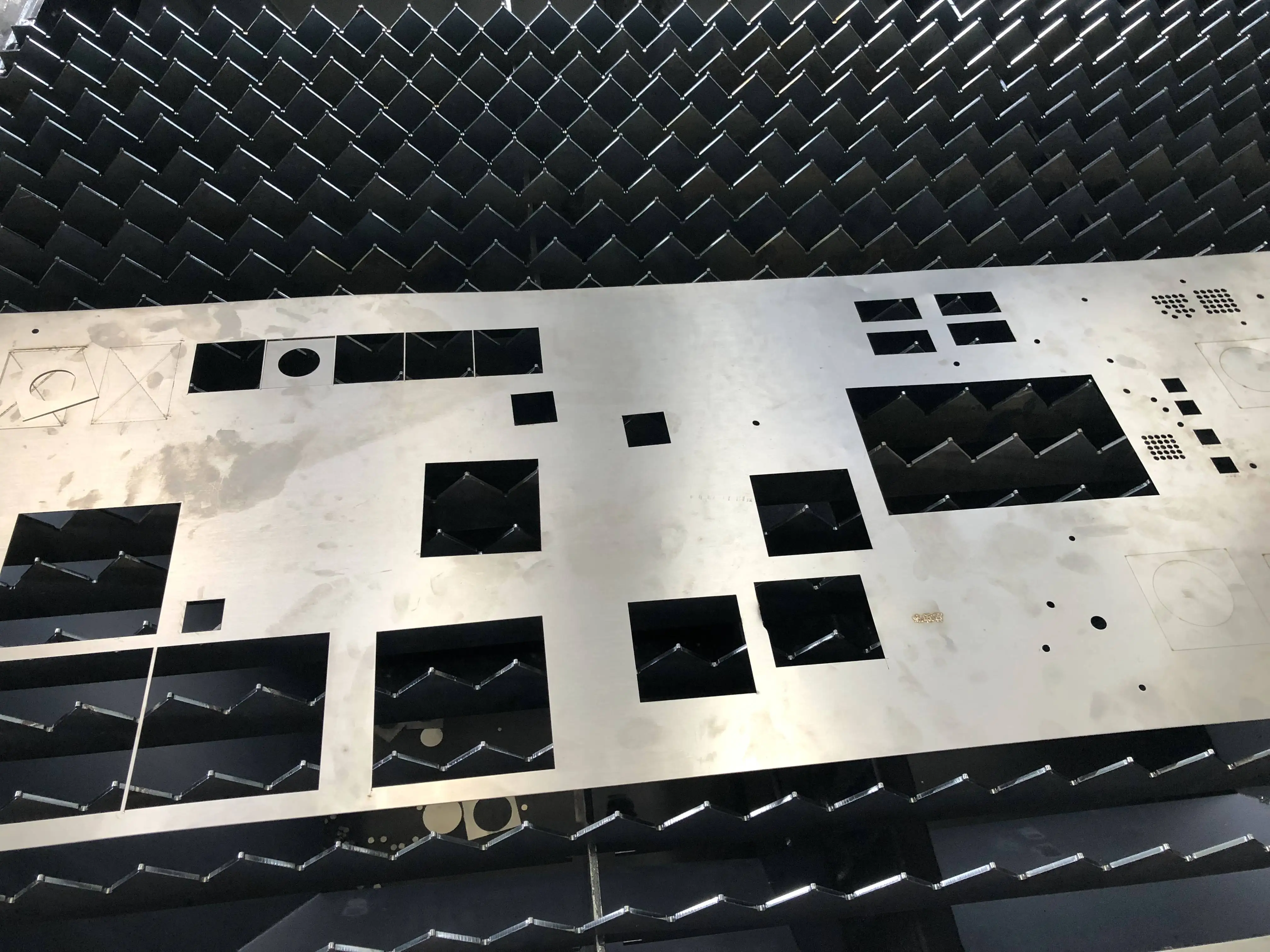

◆Not only suitable for sheet metal cutting, but also cutting square tube, round tube, flat round and other shapes of various metal
material.
◆Gantry moving with double driver, equipped with imported grinding gear rack and Japan Shimpo reducer, better cutting performance
and stability.
◆Self-centered pneumatic chuck, ensure smooth material transportation and cutting quality.
◆Three servo synchronous drive speed chuck, cutting power balance, thin material will not deform due to inertial force.
material.
◆Gantry moving with double driver, equipped with imported grinding gear rack and Japan Shimpo reducer, better cutting performance
and stability.
◆Self-centered pneumatic chuck, ensure smooth material transportation and cutting quality.
◆Three servo synchronous drive speed chuck, cutting power balance, thin material will not deform due to inertial force.
PRODUCT CONFIGURATION

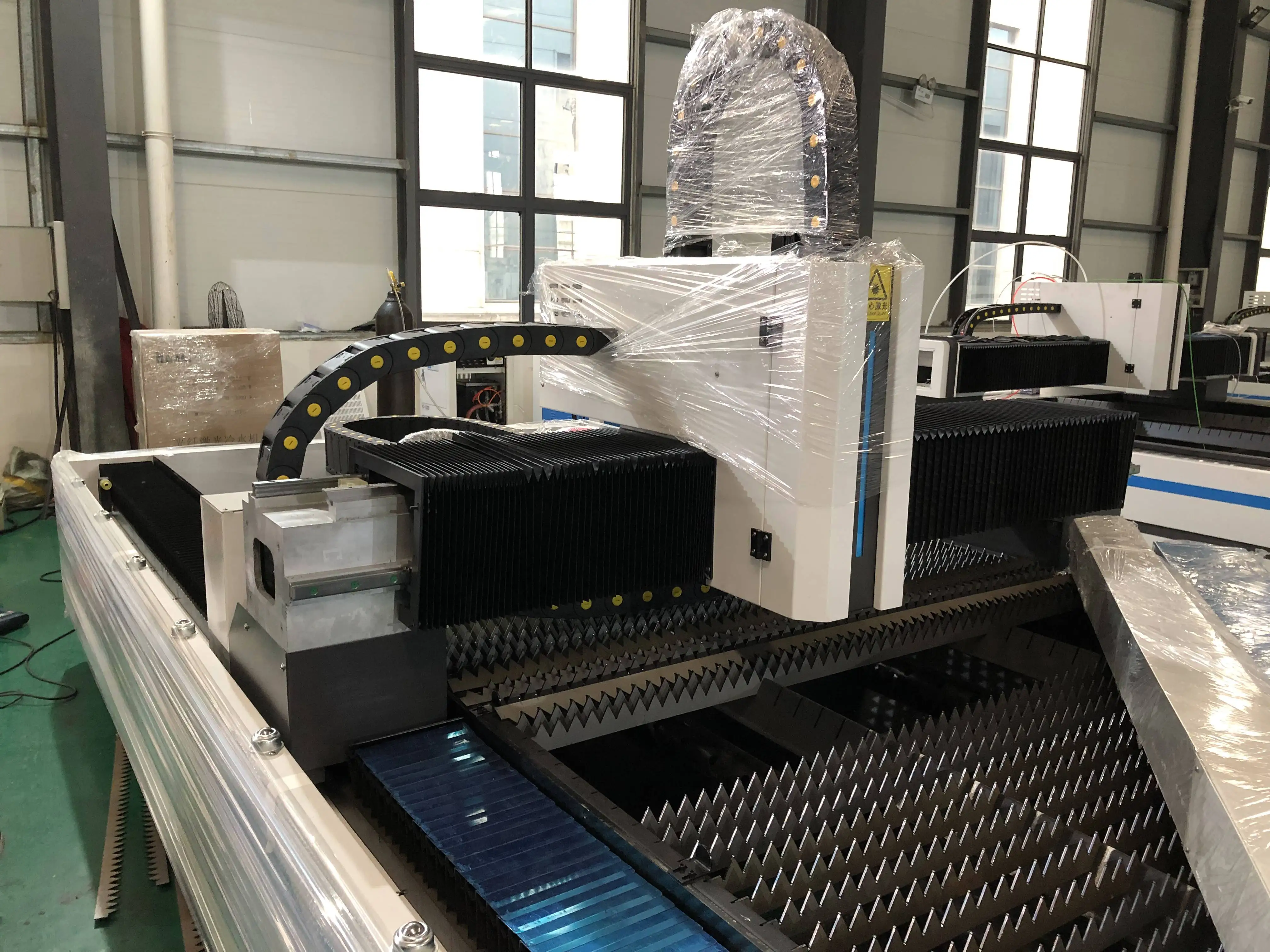

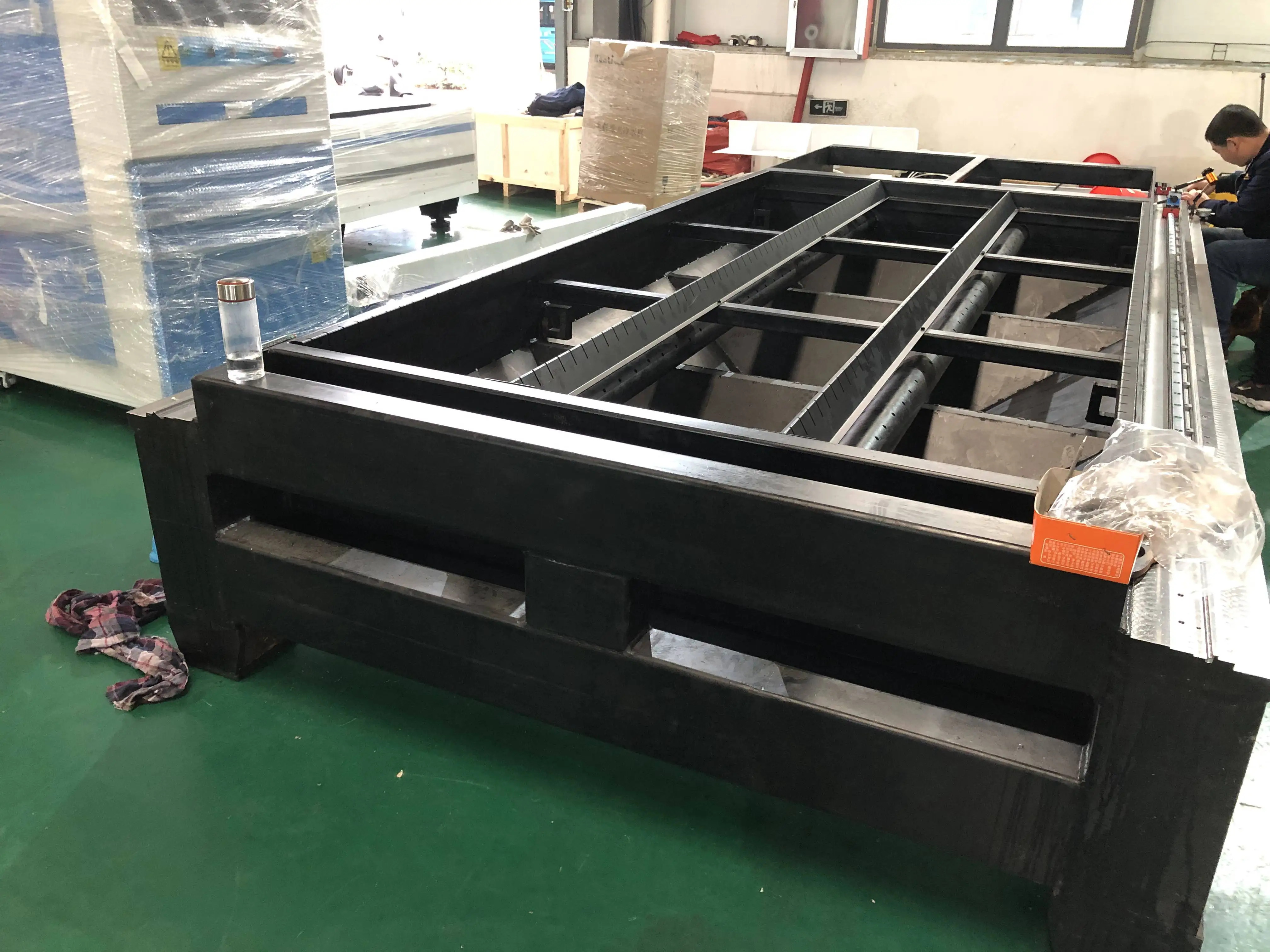

Machine Structure
Each machine tool performs a heat treatment process on the bed before processing to eliminate welding stress and improve the stability of the bed structure. In this way, it effectively ensures that the laser machine tool will be durable and not deformed during the user's use in the future. The cast aluminum beam is used, and the heat treatment process has the advantages of high strength, light weight and good rigidity.

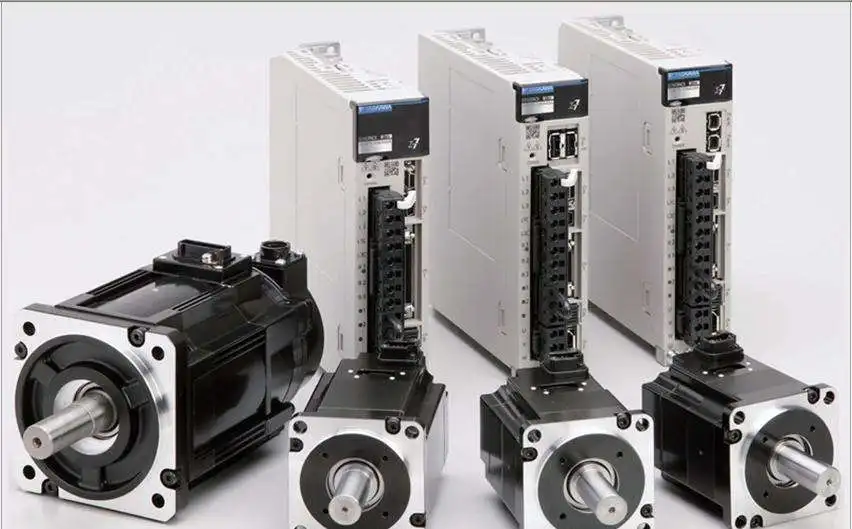

Japan Yasukawa Servo System
Compared with similar products on the market, the hardware has obvious advantages. It adopts high-performance grinding rack and pinion transmission system, which effectively guarantees the precision of cutting, and uses Yaskawa Electric Co., Ltd., which is a first-class industrial machine tool.
Adopting international advanced fiber laser generator, it has high beam quality, high brightness, high conversion rate, maintenance-free, stable and reliable, low running cost and small size.

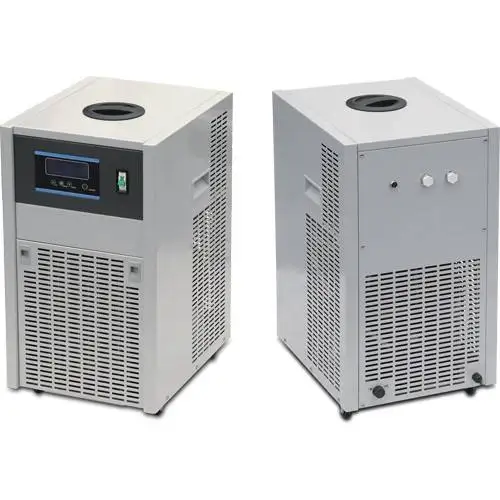

Intelligent chiller
Using the famous domestic intelligent chiller brand, through the deionization system, you can understand the water pressure and water quality in real time, and equipped with an alarm system to ensure the timeliness of maintenance and greatly improve the service life of the laser.

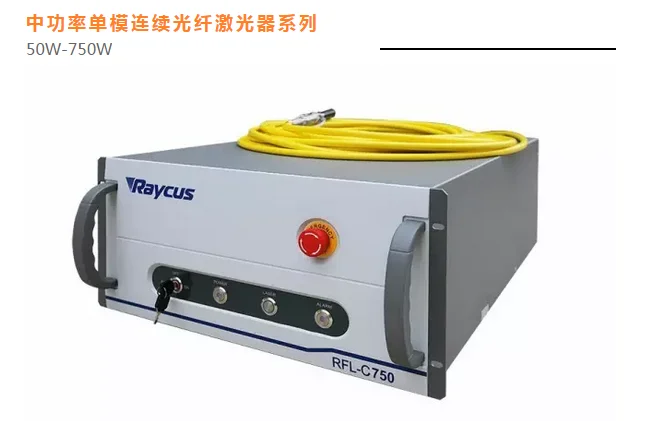

Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion
efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)Details Images

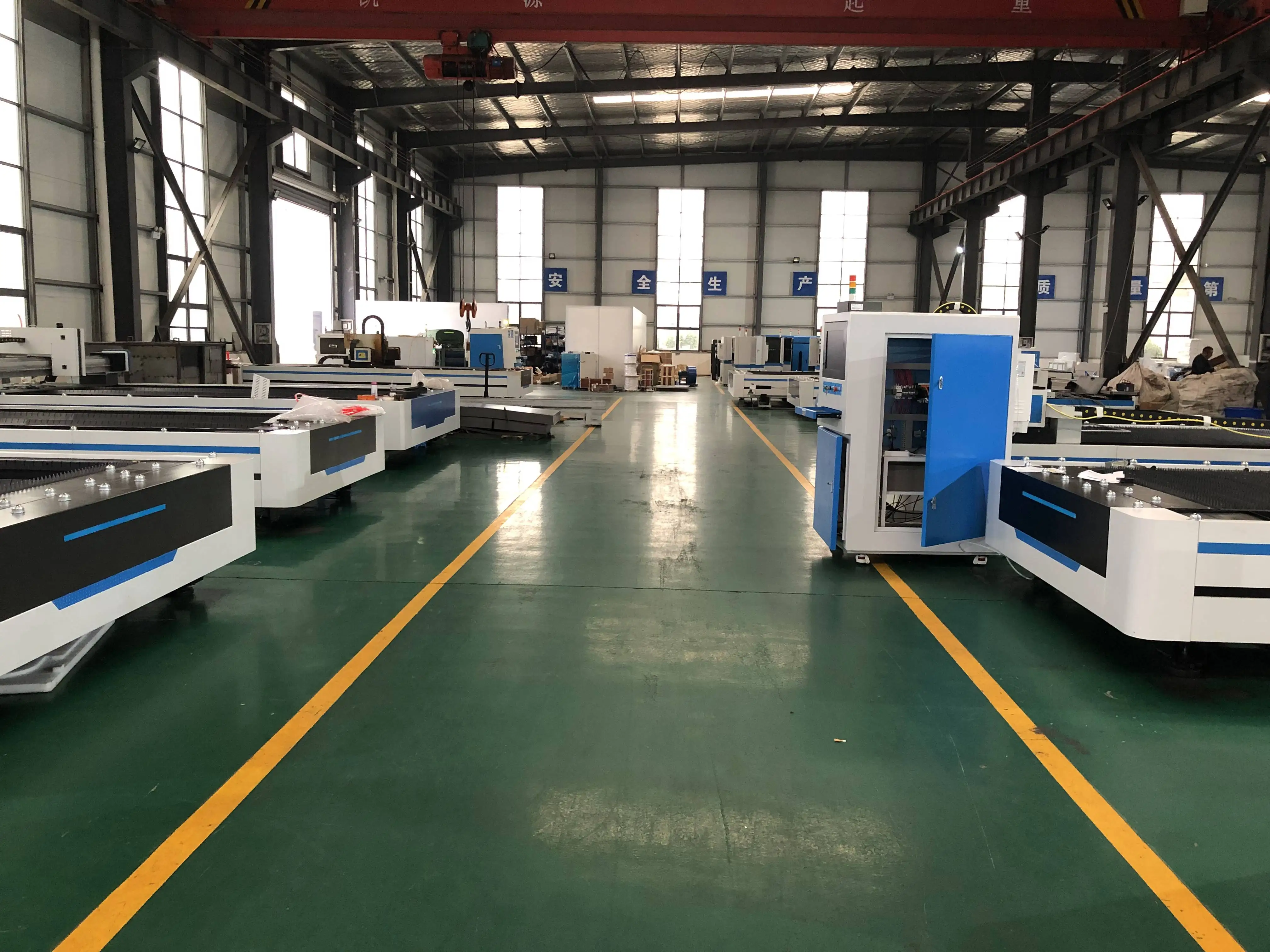

Company Profile
NOKA Machinery Manufacturing Co., Ltd. was established in 1994, located in the ancient capital of Nanjing, the steel city
Maanshan junction point to see a lot of industrial parks.
The company specializes in CNC machine tools, forging machinery, mechanical blade molds, mechanical parts, mechanical presses,
hydraulic presses, hydraulic presses, ironwork, mechanical bending and so on.
Here, NOKA has a long and strong engineering experience, and hopes to become a quality-oriented professional machinery
manufacturing company that serves the industry.
Maanshan junction point to see a lot of industrial parks.
The company specializes in CNC machine tools, forging machinery, mechanical blade molds, mechanical parts, mechanical presses,
hydraulic presses, hydraulic presses, ironwork, mechanical bending and so on.
Here, NOKA has a long and strong engineering experience, and hopes to become a quality-oriented professional machinery
manufacturing company that serves the industry.
