Magnetic card IC Card dspenser collector Card issuing machine PT F6
- Category: >>>
- Supplier: Shenzhen Prova Tech Co. Ltd.
Share on (1600109334309):
Product Overview
Description
Product Description

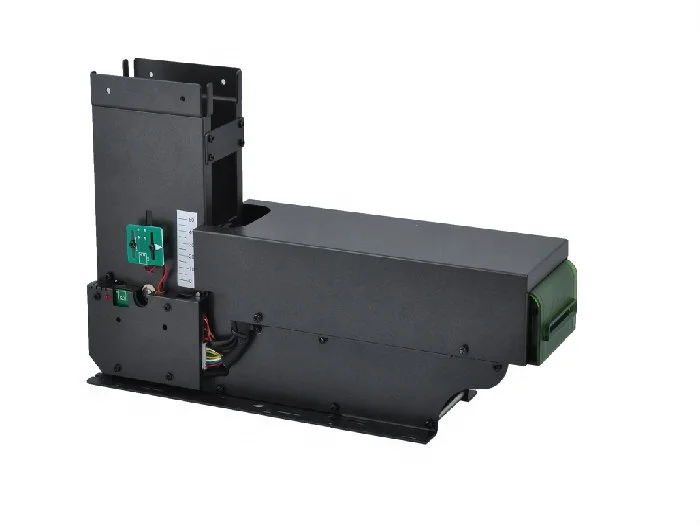

PT-F6-2 series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R.
Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical
sector, transportation sector and that for account opening in banks.
Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical
sector, transportation sector and that for account opening in banks.
Technical Specifications:
*Power Supply: DC24V ± 5%, 3A
*Quiescent Current: < 200mA
*Communication Method: RS232
*Service Life(Issuing life): ≥ 1, 000, 000 times
*Service Life(Magnetic head): ≥ 500, 000 times
*Service LifeI(C contact): ≥ 500, 000 times
*Card Stacker Capacity: 150 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
(Collection channels can be customized to collect unlimited cards.)
*Net Weight: Approx. 2.8KG (excluding accessories and package)
*C/D Dimension: 326L x 103W x 220H mm (without shutter)
347L x 100W x 200H mm (with shutter)
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported:86L x 55W mm
(0.2~1.2mm thickness; factory standard: 0.8mm)
*Magnetic Recording Capacity: Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity)
Track 2 (ABA): Max. of 40 characters (4 bits + 1 parity)
Track 3 (MINTS): Max. of 107 characters (4 bits + 1 parity)
*Magnetic Coercivity:24k~320k A/m (300~4000 Oe)+/-10%
*Mifare Type A Operating Frequency:13.56 MHz
*RF Communication Speed:105k bps
Product Descriptions
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.
*Power Supply: DC24V ± 5%, 3A
*Quiescent Current: < 200mA
*Communication Method: RS232
*Service Life(Issuing life): ≥ 1, 000, 000 times
*Service Life(Magnetic head): ≥ 500, 000 times
*Service LifeI(C contact): ≥ 500, 000 times
*Card Stacker Capacity: 150 pcs (0.76mm standard card) /120 pcs (0.76mm embossing card) /300 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
(Collection channels can be customized to collect unlimited cards.)
*Net Weight: Approx. 2.8KG (excluding accessories and package)
*C/D Dimension: 326L x 103W x 220H mm (without shutter)
347L x 100W x 200H mm (with shutter)
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -20°C to 70°C, 0 to 90% RH without condensation
*Cards Supported:86L x 55W mm
(0.2~1.2mm thickness; factory standard: 0.8mm)
*Magnetic Recording Capacity: Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity)
Track 2 (ABA): Max. of 40 characters (4 bits + 1 parity)
Track 3 (MINTS): Max. of 107 characters (4 bits + 1 parity)
*Magnetic Coercivity:24k~320k A/m (300~4000 Oe)+/-10%
*Mifare Type A Operating Frequency:13.56 MHz
*RF Communication Speed:105k bps
Product Descriptions
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses.
*Compact structure design: effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.
Trade Terms:
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Packing&Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

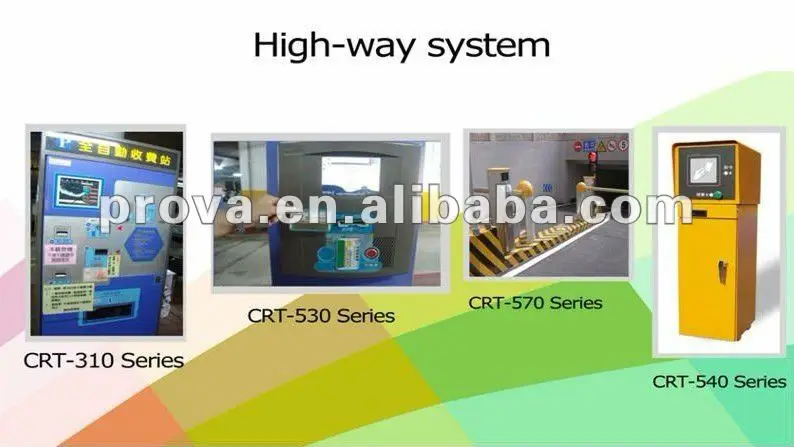

Product Usage
Related Products
Service
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies.Our products are with stability, conformity, high performance and competitive price. PROVA has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.We expect to cooperate with system integrators, strategic partners and product distributors.
