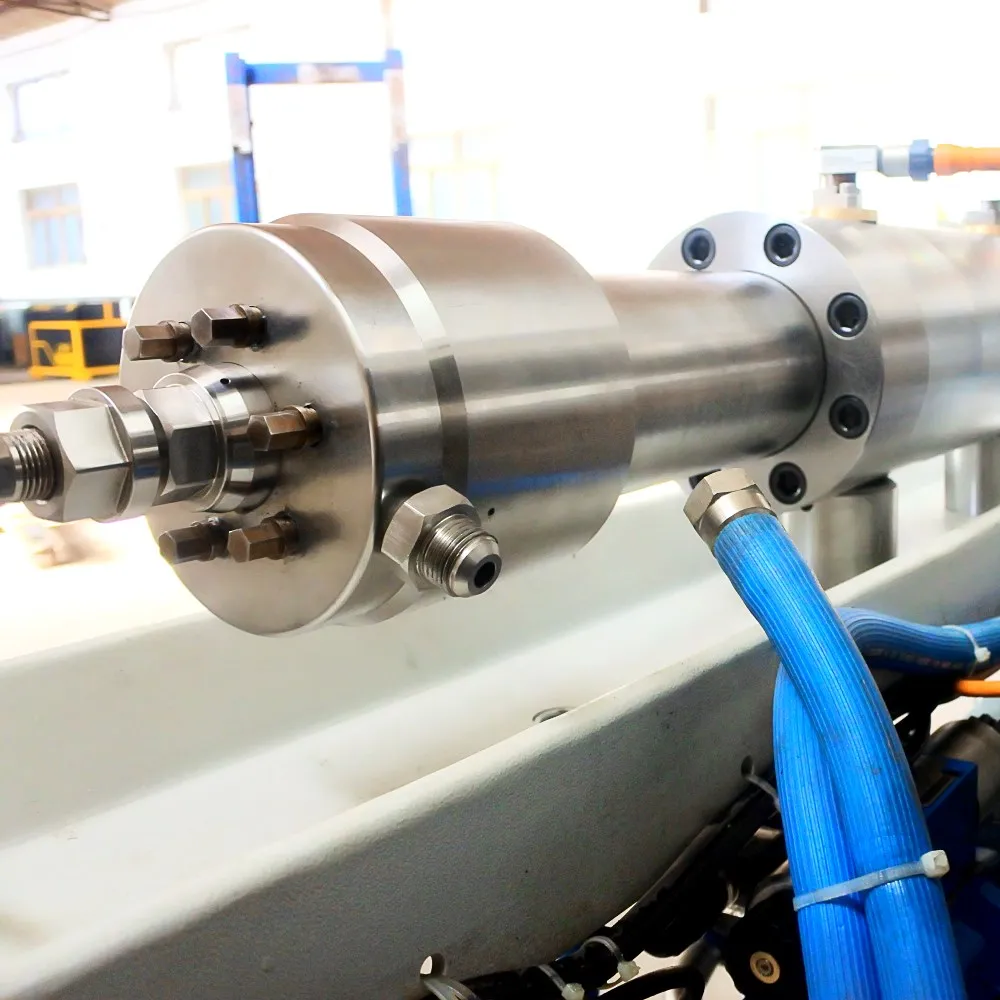

Water jet cutting machine high pressure intensifier pump
- Category: Stone Machines >>>
- Supplier: Shenyang,Win-Win,Waterjet,Co.,Ltd.
Share on:
Product Overview
Description
waterjet Description

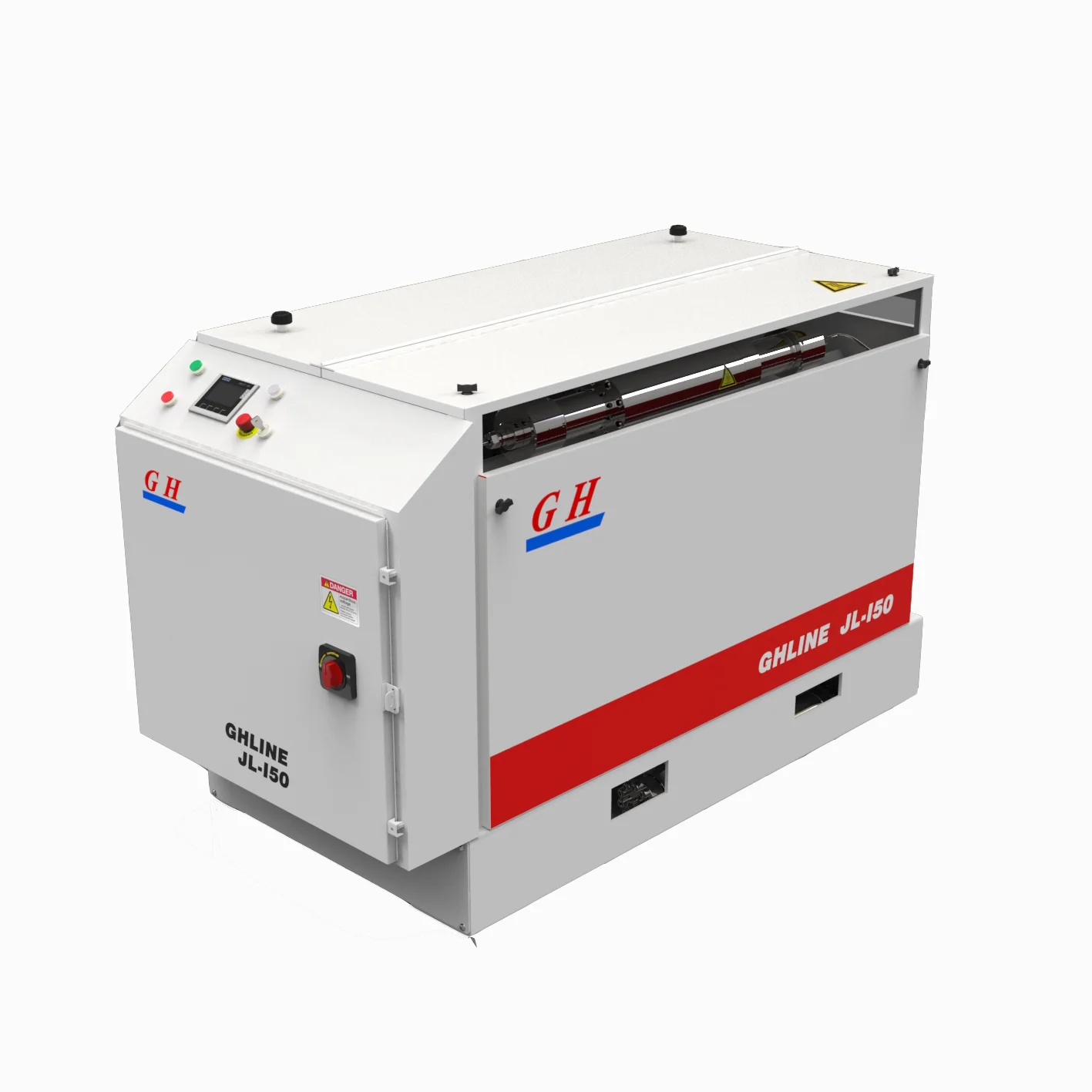

Waterjet Pump
Waterjet Platform
| Platform structure | 5 axis Gantry type |
| Max Swing Angle | ±10° |
| Swing Angle precision | +0.01° |
| Cutting accuracy | ±0.1mm |
| Re-position accuracy | 0.025mm |
| Max. Travel Speed | 10m/Min. |
| Operating software | WEIHONG |
| Nominal power rate of X.Y Axis | 0.8KW/pc |
| Nominal power rate of Z.A.B Axis | 0.4KW/pc |
Waterjet control system
|
Display |
Industrial-grade Display |
|
Brand |
WEIHONG |
|
Language |
English/Chinese |
|
System Version |
Win10 |
|
Formats |
DXF/G/ENG/OLT |
|
System Function |
AB 5Axis |
Waterjet abrasive feeding system
|
Wall thickness |
4.5mm (Explosion-proof) |
|
Air pressure |
0.2MPa-1MPa |
|
Volume |
200KGS |
Quality Control
Cut Sample
|
Abrasive waterjet cutting speed Approximate Millimeter per minute 0.33mm orifice |
||||
| Material | Thickness | 0.33mm orifice | ||
| 320Mpa | 380Mpa | 420Mpa | ||
| Aluminum | 0.25"(6mm) | 400-520mm | 460-590mm | 500-580mm |
| 0.50"(13mm) | 300-800mm | 350-420mm | 400-510mm | |
| 0.75"(19mm) | 220-280mm | 260-380mm | 300-420mm | |
| Stainless steel | 0.25"(6mm) | 200-260mm | 240-310mm | 260-350mm |
| 0.50"(13mm) | 80-120mm | 100-150mm | 125-180mm | |
| 0.76"(20mm) | 50-65mm | 70-90mm | 100-120mm | |
| 1.18"(30mm) | 15-25mm | 30-40mm | 40-50mm | |
| Glass | 0.25"(6mm) | 1200-1400mm | 1600-1900mm | 2100-2300mm |
| 0.39"(10mm) | 600-700mm | 700-800mm | 820-900mm | |
| 0.79"(20mm) | 330-400mm | 400-500mm | 600-800mm | |
| Marble | 0.24"(10mm) | 1000-1200mm | 1200-1400mm | 1350-1550mm |
| 0.79"(20mm) | 400-500mm | 600-700mm | 750-850mm | |
| 1.18"(30mm) | 220-300mm | 310-380mm | 400-480mm | |
| 1.97"(50mm) | 70-90mm | 100-120mm | 130-150mm | |
| Tile | 0.59"(15mm) | 1200-1400mm | 1400-1500mm | 1600-1800mm |
| Copper plate | 0.20"(5mm) | 500-600mm | 700-800mm | 900-1000mm |
| 0.59"(15mm) | 190-220mm | 220-300mm | 330-400mm | |
| 1.18"(30mm) | 80-100mm | 100-120mm | 120-150mm | |
Our Services
Guarantee of abrasive waterjet cutting:
1 YEAR for the whole machine, within 1 year under normal use and maintenance, if something is wrong with the machine, you will get spare parts FOR FREE, consumable parts are excluded. Out of 1 year, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support for abrasive waterjet cutting:
1, Technical support by phone, Whatsapp, email or Skype and so on.
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Abrasive waterjet cutting After sales services:
Normal machine is properly adjusted before dispatch. The machine will be accomplished within one week after arriving at user's site, we can provide free training for your operator.
You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Packaging & Shipping
Delivery details for CNC Water jet Cutting Machine
1. Full film packaging machine;
2. Collision avoidance;
3. Free fumigation plywood wooden box with metal straps.
4. fumigated wooden box. No need for wood inspection, save transportation time
Our Customer
Win Win brand enjoys high reputation in over 30 countries around the world, such as Brazil, Germany, India etc.
FAQ
1. Are you a factory or trading company?
Yes,we are professional waterjet equipment factory for more than ten years.
2. Could you provide customerized parts for special waterjet equipment?
Our professional production equipment and outstanding technical R&D team will meet your requirement.
3. How to reach an order?
Visiting factory is the best way to reach an order, welcome your coming.
4. How can get an offer directly?
It's better write us your cutting material , require table size etc..
5. What is the payment terms?
You can pay via L/C,T/T , WESTERN UNION ,PAYPAL and any other payment terms
