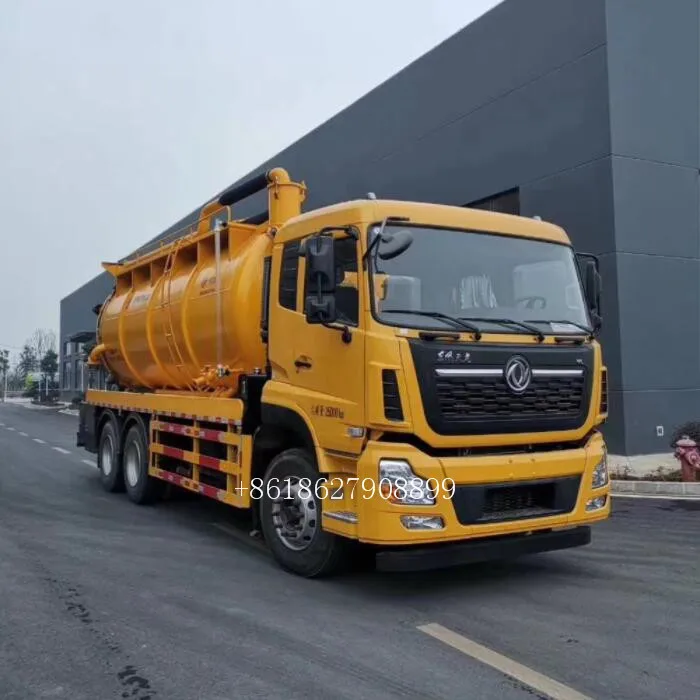

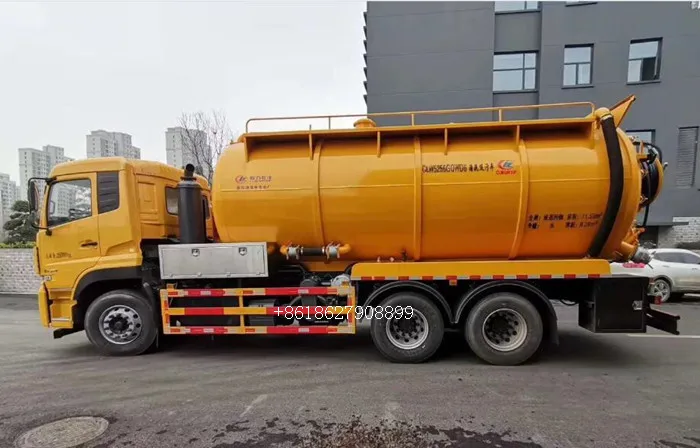

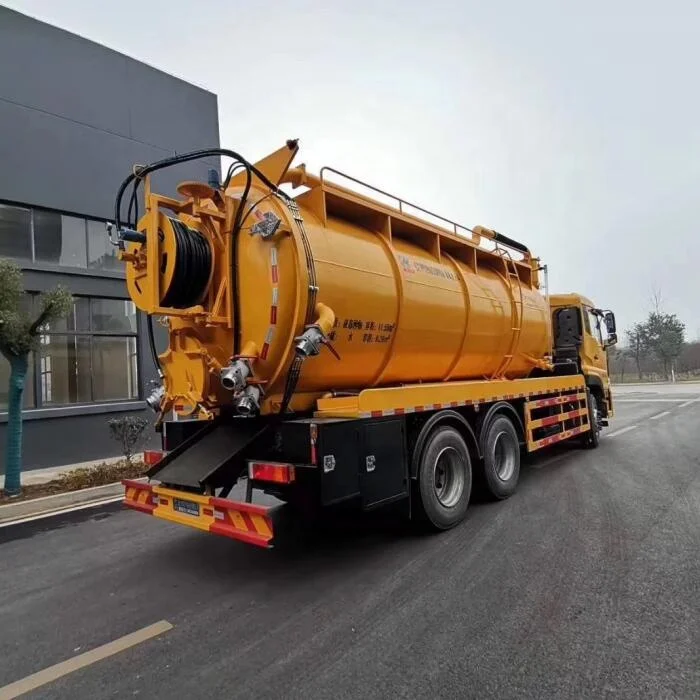

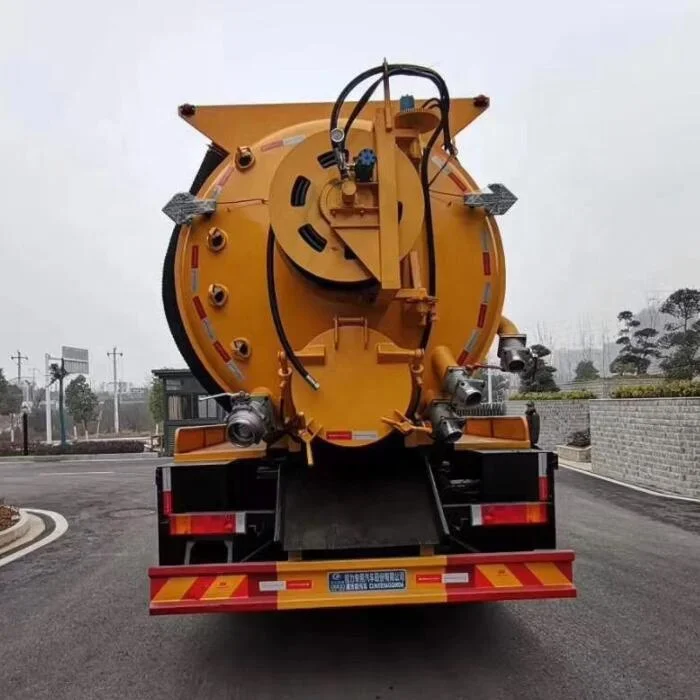

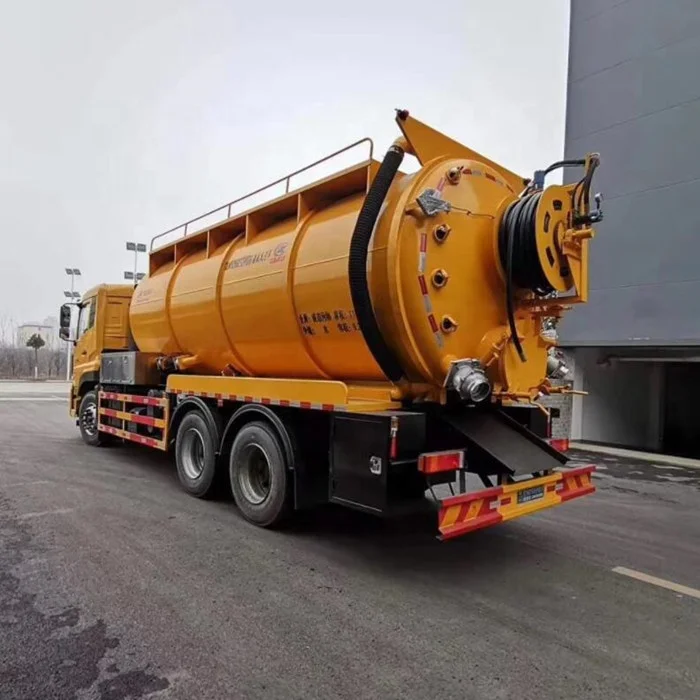

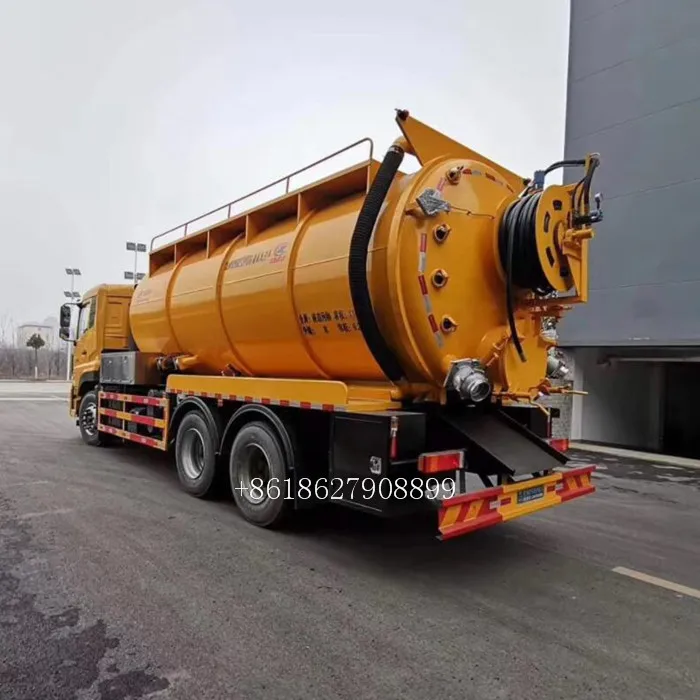

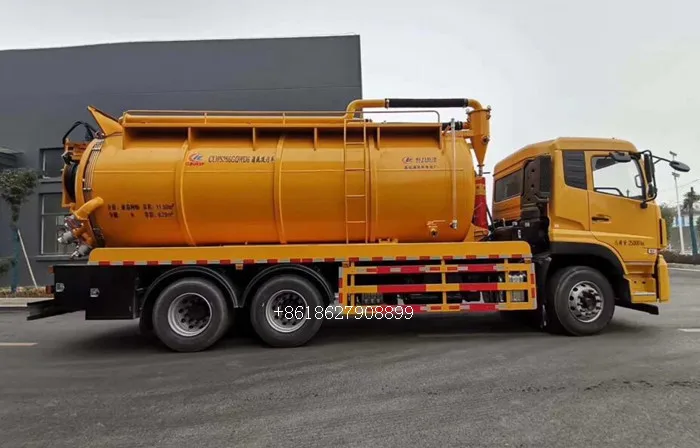

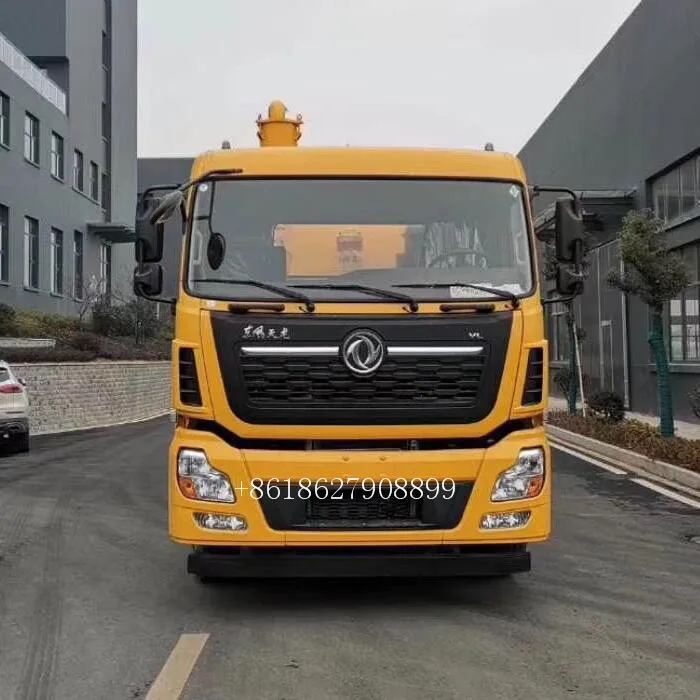

5000 gal Water Tanker Suction Sewage Truck
Sewage suction truck is mainly used to clean septic tank, sewage ditch and sewer,and etc.
The sewage suction vehicle is a new type of sanitation vehicle which collects and transfers sludge and sewage to avoid secondary pollution. The sewage suction vehicle has 5000gal loading capacity, self-suction & self-discharge function,fast working speed,convenient transportation. It is suitable for collecting and transporting feces,mud,crude oil and other liquid substances. The suction vehicle adopts the domestic technology leading suction vehicle vacuum pump, which has and far suction range, especially suitable for sucking and transporting silt in the sewer, stons, brick and other large objects in water channel.







Dongfeng 6*4 LHD High Pressure Pump Vacuum Pump Sewage Truck 5000 gal
Technical Parameters | |
Overall | |
Vehicle name | 5000 gal Sewage Suction Truck |
Vehicle model | EQ1250HPST |
Overall dimensions | Approximate 9480*2500*3850mm |
GVW | 25000kg |
Total net weight | Approximate 13000kgs |
Loading capacity | Approximate 12000kgs |
Max speed | 90Km/h |
Chassis | |
Chassis brand/ model | DONGFENG/ EQ1250GD |
Chassis net weight | 9140kg |
Chassis dimension | 9120*2496*2958mm |
Wheelbase | 4300+1300mm |
F/R axle | 5tons/10tons |
F/R track base | 2022/1830mm |
F/R suspension | 1500/1945mm |
Approach/departure angle | 16/23° |
Springs | 10/12,4/12 |
Tire specification | 11.00R20; 10+1pcs |
Transmission | Manual;8speeds +1 rear speed |
Traction system | 6*4 |
Engine | |
Engine brand | |
Power/Exhaust | 220 hp; EURO 5 |
Upper Part | |
Dustbin capacity | 5000-6000gal |
Tank size(length × diameter) | App:5500×2000mm |
Tank material | 6mm carbon steel |
Vertical suction range | 9m |
Pumping/Discharging full tank time | <10min/<8min |
Other configuration | With visual dung window;One self-flow mouth; With hand washing device;With anti-overflow valve; One 8m suction pipe; Vacuum pump;With water-gas&oil-gas separator, anti-overflow valve;With self-unloading function;Back door hydraulic open;The sewage tank with 3 hoops. |
We provide free training for all our clients, both online and live training for option. If you need, we can also send engineers to give training to your at your site.
--- Packing: Waxed or nude, or covered with tarpaulin package.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.
