API Powder Machine Pulverizer Price Micron Hammer Mill
- Category: >>>
- Supplier: Shandong Alpa Powder Technology Co. Ltd.
Share on (1600109545142):
Product Overview
Description
Products Description
API Powder Machine Pulverizer Price Micron Hammer Mill
FEATURES AND ADVANTAGES
* Available D50:10～850μm.
* Sieve hole size 0.2mm-3mm.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Different installation combinations, applicable to different process requirements
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
* Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
* High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials.
* Sieve hole size 0.2mm-3mm.
* Compact structure and small occupation. easy to disassemble and clean
* Lower installation power, wide application, high cost-performance.
* Different installation combinations, applicable to different process requirements
* Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
* PLC control system, easy operation.
* The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
* Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide
materials
* High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different
grinding requirements of different materials.
Working principle
WORKING PRINCIPLE

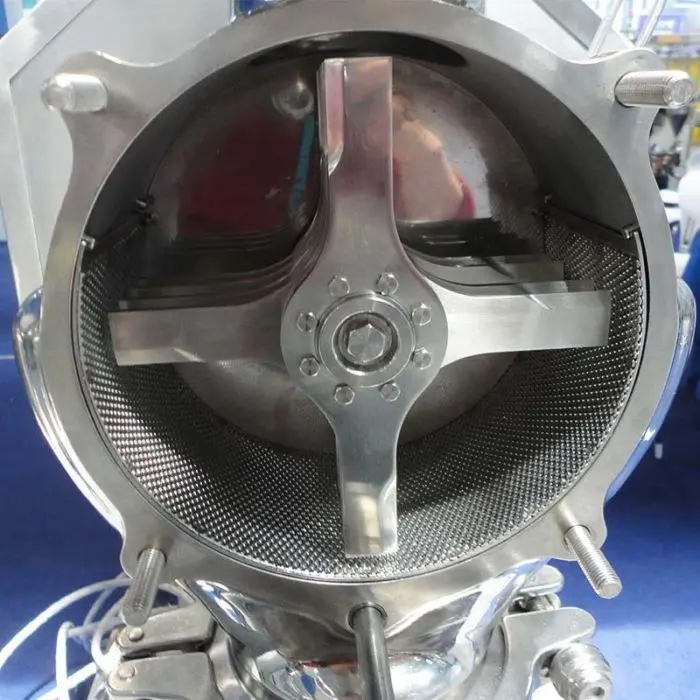

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating disc.
At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.
The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.
At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and the ring gear to grind material.
The moving disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.
Parameters
TECHNICAL PARAMETERS
Parameters/specifications | 160 | 250 | 360 | 500 | 630 | 800 | ||||||
Turbo type F | Grinding Disc（mm） | 150 | 250 | 350 | 500 | 600 | 720 | |||||
Max. Rotation Speed （r/min） | 12000 | 7500 | 5550 | 3850 | 3200 | 2800 | ||||||
Power（kw） | 3~4 | 5.5~7.5 | 11~15 | 18.5~30 | 30~45 | 37~75 | ||||||
Product Size（mesh） | 20~325 | |||||||||||
Production Capacity （Kg/h） | 5~50 | 15~200 | 25~500 | 30~1200 | 50~1800 | 60~2000 | ||||||
Pin Type P | Grinding Disc（mm） | 160 | 260 | 360 | 520 | 630 | 730 | |||||
Max. Rotation Speed （r/min） | 12000 | 7500 | 5550 | 3850 | 3200 | 2800 | ||||||
Power（kw） | 4 | 7.5 | 15~22 | 37 | 45~55 | 55~75 | ||||||
Product Size（mesh） | 20~325 | |||||||||||
Production Capacity （Kg/h） | 20~200 | 35~1000 | 50~2000 | 75~3000 | 100~5000 | 200~10000 | ||||||
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Engineering Cases
Related Engineering Case
Brazil a food factory
glucose produce 750KG/H, particle size D90:150μm, 2sets of impact Mill Production Line
Russia a chemical factory
Paint residue powder produce 1T/H, particle size D90:2μm, impact Mill Production Line
Company Profile
Shandong ALPA Powder Technology Co., Ltd.
(abbreviation: ALPA / Equity Code: 171033)
THE WORLD’S LEADING SUPPLIER OF
ULTRA-FINE POWDER SOLUTIONS
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Who Choose Us
WHO CHOOSE US
Common choice of many well-known companies
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and
engineering technology research centers have selected ALPA.
More than 3,000 customers have chosen us
FAQ
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients’ project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
