FTTH Mini OTDR Optical Time Domain Reflectometer
- Category: >>>
- Supplier: Hangzhou,Tuolima,Network,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Products' Features

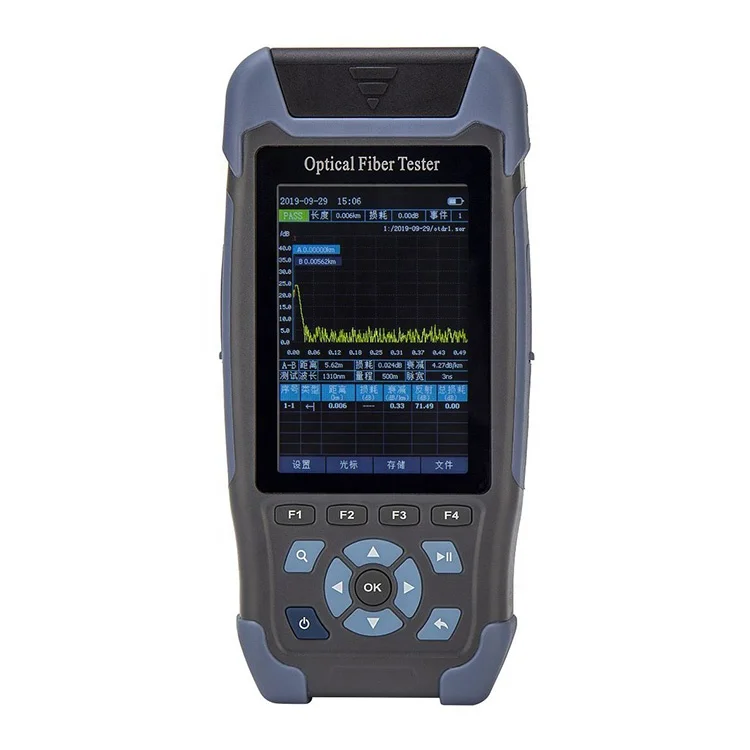

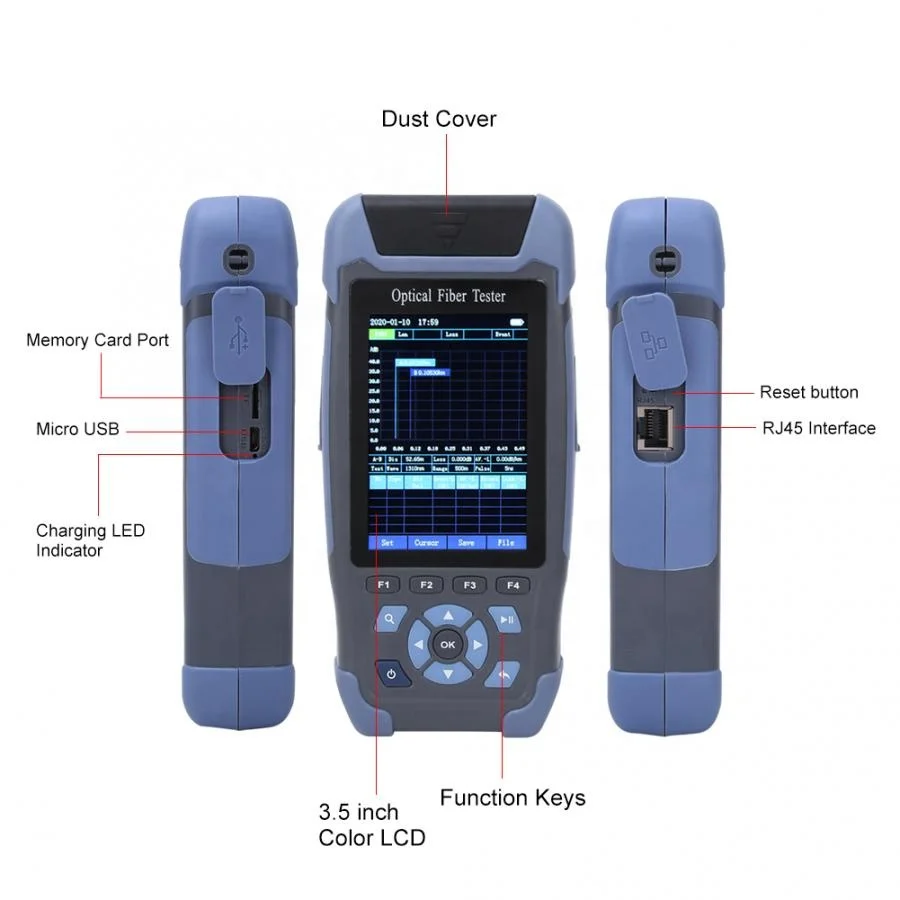

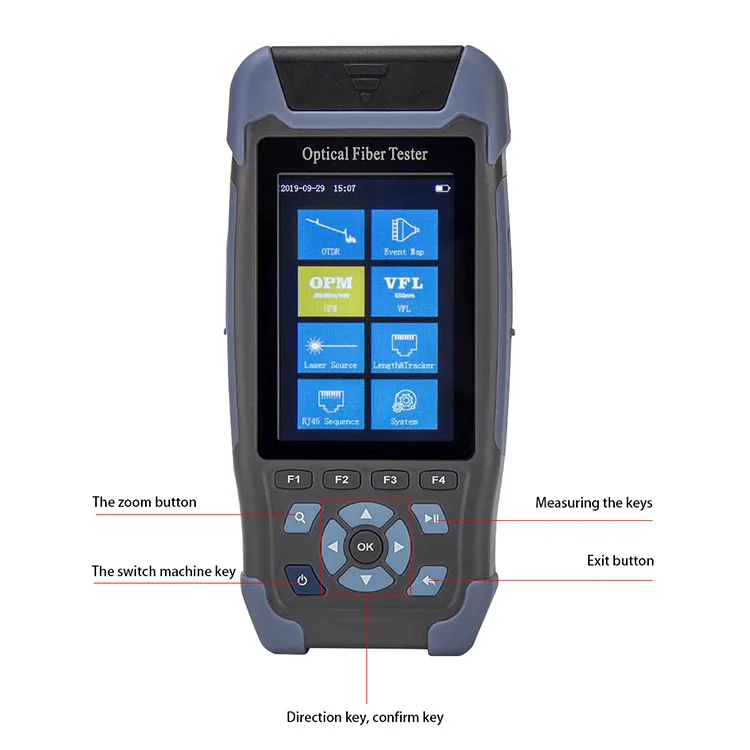

TLM3302S Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Model | TLM3302S | |||
Wavelength | 1310nm/1550nm±20nm | |||
Fiber Type | G.652 SM Fiber | |||
Dynamic Range | 24dB/22dB | |||
Event Blind Zone | 3m | |||
ATT Blind Zone | 8m | |||
Test Range | 500m~60km | |||
Pulse Width | 3ns~10us | |||
Ranging Accuracy | ±（1m+Sampling Interval +0.005％×Test Distance） | |||
Loss Accuracy | ±0.2dB/dB | |||
Sampling Points | 16k~128k | |||
Sampling Resolution | 0.05m~8m | |||
Reflection Accuracy | ±3dB | |||
Data Storage | Internal：≥600；External：TF Card | |||
Laser Safety Level | Class Ⅱ level | |||
File Format | SOR Standard File Format | |||
Connector | FC/UPC（Interchangeable SC、ST） | |||
OPM | ||||
Wave Range | 800nm~1700nm | |||
Interface Type | Universal Joint FC/SC/ST | |||
Test Range | -50dBm～+26dBm | |||
Uncertainty | ±5% | |||
Frequency Identification | CW/270/330/1k/2kHz | |||
Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |||
LS | ||||
LD Type | FP-LD | |||
Output Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm | ||
Output Power | ≥-5dBm | |||
Modulation Frequency | 270/330/1k/2kHz | |||
Stability | CW，±0.5dB/15min（Test after15mins of preheating） | |||
Connector | FC/UPC（Interchangeable SC、ST） | |||
VFL | ||||
Work Wavelength | 650nm±20nm | |||
Output Power | ≥10mW | |||
Mode | CW/1Hz/2Hz | |||
Connector | FC/SC/ST | |||
RJ45 Cable Length Measurement | ||||
Test Range | 300m | |||
Other Parameters | ||||
Dispaly | 3.5 inch Color LCD | |||
Data Interface | Micro USB | |||
External Storage | TF Card | |||
Power Supply | Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A | |||
Battery Life | Standby＞20h；Measuring Time＞12h | |||
Operating Temperature | -10℃～+50℃ | |||
Storage Temperature | -40℃～+70℃ | |||
Relative Humidity | 0～95％Non Condensing | |||
Weight | ≤350g | |||
Dimension | 173mm×82mm×37mm | |||
Smiliar & Related Products
Packing&Dilivery
Transportation Methods | Time | Features | ||
Air Transportation | About 7-10 days (Some special address not included) | Weight≥45KG (1. Fees will be the same as 45KG if within 45KG; 2. FOCC and products with battery forbidden in air.) | ||
Express Transportation | About 7-10 days (Some special address not included) | Usually used for Sample Order (FOCC and products with battery forbidden in Express.) | ||
Sea Transportation | About 35 days (Some special port not included) | No weight limit (The most economic way for not urgent goods.) | ||
Trunk or Railway Transpotation | About 30-40 days | Only used for inland countries or neighboring countries of China. | ||
