Large Spray Paint Booth for Bus and Truck
- Category: Spray Booths >>>
- Supplier: Yantai,Clear,Electromechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
When you want to paint the trucks, boats, buses, big metal parts, excavator bucket, agricultural machinery, some industrial parts and so on, you may need the large type liquid paint booth.

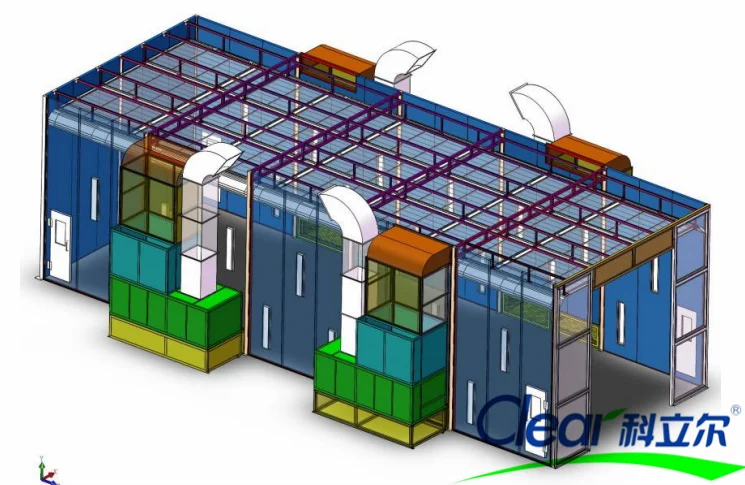

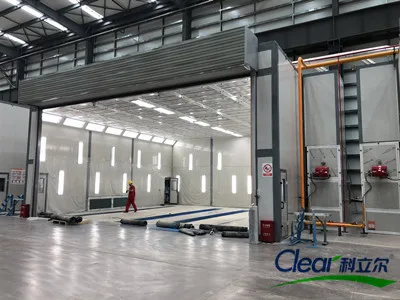

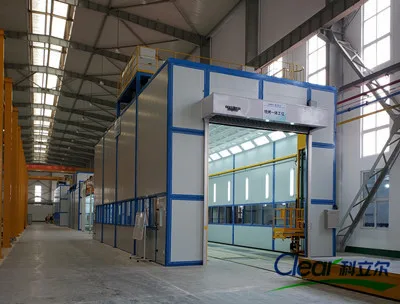

We can design the normal type like the picture below, also produce the electric hoist type, and the automatic painting line.
This kind of paint booth could also have the heating system, you can choose for natural gas, LPG, diesel or electric.
This kind of paint booth could also have the heating system, you can choose for natural gas, LPG, diesel or electric.

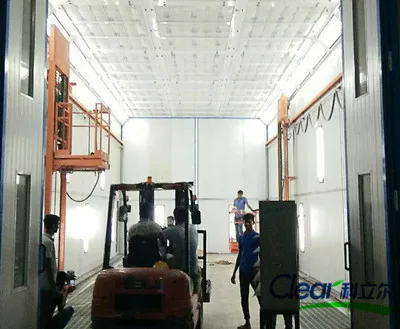

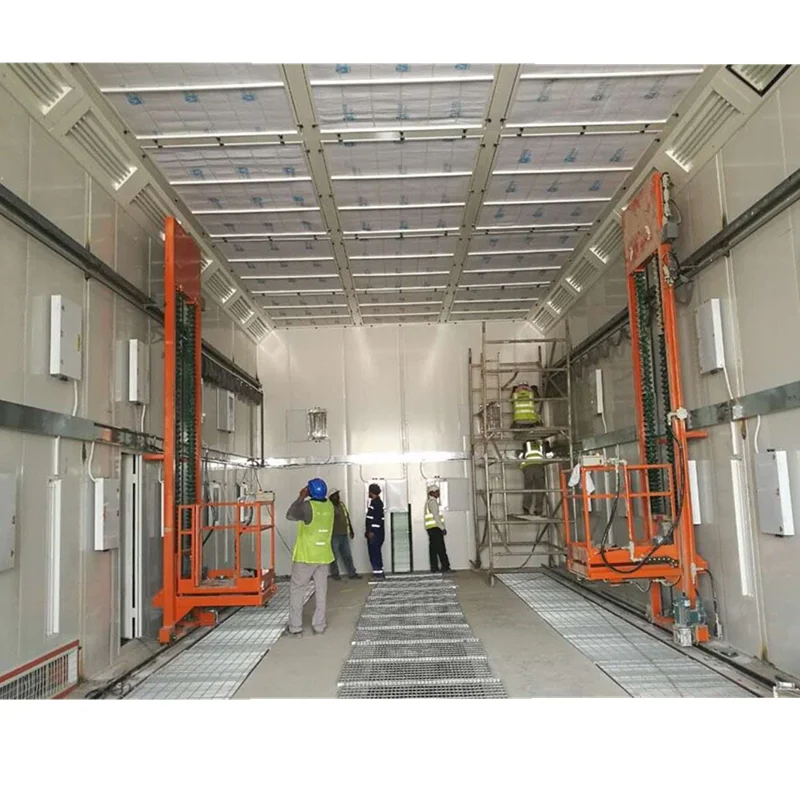

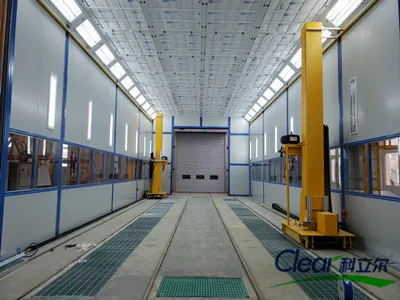

And you can also choose the 3d lifts if you need, like the orange ones in below picture.
Specification
Outside Size can be customized | 15100X6750X5800 mm 49.5X22.1X19.0 feet (LXWXH) |
Inside Size can be customized | 15000X5000X5000 mm 49.2X16.4X16.4 feet (LXWXH) |
Wall panel | 75mm thickness rock wool panel, color can be customized |
Exhaust way | Side fraft no need dig the floor, or down draft need to dig the floor |
Fan System | 4 sets 7.5kw inlet fans, 2 sets 11kw outlet fans |
Purification System for air | Pre-filter, ceiling filter, floor filter (fiberglass), |
Heating system | 2 units Riello Brand RG5S diesel burner, or gas, LPG, electric heating |
Lighting System | Ceiling Lights: 18Unitsx4pcs=72Pcsx 18w Side Lights: 14Unitsx4Pcs=56Pcsx18w |
Control system | Electric control box, spray & baking switch, light switch, emergency stop, breakdown alarm |
3D lifts which show in the picture | The 2 orange color 3D lifts could help you move up and down, left and right, so you can paint the higher place of the truck or bus |
Working principle for paint booth:
Firstly, we need to tell you, the size of the booth could customized, we can design the paint booth small for the furniture, car or the other small parts, large for the bus, truck, ship, helicopter and the train.
The air will go into the paint booth through the 4 sets fan box around the paint booth body. The pre filter will filter the air for the bigger dust when the air go through the fan box. Then the air will go into the top part of the paint booth, we call it static air pressure plenum. The static air pressure plenum have the height for 800mm~1000mm according the size of the paint booth.
With the help of the static air pressure plenum, the air can go down the working area very average and steady.
And the steady air can take the paint out the paint booth under the help of the fiberglass filter on the floor or on the side wall.
For the down draft 15m paint booth, fiblerglass filter will on the floor, and with the filter frame and the grids. You need to dig the foor for about 14*0.8*1m (L*W*D). For the side draft paint booth, filberglass filter will on the side wall of the paint booth. You don't need any foundation work.
Working Video
Yantai Clear paint booth have the very good quality and performance, let us show you one video which customer took when the paint booth is working.
This paint booth use the automatic reciprocator instead of the normal 3D lifts, as the work piece for this customer us
Company Profile
We Yantai Clear Electromechanical Co., Ltd is the professionalprofessional manufacture of the powder coating equipment and wet painting equipment for 11 years. We have about 180 employees until the year of 2022.

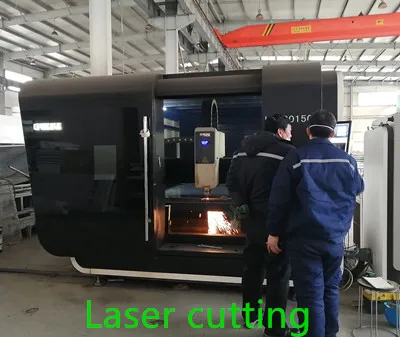

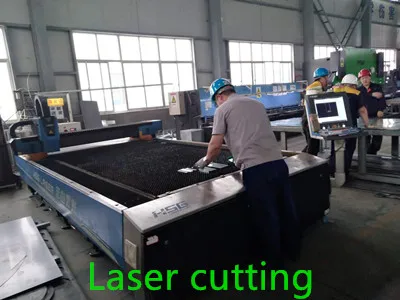

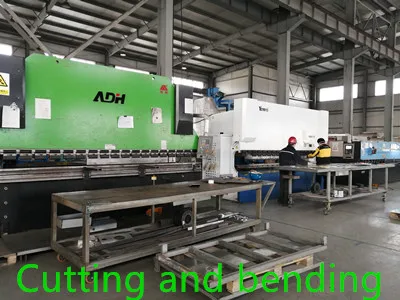

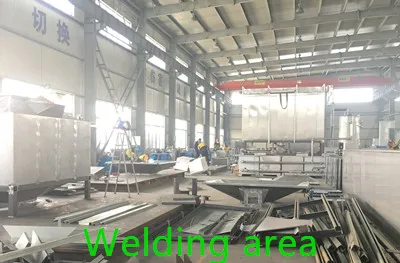

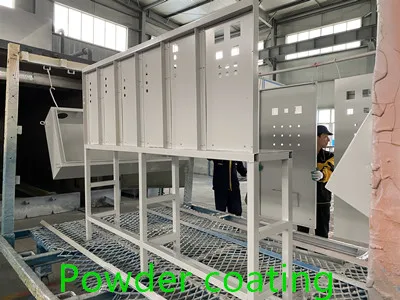

And we have 3 work shops for more than 8000 square meters, our production equipment include2 laser cutting machines, 1 plasma cutting machine, 2 bending machine, 1 pressure cutting machine, 11 sets welding platform, one powder coating booth and oven for the surface handing of all the metal parts.

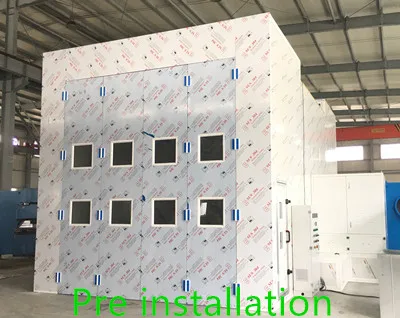

We are supply the best quality equipment for you, and we will do the pre installation before loading the containers. And we
welcome you come to check the quality of our machines at any time.
And we have 3 work shops for more than 8000 square meters, our production equipment include2 laser cutting machines, 1 plasma cutting machine, 2 bending machine, 1 pressure cutting machine, 11 sets welding platform, one powder coating booth and oven for the surface handing of all the metal parts.
We are supply the best quality equipment for you, and we will do the pre installation before loading the containers. And we
welcome you come to check the quality of our machines at any time.
Similar Projects
The 2 pictures below is the same project which we show you the working video as above.
This customer do the business for the aluminium containers of China express business.
We design the reciprocator to automatic painting the container, as you can see in the video. And the fan system sit at the top of paint booth to save space, and the exhaust system is out the factory with environmental equipment.
Thr heating booth is sit behind the painting booth, each booth have different fouction, it can improve the production efficiency if design like this way.

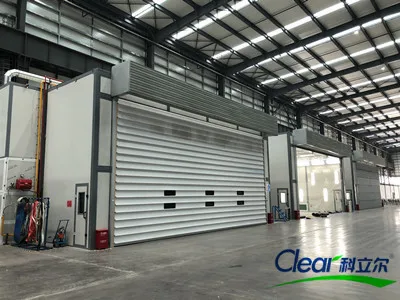

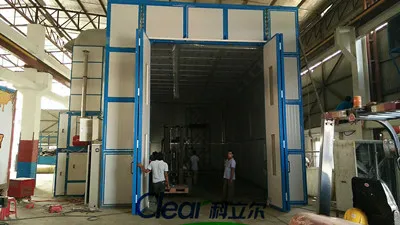

The sanding room, paint booth and heating booth below was designed for the heavy industrial business, we design the natural gas heating for the booth. With rolling door to open and close very easily.
This project is for our Bangladesh customer, after they bought our paint booth at the year of 2019, they bought another 2 set of same size paint booth at the year of 2022. This is really a approvement for our quality and after-sales service.

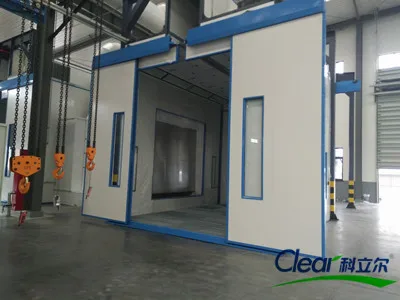

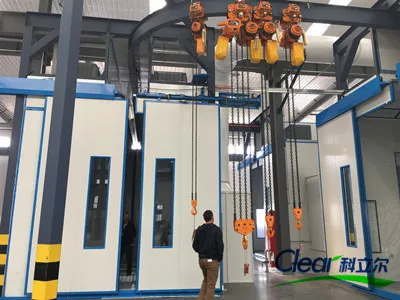

This project is the electric hoist painting line, total 2 paint booths, one for water curtain type, one for paper filter type. The electri hoist fit the work piece which is very heavy.
