LoRa/LoRaWAN DTU RS485 to RDI403 Edge Computing IoT LoRaWAN DTU
- Category: IoT Solutions & Products >>>
- Supplier: Beijing Manthink Technology Co. Ltd.
Share on (1600110050797):
Product Overview
Description
Product Description
Operating voltage | AC 85V~270VDC/12V |
Operating temperature | -40℃ ~ 85℃ |
Working humidity | 0%~95%RH |
Protection level | IP53 |
Power | <3W |
Overview

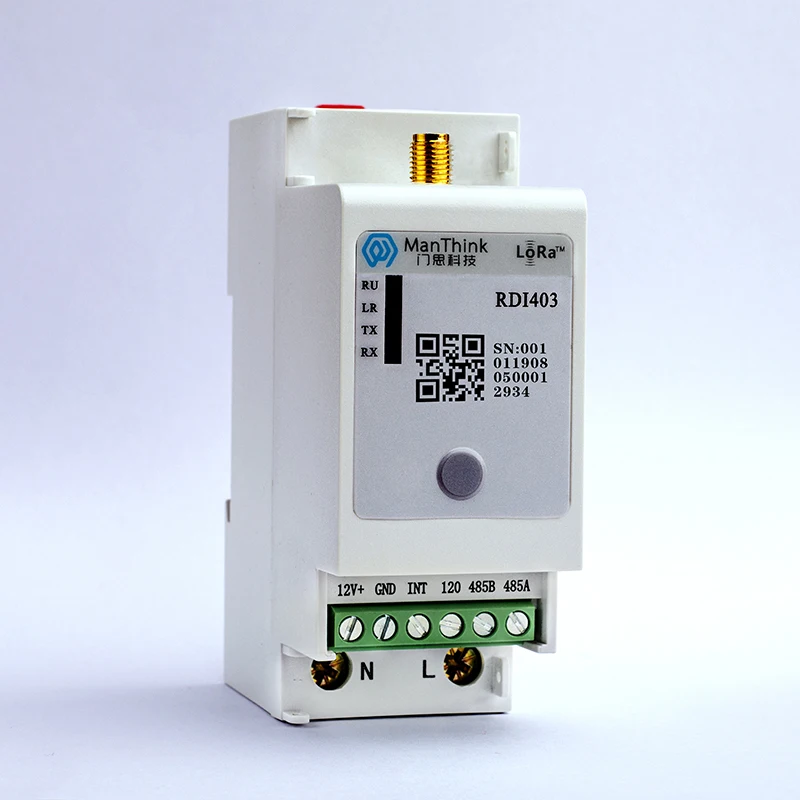

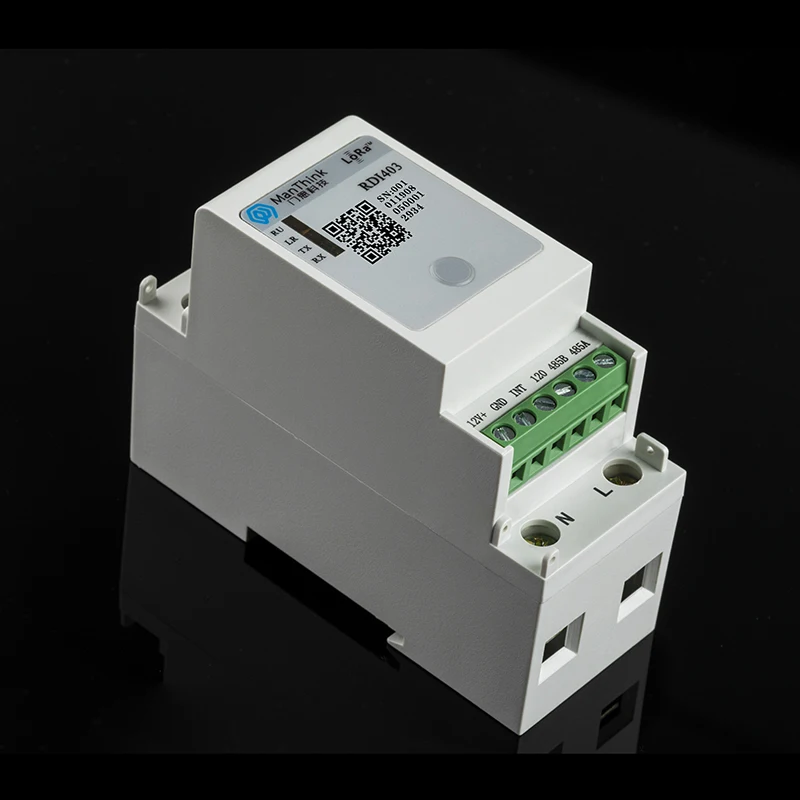

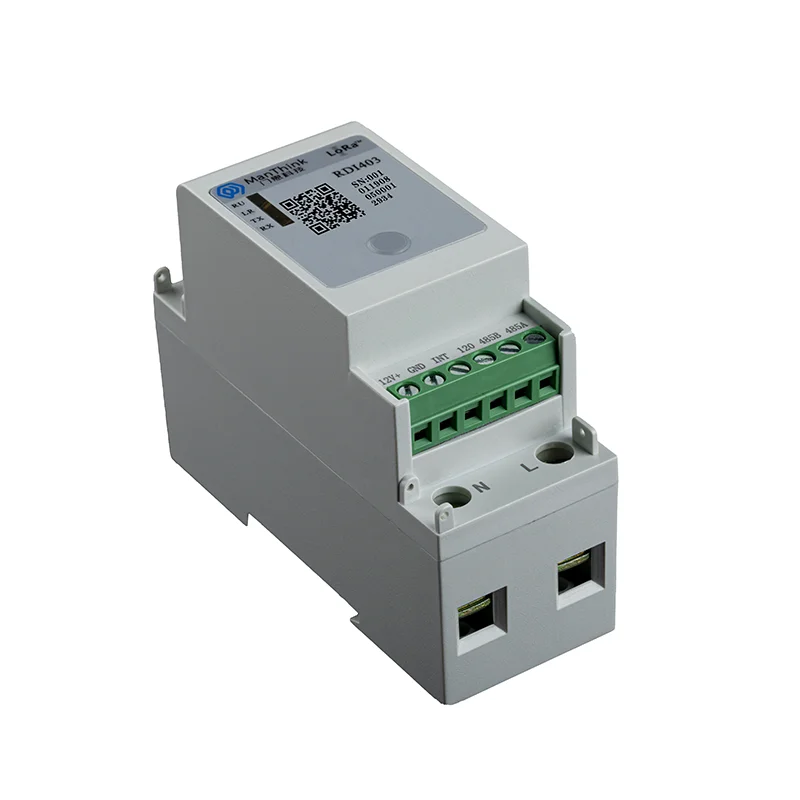

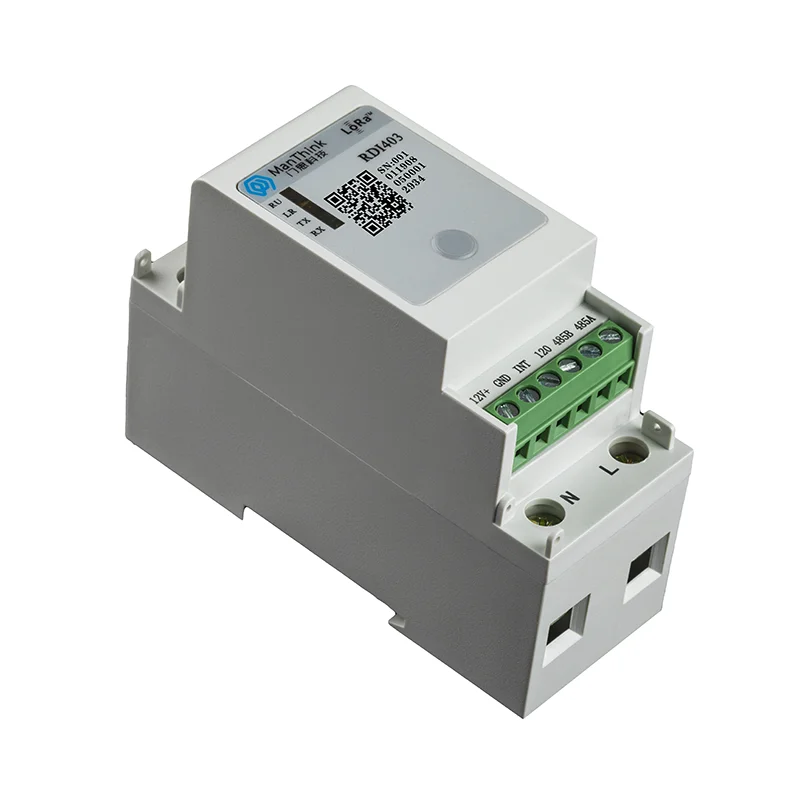

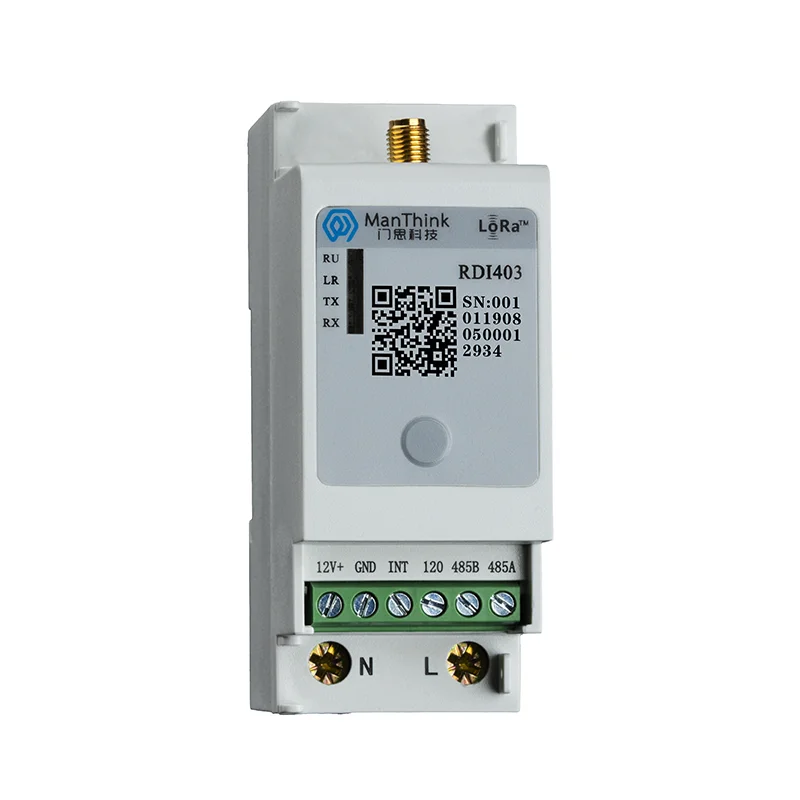

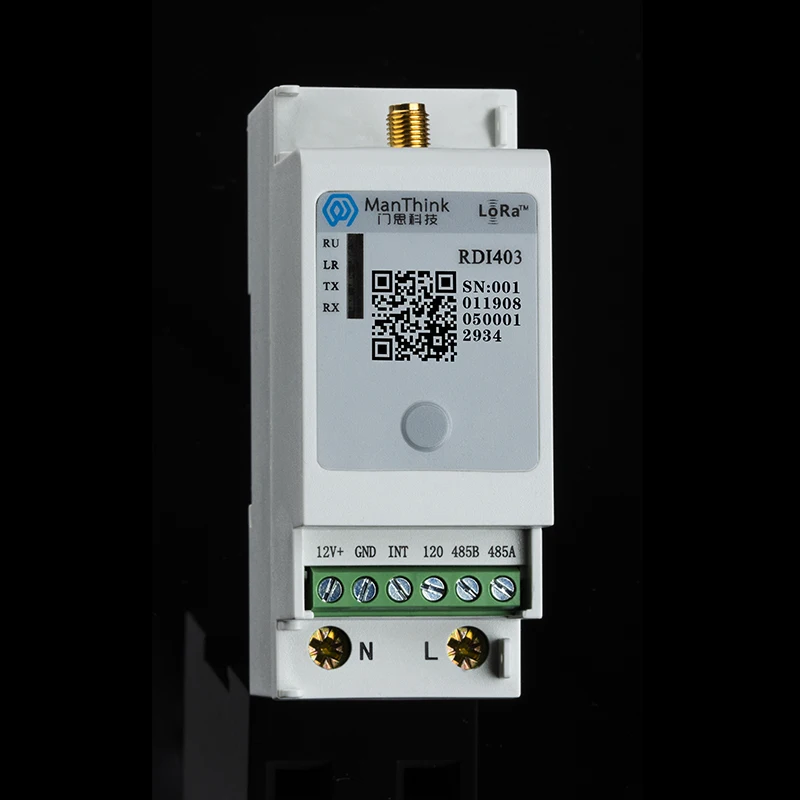

RDIx03 is a DTU of RS485-LoRaWAN independently developed by ManThink Technology Co. Ltd with highly flexible configuration and low power consumption. It is embedded with a high-performance MCU of NXP and a Radio chip SX127x of Semtech. It can get data from several slave devices by RS485 and uploading data to platform through LoRaWAN network.Users can quickly and flexibly configure DTU's working mode as needed,and quickly occupy the market.
Application
Industrial filed
Electricity IOT
Hydrometeorological monitoring
Environment protection, municipal administration engineer and other related scene
Characteristics
RS-485 supports various baud rates and verification methods,filtering noise data and retry when communication of RS-485 is timeout.
Supports communication with devices of different protocol types.
Support remote and field FUOTA upgrade
Support relay
Support multicast
Support precise timing
Industrial filed
Electricity IOT
Hydrometeorological monitoring
Environment protection, municipal administration engineer and other related scene
Characteristics
RS-485 supports various baud rates and verification methods,filtering noise data and retry when communication of RS-485 is timeout.
Supports communication with devices of different protocol types.
Support remote and field FUOTA upgrade
Support relay
Support multicast
Support precise timing
Working frequency\t410-510MHz,863-928MHz
Transmitting power\t20 ± 0.5dBm
Reception sensitivity\t-139dBm @292bps
Data transmission rate\t0.3~4.5kbps
Modulation mode\tLoRa
Supports LoRaWAN band\tCN470-510,EU863-870,AU915~928,AS923
Supports LinkWAN band\tCN470,AS923
Antenna impedance\t50Ω
Transmitting power\t20 ± 0.5dBm
Reception sensitivity\t-139dBm @292bps
Data transmission rate\t0.3~4.5kbps
Modulation mode\tLoRa
Supports LoRaWAN band\tCN470-510,EU863-870,AU915~928,AS923
Supports LinkWAN band\tCN470,AS923
Antenna impedance\t50Ω
Company Profile
ManThink technology Co. Ltd has focused on LoRa technology since 2013, is one of the ealiest LoRa Alliance member from 2015,and has developed more than 50 types of products based on LoRa/LoRaWAN for different LPWAN senario. More than 3,000,000 of our products are running smoothly all around the world.
We dedicate to helping users build their private LPWAN network based on LoRa/LoRaWAN,and provide all products of communication chain based on LPWAN technology including sensor,module,DTU,gateway,NS(network server),NMS(network management system) and MAP(multi-application platform).
ManThink supports customers to develop their applications based on module/ DTU which is integrated with an IOT OS(mpos) and an edge-computing frame named EdgeBus. By writting few even none codes on module/DTU's MCU, customers can develop applications easily and quickly,which extremely reduces the time of application from R&D to market.
ManThink is certificated as the national high-tech enterprise and our products are certificated by LoRaWAN、FCC、SRRC、NCC、CE.
We dedicate to helping users build their private LPWAN network based on LoRa/LoRaWAN,and provide all products of communication chain based on LPWAN technology including sensor,module,DTU,gateway,NS(network server),NMS(network management system) and MAP(multi-application platform).
ManThink supports customers to develop their applications based on module/ DTU which is integrated with an IOT OS(mpos) and an edge-computing frame named EdgeBus. By writting few even none codes on module/DTU's MCU, customers can develop applications easily and quickly,which extremely reduces the time of application from R&D to market.
ManThink is certificated as the national high-tech enterprise and our products are certificated by LoRaWAN、FCC、SRRC、NCC、CE.
